8
Managing Security

This chapter provides an overview of Oracle HTTP Server security features and configuration information for setting up a secure Web site using them.

Topics discussed are:

About Oracle HTTP Server Security

Security can be organized into the three categories of authentication, authorization, and confidentiality. Oracle HTTP Server provides support for all three of these categories. It is based on the Apache Web server, and its security infrastructure is primarily provided by the Apache modules, mod_auth and mod_access, and the Oracle modules, mod_ossl. mod_auth provides authentication based on user name and password pairs, mod_access controls access to the server based on the characteristics of a request, such as hostname or IP address, mod_ossl provides confidentiality and authentication with X.509 client certificates over SSL.

Based on the Apache model, Oracle HTTP Server provides access control, authentication, and authorization methods that can be configured with access control directives in the httpd.conf file. When URL requests arrive at Oracle HTTP Server, they are processed in a sequence of steps determined by server defaults and configuration parameters. The steps for handling URL requests are implemented through a module or plug-in architecture that is common to many Web listeners.

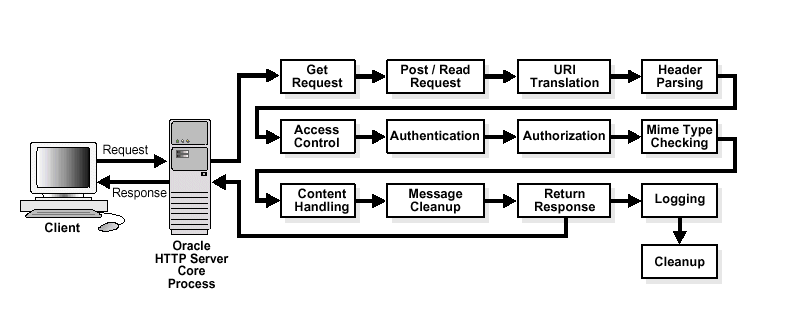

Figure 8-1 shows how URL requests are handled by the server. Each step in this process is handled by a server module depending on how the server is configured. For example, if basic authentication is used, then the steps labeled "Authentication" and "Authorization" in Figure 8-1 represent the processing of the mod_auth module.

Figure 8-1 Steps for Handling URL Requests in Oracle HTTP Server

Text description of ohsurlpr.gif follows.

Text description of the illustration ohsurlpr.gif

Classes of Users and Their Privileges

Oracle HTTP Server authorizes and authenticates users before allowing them to access, or modify resources on the server. Following are two classes of users that access the server using Oracle HTTP Server, and their privileges.

Resources Protected

Oracle HTTP Server is configured to protect resources such as:

Authentication and Authorization Enforcement

Oracle HTTP Server provides user authentication and authorization at two stages:

Host-based Access Control

Early in the request processing cycle, access control is applied, which can inhibit further processing based on the host name, IP address, or other characteristics such as browser type. You use the deny, allow, and order directives to set this type of access control. These restrictions are configured with Oracle HTTP Server configuration directives and can be based on particular files, directories, or URL formats using the <Files>, <Directory>, and <Location> container directives as shown in the Example 8-1:

Example 8-1 Host-based Access Control

<Directory /internalonly/>
  order deny, allow
  deny from all
  allow from 192.168.1 us.oracle.com
</Directory>

In Example 8-1, the order directive determines the order in which Oracle HTTP Server reads the conditions of the deny and allow directives. The deny directive ensures that all requests are denied access. Then, using the allow directive, requests originating from any IP address in the 192.168.1.* range, or with the domain name us.oracle.com are allowed access to files in the directory /internalonly/. It is common practice to specify both allow and deny in host-based authentication to make the access policy explicit.

If you want to match objects at the file system level, then you must use <Directory> or <Files>. If you want to match objects at the URL level, then you must use <Location>.


Note:

Allowing or restricting access based on a host name for Internet access is not considered a very good method of providing security, because host names are easy to spoof. While the same is true of IP addresses, sabotage is more difficult. However, setting access control with intranet IP address ranges is reasonable because the same risks do not apply. This assumes that your firewalls have been properly configured.


Access Control for Virtual Hosts

To set up access control for virtual hosts, place the AccessConfig directive inside a virtual host container in the server configuration file, httpd.conf. When used in a virtual host container, the AccessConfig directive specifies an access control policy contained in a file. Example 8-2 shows an excerpt from an httpd.conf file which provides the syntax for using AccessConfig this way:

Example 8-2 Using AccessConfig to Set Up Access Control

...
<VirtualHost ip_address_of_host.some_domain.com>
  ... virtual host directives ...
  AccessConfig conf/access.conf
</VirtualHost>

Using mod_access and mod_setenvif for Host-based Access Control

Using host-based access control schemes, you can control access to restricted areas based on where HTTP requests originate. Oracle HTTP Server uses mod_access and mod_setenvif to perform host-based access control. mod_access provides access control based on client hostname, IP address, or other characteristics of the client request, and mod_setenvif provides the ability to set environment variables based upon attributes of the request. When you enter configuration directives into the httpd.conf file that use these modules, the server fulfills or denies requests based on the address or name of the host, or based on the HTTP request header contents.

You can use host-based access control to protect static HTML pages, applications, or components.

Oracle HTTP Server supports four host-based access control schemes:

All of these allow you to specify the machines from which access to protected areas is granted or denied. Your decision to choose one or more of the host-based access control schemes is determined by which scheme most efficiently protects your restricted content and applications, or which scheme is easiest to maintain.

Controlling Access by IP Address

Controlling access with IP addresses is a preferred method of host-based access control. It does not require DNS lookups that consume time, system resources, and make your server vulnerable to DNS spoofing attacks.

Example 8-3 Controlling Access by IP Address

<Directory /secure_only/>
  order deny,allow
  deny from all
  allow from 207.175.42.*
</Directory>

In Example 8-3, requests originating from all IP addresses except 207.175.42.* range are denied access to the /secure_only/ directory.

Controlling Access by Domain Name

Domain name-based access control can be used with IP address-based access control to solve the problem of IP addresses changing without warning. When you combine these methods, if an IP address changes, then the secure areas of your site are still protected because the domain names you want to keep out will still be denied access.

To combine domain name-based with IP address-based access control, use the syntax shown in Example 8-4:

Example 8-4 controlling Access by Domain Name

<Directory /co_backgr/>
  order allow,deny
  allow from all
  # 141.217.24.* is the IP for malicious.cracker.com
  deny from malicious.cracker.com 141.217.24.*
</Directory>

In Example 8-4, all requests for directory /co_backgr/ are accepted except those that originate from the domain name malicious.cracker.com or the IP address 141.217.24.* range. Although this is not a fool proof precaution against domain name or IP address spoofing, it protects your site from malicious.cracker.com even if they change their IP address.

Controlling Access by Network or Netmask

You can control access based on subsets of networks, specified by IP address. The syntax is shown in Example 8-5:

Example 8-5 Controlling Access by Network or Netmask

<Directory /payroll/>
  order deny,allow
  deny from all
  allow from 10.1.0.0/255.255.0.0
</Directory>

In Example 8-5, access is allowed from a network/netmask pair. A netmask shows how an IP address is to be divided into network, subnet, and host identifiers. Netmasks enable you to refer to only the host ID portion of an IP address.

The netmask in Example 8-5, 255.255.0.0, is the default netmask setting for a Class B address. The binary ones (decimal 255) mask the network ID and the binary zeroes (decimal 0) retain the host ID of a given IP address.

Controlling Access with Environment Variables

You can use arbitrary environment variables for access control, instead of using IP addresses or domain names. Use BrowserMatch and SetEnvIf directives for this type of access control.


Note:

Typically, BrowserMatch and SetEnvIf are not used to implement security policies. Instead they are used to provide different handling of requests based on browser types and versions.


Use BrowserMatch when you want to base access on the type of browser used to send a request. For instance, if you want to allow access only to requests that come from a Netscape browser, then use the syntax shown in Example 8-6:

Example 8-6 Controlling Access with Environment Variables

BrowserMatch ^Mozilla netscape_browser
<Directory /mozilla-area/>
  order deny,allow
  deny from all
  allow from env=netscape_browser
</Directory>

Use SetEnvIf when you want to base access on header information contained in the HTTP request. For instance, if you want to deny access from any browsers using HTTP version 1.0 or earlier, then use the syntax shown in Example 8-7:

Example 8-7 Controlling Access with SetEnv

SetEnvIf Request_Protocol ^HTTP/1.1 http_11_ok
<Directory /http1.1only/>
  order deny,allow
  deny from all
  allow from env=http_11_ok
</Directory>



See Also: "Scope of Directives"

User Authentication and Authorization

Basic authentication prompts for a user name and password before serving an HTTP request. When a browser requests a page from a protected area, Oracle HTTP Server responds with an unauthorized message (status code 401) containing a WWW-Authenticate: header and the name of the realm configured by the configuration directive, AuthName. When the browser receives this response, it prompts for a user name and password. After the user enters a user name and password combination, the browser sends this information back to the server in an Authorization header. In the authorization header message, the user name and password are encoded as a base 64 encoded string.

User authorization involves checking the authenticated user against an access control list that is associated with a specific server resource such as a file or directory. To configure user authorization, place the require directive in the httpd.conf file, usually within a virtual host container. User authorization is commonly used in combination with user authentication. After the server has authenticated a user's user name and password, then the server compares the user to an access control list associated with the requested server resource. If Oracle HTTP Server finds the user or the user's group on the list, then the resource is made available to that user.

Using mod_auth to Authenticate Users

User authentication is based on user names and passwords that are checked against a list of known users and passwords. These user name and password pairs may be stored in a variety of forms, such as a text file, database, or directory service. Then configuration directives are used in httpd.conf to configure this type of user authentication on the server. mod_auth uses the AuthUserFile directive to set up basic authentication. It supports only files.

Any authentication scheme that you devise requires that you use a combination of the configuration directives listed in Table 8-1.

Table 8-1 Directives Descriptions
Directive Name Description

AuthName

Defines the name of the realm in which the user names and passwords are valid. Use quotation marks if the name includes spaces.

AuthType

Specifies the authentication type. Most authentication modules use basic authentication, which transmits user names and passwords in clear text. This is not recommended.

AuthUserFile

Specifies the path to a file that contains user names and passwords.

AuthGroupFile

Specifies the path to a file that contains group names and their members.

Using mod_ossl to Authenticate Users

Secure Sockets Layer (SSL) is an encrypted communication protocol that is designed to securely send messages across the Internet. It resides between Oracle HTTP Server on the application layer and the TCP/IP layer, transparently handling encryption and decryption when a secure connection is made by a client.

One common use of SSL is to secure Web HTTP communication between a browser and a Web server. This case does not preclude the use of non-secured HTTP. The secure version is simply HTTP over SSL (named HTTPS). The differences are that HTTPS uses the URL scheme https:// rather than http://, and its default communication port is 4443.

mod_ossl is a plug-in to Oracle HTTP Server that enables the server to use SSL. mod_ossl replaces mod_ssl in the Oracle HTTP Server distribution. Oracle no longer supports mod_ssl.

See Also:

"Using mod_ossl" for detailed information regarding mod_ossl.

Enabling SSL

By default, SSL is disabled when you install Oracle Database. If you want to enable SSL after installation, perform the following steps:

  1. Open opmn.xml in a text editor.
  2. In the <ias-component id=HTTP_Server> entry, change the start mode from "ssl-disabled" to "ssl-enabled". After modification is made, the entry should look like the following:
    <data id="start-mode" value="ssl-enabled"/>


  3. Save and close opmn.xml.
  4. Reload OPMN using the following command:
    opmnctl reload


  5. Stop Oracle HTTP Server using the following command:
    • UNIX: ORACLE_HOME/opmn/bin> opmnctl [verbose] stopproc ias-component=HTTP_Server
    • Windows: ORACLE_HOME\opmn\bin> opmnctl [verbose] stopproc ias-component=HTTP_Server
  6. Start Oracle HTTP Server using the following command:
    • UNIX: ORACLE_HOME/opmn/bin> opmnctl [verbose] startproc ias-component=HTTP_Server
    • Windows: ORACLE_HOME\opmn\bin> opmnctl [verbose] startproc ias-component=HTTP_Server
  7. You can verify if SSL was enabled successfully by navigating to the SSL port, for example:
    HTTPS://hostname:4443





    Note: The preceding steps enable SSL for Oracle HTTP Server using a default insecure certificate. To achieve completely secure SSL communication with Oracle HTTP Server, obtain and configure a real certificate within mod_ossl.

Security Services Implemented Within Oracle HTTP Server

Oracle HTTP Server provides security services that enable you to protect your server from unwanted users and malicious attacks. These security services ensure secure data exchanged between client and the server.

mod_ossl enables secure connections between Oracle HTTP Server and a browser client by using an Oracle-provided encryption mechanism over SSL. It also provides data integrity and strong authentication for users and HTTP servers.

Using mod_ossl

mod_ossl provides standard support for HTTPS protocol connections to Oracle Database. It enables secure connections between Oracle HTTP Server and a browser client by using an Oracle-provided encryption mechanism over SSL. It may also be used for authentication over the Internet through the use of digital certificate technology. It supports SSL v. 3.0, and provides:

Table 8-2 identifies the differences between mod_ossl, and mod_ssl.

Table 8-2 Differences between mod_ossl and mod_ssl
Feature mod_ossl mod_ssl

SSL versions supported

3.0

2.0, 3.0, TLS 1.0

Certificate management

Oracle WalletFoot 1, Foot 2

Text file

1 Oracle Wallet Manager is a tool that manages certificates for mod_ossl.
2 Supports obfuscated passwords.

The following mod_ssl directives listed are not supported by mod_ossl.

Using mod_ossl Directives

To configure SSL for your Oracle HTTP Server, enter the mod_ossl directives you want to use in the httpd.conf file.

The following directive are described in subsequent sections:

SSLAccelerator

Specifies if SSL accelerator is used. Currently only nFast card is supported.

Category Value

Valid Values

yes/no

Syntax

SSLAccelerator yes|no

Default

SSLAccelerator no

Context

server configuration

SSLCARevocationFile

Specifies the file where you can assemble the Certificate Revocation Lists (CRLs) from CAs (Certificate Authorities) that you accept certificates from. These are used for client authentication. Such a file is the concatenation of various PEM-encoded CRL files in order of preference. This directive can be used alternatively or additionally to SSLCARevocationPath.

Category Value

Syntax

SSLCARevocationFile file_name

Example

SSLCARevocationFile /ORACLE_HOME/Apache/conf/ssl.crl/ca_bundle.crl

Default

None

Context

server configuration, virtual host

SSLCARevocationPath

Specifies the directory where PEM-encoded Certificate Revocation Lists (CRLs) are stored. These CRLs come from the CAs (Certificate Authorities) that you accept certificates from. If a client attempts to authenticate itself with a certificate that is on one of these CRLs, then the certificate is revoked and the client cannot authenticate itself with your server.

Category Value

Syntax

SSLCARevocationPath path/to/CRL_directory/

Example

SSLCARevocationPath /ORACLE_HOME/Apache/conf/ssl.crl/

Default

None

Context

server configuration, virtual host

SSLCipherSuite

Specifies the SSL cipher suite that the client can use during the SSL handshake. This directive uses a colon-separated cipher specification string to identify the cipher suite. Table 8-3 shows the tags you can use in the string to describe the cipher suite you want.

Tags are joined together with prefixes to form cipher specification string.

Category Value

Valid Values

none: Adds the cipher to the list

+ : Adds the cipher to the list and place them in the correct location in the list

- : Remove the cipher from the list (can be added later)

! : Remove the cipher from the list permanently

Example

SSLCipherSuite ALL:!LOW:!DH

In this example, all ciphers are specified except low strength ciphers and those using the Diffie-Hellman key negotiation algorithm.

Syntax

SSLCipherSuite cipher-spec

Default

None

Context

server configuration, virtual host, directory

Table 8-3 SSLCipher Suite Tags
Function Tag Meaning

Key exchange

kRSA

RSA key exchange

Key exchange

kDHr

Diffie-Hellman key exchange with RSA key

Authentication

aNULL

No authentication

Authentication

aRSA

RSA authentication

Authentication

aDH

Diffie-Hellman authentication

Encryption

eNULL

No encryption

Encryption

DES

DES encoding

Encryption

3DES

Triple DES encoding

Encryption

RC4

RC4 encoding

Data Integrity

MD5

MD5 hash function

Data Integrity

SHA

SHA hash function

Aliases

SSLv3

All SSL version 3.0 ciphers

Aliases

EXP

All export ciphers

Aliases

EXP40

All 40-bit export ciphers only

Aliases

EXP56

All 56-bit export ciphers only

Aliases

LOW

All low strength ciphers (export and single DES)

Aliases

MEDIUM

All ciphers with 128-bit encryption

Aliases

HIGH

All ciphers using triple DES

Aliases

RSA

All ciphers using RSA key exchange

Aliases

DH

All ciphers using Diffie-Hellman key exchange


Note:

There are restrictions if export versions of browsers are used. Oracle module, mod_ossl, supports RC4-40 encryption only when the server uses 512 bit key size wallets.


Table 8-4 Cipher Suites Supported in Oracle Advanced Security 9i
Cipher Suite Authentication Encryption Data Integrity

SSL_RSA_WITH_3DES_EDE_CBC_SHA

RSA

3DES EDE CBC

SHA

SSL_RSA_WITH_RC4_128_SHA

RSA

RC4 128

SHA

SSL_RSA_WITH_RC4_128_MD5

RSA

RC4 128

MD5

SSL_RSA_WITH_DES_CBC_SHA

RSA

DES CBC

SHA

SSL_DH_anon_WITH_3DES_EDE_CBC_SHA

DH anon

3DES EDE CBC

SHA

SSL_DH_anon_WITH_RC4_128_MD5

DH anon

RC4 128

MD5

SSL_RSA_WITH_3DES_EDE_CBC_SHA

RSA

3DES EDE CBC

SHA

SSL_DH_anon_WITH_DES_CBC_SHA

DH anon

DES CBC

SHA

SSL_RSA_EXPORT_WITH_RC4_40_MD5

RSA

RC4 40

MD5

SSL_RSA_EXPORT_WITH_DES40_CBC_SHA

RSA

DES40 CBC

SHA

SSL_DH_anon_EXPORT_WITH_RC4_40_MD5

DH anon

RC4 40

MD5

SSL_DH_anon_EXPORT_WITH_DES40_CBC_SHA

DH anon

DES40 CBC

SHA

SSLEngine

Toggles the usage of the SSL Protocol Engine. This is usually used inside a <VirtualHost> section to enable SSL for a particular virtual host. By default, the SSL Protocol Engine is disabled for both the main server and all configured virtual hosts.

Example 8-8 Using SSL Engine Directive

<VirtualHost_dafault_:4443>
SSLEngine on
...
</VirtualHost>


Category Value
Syntax SSLEngine on|off
Default SSLEngine off
Context server configuration, virtual host
SSLLog

Specifies where the SSL engine log file will be written. (Error messages will also be duplicated to the standard Oracle HTTP Server log file specified by the ErrorLog directive.)

Place this file at a location where only root can write, so that it cannot be used for symlink attacks. If the filename does not begin with a slash (/), it is assumed to be relative to the ServerRoot. If the filename begins with a bar (|), then the string following the bar is expected to be a path to an executable program to which a reliable pipe can be established.

This directive should occur only once for each virtual server configuration.

Category Value

Syntax

SSLVerifyClient path/to/filename

Default

None

Context

server configuration, virtual host

SSLLogLevel

Specifies the verbosity degree of the SSL engine log file.

Category Value

Valid Values

The levels are (in ascending order, where each level is included in the levels preceding it):

  • none: No dedicated SSL logging is done. Messages of type 'error' are duplicated to the standard HTTP server log file specified by the ErrorLog directive.
  • error: Only messages of the type 'error' (conditions that stop processing) are logged.
  • warn: Messages that notify of non-fatal problems (conditions that do not stop processing) are logged.
  • info: Messages that summarize major processing actions are logged.
  • trace: Messages that summarize minor processing actions are logged.
  • debug: Messages that summarize development and low-level I/O operations are logged.

Syntax

SSLLogLevel level

Default

None

Context

server configuration, virtual host

SSLMutex

Type of semaphore (lock) for SSL engine's mutual exclusion of operations that have to be synchronized between Oracle HTTP Server processes.

Category Value

Valid Values

  • none: Uses no mutex at all. Not recommended, because the mutex synchronizes the write access to the SSL session cache. If you do not configure a mutex, the session cache can become garbled.
  • file:path/to/mutex: Uses a file for locking. The process ID (PID) of the Oracle HTTP Server parent process is appended to the filename to ensure uniqueness. If the filename does not begin with a slash (/), it is assumed to be relative to ServerRoot. This setting is not available on Windows.
  • sem: Uses an operating system semaphore to synchronize writes. On UNIX, it would be a Sys V IPC semaphore; on Windows, it is a Windows Mutex. This is the best choice, if the operating system supports it.

Example

SSLMutex file:/usr/local/apache/logs/ssl_mutex

Syntax

SSLMutex type

Default

SSLMutex none

Context

server configuration

SSLOptions

Controls various runtime options on a per-directory basis. In general, if multiple options apply to a directory, the most comprehensive option is applied (options are not merged). However, if all of the options in an SSLOptions directive are preceded by a plus ('+') or minus ('-') symbol, then the options are merged. Options preceded by a plus are added to the options currently in force, and options preceded by a minus are removed from the options currently in force.

Category Value

Valid Values

  • StdEnvVars: Creates the standard set of CGI/SSI environment variables that are related to SSL. This is disabled by default because the extraction operation uses a lot of CPU time and usually has no application when serving static content. Typically, you only enable this for CGI/SSI requests.
  • ExportCertData: Enables the following additional CGI/SSI variables:

    SSL_SERVER_CERT

    SSL_CLIENT_CERT

    SSL_CLIENT_CERT_CHAIN_n (where n= 0, 1, 2...)

    These variables contain the Privacy Enhanced Mail (PEM)-encoded X.509 certificates for the server and the client for the current HTTPS connection, and can be used by CGI scripts for deeper certificate checking. All other certificates of the client certificate chain are provided. This option is "Off" by default because there is a performance cost associated with using it.

    SSL_CLIENT_CERT_CHAIN_n variables are in the following order: SSL_CLIENT_CERT_CHAIN_0 is the intermediate CA who signs SSL_CLIENT_CERT. SSL_CLIENT_CERT_CHAIN_1 is the intermediate CA who signs SSL_CLIENT_CERT_CHAIN_0, and so forth, with SSL_CLIENT_ROOT_CERT as the root CA.

  • FakeBasicAuth: Translates the subject distinguished name of the client X.509 certificate into an HTTP basic authorization user name. This means that the standard HTTP server authentication methods can be used for access control. Note that no password is obtained from the user; the string 'password' is substituted.

Valid Values (for SSLOptions continued)

  • StrictRequire: Denies access when, according to SSLRequireSSL or SSLRequire directives, access should be forbidden. Without StrictRequire, it is possible for a 'Satisfy any' directive setting to override the SSLRequire or SSLRequireSSL directive, allowing access if the client passes the host restriction or supplies a valid user name and password.

    Thus, the combination of SSLRequireSSL or SSLRequire with SSLOptions +StrictRequire gives mod_ossl the ability to override a 'Satisfy any' directive in all cases.

  • CompatEnvVars: Exports obsolete environment variables for backward compatibility to Apache SSL 1.x, mod_ssl 2.0.x, Sioux 1.0, and Stronghold 2.x. Use this to provide compatibility to existing CGI scripts.
  • OptRenegotiate: This enables optimized SSL connection renegotiation handling when SSL directives are used in a per-directory context.

Syntax

SSLOptions [+-] option

Default

None

Context

server configuration, virtual host, directory

SSLPassPhraseDialog

Type of pass phrase dialog for wallet access. mod_ossl asks the administrator for a pass phrase in order to access the wallet.

Category Value

Valid Values

  • builtin: when the server is started, mod_ossl prompts for a password for each wallet.

    This cannot be used when Oracle HTTP Server is managed by OPMN. No user interaction is allowed when Oracle HTTP Server is started by OPMN.

  • exec:path/to/program - when the server is started, mod_ossl calls an external program configured for each wallet. This program is invoked with two arguments: servername:portnumber and RSA or DSA.

Syntax

SSLPassPhraseDialog type

Example

SSLPassPhraseDialog exec:/usr/local/apache/sbin/pfilter

Default

SSLPassPhraseDialog builtin

Context

server configuration

SSLProtocol

Specifies SSL protocol(s) for mod_ossl to use when establishing the server environment. Clients can only connect with one of the specified protocols.

Category Value

Valid Values

SSLv3

SSL version 3.0

Example

To specify only SSL version 3.0, set this directive to the following:

SSLProtocol +SSLv3

Syntax

SSLProtocol[+-] protocol

Default

SSLProtocol +SSLv3

Context

server configuration, virtual host

SSLRequire

Denies access unless an arbitrarily complex boolean expression is true. The expression must match the following syntax (given as a BNF grammar notation):

Category Value



expr ::= "true" | "false"
"!" expr
expr "&&" expr
expr "||" expr
"(" expr ")"



comp ::=word "==" word | word "eq" word
word "!=" word |word "ne" word
word "<" word |word "lt" word
word "<=" word |word "le" word
word ">" word |word "gt" word
word ">=" word |word "ge" word
word "=~" regex
word "!~" regex
wordlist ::= word
wordlist "," word



word ::= digit
cstring
variable
function



digit ::= [0-9]+



cstring ::= "..."



variable ::= "%{varname}"

Table 8-5 and Table 8-6 list standard and SSL variables. These are valid values for varname.



function ::= funcname "(" funcargs ")"

For funcname, the following function is available:

file(filename)

The file function takes one string argument, the filename, and expands to the contents of the file. This is useful for evaluating the file's contents against a regular expression.

Syntax

SSLRequire expression

Default

None

Context

directory

Table 8-5 lists the standard variables for SSLRequire varname.

Table 8-5 Standard Variables for SSLRequire Varname

Standard Variables

Standard Variables

Standard Variables

HTTP_USER_AGENT

PATH_INFO

AUTH_TYPE

HTTP_REFERER

QUERY_STRING

SERVER_SOFTWARE

HTTP_COOKIE

REMOTE_HOST

API_VERSION

HTTP_FORWARDED

REMOTE_IDENT

TIME_YEAR

HTTP_HOST

IS_SUBREQ

TIME_MON

HTTP_PROXY_CONNECTION

DOCUMENT_ROOT

TIME_DAY

HTTP_ACCEPT

SERVER_ADMIN

TIME_HOUR

HTTP:headername

SERVER_NAME

TIME_MIN

THE_REQUEST

SERVER_PORT

TIME_SEC

REQUEST_METHOD

SERVER_PROTOCOL

TIME_WDAY

REQUEST_SCHEME

REMOTE_ADDR

TIME

REQUEST_URI

REMOTE_USER

ENV:variablename

REQUEST_FILENAME





Table 8-6 lists the SSL variables for SSLRequire varname.

Table 8-6 SSL Variables for SSLRequire Varname

SSL Variables

SSL Variables

SSL Variables

HTTPS

SSL_PROTOCOL

SSL_CIPHER_ALGKEYSIZE

SSL_CIPHER

SSL_CIPHER_EXPORT

SSL_VERSION_INTERFACE

SSL_CIPHER_USEKEYSIZE

SSL_VERSION_LIBRARY

SSL_SESSION_ID

SSL_CLIENT_V_END

SSL_CLIENT_M_SERIAL

SSL_CLIENT_V_START

SSL_CLIENT_S_DN_ST

SSL_CLIENT_S_DN

SSL_CLIENT_S_DN_C

SSL_CLIENT_S_DN_CN

SSL_CLIENT_S_DN_O

SSL_CLIENT_S_DN_OU

SSL_CLIENT_S_DN_G

SSL_CLIENT_S_DN_T

SSL_CLIENT_S_DN_I

SSL_CLIENT_S_DN_UID

SSL_CLIENT_S_DN_S

SSL_CLIENT_S_DN_D

SSL_CLIENT_I_DN_C

SSL_CLIENT_S_DN_Email

SSL_CLIENT_I_DN

SSL_CLIENT_I_DN_O

SSL_CLIENT_I_DN_ST

SSL_CLIENT_I_DN_L

SSL_CLIENT_I_DN_T

SSL_CLIENT_I_DN_OU

SSL_CLIENT_I_DN_CN

SSL_CLIENT_I_DN_S

SSL_CLIENT_I_DN_I

SSL_CLIENT_I_DN_G

SSL_CLIENT_I_DN_Email

SSL_CLIENT_I_DN_D

SSL_CLIENT_I_DN_UID

SSL_CLIENT_CERT

SSL_CLIENT_CERT_CHAIN_n

SSL_CLIENT_ROOT_CERT

SSL_CLIENT_VERIFY

SSL_CLIENT_M_VERSION

SSL_SERVER_M_VERSION

SSL_SERVER_V_START

SSL_SERVER_V_END

SSL_SERVER_M_SERIAL

SSL_SERVER_S_DN_C

SSL_SERVERT_S_DN_ST

SSL_SERVER_S_DN

SSL_SERVER_S_DN_OU

SSL_SERVER_S_DN_CN

SSL_SERVER_S_DN_O

SSL_SERVER_S_DN_I

SSL_SERVER_S_DN_G

SSL_SERVER_S_DN_T

SSL_SERVER_S_DN_D

SSL_SERVER_S_DN_UID

SSL_SERVER_S_DN_S

SSL_SERVER_I_DN

SSL_SERVER_I_DN_C

SSL_SERVER_S_DN_Email

SSL_SERVER_I_DN_L

SSL_SERVER_I_DN_O

SSL_SERVER_I_DN_ST

SSL_SERVER_I_DN_CN

SSSL_SERVER_I_DN_T

SSL_SERVER_I_DN_OU

SSL_SERVER_I_DN_G

SSL_SERVER_I_DN_I



SSLRequireSSL

Denies access to clients not using SSL. This is a useful directive for absolute protection of a SSL-enabled virtual host or directories in which configuration errors could create security vulnerabilities.

Category Value

Syntax

SSLRequireSSL

Default

None

Context

directory

SSLSessionCache

Specifies the global/interprocess session cache storage type. The cache provides an optional way to speed up parallel request processing.

Category Value

Valid Values

  • none: disables the global/interprocess session cache. Produces no impact on functionality, but makes a major difference in performance.
  • shmht:/path/to/datafile[bytes]: Uses a high-performance hash table (bytes specifies approximate size) inside a shared memory segment in RAM, which is established by the /path/to/datafile. This hash table synchronizes the local SSL memory caches of the server processes.
  • shmcb:/path/to/datafile[bytes]: Uses a high-performance Shared Memory Cyclic Buffer (SHMCB) session cache to synchronize the local SSL memory caches of the server processes. The performance of shmcb is more uniform in all environments when compared to shmht.

Syntax

SSLSessionCache type

Examples

SSLSessionCache shmht: /ORACLE_HOME/Apache/Apache/logs/ssl_scache(512000)

SSLSessionCache shmcb: /ORACLE_HOME/Apache/Apache/logs/ssl_scache(512000)

Default

SSLSessionCache none

SSLSessionCacheTimeout

Specifies the number of seconds before a SSL session in the session cache expires.

Category Value

Syntax

SSLSessionCacheTimeout seconds

Default

300

Context

server configuration

SSLVerifyClient

Specifies whether or not a client must present a certificate when connecting.

Category Value

Valid Values

  • none: No client certificate is required
  • optional: Client may present a valid certificate
  • require: Client must present a valid certificate

Syntax

SSLVerifyClient level

Default

None

Context

server configuration, virtual host


Note:

The level optional_no_ca included with mod_ssl (in which the client can present a valid certificate, but it need not be verifiable) is not supported in mod_ossl.


SSLWallet

Specifies the location of the wallet with its WRL.

Category Value

Syntax

SSLWallet wrl

The format of wrl is: file:path to wallet

Example

SSLWallet file:/etc/ORACLE/WALLETS/server

Other values of wrl may be used as permitted by the Oracle SSL product.

Default

None

Context

server configuration, virtual host

SSLWalletPassword

Specifies the Wallet password needed to access the wallet specified within the same context. You can choose either a cleartext wallet password or an obfuscated password. The obfuscated password is created with the command line tool iasobf. If you must use a regular wallet, Oracle recommends that you use the obfuscated password instead of a cleartext password.

See Also:

"Using the iasobf Utility"

Category Value

Syntax

SSLWalletPassword password

If no password is required do not set this directive.

Note: If a wallet created with the Auto Login feature of Oracle Wallet Manager is used, then do not set this directive because these wallets do not require passwords.

Default

None

Context

server configuration, virtual host


Note:

SSLWalletPassword has been deprecated. A warning message is generated in the Oracle HTTP Server log if this directive is used.

For secure wallets, Oracle recommends that you get a SSO wallet instead. Refer to the Oracle Application Server 10g Security Guide for information on SSO wallet.


Using mod_proxy Directives

The following directives are for mod_proxy support only:

SSLProxyCache

Specifies whether the proxy cache will be used. The proxy will use the same session as the SSL server uses.

Category Value

Syntax

SSLProxyCache on/off

Default

SSLProxyCache off

Context

server configuration, virtual host

SSLProxyCipherSuite

Specifies the proxy server's cipher suite.

Category Value

Syntax

SSLCipherSuite cipher-spec

Default

None

Context

server configuration, virtual host

SSLProxyProtocol

Controls the proxy server's SSL protocol flavors.

Category Value

Syntax

SSLProxyProtocol [+-] protocol

Default

None

Context

server configuration, virtual host

SSLProxyWallet

Specifies the location of the wallet containing the certificates to use when opening proxy connections.

Category Value

Syntax

SSLProxyWallet wrl

Default

None

Context

server configuration, virtual host

SSLProxyWalletPassword

Specifies the proxy wallet password.

Category Value

Syntax

SSLProxyWalletPassword password

Default

None

Context

server configuration, virtual host


Note:

SSLProxyWalletPassword has been deprecated. A warning message is generated in the Oracle HTTP Server log if this directive is used.

For secure wallets, Oracle recommends that you get a SSO wallet instead.

Refer to the Oracle Application Server 10g Security Guide for information on SSO wallet.


Using mod_ossl Directives to Configure Client Authentication

This section provides instructions on how you can use the directives mentioned earlier to set up configurations that enable you to use client certificates for authenticating clients. Following are some scenarios:

Using the iasobf Utility

The iasobf utility enables you to generate an obfuscated wallet password from a cleartext password.

If you are using an Oracle Wallet that has been created with Auto Login enabled (an SSO wallet), then you do not need to use this utility. However, if you must use a regular wallet with a password, then Oracle recommends that you use the password obfuscation tool iasobf, which is located in ORACLE_HOME/Apache/Apache/bin, to generate an obfuscated wallet password from a cleartext password.

To generate an obfuscated wallet password, the command syntax is:

iasobf -p password

The obfuscated password is printed to the terminal. The arguments are optional. If you do not type them, the tool will prompt you for the password.


On Windows systems:

The corresponding tool for Windows environments is called osslpassword, which can be used in the same way as iasobf.
