Dependencies Among Schema Objects

The definitions of some objects, including views and procedures, reference other objects, such as tables. As a result, the objects being defined are dependent on the objects referenced in their definitions. This chapter discusses the dependencies among schema objects and how Oracle automatically tracks and manages these dependencies. It includes:

Introduction to Dependency Issues

Some types of schema objects can reference other objects as part of their definition. For example, a view is defined by a query that references tables or other views. A procedure's body can include SQL statements that reference other objects of a database. An object that references another object as part of its definition is called a dependent object, while the object being referenced is a referenced object. Figure 15-1 illustrates the different types of dependent and referenced objects:

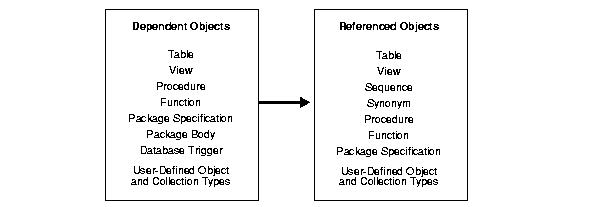

Figure 15-1 Types of Possible Dependent and Referenced Schema Objects

Text description of cncpt079.gif follows
Text description of the illustration cncpt079.gif

If you alter the definition of a referenced object, dependent objects may or may not continue to function without error, depending on the type of alteration. For example, if you drop a table, no view based on the dropped table is usable.

Oracle automatically records dependencies among objects to alleviate the complex job of dependency management for the database administrator and users. For example, if you alter a table on which several stored procedures depend, Oracle automatically recompiles the dependent procedures the next time the procedures are referenced (runrun or compiled against).

To manage dependencies among schema objects, all of the schema objects in a database have a status.

Oracle automatically tracks specific changes in the database and records the appropriate status for related objects in the data dictionary.

Status recording is a recursive process. Any change in the status of a referenced object changes the status not only for directly dependent objects, but also for indirectly dependent objects.

For example, consider a stored procedure that directly references a view. In effect, the stored procedure indirectly references the base tables of that view. Therefore, if you alter a base table, the view is invalidated, which then invalidates the stored procedure. Figure 15-2 illustrates indirect dependencies:

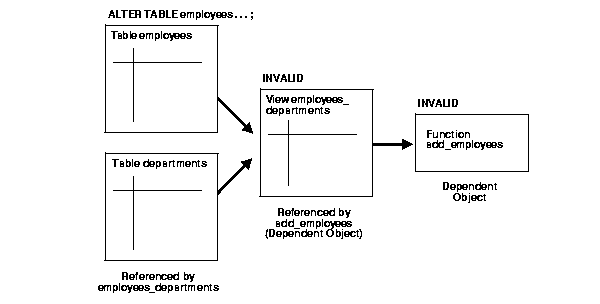

Figure 15-2 Indirect Dependencies

Text description of cncpt080.gif follows
Text description of the illustration cncpt080.gif

Resolution of Schema Object Dependencies

When a schema object is referenced directly in a SQL statement or indirectly through a reference to a dependent object, Oracle checks the status of the object explicitly specified in the SQL statement and any referenced objects, as necessary. Oracle's action depends on the status of the objects that are directly and indirectly referenced in a SQL statement:

Compilation of Views and PL/SQL Program Units

A view or PL/SQL program unit can be compiled and made valid if the following conditions are satisfied:

Views and Base Tables

A view depends on the base tables or views referenced in its defining query. If the defining query of a view is not explicit about which columns are referenced, for example, SELECT * FROM table, then the defining query is expanded when stored in the data dictionary to include all columns in the referenced base table at that time.

If a base table or view of a view is altered, renamed, or dropped, then the view is invalidated, but its definition remains in the data dictionary along with the privileges, synonyms, other objects, and other views that reference the invalid view.


Whenever you create a table, index, and view, and then drop the index, all objects dependent on that table are invalidated, including views, packages, package bodies, functions, and procedures.

An attempt to use an invalid view automatically causes Oracle to recompile the view dynamically. After replacing the view, the view might be valid or invalid, depending on the following conditions:

Program Units and Referenced Objects

Oracle automatically invalidates a program unit when the definition of a referenced object is altered. For example, assume that a standalone procedure includes several statements that reference a table, a view, another standalone procedure, and a public package procedure. In that case, the following conditions hold:

Data Warehousing Considerations

Some data warehouses drop indexes on tables at night to facilitate faster loads. However, all views dependent on the table whose index is dropped get invalidated. This means that subsequently running any package that reference these dropped views will invalidate the package.

Remember that whenever you create a table, index, and view, and then drop the index, all objects dependent on that table are invalidated, including views, packages, package bodies, functions, and procedures. This protects updatable join views.

To make the view valid again, use one of the following statements:

SELECT * FROM vtest;


ALTER VIEW vtest compile

Session State and Referenced Packages

Each session that references a package construct has its own instance of that package, including a persistent state of any public and private variables, cursors, and constants. All of a session's package instantiations including state can be lost if any of the session's instantiated packages are subsequently invalidated and recompiled.

Security Authorizations

Oracle notices when a DML object or system privilege is granted to or revoked from a user or PUBLIC and automatically invalidates all the owner's dependent objects. Oracle invalidates the dependent objects to verify that an owner of a dependent object continues to have the necessary privileges for all referenced objects. Internally, Oracle notes that such objects do not have to be recompiled. Only security authorizations need to be validated, not the structure of any objects. This optimization eliminates unnecessary recompilations and prevents the need to change a dependent object's time stamp.

See Also:

Oracle9i Application Developer's Guide - Fundamentals for information about forcing the recompilation of an invalid view or program unit

Function-Based Index Dependencies

Function-based indexes depend on functions used in the expression that defines the index. If a PL/SQL function or package function is changed, then the index is marked as disabled.

This section discusses requirements for function-based indexes and what happens when a function is changed in any manner, such as when it is dropped or privileges to use it are revoked.


To create a function-based index:

To use a function-based index:

The following sections describe additional requirements.

See Also:

"Function-Based Indexes"


Any user-written function used in a function-based index must have been declared with the DETERMINISTIC keyword to indicate that the function will always return the same output return value for any given set of input argument values, now and in the future.

See Also:

Oracle9i Database Performance Tuning Guide and Reference

Privileges on the Defining Function

The index owner needs the EXECUTE privilege on the function used to define a function-based index. If the EXECUTE privilege is revoked, Oracle marks the index DISABLED. The index owner does not need the EXECUTE WITH GRANT OPTION privilege on this function to grant SELECT privileges on the underlying table.

Resolve Dependencies of Function-Based Indexes

A function-based index depends on any function that it is using. If the function or the specification of a package containing the function is redefined (or if the index owner's EXECUTE privilege is revoked), then the following conditions hold:

To re-enable the index after a change to the function, use the ALTER INDEX ... ENABLE statement.

Object Name Resolution

Object names referenced in SQL statements can consist of several pieces, separated by periods. The following describes how Oracle resolves an object name.

  1. Oracle attempts to qualify the first piece of the name referenced in the SQL statement. For example, in hr.employees, hr is the first piece. If there is only one piece, then the one piece is considered the first piece.
    1. In the current schema, Oracle searches for an object whose name matches the first piece of the object name. If it does not find such an object, then it continues with step b.
    2. Oracle searches for a public synonym that matches the first piece of the name. If it does not find one, then it continues with step c.
    3. Oracle searches for a schema whose name matches the first piece of the object name. If it finds one, then it returns to step b, now using the second piece of the name as the object to find in the qualified schema. If the second piece does not correspond to an object in the previously qualified schema or there is not a second piece, then Oracle returns an error.

    If no schema is found in step c, then the object cannot be qualified and Oracle returns an error.

  2. A schema object has been qualified. Any remaining pieces of the name must match a valid part of the found object. For example, if hr.employees.department_id is the name, then hr is qualified as a schema, employees is qualified as a table, and department_id must correspond to a column (because employees is a table). If employees is qualified as a package, then department_id must correspond to a public constant, variable, procedure, or function of that package.

Because of how Oracle resolves references, it is possible for an object to depend on the nonexistence of other objects. This situation occurs when the dependent object uses a reference that would be interpreted differently were another object present.

See Also:

Oracle9i Database Administrator's Guide

Shared SQL Dependency Management

In addition to managing dependencies among schema objects, Oracle also manages dependencies of each shared SQL area in the shared pool. If a table, view, synonym, or sequence is created, altered, or dropped, or a procedure or package specification is recompiled, all dependent shared SQL areas are invalidated. At a subsequent execution of the cursor that corresponds to an invalidated shared SQL area, Oracle reparses the SQL statement to regenerate the shared SQL area.

Local and Remote Dependency Management

Tracking dependencies and completing necessary recompilations are performed automatically by Oracle. Local dependency management occurs when Oracle manages dependencies among the objects in a single database. For example, a statement in a procedure can reference a table in the same database.

Remote dependency management occurs when Oracle manages dependencies in distributed environments across a network. For example, an Oracle Forms trigger can depend on a schema object in the database. In a distributed database, a local view's defining query can reference a remote table.

Management of Local Dependencies

Oracle manages all local dependencies using the database's internal dependency table, which keeps track of each schema object's dependent objects. When a referenced object is modified, Oracle uses the depends-on table to identify dependent objects, which are then invalidated.

For example, assume a stored procedure UPDATE_SAL references the table JWARD.employees. If the definition of the table is altered in any way, the status of every object that references JWARD.employees is changed to INVALID, including the stored procedure UPDATE_SAL. As a result, the procedure cannot be run until it has been recompiled and is valid. Similarly, when a DML privilege is revoked from a user, every dependent object in the user's schema is invalidated. However, an object that is invalid because authorization was revoked can be revalidated by "reauthorization," in which case it does not require full recompilation.

Management of Remote Dependencies

Oracle also manages application-to-database and distributed database dependencies. For example, an Oracle Forms application might contain a trigger that references a table, or a local stored procedure might call a remote procedure in a distributed database system. The database system must account for dependencies among such objects. Oracle uses different mechanisms to manage remote dependencies, depending on the objects involved.

Dependencies Among Local and Remote Database Procedures

Dependencies among stored procedures including functions, packages, and triggers in a distributed database system are managed using time stamp checking or signature checking.

The dynamic initialization parameter REMOTE_DEPENDENCIES_MODE determines whether time stamps or signatures govern remote dependencies.

See Also:

Oracle9i Application Developer's Guide - Fundamentals for details about managing remote dependencies with time stamps or signatures

Time stamp Checking

In the time stamp checking dependency model, whenever a procedure is compiled or recompiled its time stamp (the time it is created, altered, or replaced) is recorded in the data dictionary. The time stamp is a record of the time the procedure is created, altered, or replaced. Additionally, the compiled version of the procedure contains information about each remote procedure that it references, including the remote procedure's schema, package name, procedure name, and time stamp.

When a dependent procedure is used, Oracle compares the remote time stamps recorded at compile time with the current time stamps of the remotely referenced procedures. Depending on the result of this comparison, two situations can occur:

Actual time stamp comparison occurs when a statement in the body of a local procedure runs a remote procedure. Only at this moment are the time stamps compared using the distributed database's communications link. Therefore, all statements in a local procedure that precede an invalid procedure call might run successfully. Statements subsequent to an invalid procedure call do not run at all. Compilation is required. However, any DML statements run before the invalid procedure call are rolled back.

Signature Checking

Oracle provides the additional capability of remote dependencies using signatures. The signature capability affects only remote dependencies. Local dependencies are not affected, as recompilation is always possible in this environment.

The signature of a procedure contains information about the following items:

If the signature dependency model is in effect, a dependency on a remote program unit causes an invalidation of the dependent unit if the dependent unit contains a call to a procedure in the parent unit, and the signature of this procedure has been changed in an incompatible manner. A program unit can be a package, stored procedure, stored function, or trigger.

Dependencies Among Other Remote Schema Objects

Oracle does not manage dependencies among remote schema objects other than local-procedure-to-remote-procedure dependencies.

For example, assume that a local view is created and defined by a query that references a remote table. Also assume that a local procedure includes a SQL statement that references the same remote table. Later, the definition of the table is altered.

As a result, the local view and procedure are never invalidated, even if the view or procedure is used after the table is altered, and even if the view or procedure now returns errors when used In this case, the view or procedure must be altered manually so that errors are not returned. In such cases, lack of dependency management is preferable to unnecessary recompilations of dependent objects.

Dependencies of Applications

Code in database applications can reference objects in the connected database. For example, OCI, precompiler, and SQL*Module applications can submit anonymous PL/SQL blocks. Triggers in Oracle Forms applications can reference a schema object.

Such applications are dependent on the schema objects they reference. Dependency management techniques vary, depending on the development environment.

See Also:

Manuals for your application development tools and your operating system for more information about managing the remote dependencies within database applications
