SQL, PL/SQL, and Java

This chapter provides an overview of the Structured Query Language (SQL), PL/SQL, Oracle's procedural extension to SQL, and Java. The chapter includes:

SQL Overview

SQL is a database access, nonprocedural language. Users describe in SQL what they want done, and the SQL language compiler automatically generates a procedure to navigate the database and perform the desired task.

IBM Research developed and defined SQL, and ANSI/ISO has refined SQL as the standard language for relational database management systems.The minimal conformance level for SQL-99 is known as Core. Core SQL-99 is a superset of SQL-92 Entry Level specification. Oracle9i is broadly compatible with the SQL-99 Core specification.

Oracle SQL includes many extensions to the ANSI/ISO standard SQL language, and Oracle tools and applications provide additional statements. The Oracle tools SQL*Plus and Oracle Enterprise Manager let you run any ANSI/ISO standard SQL statement against an Oracle database, as well as additional statements or functions that are available for those tools.

Oracle SQLJ lets applications programmers embed static SQL operations in Java code in a way that is compatible with the Java design philosophy. A SQLJ program is a Java program containing embedded static SQL statements that comply with the ANSI-standard SQLJ Language Reference syntax.

Although some Oracle tools and applications simplify or mask SQL use, all database operations are performed using SQL. Any other data access method circumvents the security built into Oracle and potentially compromise data security and integrity.

See Also:

SQL Statements

All operations performed on the information in an Oracle database are run using SQL statements. A statement consists partially of SQL reserved words, which have special meaning in SQL and cannot be used for any other purpose. For example, SELECT and UPDATE are reserved words and cannot be used as table names.

A SQL statement is a computer program or instruction. The statement must be the equivalent of a complete SQL sentence, as in:

SELECT last_name, department_id FROM employees;

Only a complete SQL statement can be run. A fragment such as the following generates an error indicating that more text is required before a SQL statement can run:

SELECT last_name

Oracle SQL statements are divided into the following categories:

Data Manipulation Language Statements

Data manipulation language (DML) statements query or manipulate data in existing schema objects. They enable you to:

DML statements are the most frequently used SQL statements. Some examples of DML statements are:

SELECT last_name, manager_id, commission_pct + salary FROM employees;

    (1234, 'DAVIS', 'SALESMAN', 7698, '14-FEB-1988', 1600, 500, 30);

DELETE FROM employees WHERE last_name IN ('WARD','JONES');

Data Definition Language Statements

Data definition language (DDL) statements define, alter the structure of, and drop schema objects. DDL statements enable you to:

DDL statements implicitly commit the preceding and start a new transaction. Some examples of DDL statements are:


DROP TABLE plants;

GRANT SELECT ON employees TO scott;

REVOKE DELETE ON employees FROM scott;
See Also:

Transaction Control Statements

Transaction control statements manage the changes made by DML statements and group DML statements into transactions. They enable you to:

Session Control Statements

Session control statements manage the properties of a particular user's session. For example, they enable you to:

System Control Statements

System control statements change the properties of the Oracle server instance. The only system control statement is ALTER SYSTEM. It enables you to change settings (such as the minimum number of shared servers), kill a session, and perform other tasks.

Embedded SQL Statements

Embedded SQL statements incorporate DDL, DML, and transaction control statements within a procedural language program. They are used with the Oracle precompilers. Embedded SQL statements enable you to:

Identification of Nonstandard SQL

Oracle provides extensions to the standard SQL database language with integrity enhancement. The Federal Information Processing Standard for SQL (FIPS 127-2) requires vendors to supply a method for identifying SQL statements that use such extensions. You can identify or flag Oracle extensions in interactive SQL, the Oracle precompilers, or SQL*Module by using the FIPS flagger.

If you are concerned with the portability of your applications to other implementations of SQL, use the FIPS flagger.

See Also:

Recursive SQL

When a DDL statement is issued, Oracle implicitly issues recursive SQL statements that modify data dictionary information. Users need not be concerned with the recursive SQL internally performed by Oracle.


A cursor is a handle or name for a private SQL area--an area in memory in which a parsed statement and other information for processing the statement are kept.

Although most Oracle users rely on the automatic cursor handling of the Oracle utilities, the programmatic interfaces offer application designers more control over cursors. In application development, a cursor is a named resource available to a program and can be used specifically to parse SQL statements embedded within the application.

Each user session can open multiple cursors up to the limit set by the initialization parameter OPEN_CURSORS. However, applications should close unneeded cursors to conserve system memory. If a cursor cannot be opened due to a limit on the number of cursors, then the database administrator can alter the OPEN_CURSORS initialization parameter.

Some statements (primarily DDL statements) require Oracle to implicitly issue recursive SQL statements, which also require recursive cursors. For example, a CREATE TABLE statement causes many updates to various data dictionary tables to record the new table and columns. Recursive calls are made for those recursive cursors; one cursor can run several recursive calls. These recursive cursors also use shared SQL areas.

Scrollable Cursors

Execution of a cursor puts the results of the query into a set of rows called the result set, which can be fetched sequentially or nonsequentially. Scrollable cursors are cursors in which fetches and DML operations do not need to be forward sequential only. Interfaces exist to fetch previously fetched rows, to fetch the nth row in the result set, and to fetch the nth row from the current position in the result set.

See Also:

Oracle Call Interface Programmer's Guide for more information about using scrollable cursors in OCI

Shared SQL

Oracle automatically notices when applications send similar SQL statements to the database. The SQL area used to process the first occurrence of the statement is shared--that is, used for processing subsequent occurrences of that same statement. Therefore, only one shared SQL area exists for a unique statement. Because shared SQL areas are shared memory areas, any Oracle process can use a shared SQL area. The sharing of SQL areas reduces memory use on the database server, thereby increasing system throughput.

In evaluating whether statements are similar or identical, Oracle considers SQL statements issued directly by users and applications as well as recursive SQL statements issued internally by a DDL statement.

See Also:

Oracle9i Application Developer's Guide - Fundamentals and Oracle9i Database Performance Tuning Guide and Reference for more information about shared SQL


Parsing is one stage in the processing of a SQL statement. When an application issues a SQL statement, the application makes a parse call to Oracle. During the parse call, Oracle:

Oracle also determines whether there is an existing shared SQL area containing the parsed representation of the statement in the library cache. If so, the user process uses this parsed representation and runs the statement immediately. If not, Oracle generates the parsed representation of the statement, and the user process allocates a shared SQL area for the statement in the library cache and stores its parsed representation there.

Note the difference between an application making a parse call for a SQL statement and Oracle actually parsing the statement. A parse call by the application associates a SQL statement with a private SQL area. After a statement has been associated with a private SQL area, it can be run repeatedly without your application making a parse call. A parse operation by Oracle allocates a shared SQL area for a SQL statement. Once a shared SQL area has been allocated for a statement, it can be run repeatedly without being reparsed.

Both parse calls and parsing can be expensive relative to execution, so perform them as seldom as possible.

See Also:

"PL/SQL Overview"

SQL Processing

This section introduces the basics of SQL processing. Topics include:

SQL Statement Execution

Figure 14-1 outlines the stages commonly used to process and run a SQL statement. In some cases, Oracle can run these stages in a slightly different order. For example, the DEFINE stage could occur just before the FETCH stage, depending on how you wrote your code.

For many Oracle tools, several of the stages are performed automatically. Most users need not be concerned with or aware of this level of detail. However, this information could be useful when writing Oracle applications.

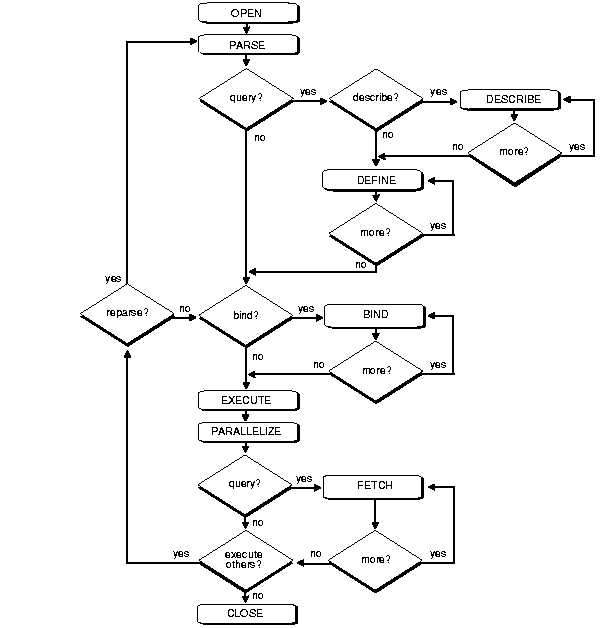

Figure 14-1 The Stages in Processing a SQL Statement

Text description of cncpt105.gif follows
Text description of the illustration cncpt105.gif

DML Statement Processing

This section provides an example of what happens during the execution of a SQL statement in each stage of DML statement processing.

Assume that you are using a Pro*C program to increase the salary for all employees in a department. The program you are using has connected to Oracle and you are connected to the proper schema to update the employees table. You can embed the following SQL statement in your program:

EXEC SQL UPDATE employees SET salary = 1.10 * salary
    WHERE department_id = :department_id;

Department_id is a program variable containing a value for department number. When the SQL statement is run, the value of department_id is used, as provided by the application program.

The following stages are necessary for each type of statement processing:

Optionally, you can include another stage:

Queries (SELECTs) require several additional stages, as shown in Figure 14-1:

Stage 1: Create a Cursor

A program interface call creates a cursor. The cursor is created independent of any SQL statement: it is created in expectation of any SQL statement. In most applications, cursor creation is automatic. However, in precompiler programs, cursor creation can either occur implicitly or be explicitly declared.

Stage 2: Parse the Statement

During parsing, the SQL statement is passed from the user process to Oracle, and a parsed representation of the SQL statement is loaded into a shared SQL area. Many errors can be caught during this stage of statement processing.

Parsing is the process of:

Oracle parses a SQL statement only if a shared SQL area for an similar SQL statement does not exist in the shared pool. In this case, a new shared SQL area is allocated, and the statement is parsed.

The parse stage includes processing requirements that need to be done only once no matter how many times the statement is run. Oracle translates each SQL statement only once, reexecuting that parsed statement during subsequent references to the statement.

Although parsing a SQL statement validates that statement, parsing only identifies errors that can be found before statement execution. Thus, some errors cannot be caught by parsing. For example, errors in data conversion or errors in data (such as an attempt to enter duplicate values in a primary key) and deadlocks are all errors or situations that can be encountered and reported only during the execution stage.

See Also:

"Shared SQL"

Query Processing

Queries are different from other types of SQL statements because, if successful, they return data as results. Whereas other statements simply return success or failure, a query can return one row or thousands of rows. The results of a query are always in tabular format, and the rows of the result are fetched (retrieved), either a row at a time or in groups.

Several issues relate only to query processing. Queries include not only explicit SELECT statements but also the implicit queries (subqueries) in other SQL statements. For example, each of the following statements requires a query as a part of its execution:


UPDATE table SET x = y WHERE...



In particular, queries:

Stage 3: Describe Results of a Query

The describe stage is necessary only if the characteristics of a query's result are not known; for example, when a query is entered interactively by a user. In this case, the describe stage determines the characteristics (datatypes, lengths, and names) of a query's result.

Stage 4: Define Output of a Query

In the define stage for queries, you specify the location, size, and datatype of variables defined to receive each fetched value. Oracle performs datatype conversion if necessary.

Stage 5: Bind Any Variables

At this point, Oracle knows the meaning of the SQL statement but still does not have enough information to run the statement. Oracle needs values for any variables listed in the statement; in the example, Oracle needs a value for department_id. The process of obtaining these values is called binding variables.

A program must specify the location (memory address) where the value can be found. End users of applications may be unaware that they are specifying bind variables, because the Oracle utility can simply prompt them for a new value.

Because you specify the location (binding by reference), you need not rebind the variable before reexecution. You can change its value and Oracle looks up the value on each execution, using the memory address.

You must also specify a datatype and length for each value (unless they are implied or defaulted) if Oracle needs to perform datatype conversion.

See Also:

for more information about specifying a datatype and length for a value

Stage 6: Parallelize the Statement

Oracle can parallelize queries (SELECTs, INSERTs, UPDATEs, MERGEs, DELETEs), and some DDL operations such as index creation, creating a table with a subquery, and operations on partitions. Parallelization causes multiple server processes to perform the work of the SQL statement so it can complete faster.

See Also:

Chapter 18, "Parallel Execution of SQL Statements"

Stage 7: Run the Statement

At this point, Oracle has all necessary information and resources, so the statement is run. If the statement is a query or an INSERT statement, no rows need to be locked because no data is being changed. If the statement is an UPDATE or DELETE statement, however, all rows that the statement affects are locked from use by other users of the database until the next COMMIT, ROLLBACK, or SAVEPOINT for the transaction. This ensures data integrity.

For some statements you can specify a number of executions to be performed. This is called array processing. Given n number of executions, the bind and define locations are assumed to be the beginning of an array of size n.

Stage 8: Fetch Rows of a Query

In the fetch stage, rows are selected and ordered (if requested by the query), and each successive fetch retrieves another row of the result until the last row has been fetched.

Stage 9: Close the Cursor

The final stage of processing a SQL statement is closing the cursor.

DDL Statement Processing

The execution of DDL statements differs from the execution of DML statements and queries, because the success of a DDL statement requires write access to the data dictionary. For these statements, parsing (Stage 2) actually includes parsing, data dictionary lookup, and execution.

Transaction management, session management, and system management SQL statements are processed using the parse and run stages. To rerun them, simply perform another execute.

Control of Transactions

In general, only application designers using the programming interfaces to Oracle are concerned with the types of actions that should be grouped together as one transaction. Transactions must be defined so that work is accomplished in logical units and data is kept consistent. A transaction should consist of all of the necessary parts for one logical unit of work, no more and no less.

For example, a transfer of funds between two accounts (the transaction or logical unit of work) should include the debit to one account (one SQL statement) and the credit to another account (one SQL statement). Both actions should either fail or succeed together as a unit of work; the credit should not be committed without the debit. Other unrelated actions, such as a new deposit to one account, should not be included in the transfer of funds transaction.

In addition to determining which types of actions form a transaction, when you design an application you must also determine when it is useful to use the BEGIN_DISCRETE_TRANSACTION procedure to improve the performance of short, non-distributed transactions.

See Also:

"Discrete Transaction Management"

The Optimizer Overview

The optimizer determines the most efficient way to run a SQL statement. This is an important step in the processing of any data manipulation language (DML) statement: SELECT, INSERT, UPDATE, MERGE, or DELETE. There are often many different ways to run a SQL statement; for example, by varying the order in which tables or indexes are accessed. The procedure Oracle uses to run a statement can greatly affect how quickly the statement runs. The optimizer considers many factors among alternative access paths. It can use either a cost-based or a rule-based approach. In general, always use the cost-based approach. The rule-based approach is available for the benefit of existing applications.


The optimizer might not make the same decisions from one version of Oracle to the next. In recent versions, the optimizer might make different decisions based on better information available to it.

You can influence the optimizer's choices by setting the optimizer approach and goal. You can also gather statistics for the cost-based optimizer (CBO), using the PL/SQL package DBMS_STATS.

Sometimes the application designer, who has more information about a particular application's data than is available to the optimizer, can choose a more effective way to run a SQL statement. The application designer can use hints in SQL statements to specify how the statement should be run.

See Also:

Execution Plans

To run a DML statement, Oracle might need to perform many steps. Each of these steps either retrieves rows of data physically from the database or prepares them in some way for the user issuing the statement. The combination of the steps Oracle uses to run a statement is called an execution plan. An execution plan includes an access method for each table that the statement accesses and an ordering of the tables (the join order). The steps of the execution plan are not performed in the order in which they are numbered.

Stored Outlines

Stored outlines are abstractions of an execution plan generated by the optimizer at the time the outline was created and are represented primarily as a set of hints. When the outline is subsequently used, these hints are applied at various stages of compilation. Outline data is stored in the OUTLN schema. You can tune execution plans by editing stored outlines.

Editing Stored Outlines

The outline is cloned into the user's schema at the onset of the outline editing session. All subsequent editing operations are performed on that clone until the user is satisfied with the edits and chooses to publicize them. In this way, any editing done by the user does not impact the rest of the user community, which would continue to use the public version of the outline until the edits are explicitly saved.

See Also:

Oracle9i Database Performance Tuning Guide and Reference for details about execution plans and using stored outlines

PL/SQL Overview

PL/SQL is Oracle's procedural language extension to SQL. PL/SQL enables you to mix SQL statements with procedural constructs. With PL/SQL, you can define and run PL/SQL program units such as procedures, functions, and packages.

PL/SQL program units generally are categorized as anonymous blocks and stored procedures.

An anonymous block is a PL/SQL block that appears within your application and it is not named or stored in the database. In many applications, PL/SQL blocks can appear wherever SQL statements can appear.

A stored procedure is a PL/SQL block that Oracle stores in the database and can be called by name from an application. When you create a stored procedure, Oracle parses the procedure and stores its parsed representation in the database. Oracle also lets you create and store functions (which are similar to procedures) and packages (which are groups of procedures and functions).

See Also:

"Java Overview"

Chapter 17, "Triggers"

How PL/SQL Runs

Native Execution

For best performance on computationally intensive program units, compile the source code of PL/SQL program units stored in the database directly to object code for the given platform. (This object code is linked into the Oracle server.)

See Also:

PL/SQL User's Guide and Reference

Interpreted Execution

In versions earlier than Oracle9i, PL/SQL source code was always compiled into a so-called bytecode representation, which is executed by a portable virtual machine implemented as part of the Oracle Server, and also in products such as Oracle Forms. Starting with Oracle9i, you can choose between native execution and interpreted execution

The PL/SQL engine is the tool you use to define, compile, and run PL/SQL program units. This engine is a special component of many Oracle products, including the Oracle server.

While many Oracle products have PL/SQL components, this section specifically covers the program units that can be stored in an Oracle database and processed using the Oracle server PL/SQL engine. The PL/SQL capabilities of each Oracle tool are described in the appropriate tool's documentation.

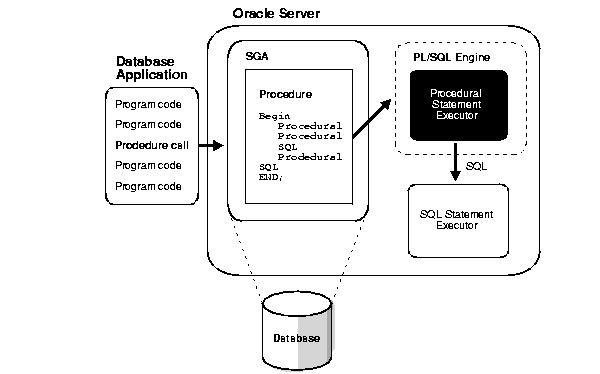

Figure 14-2 illustrates the PL/SQL engine contained in Oracle server.

Figure 14-2 The PL/SQL Engine and the Oracle Server

Text description of cncpt070.gif follows
Text description of the illustration cncpt070.gif

The program unit is stored in a database. When an application calls a procedure stored in the database, Oracle loads the compiled program unit into the shared pool in the system global area (SGA). The PL/SQL and SQL statement executors work together to process the statements within the procedure.

The following Oracle products contain a PL/SQL engine:

You can call a stored procedure from another PL/SQL block, which can be either an anonymous block or another stored procedure. For example, you can call a stored procedure from Oracle Forms (version 3 or later).

Also, you can pass anonymous blocks to Oracle from applications developed with these tools:

Language Constructs for PL/SQL

PL/SQL blocks can include the following PL/SQL language constructs:

This section gives a general description of each construct.

See Also:

PL/SQL User's Guide and Reference

Variables and Constants

Variables and constants can be declared within a procedure, function, or package. A variable or constant can be used in a SQL or PL/SQL statement to capture or provide a value when one is needed.


Some interactive tools, such as SQL*Plus, let you define variables in your current session. You can use such variables just as you would variables declared within procedures or packages.


Cursors can be declared explicitly within a procedure, function, or package to facilitate record-oriented processing of Oracle data. Cursors also can be declared implicitly (to support other data manipulation actions) by the PL/SQL engine.

See Also:

"Scrollable Cursors"


PL/SQL lets you explicitly handle internal and user-defined error conditions, called exceptions, that arise during processing of PL/SQL code. Internal exceptions are caused by illegal operations, such as division by zero, or Oracle errors returned to the PL/SQL code. User-defined exceptions are explicitly defined and signaled within the PL/SQL block to control processing of errors specific to the application (for example, debiting an account and leaving a negative balance).

When an exception is raised, the execution of the PL/SQL code stops, and a routine called an exception handler is invoked. Specific exception handlers can be written for any internal or user-defined exception.

Dynamic SQL in PL/SQL

PL/SQL can run dynamic SQL statements whose complete text is not known until runtime. Dynamic SQL statements are stored in character strings that are entered into, or built by, the program at runtime. This enables you to create general purpose procedures. For example, dynamic SQL lets you create a procedure that operates on a table whose name is not known until runtime.

You can write stored procedures and anonymous PL/SQL blocks that include dynamic SQL in two ways:

Additionally, you can issue DML or DDL statements using dynamic SQL. This helps solve the problem of not being able to statically embed DDL statements in PL/SQL. For example, you can choose to issue a DROP TABLE statement from within a stored procedure by using the EXECUTE IMMEDIATE statement or the PARSE procedure supplied with the DBMS_SQL package.

See Also:

PL/SQL Program Units

Oracle lets you access and manipulate database information using procedural schema objects called PL/SQL program units. Procedures, functions, and packages are all examples of PL/SQL program units.

Stored Procedures and Functions

A procedure or function is a schema object that consists of a set of SQL statements and other PL/SQL constructs, grouped together, stored in the database, and run as a unit to solve a specific problem or perform a set of related tasks. Procedures and functions permit the caller to provide parameters that can be input only, output only, or input and output values. Procedures and functions let you combine the ease and flexibility of SQL with the procedural functionality of a structured programming language.

Procedures and functions are identical except that functions always return a single value to the caller, while procedures do not. For simplicity, procedure as used in the remainder of this chapter means procedure or function.

You can run a procedure or function interactively by:

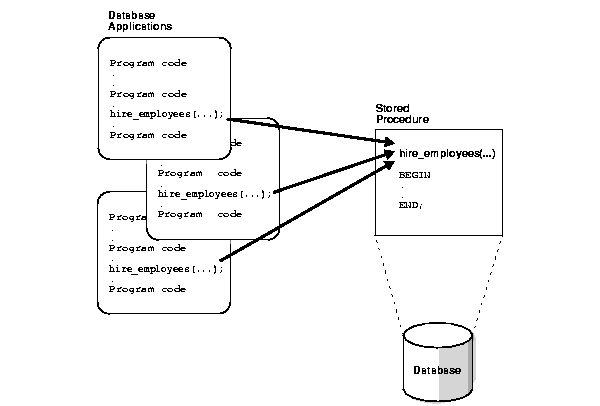

Figure 14-3 illustrates a simple procedure that is stored in the database and called by several different database applications.

Figure 14-3 Stored Procedure

Text description of cncpt073.gif follows
Text description of the illustration cncpt073.gif

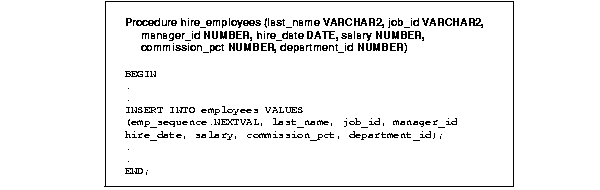

The stored procedure in Figure 14-3, which inserts an employee record into the employees table, is shown in Figure 14-4.

Figure 14-4 Stored Procedure Example

Text description of cncpt074.gif follows
Text description of the illustration cncpt074.gif

All of the database applications in Figure 14-3 call the hire_employees procedure. Alternatively, a privileged user can use Oracle Enterprise Manager or SQL*Plus to run the hire_employees procedure using the following statement:

EXECUTE hire_employees ('TSMITH', 'CLERK', 1037, SYSDATE, \ 500, NULL, 20);

This statement places a new employee record for TSMITH in the employees table.

See Also:

PL/SQL User's Guide and Reference

Benefits of Procedures

Stored procedures provide advantages in the following areas:

Procedure Guidelines

Use the following guidelines when designing stored procedures:

Anonymous PL/SQL Blocks Compared with Stored Procedures

A stored procedure is created and stored in the database as a schema object. Once created and compiled, it is a named object that can be run without recompiling. Additionally, dependency information is stored in the data dictionary to guarantee the validity of each stored procedure.

As an alternative to a stored procedure, you can create an anonymous PL/SQL block by sending an unnamed PL/SQL block to the Oracle server from an Oracle tool or an application. Oracle compiles the PL/SQL block and places the compiled version in the shared pool of the SGA, but it does not store the source code or compiled version in the database for reuse beyond the current instance. Shared SQL allows anonymous PL/SQL blocks in the shared pool to be reused and shared until they are flushed out of the shared pool.

In either case, moving PL/SQL blocks out of a database application and into database procedures stored either in the database or in memory, you avoid unnecessary procedure recompilations by Oracle at runtime, improving the overall performance of the application and Oracle.

Standalone Procedures

Stored procedures not defined within the context of a package are called standalone procedures. Procedures defined within a package are considered a part of the package.

See Also:

"PL/SQL Packages" for information about the advantages of packages

Dependency Tracking for Stored Procedures

A stored procedure depends on the objects referenced in its body. Oracle automatically tracks and manages such dependencies. For example, if you alter the definition of a table referenced by a procedure, the procedure must be recompiled to validate that it will continue to work as designed. Usually, Oracle automatically administers such dependency management.

See Also:

Chapter 15, "Dependencies Among Schema Objects" for more information about dependency tracking

External Procedures

A PL/SQL procedure executing on an Oracle server can call an external procedure or function that is written in the C programming language and stored in a shared library. The C routine runs in a separate address space from that of the Oracle server.

See Also:

Oracle9i Application Developer's Guide - Fundamentals for more information about external procedures

Table Functions

Table functions are functions that can produce a set of rows as output. In other words, table functions return a collection type instance (nested table and VARRAY datatypes). You can use a table function in place of a regular table in the FROM clause of a SQL statement.

Oracle allows table functions to pipeline results (act like an Oracle rowsource) out of the functions. This can be achieved by either providing an implementation of the ODCITable interface, or using native PL/SQL instructions.

Pipelining helps to improve the performance of a number of applications, such as Oracle Warehouse Builder (OWB) and cartridges groups.

The ETL (Extraction-Transformation-Load) process in data warehouse building extracts data from an OLTP system. The extracted data passes through a sequence of transformations (written in procedural languages, such as PL/SQL) before it is loaded into a data warehouse.

Oracle also allows parallel execution of table and non-table functions. Parallel execution provides the following extensions:

Thus, table functions are similar to views. However, instead of defining the transform declaratively in SQL, you define it procedurally in PL/SQL. This is especially valuable for the arbitrarily complex transformations typically required in ETL.

See Also:

for detailed accounts of table functions

PL/SQL Packages

A package is a group of related procedures and functions, together with the cursors and variables they use, stored together in the database for continued use as a unit. Similar to standalone procedures and functions, packaged procedures and functions can be called explicitly by applications or users.

You create a package in two parts: the specification and the body. The package specification declares all public constructs of the package and the body defines all constructs (public and private) of the package. This separation of the two parts provides the following advantages:

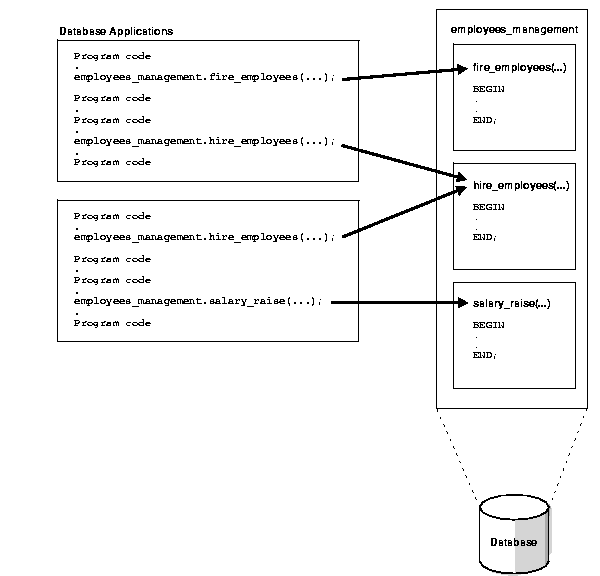

Figure 14-5 illustrates a package that encapsulates a number of procedures used to manage an employee database.

Figure 14-5 A Stored Package

Text description of cncpt075.gif follows
Text description of the illustration cncpt075.gif

Database applications explicitly call packaged procedures as necessary. After being granted the privileges for the employees_management package, a user can explicitly run any of the procedures contained in it. For example, Oracle Enterprise Manager or SQL*Plus can issue the following statement to run the hire_employees package procedure:

EXECUTE employees_management.hire_employees ('TSMITH', 'CLERK', 1037, SYSDATE,
500, NULL, 20);

See Also:
Benefits of Packages

Packages provide advantages in the following areas:

PL/SQL Collections and Records

Many programming techniques use collection types such as arrays, bags, lists, nested tables, sets, and trees. To support these techniques in database applications, PL/SQL provides the datatypes TABLE and VARRAY, which allow you to declare index-by tables, nested tables and variable-size arrays.


A collection is an ordered group of elements, all of the same type. Each element has a unique subscript that determines its position in the collection.

Collections work like the arrays found in most third-generation programming languages. Also, collections can be passed as parameters. So, you can use them to move columns of data into and out of database tables or between client-side applications and stored subprograms.


You can use the %ROWTYPE attribute to declare a record that represents a row in a table or a row fetched from a cursor. But, with a user-defined record, you can declare fields of your own.

Records contain uniquely named fields, which can have different datatypes. Suppose you have various data about an employee such as name, salary, and hire date. These items are dissimilar in type but logically related. A record containing a field for each item lets you treat the data as a logical unit.

See Also:

PL/SQL User's Guide and Reference for detailed information on using collections and records

PL/SQL Server Pages

PL/SQL Server Pages (PSP) are server-side Web pages (in HTML or XML) with embedded PL/SQL scripts marked with special tags. To produce dynamic Web pages, developers have usually written CGI programs in C or Perl that fetch data and produce the entire Web page within the same program. The development and maintenance of such dynamic pages is costly and time-consuming.

Scripting fulfills the demand for rapid development of dynamic Web pages. Small scripts can be embedded in HTML pages without changing their basic HTML identity. The scripts contain the logic to produce the dynamic portions of HTML pages and are run when the pages are requested by the users.

The separation of HTML content from application logic makes script pages easier to develop, debug, and maintain. The simpler development model, along the fact that scripting languages usually demand less programming skill, enables Web page writers to develop dynamic Web pages.

There are two kinds of embedded scripts in HTML pages: client-side scripts and server-side scripts. Client-side scripts are returned as part of the HTML page and are run in the browser. They are mainly used for client-side navigation of HTML pages or data validation. Server-side scripts, while also embedded in the HTML pages, are run on the server side. They fetch and manipulate data and produce HTML content that is returned as part of the page. PSP scripts are server-side scripts.

A PL/SQL gateway receives HTTP requests from an HTTP client, invokes a PL/SQL stored procedure as specified in the URL, and returns the HTTP output to the client. A PL/SQL Server Page is processed by a PSP compiler, which compiles the page into a PL/SQL stored procedure. When the procedure is run by the gateway, it generates the Web page with dynamic content. PSP is built on one of two existing PL/SQL gateways:

Java Overview

Java has emerged as the object-oriented programming language of choice, because it is object-oriented and efficient for application-level programs. It includes the following features:

Java and Object-Oriented Programming Terminology

This section covers some basic terminology of Java application development in the Oracle environment. The terms should be familiar to experienced Java programmers.


All object-oriented programming languages support the concept of a class. As with a table definition, a class provides a template for objects that share common characteristics. Each class can contain the following:

When you create an object from a class, you are creating an instance of that class. The instance contains the fields of an object, which are known as its data, or state.

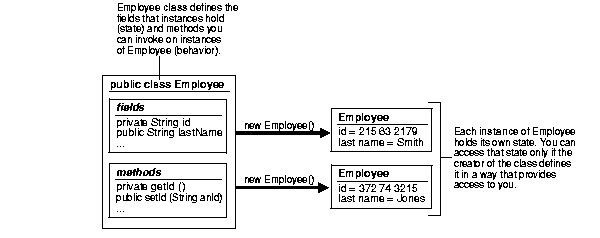

Figure 14-6 shows an example of an Employee class defined with two attributes: last name (lastName) and employee identifier (ID).

Figure 14-6 Classes and Instances

Text description of jjdev001.gif follows
Text description of the illustration jjdev001.gif

When you create an instance, the attributes store individual and private information relevant only to the employee. That is, the information contained within an employee instance is known only for that single employee. The example in Figure 14-6 shows two instances of employee--Smith and Jones. Each instance contains information relevant to the individual employee.


Attributes within an instance are known as fields. Instance fields are analogous to the fields of a relational table row. The class defines the fields, as well as the type of each field. You can declare fields in Java to be static, public, private, protected, or default access.

The language specification defines the rules of visibility of data for all fields. Rules of visibility define under what circumstances you can access the data in these fields.


The class also defines the methods you can invoke on an instance of that class. Methods are written in Java and define the behavior of an object. This bundling of state and behavior is the essence of encapsulation, which is a feature of all object-oriented programming languages. If you define an Employee class, declaring that each employee's id is a private field, other objects can access that private field only if a method returns the field. In this example, an object could retrieve the employee's identifier by invoking the Employee.getId() method.

In addition, with encapsulation, you can declare that the Employee.getId()method is private, or you can decide not to write an Employee.getId() method. Encapsulation helps you write programs that are reusable and not misused. Encapsulation makes public only those features of an object that are declared public; all other fields and methods are private. Private fields and methods can be used for internal object processing.

Class Hierarchy

Java defines classes within a large hierarchy of classes. At the top of the hierarchy is the Object class. All classes in Java inherit from the Object class at some level, as you walk up through the inheritance chain of superclasses. When we say Class B inherits from Class A, each instance of Class B contains all the fields defined in class B, as well as all the fields defined in Class A. For example, in Figure 14-7, the FullTimeEmployee class contains the id and lastName fields defined in the Employee class, because it inherits from the Employee class. In addition, the FullTimeEmployee class adds another field, bonus, which is contained only within FullTimeEmployee.

You can invoke any method on an instance of Class B that was defined in either Class A or B. In our employee example, the FullTimeEmployee instance can invoke methods defined only within its own class, or methods defined within the Employee class.

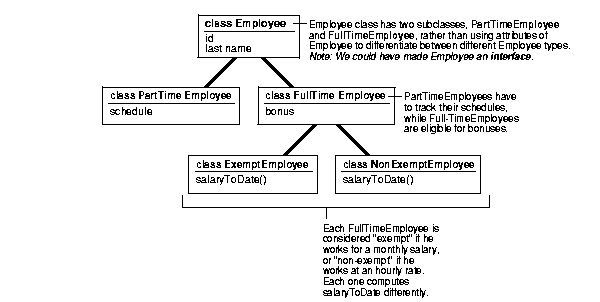

Figure 14-7 Using Inheritance to Localize Behavior and State

Text description of jjdev002.gif follows
Text description of the illustration jjdev002.gif

Instances of Class B are substitutable for instances of Class A, which makes inheritance another powerful construct of object-oriented languages for improving code reuse. You can create new classes that define behavior and state where it makes sense in the hierarchy, yet make use of pre-existing functionality in class libraries.


Java supports only single inheritance; that is, each class has one and only one class from which it inherits. If you must inherit from more than one source, Java provides the equivalent of multiple inheritance, without the complications and confusion that usually accompany it, through interfaces. Interfaces are similar to classes; however, interfaces define method signatures, not implementations. The methods are implemented in classes declared to implement an interface. Multiple inheritance occurs when a single class simultaneously supports many interfaces.


Assume in our Employee example that the different types of employees must be able to respond with their compensation to date. Compensation is computed differently for different kinds of employees.

In traditional procedural languages, you would write a long switch statement, with the different possible cases defined.

switch: (employee.type) {
case: Employee
return employee.salaryToDate;
case: FullTimeEmployee
return employee.salaryToDate + employee.bonusToDate

If you add a new kind of Employee, you must update your switch statement. If you modify your data structure, you must modify all switch statements that use it.

In an object-oriented language such as Java, you implement a method, compensationToDate(), for each subclass of Employee class that requires any special treatment beyond what is already defined in Employee class. For example, you could implement the compensationToDate() method of NonExemptEmployee, as follows:

private float compensationToDate() {
return super.compensationToDate() + this.overtimeToDate();

You implement FullTimeEmployee's method, as follows:

private float compensationToDate() {
return super.compensationToDate() + this.bonusToDate();

The common usage of the method name compensationToDate() lets you invoke the identical method on different classes and receive different results, without knowing the type of employee you are using. You do not have to write a special method to handle FullTimeEmployees and PartTimeEmployees. Thisability for the different objects to respond to the identical message in different ways is known as polymorphism.

In addition, you could create an entirely new class that does not inherit from Employee at all--Contractor--and implement a compensationToDate() method in it. A program that calculates total payroll to date would iterate over all people on payroll, regardless of whether they were full-time, part-time, or contractors, and add up the values returned from invoking the compensationToDate() method on each. You can safely make changes to the individual compensationToDate() methods with the knowledge that callers of the methods will work correctly. For example, you can safely add new fields to existing classes.

The Java Virtual Machine (JVM)

As with other high-level computer languages, your Java source compiles to low-level machine instructions. In Java, these instructions are known as bytecodes (because their size is uniformly one byte of storage). Most other languages--such as C--compile to machine-specific instructions--such as instructions specific to an Intel or HP processor. Your Java source compiles to a standard, platform-independent set of bytecodes, which interacts with a Java virtual machine (JVM). The JVM is a separate program that is optimized for the specific platform on which you execute your Java code. Figure 14-8 illustrates how Java can maintain platform independence. Your Java source is compiled into bytecodes, which are platform independent. Each platform has installed a JVM that is specific to its operating system. The Java bytecodes from your source get interpreted through the JVM into appropriate platform dependent actions.

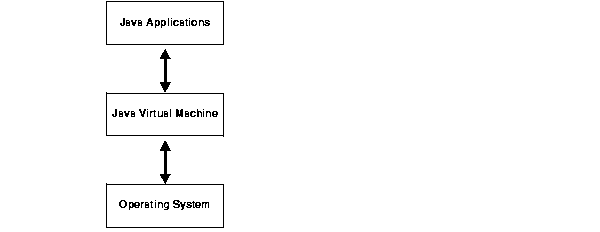

Figure 14-8 Java Component Structure

Text description of jjdev003.gif follows
Text description of the illustration jjdev003.gif

When you develop a Java program, you use predefined core class libraries written in the Java language. The Java core class libraries are logically divided into packages that provide commonly-used functionality, such as basic language support (java.lang), I/O (, and network access ( Together, the JVM and core class libraries provide a platform on which Java programmers can develop with the confidence that any hardware and operating system that supports Java will execute their program. This concept is what drives the "write once, run anywhere" idea of Java.

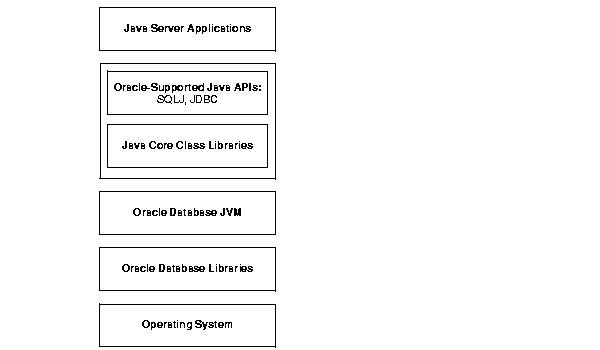

Figure 14-9 illustrates how Oracle's Java applications sit on top of the Java core class libraries, which in turn sit on top of the JVM. Because Oracle's Java support system is located within the database, the JVM interacts with the Oracle database libraries, instead of directly with the operating system.

Figure 14-9 Java Component Structure

Text description of jjdev004.gif follows
Text description of the illustration jjdev004.gif

Sun Microsystems furnishes publicly available specifications for both the Java language and the JVM. The Java Language Specification (JLS) defines things such as syntax and semantics; the JVM specification defines the necessary low-level behavior for the "machine" that executes the bytecodes. In addition, Sun Microsystems provides a compatibility test suite for JVM implementors to determine if they have complied with the specifications. This test suite is known as the Java Compatibility Kit (JCK). Oracle's JVM implementation complies fully with JCK. Part of the overall Java strategy is that an openly specified standard, together with a simple way to verify compliance with that standard, allows vendors to offer uniform support for Java across all platforms.

Why Use Java in Oracle?

The only reason that you are allowed to write and load Java applications within the database is because it is a safe language. Java has been developed to prevent anyone from tampering with the operating system that the Java code resides in. Some languages, such as C, can introduce security problems within the database; Java, because of its design, is a safe language to allow within the database.

Although the Java language presents many advantages to developers, providing an implementation of a JVM that supports Java server applications in a scalable manner is a challenge. This section discusses some of these challenges.


Multithreading support is often cited as one of the key scalability features of the Java language. Certainly, the Java language and class libraries make it simpler to write shared server applications in Java than many other languages, but it is still a daunting task in any language to write reliable, scalable shared server code.

As a database server, Oracle efficiently schedules work for thousands of users. The Oracle JVM uses the facilities of the RDBMS server to concurrently schedule Java execution for thousands of users. Although Oracle supports Java language level threads required by the JLS and JCK, using threads within the scope of the database will not increase your scalability. Using the embedded scalability of the database eliminates the need for writing shared server Java servers. You should use the database's facilities for scheduling users by writing single-threaded Java applications. The database takes care of the scheduling between each application; thus, you achieve scalability without having to manage threads. You can still write shared server Java applications, but multiple Java threads does not increase your server's performance.

One difficulty multithreading imposes on Java is the interaction of threads and automated storage management, or garbage collection. The garbage collector executing in a generic JVM has no knowledge of which Java language threads are executing or how the underlying operating system schedules them.

Automated Storage Management

Garbage collection is a major feature of Java's automated storage management, eliminating the need for Java developers to allocate and free memory explicitly. Consequently, this eliminates a large source of memory leaks that commonly plague C and C++ programs. There is a price for such a benefit: garbage collection contributes to the overhead of program execution speed and footprint. Although many papers have been written qualifying and quantifying the trade-off, the overall cost is reasonable, considering the alternatives.

Garbage collection imposes a challenge to the JVM developer seeking to supply a highly scalable and fast Java platform. The Oracle JVM meets these challenges in the following ways:


The footprint of an executing Java program is affected by many factors:

From a scalability perspective, the key to supporting many concurrent clients is a minimum user session footprint. The Oracle JVM keeps the user session footprint to a minimum by placing all read-only data for users, such as Java bytecodes, in shared memory. Appropriate garbage collection algorithms are applied against call and session memories to maintain a small footprint for the user's session. The Oracle JVM uses three types of garbage collection algorithms to maintain the user's session memory:


Oracle JVM performance is enhanced by implementing a native compiler.

How Native Compilers Improve Performance

Java executes platform-independent bytecodes on top of a JVM, which in turn interacts with the specific hardware platform. Any time you add levels within software, your performance is degraded. Because Java requires going through an intermediary to interpret platform-independent bytecodes, a degree of inefficiency exists for Java applications that does not exists within a platform-dependent language, such as C. To address this issue, several JVM suppliers create native compilers. Native compilers translate Java bytecodes into platform-dependent native code, which eliminates the interpreter step and improves performance.

The following table describes two methods for native compilation.

Native Compilation Method Description

Just-In-Time (JIT) Compilation

JIT compilers quickly compile Java bytecodes to native (platform-specific) machine code during runtime. This does not produce an executable to be executed on the platform; instead, it provides platform-dependent code from Java bytecodes that is executed directly after it is translated. This should be used for Java code that is run frequently, which will be executed at speeds closer to languages such as C.

Static Compilation

Static compilation translates Java bytecodes to platform-independent C code before runtime. Then a standard C compiler compiles the C code into an executable for the target platform. This approach is more suitable for Java applications that are modified infrequently. This approach takes advantage of the mature and efficient platform-specific compilation technology found in modern C compilers.

Oracle uses static compilation to deliver its core Java class libraries: the ORB and JDBC code in natively compiled form. It is applicable across all the platforms Oracle supports, whereas a JIT approach requires low-level, processor-dependent code to be written and maintained for each platform. You can use this native compilation technology with your own Java code.

Dynamic Class Loading

Another strong feature of Java is dynamic class loading. The class loader loads classes from the disk (and places them in the JVM-specific memory structures necessary for interpretation) only as they are used during program execution. The class loader locates the classes in the CLASSPATH and loads them during program execution. This approach, which works well for applets, poses the following problems in a server environment:

Problem Description Solution


The class loading operation places a severe penalty on first-time execution. A simple program can cause the Oracle JVM to load many core classes to support its needs. A programmer cannot easily predict or determine the number of classes loaded.

The Oracle JVM loads classes dynamically, just as with any other Java virtual machine. The same one-time class loading speed hit is encountered. However, because the classes are loaded into shared memory, no other users of those classes will cause the classes to load again--they will simply use the same pre-loaded classes.


A benefit of dynamic class loading is that it supports program updating. For example, you would update classes on a server, and clients who download the program and load it dynamically see the update whenever they next use the program. Server programs tend to emphasize reliability. As a developer, you must know that every client executes a specific program configuration. You do not want clients to inadvertently load some classes that you did not intend them to load.

Oracle separates the upload and resolve operation from the class loading operation at runtime. You upload Java code you developed to the server using the loadjava utility. Instead of using CLASSPATH, you specify a resolver at installation time. The resolver is analogous to CLASSPATH, but lets you specify the schemas in which the classes reside. This separation of resolution from class loading means you always know what program users execute.

Oracle's Java Application Strategy

One appeal of Java is its ubiquity and the growing number of programmers capable of developing applications using it. Oracle furnishes enterprise application developers with an end-to-end Java solution for creating, deploying, and managing Java applications. The total solution consists of client-side and server-side programmatic interfaces, tools to support Java development, and a Java virtual machine integrated with the Oracle database server. All these products are compatible with Java standards.

In addition to the Oracle JVM, the Java programming environment consists of the following:

Java Stored Procedures

If you are a PL/SQL programmer exploring Java, you will be interested in Java stored procedures. A Java stored procedure is a program you write in Java to execute in the server, exactly as a PL/SQL stored procedure. You invoke it directly with products like SQL*Plus, or indirectly with a trigger. You can access it from any Oracle Net client--OCI, PRO*, JDBC, or SQLJ.

The Oracle9i Java Stored Procedures Developer's Guide explains how to write stored procedures in Java, how to access them from PL/SQL, and how to access PL/SQL functionality from Java.

In addition, you can use Java to develop powerful programs independently of PL/SQL. Oracle provides a fully-compliant implementation of the Java programming language and JVM.

PL/SQL Integration and Oracle RDBMS Functionality

You can invoke existing PL/SQL programs from Java and invoke Java programs from PL/SQL. This solution protects and leverages your existing investment while opening up the advantages and opportunities of Java-based Internet computing.

Oracle offers two different application programming interfaces (APIs) for Java developers to access SQL data--JDBC and SQLJ. Both APIs are available on client and server, so you can deploy the same code in either place.

JDBC Drivers

JDBC is a database access protocol that enables you to connect to a database and then prepare and execute SQL statements against the database. Core Java class libraries provide only one JDBC API. JDBC is designed, however, to allow vendors to supply drivers that offer the necessary specialization for a particular database. Oracle delivers the following three distinct JDBC drivers.

Driver Description

JDBC Thin Driver

You can use the JDBC Thin driver to write 100% pure Java applications and applets that access Oracle SQL data. The JDBC Thin driver is especially well-suited to Web browser-based applications and applets, because you can dynamically download it from a Web page just like any other Java applet.

JDBC Oracle Call Interface Driver

The JDBC Oracle Call Interface (OCI) driver accesses Oracle-specific native code (that is, non-Java) libraries on the client or middle tier, providing a richer set of functionality and some performance boost compared to the JDBC Thin driver, at the cost of significantly larger size and client-side installation.

JDBC Server-side Internal Driver

Oracle uses the server-side internal driver when Java code executes on the server. It allows Java applications executing in the server's JVM to access locally defined data (that is, on the same machine and in the same process) with JDBC. It provides a further performance boost because of its ability to use underlying Oracle RDBMS libraries directly, without the overhead of an intervening network connection between your Java code and SQL data. By supporting the same Java-SQL interface on the server, Oracle8i does not require you to rework code when deploying it.

SQLJ - Embedded SQL in Java

Oracle has worked with other vendors, including IBM, Tandem, Sybase, and Sun Microsystems, to develop a standard way to embed SQL statements in Java programs--SQLJ. This work has resulted in a new standard (ANSI x.3.135.10-1998) for a simpler and more highly productive programming API than JDBC. A user writes applications to this higher-level API and then employs a preprocessor to translate the program to standard Java source with JDBC calls. At runtime, the program can communicate with multi-vendor databases using standard JDBC drivers.

SQLJ provides a simple, but powerful, way to develop both client-side and middle-tier applications that access databases from Java. You can use it in stored procedures, triggers, methods within the Oracle environment. In addition, you can combine SQLJ programs with JDBC.

The SQLJ translator is a Java program that translates embedded SQL in Java source code to pure JDBC-based Java code. Because Oracle provides a complete Java environment, you cannot only compile SQLJ programs on a client for execution on the server, but you can compile them directly on the server. The adherence of Oracle to Internet standards lets you choose the development style that fits your needs.

See Also:

Oracle9i SQLJ Developer's Guide and Reference

Go to previous page Go to next page
Copyright © 1996, 2002 Oracle Corporation.

All Rights Reserved.
Go To Documentation Library
Go To Product List
Book List
Go To Table Of Contents
Go To Index

Master Index
