Writing Java Applications on Oracle9i

Oracle9i executes standard Java applications. However, by integrating Java classes within the database server, your environment is different from a typical Java development environment. This chapter describes the basic differences for writing, installing, and deploying Java applications within Oracle9i.


As discussed in Chapter 1, the Oracle9i JVM platform is a standard, compatible Java environment, which will execute any 100% pure Java application. It has been implemented by Oracle to be compatible with the Java Language Specification and the Java virtual machine specification. It supports the standard Java binary format and the standard Java APIs. In addition, Oracle9i adheres to standard Java language semantics, including dynamic class loading at runtime. However, unlike other Java environments, the JVM is embedded within the Oracle9i RDBMS and, therefore, introduces a number of new concepts. This section gives an overview of the differences between the Sun Microsystems JDK environment and the environment that occurs when you combine Java with the Oracle9i database.


Term Definition

Oracle9i JVM

Java-enabled Oracle9i database server with JVM.


As a user who executes Java code, you must establish a session in the server. The word session as we employ it here is identical to the standard Oracle (or any other database server) usage. A session is typically, although not necessarily, bounded by the time a single user connects to the server.


When a user causes Java code to execute within a session, we refer to it as a call. You can initiate a call in different ways.

  • A SQL client program executes a Java stored procedure.
  • A trigger can execute a Java stored procedure.
  • A PL/SQL program calls some Java code.

In all cases, a call begins, some combination of Java, SQL, or PL/SQL code is executed to completion, and the call ends.

In your standard Java environment, you run a Java application through the interpreter by executing java <classname>. This causes the application to execute within a process on your operating system.

With the Oracle9i JVM, you must load the application into the database, publish the interface, and then run the application within a database session. This book discusses how to run your Java applications within the database. Specifically, see the following sections for instructions on executing Java in the database:

In addition, certain features, included within standard Java, change when you run your application within a database session. These are covered in the following sections:

Once you are familiar with this chapter, see Chapter 3, "Invoking Java in the Database" for directions on how to set up your client, and examples for invoking different types of Java applications.

Database Sessions Imposed on Java Applications

In incorporating Java within the Oracle9i database, your Java application exists within the context of a database session. Oracle9i JVM sessions are entirely analogous to traditional Oracle sessions. Each Oracle9i JVM session maintains the client's Java state across calls within the session.

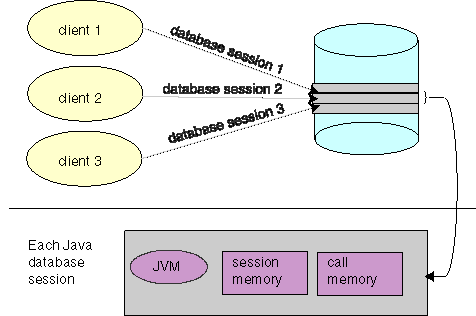

Figure 2-1 demonstrates how each Java client starts up a database session as the environment for executing Java within the database. Garbage collection, session memory, and call memory exist solely for each client within its session.

Figure 2-1 Java Environment Within Each Database Session

Text description of au_over.gif follows.

Text description of the illustration au_over.gif

Within the context of a session, the client performs the following:

  1. Connects to the database and opens a session.
  2. Executes Java within the database. This is referred to as a call.
  3. Continues to work within the session, performing as many calls as necessary.
  4. Ends the session.

Within a single session, the client has its own Java environment, which is separate from every other client's environment. It appears to the client as if a separate, individual JVM was invoked for each session, although the implementation is vastly more efficient than this seems to imply. Within a session, the Oracle9i JVM manages the scalability for you within the database. Every call executed from a single client is managed within its own session--separately from other clients. The Oracle9i JVM maximizes sharing read-only data between clients and emphasizes a minimum amount of per-session incremental footprint to maximize performance for multiple clients.

The underlying server environment hides the details associated with session, network, state, and other shared resource management issues from Java server code. Static variables are all local to the client. No client can access another client's static variables, because the memory is not available across session boundaries. Because each client executes its calls within its own session, each client's activities are separate from any other client. During a call, you can store objects in static fields of different classes, and you can expect this state to be available for your next call. The entire state of your Java program is private to you and exists for your entire session.

The Oracle9i JVM manages the following within the session:

Java Supported APIs

For the current Oracle9i release, we offer the following Java APIs--Java stored procedures, JNDI, JDBC, and SQLJ.

Execution Control

In the Sun Microsystems JDK environment, you develop Java applications with a main() method, which is called by the interpreter when the class is run. The main() method is invoked when you execute java <classname> on the command-line. This command starts the java interpreter and passes the desired classname to be executed to the interpreter. The interpreter loads the class and starts the execution by invoking main(). However, Java applications within the database do not start their execution from a main() method.

After loading your Java application within the database (see "Loading Classes"), you can execute your Java code by invoking any static method within the loaded class. The class or methods must be published for you to execute them (see "Publishing"). Your only entry point is no longer always assumed to be main(). Instead, when you execute your Java application, you specify a method name within the loaded class as your entry point.

For example, in a normal Java environment, you would start up the Java object on the server by executing the following:

java myprogram

where myprogram is the name of a class that contains a main() method. In myprogram, main() immediately calls mymethod for processing incoming information.

In Oracle9i, you load the myprogram.class file into the database and publish mymethod as an entry-point. Then, the client or trigger can invoke mymethod explicitly.

Java Code, Binaries, and Resources Storage

In the Sun Microsystems Java development environment, Java source code, binaries, and resources are stored as files in a file system.

In addition, when you execute Java, you specify a CLASSPATH, which is a set of a file system tree roots containing your files. Java also provides a way to group these files into a single archive form--a ZIP or JAR file.

Both of these concepts are different within the database. The following describes how Oracle9i handles Java classes and locates dependent classes:

Java code, binaries, and resources

In the Oracle9i JVM environment, source, classes, and resources reside within the Oracle9i database. Because they reside in the database, they are known as Java schema objects, where a schema corresponds to a database user. There are three types of Java objects: source, class, and resource. There are no .java, .class, .sqlj, .properties, or .ser files on the server; instead, these files map to source, class, and resource Java schema objects.

Locating Java classes

Instead of a CLASSPATH, you use a resolver to specify one or more schemas to search for source, class, and resource Java schema objects.

The call and session terms, used during our discussions, are not Java terms; but are server terms that apply to the Oracle9i JVM platform. The Oracle9i memory manager preserves Java program state throughout your session (that is, between calls). The JVM uses the Oracle database to hold Java source, classes, and resources within a schema--Java schema objects. You can use a resolver to specify how Java, when executed in the server, locates source code, classes, and resources.

Preparing Java Class Methods for Execution

For your Java methods to be executed, you must do the following:

  1. Decide when your source is going to be compiled.
  2. Decide if you are going to use the default resolver or another resolver for locating supporting Java classes within the database.
  3. Load the classes into the database. If you do not wish to use the default resolver for your classes, you should specify a separate resolver on the load command.
  4. Publish your class or method.

Compiling Java Classes

Compilation of your source can be performed in one of the following ways:

Compiling Source Through javac

You can compile your Java with a conventional Java compiler, such as javac. After compilation, you load the compiled binary into the database, rather than the source itself. This is a better option, because it is normally easier to debug your Java code on your own system, rather than debugging it on the database.

Compiling Source Through loadjava

When you specify the -resolve option on loadjava for a source file, the following occurs:

  1. The source file is loaded as a source schema object.
  2. The source file is compiled.
  3. Class schema objects are created for each class defined in the compiled .java file.
  4. The compiled code is stored in the class schema objects.

Oracle9i logs all compilation errors both to loadjava's logfile and the USER_ERRORS view.

Compiling Source at Runtime

When you load the Java source into the database without the -resolve option, Oracle9i compiles the source automatically when the class is needed during runtime. The source file is loaded into a source schema object.

Oracle9i logs all compilation errors both to loadjava's logfile and the USER_ERRORS view.

Specifying Compiler Options

There are two ways to specify options to the compiler.

The following sections describe your compiler options:

Default Compiler Options

When compiling a source schema object for which there is neither a JAVA$OPTIONS entry nor a command line value for an option, the compiler assumes a default value as follows:

Compiler Options on the Command Line

The loadjava compiler option, encoding, identifies the encoding of the .java file. This option overrides any matching value in the JAVA$OPTIONS table. The values are identical to the javac -encoding option. This option is relevant only when loading a source file.

Compiler Options Specified in a Database Table

Each JAVA$OPTIONS row contains the names of source schema objects to which an option setting applies; you can use multiple rows to set the options differently for different source schema objects.

You can set JAVA$OPTIONS entries by means of the following functions and procedures, which are defined in the database package DBMS_JAVA:

The parameters for these methods are described below:

Parameter Description


The name parameter is a Java package name, a fully qualified class name, or the empty string. When the compiler searches the JAVA$OPTIONS table for the options to use for compiling a Java source schema object, it uses the row whose name most closely matches the schema object's fully qualified class name. A name whose value is the empty string matches any schema object name.


The option parameter is either 'online', 'encoding' or 'debug'. For the values you can specify for these options, see the Oracle9i SQLJ Developer's Guide and Reference.

A schema does not initially have a JAVA$OPTIONS table. To create a JAVA$OPTIONS table, use the DBMS_JAVA package's java.set_compiler_option procedure to set a value. The procedure will create the table if it does not exist. Specify parameters in single quotes. For example:

SQL> execute dbms_java.set_compiler_option('x.y', 'online', 'false');

Table 2-1 represents a hypothetical JAVA$OPTIONS database table. The pattern match rule is to match as much of the schema name against the table entry as possible. The schema name with a higher resolution for the pattern match is the entry that applies. Because the table has no entry for the encoding option, the compiler uses the default or the value specified on the command line. The online option shown in the table matches schema object names as follows:

Automatic Recompilation

Oracle9i provides a dependency management and automatic build facility that will transparently recompile source programs when you make changes to the source or binary programs upon which they depend. Consider the following cases:

public class A
      B b;
      public void assignB () {b = new B()}
public class B
      C c;
      public void assignC () {c = new C()}
public class C
      A a;
      public void assignA () {a = new A()}

The system tracks dependencies at a class level of granularity. In the preceding example, you can see that classes A, B, and C depend on one another, because A holds an instance of B, B holds an instance of C, and C holds an instance of A. If you change the definition of class A by adding a new field to it, the dependency mechanism in Oracle9i flags classes B and C as invalid. Before you use any of these classes again, Oracle9i attempts to resolve them again and recompile, if necessary. Note that classes can be recompiled only if source is present on the server.

The dependency system enables you to rely on Oracle9i to manage dependencies between classes, to recompile, and to resolve automatically. You must force compilation and resolution yourself only if you are developing and you want to find problems early. The loadjava utility also provides the facilities for forcing compilation and resolution if you do not want to allow the dependency management facilities to perform this for you.

Resolving Class Dependencies

Many Java classes contain references to other classes, which is the essence of reusing code. A conventional Java virtual machine searches for classes, ZIP, and JAR files within the directories specified in the CLASSPATH. In contrast, the Oracle9i Java virtual machine searches database schemas for class objects. With Oracle9i, you load all Java classes within the database, so you might need to specify where to find the dependent classes for your Java class within the database.

All classes loaded within the database are referred to as class schema objects and are loaded within certain schemas. All JVM classes, such as java.lang.*, are loaded within PUBLIC. If your classes depend upon other classes you have defined, you will probably load them all within your own schema. For example, if your schema is SCOTT, the database resolver (the database replacement for CLASSPATH) searches the SCOTT schema before PUBLIC. The listing of schemas to search is known as a resolver spec. Resolver specs are per-class, whereas in a classic Java virtual machine, CLASSPATH is global to all classes.

When locating and resolving the interclass dependencies for classes, the resolver marks each class as valid or invalid, depending on whether all interdependent classes are located. If the class that you load contains a reference to a class that is not found within the appropriate schemas, the class is listed as invalid. Unsuccessful resolution at runtime produces a "class not found" exception. Furthermore, runtime resolution can fail for lack of database resources if the tree of classes is very large.


As with the Java compiler, loadjava resolves references to classes, but not to resources. Be sure to correctly load the resource files that your classes need.

For each interclass reference in a class, the resolver searches the schemas specified by the resolver spec for a valid class schema object that satisfies the reference. If all references are resolved, the resolver marks the class valid. A class that has never been resolved, or has been resolved unsuccessfully, is marked invalid. A class that depends on a schema object that becomes invalid is also marked invalid.

To make searching for dependent classes easier, Oracle9i provides a default resolver and resolver spec that searches first the definer's schema and then PUBLIC. This covers most of the classes loaded within the database. However, if you are accessing classes within a schema other than your own or PUBLIC, you must define your own resolver spec.

The -resolver option specifies the objects to search within the schemas defined. In the example above, all class schema objects are searched within SCOTT, OTHER, and PUBLIC. However, if you wanted to search for only a certain class or group of classes within the schema, you could narrow the scope for the search. For example, to search only for the classes "my/gui/*" within the OTHER schema, you would define the resolver spec as follows:

loadjava -resolve -resolver '((* SCOTT) ("my/gui/*" OTHER) (* PUBLIC))'

The first parameter within the resolver spec is for the class schema object; the second parameter defines the schema within which to search for these class schema objects.

Allowing References to Non-Existent Classes

You can specify a special option within a resolver spec that allows an unresolved reference to a non-existent class. Sometimes, internal classes are never used within a product. For example, some ISVs do not remove all references to internal test classes from the JAR file before shipping. In a normal Java environment, this is not a problem, because as long as the methods are not called, the Sun Microsystems JVM ignores them. However, the Oracle9i resolver tries to resolve all classes referenced within the JAR file--even unused classes. If the reference cannot be validated, the classes within the JAR file are marked as invalid.

To ignore references, you can specify the "-" wildcard within the resolver spec. The following example specifies that any references to classes within "my/gui" are to be allowed, even if it is not present within the resolver spec schema list.

loadjava -resolve -resolver '((* SCOTT) (* PUBLIC) ("my/gui/*" -))'

In addition, you can define that all classes not found are to be ignored. Without the wildcard, if a dependent class is not found within one of the schemas, your class is listed as invalid and cannot be run. However, this is also dangerous, because if there is a dependent class on a used class, you mark a class as valid that can never run without the dependent class. In this case, you will receive an exception at runtime.

To ignore all classes not found within SCOTT or PUBLIC, specify the following resolver spec:

loadjava -resolve -resolver "((* SCOTT) (* PUBLIC) (* -))"


An alternative mechanism for dealing with non-existent classes is with the -gemissing option of loadjava. This option causes loadjava to create and load definitions of classes that are referenced, but not defined. For more details, see "loadjava".

ByteCode Verifier

According to the JVM specification, .class files are subject to verification before the class they define is available in a JVM. In Oracle9i JVM, the verification process occurs at class resolution. The resolver might find one of the following problems and issue the appropriate Oracle error code:


If the resolver determines that the class is malformed, the resolver does not mark it valid. When the resolver rejects a class, it issues an ORA-29545 error (badly formed class). The loadjava tool reports the error. For example, this error is thrown if the contents of a .class file are not the result of a Java compilation or if the file has been corrupted.


In some situations, the resolver allows a class to be marked valid, but will replace bytecodes in the class to throw an exception at runtime. In these cases, the resolver issues an ORA-29552 (verification warning), which loadjava will report. The loadjava tool issues this warning when the Java Language Specification would require an IncompatibleClassChangeError be thrown. Oracle9i JVM relies on the resolver to detect these situations, supporting the proper runtime behavior that the JLS requires.

The resolver also issues warnings, as defined below:

For more information on class resolution and loading your classes within the database, see Chapter 7, "Schema Object Tools".

Loading Classes

This section gives an overview of loading your classes into the database using the loadjava tool. You can also execute loadjava within your SQL. See Chapter 7, "Schema Object Tools" for complete information on loadjava.

Unlike a conventional Java virtual machine, which compiles and loads from files, the Oracle9i Java virtual machine compiles and loads from database schema objects.

.java source files or
.sqlj source files

correspond to Java source schema objects

.class compiled Java files

correspond to Java class schema objects

.properties Java resource files,
.ser SQLJ profile files, or data files

correspond to Java resource schema objects

You must load all classes or resources into the database to be used by other classes within the database. In addition, at loadtime, you define who can execute your classes within the database.

The loadjava tool performs the following for each type of file:

Table 2-2 loadjava Operatoins on Schema Objects
Schema Object loadjava Operations on Objects

.java source files

  1. It creates a source schema object within the definer's schema unless another schema is specified.
  2. It loads the contents of the source file into a schema object.
  3. It creates a class schema object for all classes defined in the source file.
  4. If -resolve is requested, it does the following:

    a. It compiles the source schema object.

    b. It resolves the class and its dependencies.

    c. It stores the compiled class into a class schema object.

.sqlj source files

  1. It creates a source schema object within the definer's schema unless another schema is specified.
  2. It loads contents of the source file into the schema object.
  3. It creates a class schema object for all classes and resources defined in the source file.
  4. If -resolve is requested, it does the following:

    a. It translates and compiles the source schema object.

    b. It stores the compiled class into a class schema object.

    c. It stores the profile into a .ser resource schema object and customizes it.

.class compiled Java files

  1. It creates a class schema object within the definer's schema unless another schema is specified.
  2. It loads the class file into the schema object.
  3. It resolves and verifies the class and its dependencies if -resolve is specified.

.properties Java resource files

  1. It creates a resource schema object within the definer's schema unless another schema is specified.
  2. It loads a resource file into a schema object.

.ser SQLJ profile

  1. It creates a resource schema object within the definer's schema unless another schema is specified.
  2. It loads the .ser resource file into a schema object and customizes it.

The dropjava tool performs the reverse of the loadjava tool: it deletes schema objects that correspond to Java files. Always use dropjava to delete a Java schema object created with loadjava. Dropping with SQL DDL commands will not update auxiliary data maintained by loadjava and dropjava. You can also execute dropjava from within SQL commands.


More options for loadjava are available. However, this section discusses only the major options. See Chapter 7, "Schema Object Tools" for complete information on loadjava and dropjava.

You must abide by certain rules, which are detailed in the following sections, when loading classes into the database:

After loading, you can access the USER_OBJECTS view in your database schema to verify that your classes and resources loaded properly. For more information, see "Checking Java Uploads".

Defining the Same Class Twice

You cannot have two different definitions for the same class. This rule affects you in two ways:

Designating Database Privileges and JVM Permissions

You must have the following SQL database privileges to load classes:

Loading JAR or ZIP Files

The loadjava tool accepts .class, .java, .properties, .sqlj, .ser, .jar, or .zip files. The JAR or ZIP files can contain source, class, and data files. When you pass loadjava a JAR or ZIP file, loadjava opens the archive and loads its members individually. There is no JAR or ZIP schema object. If the JAR or ZIP content has not changed since the last time it was loaded, it is not reloaded; therefore, there is little performance penalty for loading JAR or ZIP files. In fact, loading JAR or ZIP files is the simplest way to use loadjava.


Oracle9i does not reload a class if it has not changed since the last load. However, you can force a class to be reloaded through the loadjava -force option.

How to Grant Execute Rights

If you load all classes within your own schema and do not reference any class outside of your schema, you already have execution rights. You have the privileges necessary for your objects to invoke other objects loaded in the same schema. That is, the ability for class A to invoke class B. Class A must be given the right to invoke class B.

The classes that define a Java application are stored within the Oracle9i RDBMS under the SQL schema of their owner. By default, classes that reside in one user's schema are not executable by other users, because of security concerns. You can allow other users (schemas) the right to execute your class through the loadjava -grant option. You can grant execution rights to a certain user or schema. You cannot grant execution rights to a role, which includes the super-user DBA role. The setting of execution rights is the same as used to grant or revoke privileges in SQL DDL statements.

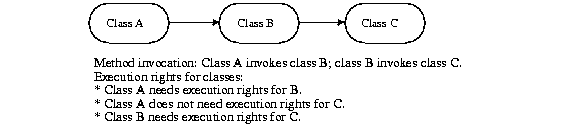

Figure 2-2 Execution Rights

Text description of appovera.gif follows
Text description of the illustration appovera.gif

For information on JVM security permissions, see Chapter 6, "Oracle9i Java Application Performance".

Controlling the Current User

During execution of Java or PL/SQL, there is always a current user. Initially, this is the user who creates the session.

Invoker's and definer's rights is a SQL concept that is used dynamically when executing SQL, PL/SQL, or JDBC. The current user controls the interpretation of SQL and determines privileges. For example, if a table is referenced by a simple name, it is assumed that the table belongs in the user's schema. In addition, the privileges that are checked when resources are requested are based on the privileges granted to the current user.

In addition, for Java stored procedures, the call specifications use a PL/SQL wrapper. So, you could specify definer's rights on either the call specification or on the Java class itself. If either is redefined to definer's rights, then the called method executes under the user that deployed the Java class.

By default, Java stored procedures execute without changing the current user--that is, with the privileges of their invoker, not their definer. Invoker-rights procedures are not bound to a particular schema. Their unqualified references to schema objects (such as database tables) are resolved in the schema of the current user, not the definer.

On the other hand, definer-rights procedures are bound to the schema in which they reside. They execute with the privileges of their definer, and their unqualified references to schema objects are resolved in the schema of the definer.

Invoker-rights procedures let you reuse code and centralize application logic. They are especially useful in applications that store data in different schemas. In such cases, multiple users can manage their own data using a single code base.

Consider a company that uses a definer-rights procedure to analyze sales. To provide local sales statistics, the procedure analyze must access sales tables that reside at each regional site. To do so, the procedure must also reside at each regional site. This causes a maintenance problem.

To solve the problem, the company installs an invoker-rights (IR) version of the procedure analyze at headquarters. Now, as Figure 2-3 shows, all regional sites can use the same procedure to query their own sales tables.

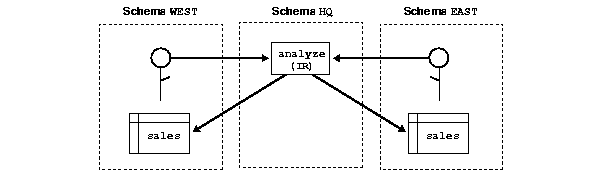

Figure 2-3 Invoker-Rights Solution

Text description of invoker_.gif follows
Text description of the illustration invoker_.gif

Occasionally, you might want to override the default invoker-rights behavior. Suppose headquarters would like the procedure analyze to calculate sales commissions and update a central payroll table. That presents a problem because invokers of analyze should not have direct access to the payroll table, which stores employee salaries and other sensitive data. As Figure 2-4 shows, the solution is to have procedure analyze call the definer-rights (DR) procedure calcComm, which, in turn, updates the payroll table.

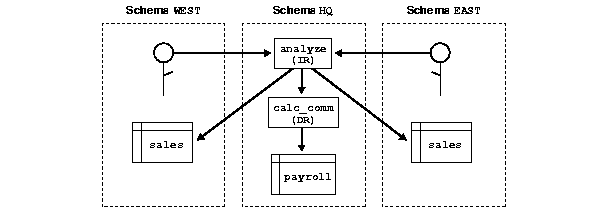

Figure 2-4 Indirect Access

Text description of controll.gif follows
Text description of the illustration controll.gif

To override the default invoker-rights behavior, specify the loadjava option -definer, which is similar to the UNIX facility setuid, except that -definer applies to individual classes, not whole programs. Alternatively, you can execute the SQL DDL that changes the AUTHID of the current user.

Different definers can have different privileges, and applications can consist of many classes. So, use the option -definer carefully, making sure that classes have only the privileges they need.

Checking Java Uploads

You can query the database view USER_OBJECTS to obtain information about schema objects--including Java sources, classes, and resources--that you own. This allows you, for example, to verify that sources, classes, or resources that you load are properly stored into schema objects.

Columns in USER_OBJECTS include those contained in Table 2-3 below.

Table 2-3 Key USER_OBJECT Columns
Name Description


name of the object


type of the object (such as JAVA SOURCE, JAVA CLASS, or JAVA RESOURCE)


status of the object (VALID or INVALID) (always VALID for JAVA RESOURCE)

Object Name and Type

An OBJECT_NAME in USER_OBJECTS is the short name. The full name is stored as a short name if it exceeds 31 characters. See "Shortened Class Names" for more information on full and short names.

If the server uses a short name for a schema object, you can use the LONGNAME() routine of the server DBMS_JAVA package to receive it from a query in full name format, without having to know the short name format or the conversion rules.

SQL*Plus> SELECT dbms_java.longname(object_name) FROM user_objects
          WHERE object_type='JAVA SOURCE';

This routine shows you the Java source schema objects in full name format. Where no short name is used, no conversion occurs, because the short name and full name are identical.

You can use the SHORTNAME() routine of the DBMS_JAVA package to use a full name as a query criterion, without having to know whether it was converted to a short name in the database.

SQL*Plus> SELECT object_type FROM user_objects
          WHERE object_name=dbms_java.shortname('known_fullname');

This routine shows you the OBJECT_TYPE of the schema object of the specified full name. This presumes that the full name is representable in the database character set.

SVRMGR> select * from javasnm;
SHORT                          LONGNAME
/78e6d350_BinaryExceptionHandl sun/tools/java/BinaryExceptionHandler
/b6c774bb_ClassDeclaration     sun/tools/java/ClassDeclaration
/af5a8ef3_JarVerifierStream1   sun/tools/jar/JarVerifierStream$1


STATUS is a character string that indicates the validity of a Java schema object. A source schema object is VALID if it compiled successfully; a class schema object is VALID if it was resolved successfully. A resource schema object is always VALID, because resources are not resolved.

Example: Accessing USER_OBJECTS

The following SQL*Plus script accesses the USER_OBJECTS view to display information about uploaded Java sources, classes, and resources.

COL object_name format a30
COL object_type format a15
SELECT object_name, object_type, status
   FROM user_objects
   ORDER BY object_type, object_name;

You can optionally use wildcards in querying USER_OBJECTS, as in the following example.

SELECT object_name, object_type, status
   FROM user_objects
   WHERE object_name LIKE '%Alerter';

This routine finds any OBJECT_NAME entries that end with the characters: Alerter.

For more information about USER_OBJECTS, see the Oracle9i Java Stored Procedures Developer's Guide.


Oracle9i enables clients and SQL to invoke Java methods that are loaded within the database, once published. You publish either the object itself or individual methods. If you write a Java stored procedure that you intend to invoke with a trigger, directly or indirectly in SQL DML or in PL/SQL, you must publish individual methods within the class. Specify how to access it through a call specification. Java programs consist of many methods in many classes; however, only a few static methods are typically exposed with call specifications. See the Oracle9i Java Stored Procedures Developer's Guide for more details.

User Interfaces on the Server

Oracle9i furnishes all core Java class libraries on the server, including those associated with presentation of user interfaces (java.awt and java.applet). It is, however, inappropriate for code executing in the server to attempt to bring up or materialize a user interface in the server. Imagine thousands of users worldwide exercising an Internet application that executes code that requires someone to click on a dialog presented on the server hardware. You can write Java programs that reference and use java.awt classes as long as you do not attempt to materialize a user interface.

When building applets, you test them using the java.awt and the Peer implementation, which is a platform-specific set of classes for support of a specific windowing system. When the user downloads an applet, it dynamically loads the proper client Peer libraries, and the user sees a display appropriate for the operating system or windowing system in use on the client side. Oracle9i takes the same approach. We provide an Oracle-specific Peer implementation that throws an exception, oracle.aurora.awt.UnsupportedOperation, if you execute Java code on the Oracle9i server that attempts to materialize a user interface.

Oracle9i's lack of support for materializing user interfaces in the server means that we do not pass the Java 2 Compatibility Kit tests for java.awt, java.awt.manual, and java.applet. In the Oracle RDBMS, all user interfaces are supported only on client applications, although they might be displayed on the same physical hardware that supports the server--for example, in the case of Windows NT. Because it is inappropriate for the server to support user interfaces, we exclude these tests from our complete Java Compatibility Kit testing.

A similar issue exists for vendors of Java-powered embedded devices and in handheld devices (known as Personal Java). Future releases of Java and the Java Compatibility Kit will provide improved factorization of user interface support so that vendors of Java server platforms can better address this issue.

Shortened Class Names

Each Java source, class, and resource is stored in its own schema object in the server. The name of the schema object is derived from the fully qualified name, which includes relevant path or package information. Dots are replaced by slashes. These fully qualified names (with slashes)--used for loaded sources, loaded classes, loaded resources, generated classes, and generated resources--are referred to in this chapter as schema object full names.

Schema object names, however, have a maximum of only 31 characters, and all characters must be legal and convertible to characters in the database character set. If any full name is longer than 31 characters or contains illegal or non-convertible characters, the Oracle9i server converts the full name to a short name to employ as the name of the schema object, keeping track of both names and how to convert between them. If the full name is 31 characters or less and has no illegal or inconvertible characters, then the full name is used as the schema object name.

Because Java classes and methods can have names exceeding the maximum SQL identifier length, Oracle9i uses abbreviated names internally for SQL access. Oracle9i provides a method within the DBMS_JAVA package for retrieving the original Java class name for any truncated name.


This function returns the longname from a Java schema object. An example is to print the fully qualified name of classes that are invalid for some reason.

select dbms_java.longname (object_name) from user_objects
   where object_type = 'JAVA CLASS' and status = 'INVALID';

In addition, you can specify a full name to the database by using the shortname() routine of the DBMS_JAVA package, which takes a full name as input and returns the corresponding short name. This is useful when verifying that your classes loaded by querying the USER_OBJECTS view.


Refer to the Oracle9i Java Stored Procedures Developer's Guide for a detailed example of the use of this function and ways to determine which Java schema objects are present on the server.

Class.forName() in Oracle9i

The Java Language Specification provides the following description of Class.forName():

Given the fully-qualified name of a class, this method attempts to locate, load, and link the class. If it succeeds, a reference to the Class object for the class is returned. If it fails, a ClassNotFoundException is thrown.

Class lookup is always on behalf of a referencing class through a ClassLoader. The difference between the JDK implementation and the Oracle9i JVM implementation is the method on which the class is found:

You can receive unexpected results if you try to locate a class with an unexpected resolver. For example, if a class X in schema X requests a class Y in schema Y to look up class Z, you can experience an error if you expected class X's resolver to be used. Because class Y is performing the lookup, the resolver associated with class Y is used to locate class Z. In summary, if the class exists in another schema and you specified different resolvers for different classes--as would happen by default if they are in different schemas-- you might not find the class.

You can solve this resolver problem as follows:

Supply the ClassLoader in Class.forName

Oracle9i uses resolvers for locating classes within schemas. Every class has a specified resolver associated with it and each class can have a different resolver associated with it. Thus, the locating of classes is dependent on the definition of the associated resolver. The ClassLoader knows which resolver to use, based upon the class that is specified. When you supply a ClassLoader to Class.forName(), your class is looked up in the schemas defined within the resolver of the class. The syntax for this variant of Class.forName is as follows:

Class forName (String name, boolean initialize, ClassLoader loader);

The following examples show how to supply the class loader of either the current class instance or the calling class instance.

Example 2-1 Retrieve Resolver from Current Class

You can retrieve the class loader of any instance through the Class.getClassLoader method. The following example retrieves the class loader of the class represented by instance x.

Class c1 = Class.forName (x.whatClass(), true, x.getClass().getClassLoader());

Example 2-2 Retrieve Resolver from Calling Class

You can retrieve the class of the instance that invoked the executing method through the oracle.aurora.vm.OracleRuntime.getCallerClass method. Once you retrieve the class, invoke the Class.getClassLoader method on the returned class. The following example retrieves the class of the instance that invoked the workForCaller method. Then, its class loader is retrieved and supplied to the Class.forName method. Thus, the resolver used for looking up the class is the resolver of the calling class.

void workForCaller() {

ClassLoader c1 =
oracle.aurora.vm.OracleRuntime.getCallerClass().getClassLoader(); ... Class c = Class.forName (name, true, c1);

Supply Class and Schema Names to classForNameAndSchema

You can resolve the problem of where to find the class by either supplying the resolver, which knows the schemas to search, or by supplying the schema in which the class is loaded. If you know in which schema the class is loaded, you can use the classForNameAndSchema method. Oracle9i provides a method in the DbmsJava class, which takes in both the name of the class and the schema in which the class resides. This method locates the class within the designated schema.

Example 2-3 Providing Schema and Class Names

The following example shows how you can save the schema and class names in the save method. Both names are retrieved, and the class is located using the DbmsJava.classForNameAndSchema method.

import oracle.aurora.rdbms.ClassHandle;
import oracle.aurora.rdbms.Schema;
import oracle.aurora.rdbms.DbmsJava;

void save (Class c1) {

ClassHandle handle = ClassHandle.lookup(c1);
Schema schema = handle.schema();
writeNmae (schema.getName());
writeName (c1.getName());
} Class restore() {
String schemaName = readName();
String className = readName();
return DbmsJava.classForNameAndSchema (schemaName, className);

Supply Class and Schema Names to lookupClass

You can supply a single String, containing both the schema and class names, to the oracle.aurora.util.ClassForName.lookupClass method. When invoked, this method locates the class in the specified schema. The string must be in the following format:


For example, to locate com.package.myclass in schema SCOTT, execute the following:



You must use uppercase characters for the schema name. In this case, the schema name is case-sensitive.

Supply Class and Schema Names when Serializing

When you de-serialize a class, part of the operation is to lookup a class based on a name. In order to ensure that the lookup is successful, the serialized object must contain both the class and schema names.

Oracle9i provides the following classes for serializing and de-serializing objects:

This class extends and adds schema names in the appropriate places.

This class extends and reads streams written by DbmsObjectOutputStream. You can use this class in any environment. If used within Oracle9i, the schema names are read out and used when performing the class lookup. If used on a client, the schema names are ignored.

Class.forName Example

The following example shows several methods for looking up a class.

Managing Your Operating System Resources

Operating system resources are a limited commodity on any computer. Because Java is targeted at providing a computing platform as well as a programming language, it contains platform-independent classes and frameworks for accessing platform-specific resources. The Java class methods access operating system resources through the JVM. Java has potential problems with this model, because programmers rely on the garbage collector to manage all resources, when all that the garbage collector manages is Java objects, not the operating system resources that the Java object holds on to.

In addition, because the Oracle9i JVM is embedded in the database, your operating system resources, which are contained within Java objects, can be invalidated if they are maintained across calls within a session.

The following sections discusses these potential problems:

Overview of Operating System Resources

In general, your operating system resources contain the following:


Oracle9i manages memory internally, allocating memory as you create new objects and freeing objects as you no longer need them. The language and class libraries do not support a direct means to allocate and free memory. "Automated Storage Management" discusses garbage collection.


Java contains classes that represent file resources. Instances of these classes hold on to your operating system's file constructs, such as file handles, which can become invalid between calls in a session.


Java contains classes that represent socket resources. Instances of these classes hold on to socket constructs, some of which can become invalid between calls in a session. See "Sockets" for information specific to maintaining sockets across calls.


Threads are discouraged within the Oracle9i JVM because of scalability issues. However, you can have a multi-threaded application within the database. "Threading in Oracle9i" discusses in detail the Oracle9i JVM threading model.

Operating System Resource Access

By default, a Java user does not have direct access to most operating system resources. A system administrator may give permission to a user to access these resources by modifying the JVM security restrictions. The JVM security enforced upon system resources conforms to Java 2 security. See "Java 2 Security" for more information.

Operating System Resource Lifetime

You access operating system resources using the standard core Java classes and methods. Once you access a resource, the time that it remains active (usable) varies according to the type of resource.

Resource Lifetime


The system closes all files left open when a database call ends.


Memory is garbage collected as described in "Automated Storage Management".


All threads are terminated when a call ends.

Objects that depend on operating system resources

Regardless of the usable lifetime of the object (for example, the defined lifetime for a thread object), the Java object can be valid for the duration of the session. This can occur, for example, if the Java object is stored in a static class variable, or a class variable references it directly or indirectly. If you attempt to use one of these Java objects after its usable lifetime is over, Oracle9i throws an exception. This is true for the following examples:

  • If an attempt is made to read from a that was closed at the end of a previous call, a is thrown.
  • java.lang.Thread.isAlive() is false for any Thread object running in a previous call and still accessible in a subsequent call.


  • Sockets can exist across calls.
  • ServerSockets on a shared server terminate when the call ends.
  • ServerSockets on a dedicated server can exist across calls.

See "Sockets" more information.

Referencing Files with Relative Path Names

Relative path names in file operations are interpreted as relative to $ORACLE_HOME.

Garbage Collection and Operating System Resources

Imagine that memory is divided into two realms: Java object memory and operating system constructs. The Java object memory realm contains all objects and variables. Operating system constructs include resources that the operating system allocates to the object when it asks. These resources include files, sockets, and so on.

Basic programming rules dictate that you close all memory--both Java objects and operating system constructs. Java programmers incorrectly assume that all memory is freed by the garbage collector. The garbage collector was created to collect all unused Java object memory. However, it does not close any operating system constructs. All operating system constructs must be closed by the program before the Java object is collected.

For example, whenever an object opens a file, the operating system creates the file and gives the object a file handle. If the file is not closed, the operating system will hold the file handle construct open until the call ends or JVM exits. This can cause you to run out of these constructs earlier than necessary. There are a finite number of handles within each operating system. To guarantee that you do not run out of handles, close your resources before exiting the method. This includes closing the streams attached to your sockets. You should close the streams attached to the socket before closing the socket.

So why not expand the garbage collector to close all operating system constructs? For performance reasons, the garbage collector cannot examine each object to see if it contains a handle. Thus, the garbage collector collects Java objects and variables, but does not issue the appropriate operating system methods for freeing any handles.

Example 2-4 shows how you should close the operating system constructs.

Example 2-4 Closing Your Operating System Resources

public static void addFile(String[] newFile) {
 File inFile = new File(newFile);
 FileReader in = new FileReader(inFile);
 int i;

 while ((i = != -1)
/*closing the file, which frees up the operating system file handle*/

If you do not close the in file, eventually the File object will be garbage collected. However, even if the File object is garbage collected, the operating system still believes that the file is in use, because it was not closed.


You might want to use Java finalizers to close resources. However, finalizers are not guaranteed to run in a timely manner. Instead, finalizers are put on a queue to execute when the garbage collector has time. If you close your resources within your finalizer, it might not be freed up until the JVM exits. The best approach is to close your resources within the method.

Operating System Resources Affected Across Calls

You should close resources that are local to a single call when the call ends. However, for static objects that hold on to operating system resources, you must be aware of how these resources are affected after the call ends.

The JVM automatically closes any open operating system constructs--in Example 2-5, the file handle--when the call ends. This can affect any operating system resources within your Java object. For example, if you have a file opened within a static variable, the file handle is closed at the end of the call for you. So, if you hold on to the File object across calls, the next usage of the file handle throws an exception.

In Example 2-5, class Concat enables multiple files to be written into a single file, outFile. On the first call, outFile is created. The first input file is opened, read, input into outFile, and the call ends. Because outFile is statically defined, it is moved into session space between call invocations. However, the file handle--that is, the FileDescriptor--is closed at the end of the call. The next time you call addFile, you will get an exception.

Example 2-5 Compromising Your Operating System Resources

public class Concat {
 static File outFile = new File("outme.txt");
  FileWriter out = new FileWriter(outFile);

public static void addFile(String[] newFile) {
 File inFile = new File(newFile);
 FileReader in = new FileReader(inFile);
 int i;

 while ((i = != -1)

There is a workaround: to make sure that your handles stay valid, close your files, buffers, and so on, at the end of every call; reopen the resource at the beginning of the next call. Another option is to use the database rather than using operating system resources. For example, try to use database tables rather than a file. Or do not store operating system resources within static objects expected to live across calls; use operating system resources only within objects local to the call.

Example 2-6 shows how you can perform concatenation, as in Example 2-5, without compromising your operating system resources. The addFile method opens the outme.txt file within each call, making sure that anything written into the file is appended to the end. At the end of each call, the file is closed. Two things occur:

  1. The File object no longer exists outside of a call.
  2. The operating system resource, the outme.txt file, is reopened for each call. If you had made the File object a static variable, the closing of outme.txt within each call would ensure that the operating system resource is not compromised.

Example 2-6 Correctly Managing Your Operating System Resources

public class Concat {

public static void addFile(String[] newFile) {
/*open the output file each call; make sure the input*/
/*file is written out to the end by making it "append=true"*/
FileWriter out = new FileWriter("outme.txt", TRUE);
 File inFile = new File(newFile);
 FileReader in = new FileReader(inFile);
 int i;

 while ((i = != -1)
/*close the output file between calls*/


Sockets are used in setting up a connection between a client and a server. For each database connection, sockets are used at either end of the connection. Your application does not set up the connection; the connection is set up by the underlying networking protocol: Oracle Net's TTC or IIOP. See "Configuring Oracle JVM" for information on how to configure your connection.

You might also wish to set up another connection--for example, connecting to a specified URL from within one of the classes stored within the database. To do so, instantiate sockets for servicing the client and server sides of the connection.

A socket exists at each end of the connection. The server-side of the connection that listens for incoming calls is serviced by a ServerSocket. The client-side of the connection that sends requests is serviced through a Socket. You can use sockets as defined within the JVM with the following restriction: a ServerSocket instance within a shared server cannot exist across calls.


Because the client-side of the connection is outbound, the Socket instance can be serviced across calls within either a shared or dedicated server.


The server-side of the connection is a listener.

  • Dedicated server--Your ServerSocket can listen across calls only within a dedicated server; the dedicated server exists solely for servicing the single client.
  • Shared server--The ServerSocket is closed at the end of a call within a shared server; the shared servers move on to another client at the end of every call. You will receive an I/O exception stating that the socket was closed if you try to use the ServerSocket outside of the call it was created in.

Threading in Oracle9i

The Oracle9i JVM implements a non-preemptive threading model. With this model, the JVM runs all Java threads on a single operating system thread. It schedules them in a round-robin fashion and switches between them only when they block. Blocking occurs when you, for example, invoke the Thread.yield() method or wait on a network socket by invoking

Advantages of Oracle9i's Threading Model Disadvantages
  • simple to program
  • efficient to implement in the Java virtual machine, because a thread switch does not require any system calls
  • safer, because the JVM can detect a deadlock that would hang a preemptive JVM and can then raise a runtime exception
  • does not exhibit any concurrency
  • lack of portability
  • performance considerations, because of the system calls required for locking when blocking the thread
  • memory scalability, because efficient multi-threaded memory allocation requires a larger pool of memory

Oracle chose this model because any Java application written on a single-processor system works identical to one written on a multi-processor system. Also, the lack of concurrency among Java threads is not an issue, because Oracle9i JVM is embedded in the database, which provides a higher degree of concurrency than any conventional JVM.

There is no need to use threads within the application logic because the Oracle server preemptively schedules the session JVMs. If you must support hundreds or thousands of simultaneous transactions, start each one in its own JVM. This is exactly what happens when you create a session in the Oracle9i JVM. The normal transactional capabilities of the Oracle database server accomplish coordination and data transfer between the JVMs. This is not a scalability issue, because in contrast to the 6 MB-8 MB memory footprint of the typical Java virtual machine, the Oracle server can create thousands of JVMs, with each one taking less than 40 KB.

Threading is managed within the Oracle9i JVM by servicing a single thread until it completes or blocks. If the thread blocks, by yielding or waiting on a network socket, the JVM will service another thread. However, if the thread never blocks, it is serviced until completed.

The Oracle9i JVM has added the following features for better performance and thread management:

Thread Lifecycle

In the single-threaded execution case, the call ends when one of the following events occurs:

  1. The thread returns to its caller.
  2. An exception is thrown and is not caught in Java code.
  3. The System.exit(), oracle.aurora.vm.OracleRuntime.exitCall() method is invoked.

If the initial thread creates and starts other Java threads, the rules about when a call ends are slightly more complicated. In this case, the call ends in one of the following two ways:

  1. The main thread returns to its caller, or an exception is thrown and not caught in this thread, and all other non-daemon threads complete execution. Non-daemon threads complete either by returning from their initial method or because an exception is thrown and not caught in the thread.
  2. Any thread invokes the System.exit() or oracle.aurora.vm.OracleRuntime.exitCall() method.

When a call ends because of a return and/or uncaught exceptions, the Oracle9i JVM throws a ThreadDeathException in all daemon threads. The ThreadDeathException essentially forces threads to stop execution.

When a call ends because of a call to System.exit() or oracle.aurora.vm.OracleRuntime.exitCall(), the Oracle9i JVM ends the call abruptly and terminates all threads, but does not throw ThreadDeathException.

During the execution of a single call, a Java program can recursively cause more Java code to be executed. For example, your program can issue a SQL query using JDBC or SQLJ that in turn causes a trigger written in Java to be invoked. All the preceding remarks regarding call lifetime apply to the top-most call to Java code, not to the recursive call. For example, a call to System.exit() from within a recursive call will exit the entire top-most call to Java, not just the recursive call.

Go to previous page Go to next page
Copyright © 2000, 2002 Oracle Corporation.

All Rights Reserved.
Go To Documentation Library
Go To Product List
Book List
Go To Table Of Contents
Go To Index

Master Index
