5 Securing the Network

This chapter describes how you can secure the network for Oracle Database.

This chapter contains the following topics:

5.1 About Securing the Network

You can configure the client connection to your Oracle Database installation by following the procedures in "Configuring the Network Environment" in Oracle Database 2 Day DBA and the Oracle Database Installation Guide for your platform. This chapter explains how you can encrypt data as it travels through the network, and also provides guidelines that you can follow to secure the network connections for Oracle Database.

5.2 Securing the Client Connection on the Network

This section describes how you can improve security for the client connection to ensure thorough protection. Using SSL is an essential element in these lists, enabling strict security for authentication and communications.

These guidelines are as follows:

5.2.1 Guidelines for Securing Client Connections

Because authenticating client computers is problematic over the Internet, typically, user authentication is performed instead. This approach avoids client system issues that include falsified IP addresses, compromised operating systems or applications, and falsified or stolen client system identities. Nevertheless, the following guidelines improve the security of client connections:

  1. Enforce access controls effectively and authenticate clients stringently.

    By default, Oracle allows operating system-authenticated logins only over secure connections, which precludes using Oracle Net and a shared server configuration. This default restriction prevents a remote user from impersonating another operating system user over a network connection.

    Setting the initialization parameter REMOTE_OS_AUTHENT to TRUE forces the database to accept the client, operating-system user name received over a nonsecure connection and use it for account access. (To modify an initialization parameter, see "Modifying the Value of an Initialization Parameter".) Because clients, such as PCs, are not trusted to perform operating system authentication properly, it is poor security practice to use this feature.

    The default setting, REMOTE_OS_AUTHENT = FALSE, creates a more secure configuration that enforces proper, server-based authentication of clients connecting to an Oracle database.

    Do not alter the default setting of the REMOTE_OS_AUTHENT initialization parameter, which is FALSE.

    Setting this parameter to FALSE does not mean that users cannot connect remotely. It means that the database will not trust that the client has already authenticated, and will apply its standard authentication processes.

  2. Configure the connection to use Secure Sockets Layer (SSL).

    Using SSL communication makes eavesdropping difficult and enables the use of certificates for user and server authentication. To learn how to configure SSL, see Oracle Database Advanced Security Administrator's Guide.

  3. Set up certificate authentication for clients and servers.

    See Oracle Database Advanced Security Administrator's Guide for more information about ways to manage certificates.

  4. Monitor the users who access your systems.

    Authenticating client computers over the Internet is problematic. Perform user authentication instead, which avoids client system issues that include falsified IP addresses, hacked operating systems or applications, and falsified or stolen client system identities. The following steps improve client computer security:

    1. Configure the connection to use Secure Sockets Layer (SSL). Using SSL communication makes eavesdropping unfruitful, and enables the use of certificates for user and server authentication. To learn how to configure SSL, see Oracle Database Advanced Security Administrator's Guide.

    2. Set up certificate authentication for clients and servers so that:

      • The organization is identified by unit and certificate issuer, and the user is identified by distinguished name and certificate issuer.

      • Applications test for expired certificates.

      • Certificate revocation lists are audited.

      See Oracle Database Advanced Security Administrator's Guide for more information about ways to manage certificates.

5.2.2 Securing the Network Connection

Protecting the network and its traffic from inappropriate access or modification is the essence of network security. You should consider all paths the data travels, and assess the threats that impinge on each path and node. Then, take steps to lessen or eliminate those threats and the consequences of a breach of security. In addition, monitor and audit to detect either increased threat levels or successful penetration.

To manage network connections, you can use Oracle Net Manager. For an introduction to using Oracle Net Manager, see Oracle Database 2 Day DBA. See also Oracle Database Net Services Administrator's Guide.

The following practices improve network security:

  1. Use Secure Sockets Layer (SSL) when administering the listener.

    See "Securing a Secure Sockets Layer Connection" for more information.

  2. Monitor listener activity.

    You can monitor listener activity by using Oracle Enterprise Manager Database Control. In the Database Control home page, under General, click the link for your listener. The Listener page appears. This page provides detailed information, such as the category of alert generated, alert messages, when the alert was triggered, and so on. This page provides other information, such as performance statistics for the listener.

  3. Prevent online administration by requiring the administrator to have write privileges on the listener.ora file and the listener password:

    1. Add or modify this line in the listener.ora file:

      ADMIN_RESTRICTIONS_LISTENER=ON

    2. Use RELOAD to reload the configuration.

    3. Use SSL when administering the listener, by making the TCPS protocol the first entry in the address list as follows:

      LISTENER=
        (DESCRIPTION=
          (ADDRESS_LIST=
            (ADDRESS=
              (PROTOCOL=tcps)
              (HOST = ed-pdsun1.us.oracle.com)
              (PORT = 8281)))


      To administer the listener remotely, define the listener in the listener.ora file on the client computer. For example, to access listener USER281 remotely, use the following configuration:

      user281 =
        (DESCRIPTION =
          (ADDRESS =
            (PROTOCOL = tcps)
            (HOST = ed-pdsun1.us.oracle.com)
            (PORT = 8281))
          )
        )


    For more information about the parameters in listener.ora, see Oracle Database Net Services Reference.

  4. Do not set the listener password.

    Ensure that the password has not been set in the listener.ora file. The local operating system authentication secures the listener administration. The remote listener administration is disabled when the password has not been set.

  5. When a host has multiple IP addresses associated with multiple NIC cards, configure the listener to the specific IP address.

    This enables the listener to monitor all the IP addresses. You can restrict the listener to monitor a specific IP address. Oracle recommends that you specify the specific IP addresses on these types of computers, rather than enabling the listener to monitor all IP addresses. Restricting the listener to specific IP addresses helps to prevent an intruder from stealing a TCP end point from the listener process.

  6. Restrict the privileges of the listener, so that it cannot read or write files in the database or the Oracle server address space.

    This restriction prevents external procedure agents spawned by the listener (or procedures executed by an agent) from inheriting the ability to perform read or write operations. The owner of this separate listener process should not be the owner that installed Oracle Database or executes the Oracle Database instance (such as ORACLE, the default owner).

    For more information about configuring external procedures in the listener, see Oracle Database Net Services Administrator's Guide.

  7. Because you cannot protect physical addresses when transferring data over the Internet, use encryption when this data needs to be secure.

    See "Protecting Data on the Network by Using Network Encryption" to learn about how to protect Oracle data over the network. Oracle Database Advanced Security Administrator's Guide describes network encryption in detail.

  8. Use a firewall.

    Appropriately placed and configured firewalls can prevent outside access to your intranet when you allow internal users to have Internet access.

    • Keep the database server behind a firewall. Oracle Database network infrastructure, Oracle Net (formerly known as Net8 and SQL*Net), provides support for a variety of firewalls from various vendors. Supported proxy-enabled firewalls include Gauntlet from Network Associates and Raptor from Axent. Supported packet-filtering firewalls include PIX Firewall from Cisco, and supported stateful inspection firewalls (more sophisticated packet-filtered firewalls) include Firewall-1 from CheckPoint.

    • Ensure that the firewall is placed outside the network to be protected.

    • Configure the firewall to accept only those protocols, applications, or client/server sources that you know are safe.

    • Use a product such as Oracle Connection Manager to multiplex multiple-client, network sessions through a single network connection to the database. It can filter using the source, destination, and host name. This product enables you to ensure that connections are accepted only from physically secure terminals or from application Web servers with known IP addresses. (Filtering using the IP address alone is not enough for authentication, because it can be falsified.)

  9. Prevent unauthorized administration of the Oracle listener.

    Establish a well-formed password for the Oracle listener to prevent remote configuration of the Oracle listener. See "Requirements for Creating Passwords" for advice on the best types of passwords to choose. For more information about the listener, see Oracle Database Net Services Administrator's Guide.

  10. Check network IP addresses.

    Use the Oracle Net valid node checking security feature to allow or deny access to Oracle server processes from network clients with specified IP addresses. To use this feature, set the following sqlnet.ora configuration file parameters:

    tcp.validnode_checking = YES

    tcp.excluded_nodes = {list of IP addresses}

    tcp.invited_nodes = {list of IP addresses}


    The tcp.validnode_checking parameter enables the feature. The tcp.excluded_nodes and tcp.invited_nodes parameters deny and enable specific client IP addresses from making connections to the Oracle listener. This helps to prevent potential Denial of Service attacks.

    You can use Oracle Net Manager to configure these parameters. See Oracle Database Net Services Administrator's Guide for more information.

  11. Encrypt network traffic.

    If possible, use Oracle Advanced Security to encrypt network traffic among clients, databases, and application servers. For an introduction to Oracle network encryption, see "Protecting Data on the Network by Using Network Encryption". For detailed information about network encryption, see Oracle Database Advanced Security Administrator's Guide.

  12. Secure the host operating system (the system on which Oracle Database resides).

    Secure the host operating system by disabling all unnecessary operating system services. Both UNIX and Windows platforms provide a variety of operating system services, most of which are not necessary for typical deployments. These services include FTP, TFTP, TELNET, and so forth. Be sure to close both the UDP and TCP ports for each service that is being disabled. Disabling one type of port and not the other does not make the operating system more secure.

5.2.3 Securing a Secure Sockets Layer Connection

Secure Sockets Layer (SSL) is the Internet standard protocol for secure communication, providing mechanisms for data integrity and data encryption. These mechanisms can protect the messages sent and received by you or by applications and servers, supporting secure authentication, authorization, and messaging through certificates and, if necessary, encryption. Good security practices maximize protection and minimize gaps or disclosures that threaten security. The following list illustrates the cautious attention to detail necessary for the successful use of SSL. For detailed information about Oracle SSL configuration, see Oracle Database Advanced Security Administrator's Guide.

  1. Ensure that configuration files (for example, as for clients and listeners) use the correct port for SSL, which is the port configured upon installation.

    You can run HTTPS on any port, but the standards specify port 443, where any HTTPS-compliant browser looks by default. The port can also be specified in the URL, for example,

    https://secure.server.com:4445/


    If a firewall is in use, then it too must use the same ports for secure (SSL) communication.

  2. Ensure that TCPS is specified as the PROTOCOL in the ADDRESS parameter in the tnsnames.ora file (typically on the client or in the LDAP directory).

    An identical specification must appear in the listener.ora file (typically in the $ORACLE_HOME/network/admin directory).

  3. Ensure that the SSL mode is consistent for both ends of every communication. For example, the database (on one side) and the user or application (on the other) must have the same SSL mode.

    The mode can specify either client or server authentication (one-way), both client and server authentication (two-way), or no authentication.

  4. Ensure that the server supports the client cipher suites and the certificate key algorithm in use.

  5. Enable DN matching for both the server and client. This prevents the server from falsifying its identity to the client during connections.

    This setting ensures that the server identity is correct by matching its global database name against the DN from the server certificate.

    You can enable DN matching in the tnsnames.ora file. For example:

    set:SSL_SERVER_CERT_DN="cn=finance,cn=OracleContext,c=us,o=acme"


    Otherwise, a client application would not check the server certificate, which could allow the server to falsify its identity.

  6. Do not remove the encryption from your RSA private key inside your server.key file, which requires that you enter your pass phrase to read and parse this file.

    Note:

    A server without SSL does not require a pass phrase.

    If you decide your server is secure enough, you can remove the encryption from the RSA private key while preserving the original file. This enables system startup scripts to start the database server, because no pass phrase is needed. Ideally, restrict permissions to the root user only, and have the Web server start as root, but then run as another user. Otherwise, anyone who gets this key can impersonate you on the Internet or decrypt the data that was sent to the server.

See Also:

5.3 Protecting Data on the Network by Using Network Encryption

In addition to protecting information by encrypting it at the database level, you need to protect it as it travels across the network.

This section explores the following topics:

See Also:

Oracle Database Advanced Security Administrator's Guide for detailed information about network encryption

5.3.1 About Network Encryption

Network encryption refers to encrypting data as it travels across the network between the client and server. The reason you should encrypt data at the network level, and not just the database level, is because data can be exposed on the network level even though you have carefully encrypted it in the database. For example, an intruder can use a network packet sniffer to capture information as it travels on the network, and then spool it to a file for malicious use. Encrypting data on the network prevents this sort of activity.

To encrypt data on the network, you need the following components:

  • An encryption seed. The encryption seed is a random string of up to 256 characters. It generates the cryptographic keys that disguise data as it travels across the network.

  • An encryption algorithm. You can specify any of the supported algorithm types: AES, RC4, DES, or 3DES.

  • Whether the settings apply to a client or server. You need to configure the server and each client to which it connects.

  • How the client or server should processes the encrypted data. The settings you select (you have four options) must complement both server and client.

  • A mechanism for configuring the encryption. You can use Oracle Net Manager to configure the encryption. Alternatively, you can edit the sqlnet.ora configuration file. Both Oracle Net Manager and the sqlnet.ora file are available in a default Oracle Database installation.

5.3.2 Configuring Network Encryption

You can configure network encryption by using either Oracle Net Manager or by editing the sqlnet.ora file. This guide explains how to use Oracle Net Manager to configure network encryption.

To configure network encryption:

  1. On the server computer, start Oracle Net Manager.

    • UNIX: From $ORACLE_HOME/bin, enter the following at the command line:

      netmgr

    • Windows: From the Start menu, click All Programs. Then, click Oracle - HOME_NAME, Configuration and Migration Tools, and then Net Manager

  2. From the Oracle Net Configuration navigation tree, expand Local, and then select Profile.

    Description of netmgr_profile.gif follows
    Description of the illustration netmgr_profile.gif

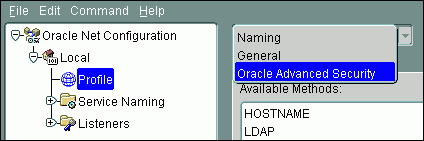

  3. From the list, select Oracle Advanced Security.

    Description of netmgr_adv_sec.gif follows
    Description of the illustration netmgr_adv_sec.gif

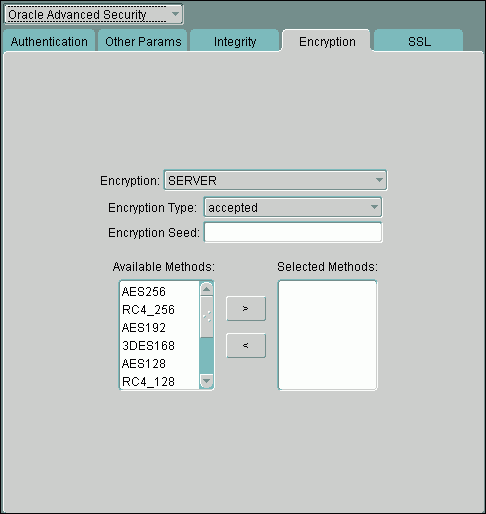

  4. Under Oracle Advanced Security, select the Encryption tab.

    The Encryption settings pane appears.

    Description of netmgr_encrypt.gif follows
    Description of the illustration netmgr_encrypt.gif

  5. Enter the following settings:

    • Encryption: From the list, select SERVER to configure the network encryption for the server. (For the client computer, you select CLIENT.)

    • Encryption Type: Select from the following values to specify the actions of the server (or client) when negotiating encryption and integrity:

      • accepted: Service will be active if the other side of the connection specifies either required or requested, and there is a compatible algorithm available on the other side; it will otherwise be inactive.

      • rejected: Service must not be active, and the connection will fail if the other side requires.

      • requested: Service will be active if the other side of the connection specifies either accepted, required, or requested, and there is a compatible algorithm available on the other side; it will otherwise be inactive.

      • required: Service must be active, and the connection will fail if the other side specifies rejected, or if there is no compatible algorithm on the other side.

    • Encryption Seed: Enter a random string of up to 256 characters. Oracle Database uses the encryption seed to generate cryptographic keys. This is required when either encryption or integrity is enabled.

      If you choose to use special characters such as a comma [,] or a right parenthesis [)] as a part of the Encryption Seed parameter, enclose the value within single quotation marks.

    • Available Methods: Select one or more of the following algorithms, and use the move button (>) to move them to the Selected Methods list. The order in which they appear in the Selected Methods list determines the preferred order for negotiation. That is, the first algorithm listed is selected first, and so on.

      • AES256: Advanced Encryption Standard (AES). AES was approved by the National Institute of Standards and Technology (NIST) to replace Data Encryption Standard (DES). AES256 enables you to encrypt a block size of 256 bits.

      • RC4_256: Rivest Cipher 4 (RC4), which is the most commonly used stream cipher that protects protocols such as Secure Sockets Layer (SSL). RC4_256 enables you to encrypt up to 256 bits of data.

      • AES192: Enables you to use AES to encrypt a block size of 192 bits.

      • 3DES168: Triple Data Encryption Standard (TDES) with a three-key option. 3DES168 enables you to encrypt up to 168 bits of data.

      • AES128: Enables you to use AES to encrypt a block size of 128 bits.

      • RC4_128: Enables you to use RC4 to encrypt up to 128 bits of data.

      • 3DES112: Enables you to use Triple DES with a two-key (112 bit) option.

      • DES: Data Encryption Standard (DES) 56-bit key. Note that National Institute of Standards and Technology (NIST) no longer recommends DES.

      • RC4_40: Enables you to use RC4 to encrypt up to 40 bits of data.

      • DES40: Enables you to use DES to encrypt up to 40 bits of data.

  6. From the File menu, select Save Network Configuration, and then select Exit to exit Oracle Net Manager.

  7. Repeat these steps for each client computer that connects to the server.

See Also:

5.4 Initialization Parameters Used for Network Security

Table 5-1 lists initialization parameters that you can set to better secure user accounts.

Table 5-1 Initialization Parameters Used for Network Security

Initialization Parameter Default Setting Description

OS_AUTHENT_PREFIX

OPS$

Specifies a prefix that Oracle Database uses to authenticate users attempting to connect to the database. Oracle Database concatenates the value of this parameter to the beginning of the user operating system account name and password. When a user attempts a connection request, Oracle Database compares the prefixed username with user names in the database.

The default value of this parameter is OPS$ for backward compatibility with previous versions. However, you can set the prefix value to "" (a null string), thereby eliminating the addition of any prefix to operating system account names.

REMOTE_LISTENER

No default setting

Specifies a network name that resolves to an address or address list of Oracle Net remote listeners (that is, listeners that are not running on the same computer as this instance). The address or address list is specified in the tnsnames.ora file or other address repository as configured for your system.

REMOTE_OS_AUTHENT

FALSE

Specifies whether remote clients will be authenticated with the value of the OS_AUTHENT_PREFIX parameter.

REMOTE_OS_ROLES

FALSE

Specifies whether operating system roles are allowed for remote clients. The default value, FALSE, causes Oracle Database to identify and manage roles for remote clients.


To modify an initialization parameter, see "Modifying the Value of an Initialization Parameter". For detailed information about initialization parameters, see Oracle Database Reference andOracle Database Administrator's Guide.
