ALLOCATE CHANNEL FOR MAINTENANCE

Syntax

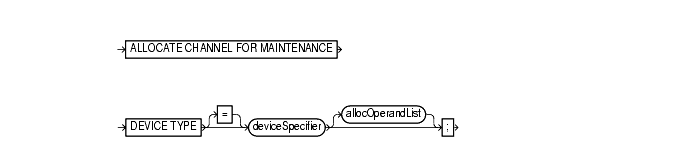

allocateForMaint::=

Text description of allocateForMaint.gif follows


Text description of allocateForMaint

Purpose

To manually allocate a channel in preparation for issuing a CHANGE, DELETE,or CROSSCHECK command. Note that if you use CONFIGURE to set up automatic channels, then RMAN can use these automatic channels for maintenance operations; you do not have to manually allocate them.

If RMAN allocates the automatic maintenance channel for you, then it uses the same naming convention as any other automatically allocated channel. If you explicitly invoke ALLOCATE CHANNEL FOR MAINTENANCE, then RMAN uses the following convention for channel naming: ORA_MAINT_devicetype_n, where devicetype refers to DISK or sbt and n refers to the channel number. For example, RMAN uses these names for two manually allocated disk channels:

ORA_MAINT_DISK_1
ORA_MAINT_DISK_2

You can allocate multiple maintenance channels for a single job, but you should only use this feature in these scenarios:

Restrictions and Usage Notes

Keywords and Parameters

Syntax Element Description

DEVICE TYPE = deviceSpecifier

Specifies the type of storage device.

See Also: "deviceSpecifier"

Note: If you do not specify the DEVICE TYPE parameter, then you must specify the NAME parameter to identify a particular sequential I/O device. Query the V$BACKUP_DEVICE view for information about available device types and names.

allocOperandList

Specifies control options for the allocated channel.

See Also: "allocOperandList"

Examples

Deleting a Backup Set: Example

This example deletes backup sets from tape created more than a week ago:

ALLOCATE CHANNEL FOR MAINTENANCE DEVICE TYPE sbt;
DELETE NOPROMPT BACKUP OF DATABASE COMPLETED BEFORE 'SYSDATE-7';
Crosschecking Archived Logs: Example

This example crosschecks all archived logs on disk (by using the preconfigured disk channel) and tape. If the logs are not found, then RMAN marks them as EXPIRED in the repository:

ALLOCATE CHANNEL FOR MAINTENANCE DEVICE TYPE sbt;
CROSSCHECK ARCHIVELOG ALL;
Crosschecking on Multiple Nodes of an Oracle Real Application Clusters Configuration: Example

In this example, you perform a crosscheck of backups on two nodes of an Oracle Real Application Clusters configuration:

ALLOCATE CHANNEL FOR MAINTENANCE DEVICE TYPE DISK CONNECT 'SYS/change_on_install@inst1';
ALLOCATE CHANNEL FOR MAINTENANCE DEVICE TYPE DISK CONNECT 'SYS/change_on_install@inst2';
CROSSCHECK BACKUP;
Deleting on Disk and sbt Channels with One Command: Example

In this example, you delete a backup from both disk and tape:

# back up datafile to disk and tape
BACKUP DEVICE TYPE DISK DATAFILE 1 TAG "weekly_bkup";
BACKUP DEVICE TYPE sbt DATAFILE 1 TAG "weekly_bkup";

# manually allocate sbt channel and disk channel
ALLOCATE CHANNEL FOR MAINTENANCE DEVICE TYPE DISK;
ALLOCATE CHANNEL FOR MAINTENANCE DEVICE TYPE sbt;
DELETE BACKUPSET TAG "weekly_bkup";
