21
DBMS_CDC_SUBSCRIBE

The DBMS_CDC_SUBSCRIBE package lets subscribers view and query change data that was captured and published with the DBMS_CDC_PUBLISH package.

A Change Data Capture system usually has one publisher and many subscribers. The subscribers (applications or individuals), use the Oracle supplied package, DBMS_CDC_SUBSCRIBE, to access published data.

Be aware that Change Data Capture grants EXECUTE privileges to PUBLIC on the DBMS_CDC_SUBSCRIBE procedure.

This chapter contains the following topics:

• Using DBMS_CDC_SUBSCRIBE
  • Overview
  • Deprecated Subprograms
• Summary of DBMS_CDC_SUBSCRIBE Subprograms

---

Using DBMS_CDC_SUBSCRIBE

• Overview
• Deprecated Subprograms

---

Overview

The primary role of the subscriber is to use the change data. Through the DBMS_CDC_SUBSCRIBE package, each subscriber registers interest in a set of source tables by subscribing to them.

Once the publisher sets up the system to capture data into change tables (which are viewed as publications by subscribers) and grants subscribers access to the change tables, subscribers can access and query the published change data for any of the source tables of interest. Using the procedures in the DBMS_CDC_SUBSCRIBE package, the subscriber accomplishes the following main objectives:

1. Indicates the change data of interest by creating a subscription and associated subscriber views on published source tables and source columns
2. Activates the subscription to indicate that the subscriber is ready to receive change data
3. Extends the subscription window to receive a new set of change data
4. Uses SQL SELECT statements to retrieve change data from the subscriber views
5. Purges the subscription window when finished processing a block of changes
6. Drops the subscription when finished with the subscription

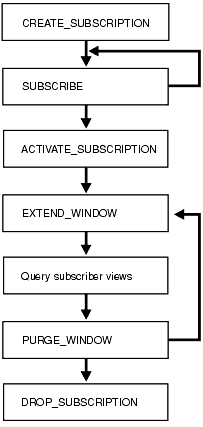

Figure 21-1 provides a graphical flowchart of the information provided in Table 21-1. The flowchart shows the order in which subscribers most typically use the procedures in the DBMS_CDC_SUBSCRIBE package. A subscriber would typically create a subscription, subscribe to one or more source tables and columns, activate the subscription, extend the subscription window, query the subscriber views, purge the subscription window, and then either extend the subscription window again or drop the subscription.

Figure 21-1 Subscription Flow

Text description of the illustration arpls011.gif

---

Deprecated Subprograms

The following DBMS_CDC_SUBSCRIBE procedures have been deprecated beginning with release 10g:

• GET_SUBSCRIPTION_HANDLE

  Subscribers no longer explicitly specify subscription handles. Subscribers should use the CREATE_SUBSCRIPTION procedure instead to specify a subscription name.

• PREPARE_SUBSCRIBER_VIEW

  Subscribers no longer need to prepare subscriber views. This work is now done automatically by Change Data Capture.

• DROP_SUBSCRIBER_VIEW

  Subscribers no longer need to drop subscriber views. This work is now done automatically by Change Data Capture.

If an existing application uses these deprecated DBMS_CDC_SUBSCRIBE procedures with release 10g, note the following changes in behavior:

• Subscriber views are persistent for the life of the subscription.
• Some error conditions, particularly with regard to subscriber view management, no longer occur.
• If a publisher alters a publication such that it contains different control columns, the subscriber must call DBMS_CDC_SUBSCRIBE.EXTEND_WINDOW to see the new column structure.

  Note: Oracle recommends that you do not use deprecated procedures in new applications. Support for deprecated features is for backward compatibility only.

In addition, the use of the subscription_handle parameter with the following DBMS_CDC_SUBSCRIBE procedures has been deprecated beginning with release 10g:

• SUBSCRIBE
• ACTIVATE_SUBSCRIPTION
• EXTEND_WINDOW
• PURGE_WINDOW
• DROP_SUBSCRIPTION

---

Summary of DBMS_CDC_SUBSCRIBE Subprograms

Table 21-1  DBMS_CDC_SUBSCRIBE Package Procedures

Procedures	Description
ACTIVATE_SUBSCRIPTION Procedure	Indicates that a subscription is ready to start accessing change data
CREATE_SUBSCRIPTION Procedure	Creates a subscription and associates it with one change set
DROP_SUBSCRIPTION Procedure	Drops a subscription that was created with a prior call to the CREATE_SUBSCRIPTION procedure
EXTEND_WINDOW Procedure	Sets a subscription window high boundary so that new change data can be seen
PURGE_WINDOW Procedure	Sets the low boundary for a subscription window to notify Change Data Capture that the subscriber is finished processing a set of change data
SUBSCRIBE Procedure	Specifies a source table and the source columns for which the subscriber wants to access change data and specifies the subscriber view through which the subscriber sees change data for the source table

---

ACTIVATE_SUBSCRIPTION Procedure

This procedure indicates that a subscription is ready to start accessing change data.

Syntax

DBMS_CDC_SUBSCRIBE.ACTIVATE_SUBSCRIPTION(
  subscription_name  IN VARCHAR2);

Parameters

Table 21-2  ACTIVATE_SUBSCRIPTION Procedure Parameters

Parameter	Description
subscription_name	The name of the subscription that was specified for a previous call to the CREATE_SUBSCRIPTION procedure. Subscription names follow the Oracle schema object naming rules.

Exceptions

Table 21-3  ACTIVATE_SUBSCRIPTION Procedure Exceptions

Exception	Description
ORA-31409	One or more values for input parameters are incorrect
ORA-31425	Subscription does not exist
ORA-31426	Cannot modify active subscriptions
ORA-31469	Cannot enable Change Data Capture for change set
ORA-31514	Change set disabled due to capture error

Usage Notes

• The ACTIVATE_SUBSCRIPTION procedure indicates that the subscriber is finished subscribing to tables, and the subscription is ready to start accessing change data.
• Once the subscriber activates the subscription:
  • No additional source tables can be added to the subscription.
  • Change Data Capture holds the available data for the source tables and sets the subscription window to empty.
  • The subscriber must use the EXTEND_WINDOW procedure to see the initial set of change data.
  • The subscription cannot be activated again.
• A subscription cannot be activated if the underlying change set has reached its end_date parameter value.

---

CREATE_SUBSCRIPTION Procedure

This procedure creates a subscription that is associated with one change set. This procedure replaces the deprecated GET_SUBSCRIPTION_HANDLE procedure.

Syntax

DBMS_CDC_SUBSCRIBE.CREATE_SUBSCRIPTION(
     change_set_name      IN  VARCHAR2,
     description          IN  VARCHAR2,
     subscription_name    IN  VARCHAR2);

Parameters

Table 21-4  CREATE_SUBSCRIPTION Procedure Parameters

Parameter	Description
change_set_name	The name of an existing change set to which the subscriber subscribes.
description	A description of the subscription (which might include, for example, the purpose for which it is used). The description must be specified using 255 or fewer characters.
subscription_name	A unique name for a subscription that must consist of 30 characters or fewer and cannot have a prefix of CDC$. Subscription names follow the Oracle schema object naming rules.

Exceptions

Table 21-5  CREATE_SUBSCRIPTION Procedure Exceptions

Exception	Description
ORA-31409	One or more values for input parameters are incorrect
ORA-31415	Specified change set does not exist
ORA-31449	Invalid value for change_set_name
ORA-31457	Maximum length of description field exceeded
ORA-31469	Cannot enable Change Data Capture for change set
ORA-31506	Duplicate subscription name specified
ORA-31510	Name uses reserved prefix CDC$
ORA-31511	Name exceeds maximum length of 30 characters

Usage Notes

• The CREATE_SUBSCRIPTION procedure allows a subscriber to register interest in a change set associated with source tables of interest.
• A subscriber can query the ALL_PUBLISHED_COLUMNS view to see all the published source tables for which the subscriber has privileges and the change sets in which the source table columns are published.
• Subscriptions are not shared among subscribers; rather, each subscription name is validated against a given subscriber's login ID.
• Subscriptions cannot be created if the underlying change set has reached its end_date parameter value.

---

DROP_SUBSCRIPTION Procedure

This procedure drops a subscription.

Syntax

DBMS_CDC_SUBSCRIBE.DROP_SUBSCRIPTION(
     subscription_name  IN VARCHAR2);

Parameters

Table 21-6  DROP_SUBSCRIPTION Procedure Parameters

Parameter	Description
subscription_name	The name of the subscription that was specified for a previous call to the CREATE_SUBSCRIPTION procedure. Subscription names follow the Oracle schema object naming rules.

Exceptions

Table 21-7  DROP_SUBSCRIPTION Procedure Exceptions

Exception	Description
ORA-31409	One or more values for input parameters are incorrect
ORA-31425	Subscription does not exist

Usage Notes

Subscribers should be diligent about dropping subscriptions that are no longer needed so that change data will not be held in the change tables unnecessarily.

---

EXTEND_WINDOW Procedure

This procedure sets the subscription window high boundary so that new change data can be seen.

Syntax

DBMS_CDC_SUBSCRIBE.EXTEND_WINDOW(
  subscription_name  IN VARCHAR2);

Parameters

Table 21-8  EXTEND_WINDOW Procedure Parameters

Parameter	Description
subscription_name	The unique name of the subscription that was specified by a previous call to the CREATE_SUBSCRIPTION procedure. Subscription names follow the Oracle schema object naming rules.

Exceptions

Table 21-9  EXTEND_WINDOW Procedure Exceptions

Exception	Description
ORA-31409	One or more values for input parameters are incorrect
ORA-31425	Subscription does not exist
ORA-31429	Subscription has not been activated
ORA-31432	Invalid source table
ORA-31469	Cannot enable Change Data Capture for change set
ORA-31509	Publication does not exist
ORA-31514	Change set disabled due to capture error

Usage Notes

• Until the subscriber calls the EXTEND_WINDOW procedure to begin receiving change data, the subscription window remains empty.
  • The first time that the subscriber calls the EXTEND_WINDOW procedure, it establishes the initial boundaries for the subscription window.
  • Subsequent calls to the EXTEND_WINDOW procedure extend the high boundary of the subscription window so that new change data can be seen.
• Oracle recommends that subscribers not view change tables directly. Instead, subscribers should use the DBMS_CDC_SUBSCRIBE package and access data through subscriber views only. Control column values are guaranteed to be consistent only when viewed through subscriber views that have been updated with a call to the EXTEND_WINDOW procedure.
• When the underlying change set for a subscription has reached its end_date parameter value, subsequent calls to the EXTEND_WINDOW procedure will not raise the high boundary.

---

PURGE_WINDOW Procedure

This procedure sets the low boundary of the subscription window so that the subscription no longer sees any change data, effectively making the subscription window empty. The subscriber calls this procedure to notify Change Data Capture that the subscriber is finished processing a block of change data.

Syntax

DBMS_CDC_SUBSCRIBE.PURGE_WINDOW(
     subscription_name   IN VARCHAR2);

Parameters

Table 21-10  PURGE_WINDOW Procedure Parameters

Parameter	Description
subscription_name	The name of the subscription that was specified for a previous call to the CREATE_SUBSCRIPTION procedure. Subscription names follow the Oracle schema object naming rules.

Exceptions

Table 21-11  PURGE_WINDOW Procedure Exceptions

Exception	Description
ORA-31409	One or more values for input parameters are incorrect
ORA-31425	Subscription does not exist
ORA-31429	Subscription has not been activated
ORA-31432	Invalid source table
ORA-31469	Cannot enable Change Data Capture for change set
ORA-31514	Change set disabled due to capture error

Usage Notes

• When finished with a set of changes, the subscriber purges the subscription window with the PURGE_WINDOW procedure. By this action, the subscriber performs the following functions:
  • Informs Change Data Capture that the subscriber is finished with the current set of change data.
  • Enables Change Data Capture to remove change data that is no longer needed by any subscribers.

  Change Data Capture manages the change data to ensure that it is available as long as there are subscribers who need it.

• When the underlying change set for a subscription has reached its end_date parameter value, subsequent calls to the PURGE_WINDOW procedure will not move the low boundary.

---

SUBSCRIBE Procedure

This procedure specifies a source table and the source columns for which the subscriber wants to access change data. In addition, it specifies the subscriber view through which the subscriber sees change data for the source table.

Syntax

There are two versions of syntax for the SUBSCRIBE procedure, as follow:

• Using source schema and source table

  When this syntax is used, Change Data Capture will attempt to find a single publication ID that contains the specified source_table and column_list. If such a publication cannot be found, then Change Data Capture returns an error.

  DBMS_CDC_SUBSCRIBE.SUBSCRIBE(
    subscription_name    IN VARCHAR2,
    source_schema        IN VARCHAR2,
    source_table         IN VARCHAR2,
    column_list          IN VARCHAR2,
    subscriber_view      IN VARCHAR2);



• Using publication IDs

  When this syntax is used, Change Data Capture will use the publication ID to identify the change table. If the columns specified in the column_list parameter are not in the identified change table, then Change Data Capture returns an error.

  DBMS_CDC_SUBSCRIBE.SUBSCRIBE(
  subscription_name    IN VARCHAR2,
  publication_id       IN NUMBER,
  column_list          IN VARCHAR2,
  subscriber_view      IN VARCHAR2);



Parameters

Table 21-12  SUBSCRIBE Procedure Parameters

Parameter	Description
subscription_name	The name of a subscription that was specified for, or returned by, a previous call to the CREATE_SUBSCRIPTION procedure. Subscription names follow the Oracle schema object naming rules.
source_schema	The name of the schema where the source table resides.
source_table	The name of a published source table.
column_list	A comma-delimited list of columns from the published source table or publication.
subscriber_view	Unique name for the subscriber view for this source table or publication that must consist of 30 or fewer characters and must not have a prefix of CDC$. Subscriber view names follow the Oracle schema object naming rules.
publication_id	A valid publication_id, which the subscriber can obtain from the ALL_PUBLISHED_COLUMNS view.

Exceptions

Table 21-13  SUBSCRIBE Procedure Exceptions

Exception	Description
ORA-31409	One or more values for input parameters are incorrect
ORA-31425	Subscription does not exist
ORA-31426	Cannot modify active subscriptions
ORA-31427	Specified source table already subscribed
ORA-31428	No publication contains all the specified columns
ORA-31432	Invalid source table
ORA-31466	No publications found
ORA-31469	Cannot enable Change Data Capture for change set
ORA-31510	Name uses reserved prefix CDC$
ORA-31511	Name exceeds maximum length of 30 characters

Usage Notes

• The SUBSCRIBE procedure allows a subscriber to subscribe to one or more published source tables and to specific columns in each source table. Each call to the SUBSCRIBE procedure can specify only a single source table or publication ID. The subscriber can make multiple calls to the SUBSCRIBE procedure to include multiple source tables or publications IDs in a subscription.
• If the columns of interest are all in a single publication, the subscriber can call the SUBSCRIBE procedure using the source_schema and source_table parameters or using the publication_id parameter. However, if there are multiple publications on a single source table and these publications share some columns, and if any of the shared columns will be used by a single subscription, then the subscriber should call the SUBSCRIBE procedure using the publication_id parameter.
• The subscriber can subscribe to any valid publication ID on which the subscriber has privileges to access. The subscriber can find valid publication IDs on which the subscriber has access by querying the ALL_PUBLISHED_COLUMNS view.
• A subscriber can query the ALL_PUBLISHED_COLUMNS view to see all the published source table columns accessible to the subscriber.
• Subscriptions must be created before a subscriber calls the SUBSCRIBE procedure. Change Data Capture does not guarantee that there will be any change data available at the moment the subscription is created.
• Subscribers can subscribe only to published columns from the source table. All of the columns specified in a single call to the SUBSCRIBE procedure must come from the same publication. Any control columns associated with the underlying change table are added to the subscription automatically.
• All specified source tables or publications must be in the change set that is associated with the named subscription.
• A single source table can have more than one publication defined on it. A subscriber can subscribe to one or more of these publications. However a subscriber can subscribe to a particular publication only once.
• Each publication in a subscription has its own subscriber view. Subscriber views are used to query the change data encompassed by the subscription's current window. Subscriber views are created in the schema of the subscriber.
• A subscriber cannot subscribe to a publication within a change set that has reached its end_date parameter value.
