Use the CREATE DATABASE LINK statement to create a database link. A database link is a schema object in one database that enables you to access objects on another database. The other database need not be an Oracle system. However, to access non-Oracle systems you must use Oracle Heterogeneous Services.

Once you have created a database link, you can use it to refer to tables and views on the other database. In SQL statements, you can refer to a table or view on the other database in by appending @dblink to the table or view name. You can query a table or view on the other database with the SELECT statement. You can also access remote tables and views using any INSERT, UPDATE, DELETE, or LOCK TABLE statement.

See Also:


To create a private database link, you must have CREATE DATABASE LINK system privilege. To create a public database link, you must have CREATE PUBLIC DATABASE LINK system privilege. Also, you must have CREATE SESSION privilege on the remote Oracle database.

Oracle Net must be installed on both the local and remote Oracle databases.

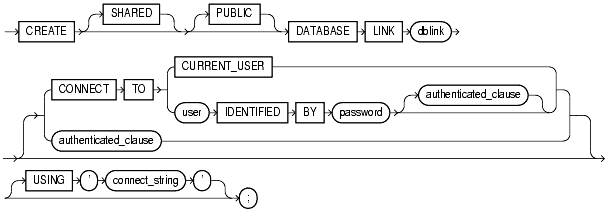

Text description of statements_59.gif follows
Text description of create_database_link


Text description of statements_510.gif follows
Text description of authenticated_clause

Keyword and Parameters


Specify SHARED to use a single network connection to create a public database link that can be shared among multiple users.

See Also:

Oracle9i Heterogeneous Connectivity Administrator's Guide for more information about shared database links


Specify PUBLIC to create a public database link available to all users. If you omit this clause, the database link is private and is available only to you.

See Also:

"Defining a Public Database Link: Example"


Specify the complete or partial name of the database link. If you specify only the database name, Oracle will implicitly append the database domain of the local database.

If the value of the GLOBAL_NAMES initialization parameter is TRUE, then the database link must have the same name as the database to which it connects. If the value of GLOBAL_NAMES is FALSE, and if you have changed the global name of the database, then you can specify the global name.

The maximum number of database links that can be open in one session or one instance of a Real Application Clusters configuration depends on the value of the OPEN_LINKS and OPEN_LINKS_PER_INSTANCE initialization parameters.

Restriction on Creating Database Links

You cannot create a database link in another user's schema, and you cannot qualify dblink with the name of a schema. (Periods are permitted in names of database links, so Oracle interprets the entire name, such as ralph.linktosales, as the name of a database link in your schema rather than as a database link named linktosales in the schema ralph.)

See Also:


The CONNECT TO clause lets you enable a connection to the remote database.


Specify CURRENT_USER to create a current user database link. The current user must be a global user with a valid account on the remote database for the link to succeed.

If the database link is used directly, that is, not from within a stored object, then the current user is the same as the connected user.

When executing a stored object (such as a procedure, view, or trigger) that initiates a database link, CURRENT_USER is the username that owns the stored object, and not the username that called the object. For example, if the database link appears inside procedure scott.p (created by scott), and user jane calls procedure scott.p, the current user is scott.

However, if the stored object is an invoker-rights function, procedure, or package, the invoker's authorization ID is used to connect as a remote user. For example, if the privileged database link appears inside procedure scott.p (an invoker-rights procedure created by scott), and user Jane calls procedure scott.p, then CURRENT_USER is jane and the procedure executes with Jane's privileges.

See Also:
user IDENTIFIED BY password

Specify the username and password used to connect to the remote database using a fixed user database link. If you omit this clause, the database link uses the username and password of each user who is connected to the database. This is called a connected user database link.

See Also:

"Defining a Fixed-User Database Link: Example"


Specify the username and password on the target instance. This clause authenticates the user to the remote server and is required for security. The specified username and password must be a valid username and password on the remote instance. The username and password are used only for authentication. No other operations are performed on behalf of this user.

You must specify this clause when using the SHARED clause.

USING 'connect string'

Specify the service name of a remote database. If you specify only the database name, then Oracle implicitly appends the database domain to the connect string to create a complete service name. Therefore, if the database domain of the remote database is different from that of the current database, you must specify the complete service name.

See Also:

Oracle9i Database Administrator's Guide for information on specifying remote databases


The examples that follow assume two databases, one with the database name "local" and the other with the database name "remote". The examples use the Oracle domain. Your database domain will be different.

Defining a Public Database Link: Example

The following statement defines a shared public database link named remote that refers to the database specified by the service name 'sales':

   USING 'remote';

This database link allows user hr on the local database to update a table on the remote database (assuming hr has appropriate privileges):

UPDATE employees@remote
   SET salary=salary*1.1
   WHERE last_name = 'Baer';
Defining a Fixed-User Database Link: Example

In the following statement, user hr on the remote database defines a fixed-user database link named local to the hr schema on the local database:

   USING 'local';

Once this database link is created, hr can query tables in the schema hr on the local database in this manner:

SELECT * FROM employees@local;

User hr can also use DML statements to modify data on the local database:

INSERT INTO employees@local
   (employee_id, last_name, email, hire_date, job_id)
   VALUES (999, 'Claus', '', SYSDATE, 'SH_CLERK');

UPDATE jobs@local SET min_salary = 3000
   WHERE job_id = 'SH_CLERK';

DELETE FROM employees@local
   WHERE employee_id = 999;

Using this fixed database link, user hr on the remote database can also access tables owned by other users on the same database. This statement assumes that user hr has SELECT privileges on the oe.customers table. The statement connects to the user hr on the local database and then queries oe's customers table. :

SELECT * FROM oe.customers@local;
Defining a CURRENT_USER Database Link: Example

The following statement defines a current-user database link using the to the remote database, using the entire service name as the link name:

   USING 'remote';

The user who issues this statement must be a global user registered with the LDAP directory service.

You can create a synonym to hide the fact that a particular table is on the remote database. The following statement causes all future references to emp_table to access the employees table owned by hr on the remote database:
