Data Integrity

This chapter explains how to use integrity constraints to enforce the business rules associated with your database and prevent the entry of invalid information into tables. The chapter includes:

Introduction to Data Integrity

It is important that data adhere to a predefined set of rules, as determined by the database administrator or application developer. As an example of data integrity, consider the tables employees and departments and the business rules for the information in each of the tables, as illustrated in Figure 21-1.

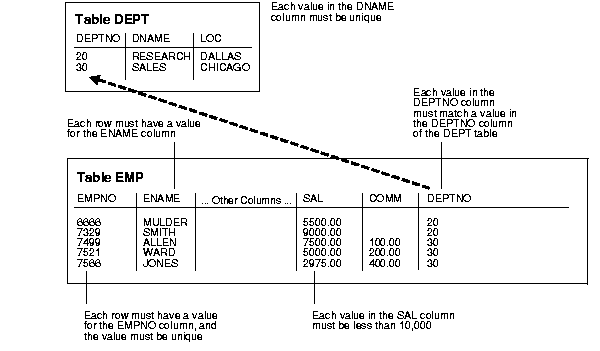

Figure 21-1 Examples of Data Integrity

Text description of cncpt051.gif follows
Text description of the illustration cncpt051.gif

Note that some columns in each table have specific rules that constrain the data contained within them.

Types of Data Integrity

This section describes the rules that can be applied to table columns to enforce different types of data integrity.

Null Rule

A null is a rule defined on a single column that allows or disallows inserts or updates of rows containing a null (the absence of a value) in that column.

Unique Column Values

A unique value defined on a column (or set of columns) allows the insert or update of a row only if it contains a unique value in that column (or set of columns).

Primary Key Values

A primary key value defined on a key (a column or set of columns) specifies that each row in the table can be uniquely identified by the values in the key.

Referential Integrity Rules

A rule defined on a key (a column or set of columns) in one table that guarantees that the values in that key match the values in a key in a related table (the referenced value).

Referential integrity also includes the rules that dictate what types of data manipulation are allowed on referenced values and how these actions affect dependent values. The rules associated with referential integrity are:

Complex Integrity Checking

Complex integrity checking is a user-defined rule for a column (or set of columns) that allows or disallows inserts, updates, or deletes of a row based on the value it contains for the column (or set of columns).

How Oracle Enforces Data Integrity

Oracle enables you to define and enforce each type of data integrity rule defined in the previous section. Most of these rules are easily defined using integrity constraints or database triggers.

Integrity Constraints Description

An integrity constraint is a declarative method of defining a rule for a column of a table. Oracle supports the following integrity constraints:

Database Triggers

Oracle also lets you enforce integrity rules with a non-declarative approach using database triggers (stored database procedures automatically invoked on insert, update, or delete operations).

See Also:

Chapter 17, "Triggers" for examples of triggers used to enforce data integrity

Introduction to Integrity Constraints

Oracle uses integrity constraints to prevent invalid data entry into the base tables of the database. You can define integrity constraints to enforce the business rules you want to associate with the information in a database. If any of the results of a DML statement execution violate an integrity constraint, then Oracle rolls back the statement and returns an error.


Operations on views (and synonyms for tables) are subject to the integrity constraints defined on the underlying base tables.

For example, assume that you define an integrity constraint for the salary column of the employees table. This integrity constraint enforces the rule that no row in this table can contain a numeric value greater than 10,000 in this column. If an INSERT or UPDATE statement attempts to violate this integrity constraint, then Oracle rolls back the statement and returns an information error message.

The integrity constraints implemented in Oracle fully comply with ANSI X3.135-1989 and ISO 9075-1989 standards.

Advantages of Integrity Constraints

This section describes some of the advantages that integrity constraints have over other alternatives, which include:

Declarative Ease

Define integrity constraints using SQL statements. When you define or alter a table, no additional programming is required. The SQL statements are easy to write and eliminate programming errors. Oracle controls their functionality. For these reasons, declarative integrity constraints are preferable to application code and database triggers. The declarative approach is also better than using stored procedures, because the stored procedure solution to data integrity controls data access, but integrity constraints do not eliminate the flexibility of ad hoc data access.

Centralized Rules

Integrity constraints are defined for tables (not an application) and are stored in the data dictionary. Any data entered by any application must adhere to the same integrity constraints associated with the table. By moving business rules from application code to centralized integrity constraints, the tables of a database are guaranteed to contain valid data, no matter which database application manipulates the information. Stored procedures cannot provide the same advantage of centralized rules stored with a table. Database triggers can provide this benefit, but the complexity of implementation is far greater than the declarative approach used for integrity constraints.

Maximum Application Development Productivity

If a business rule enforced by an integrity constraint changes, then the administrator need only change that integrity constraint and all applications automatically adhere to the modified constraint. In contrast, if the business rule were enforced by the code of each database application, developers would have to modify all application source code and recompile, debug, and test the modified applications.

Immediate User Feedback

Oracle stores specific information about each integrity constraint in the data dictionary. You can design database applications to use this information to provide immediate user feedback about integrity constraint violations, even before Oracle executes and checks the SQL statement. For example, a SQL*Forms application can use integrity constraint definitions stored in the data dictionary to check for violations as values are entered into the fields of a form, even before the application issues a statement.

Superior Performance

The semantics of integrity constraint declarations are clearly defined, and performance optimizations are implemented for each specific declarative rule. The Oracle query optimizer can use declarations to learn more about data to improve overall query performance. (Also, taking integrity rules out of application code and database triggers guarantees that checks are only made when necessary.)

Flexibility for Data Loads and Identification of Integrity Violations

You can disable integrity constraints temporarily so that large amounts of data can be loaded without the overhead of constraint checking. When the data load is complete, you can easily enable the integrity constraints, and you can automatically report any new rows that violate integrity constraints to a separate exceptions table.

The Performance Cost of Integrity Constraints

The advantages of enforcing data integrity rules come with some loss in performance. In general, the cost of including an integrity constraint is, at most, the same as executing a SQL statement that evaluates the constraint.

Types of Integrity Constraints

You can use the following integrity constraints to impose restrictions on the input of column values:

NOT NULL Integrity Constraints

By default, all columns in a table allow nulls. Null means the absence of a value. A NOT NULL constraint requires a column of a table contain no null values. For example, you can define a NOT NULL constraint to require that a value be input in the last_name column for every row of the employees table.

Figure 21-2 illustrates a NOT NULL integrity constraint.

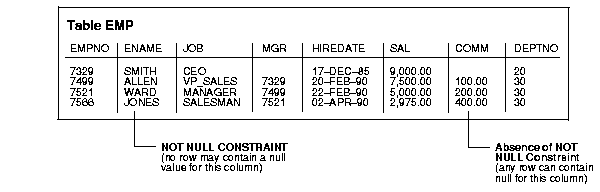

Figure 21-2 NOT NULL Integrity Constraints

Text description of cncpt052.gif follows
Text description of the illustration cncpt052.gif

UNIQUE Key Integrity Constraints

A UNIQUE key integrity constraint requires that every value in a column or set of columns (key) be unique--that is, no two rows of a table have duplicate values in a specified column or set of columns.

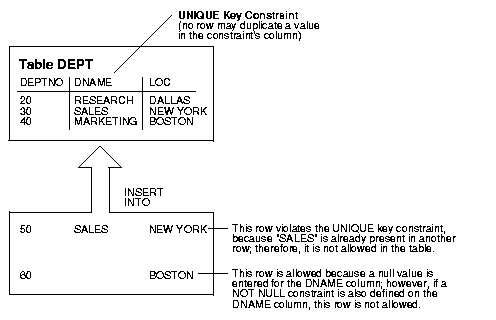

For example, in Figure 21-3 a UNIQUE key constraint is defined on the DNAME column of the departments table to disallow rows with duplicate department names.

Figure 21-3 A UNIQUE Key Constraint

Text description of cncpt053.gif follows
Text description of the illustration cncpt053.gif

Unique Keys

The columns included in the definition of the UNIQUE key constraint are called the unique key. Unique key is often incorrectly used as a synonym for the terms UNIQUE key constraint or UNIQUE index. However, note that key refers only to the column or set of columns used in the definition of the integrity constraint.

If the UNIQUE key consists of more than one column, that group of columns is said to be a composite unique key. For example, in Figure 21-4 the customer table has a UNIQUE key constraint defined on the composite unique key: the area and phone columns.

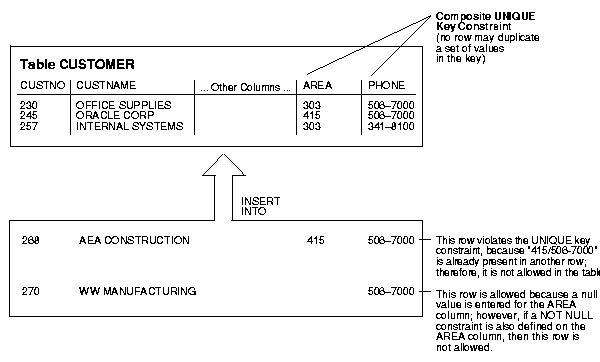

Figure 21-4 A Composite UNIQUE Key Constraint

Text description of cncpt054.gif follows
Text description of the illustration cncpt054.gif

This UNIQUE key constraint lets you enter an area code and telephone number any number of times, but the combination of a given area code and given telephone number cannot be duplicated in the table. This eliminates unintentional duplication of a telephone number.

UNIQUE Key Constraints and Indexes

Oracle enforces unique integrity constraints with indexes. For example, in Figure 21-4, Oracle enforces the UNIQUE key constraint by implicitly creating a unique index on the composite unique key. Therefore, composite UNIQUE key constraints have the same limitations imposed on composite indexes: up to 32 columns can constitute a composite unique key.


If compatibility is set to Oracle9i or higher, then the total size in bytes of a key value can be almost as large as a full block. In previous releases key size could not exceed approximately half the associated database's block size.

If a usable index exists when a unique key constraint is created, the constraint uses that index rather than implicitly creating a new one.

Combine UNIQUE Key and NOT NULL Integrity Constraints

In Figure 21-3 and Figure 21-4, UNIQUE key constraints allow the input of nulls unless you also define NOT NULL constraints for the same columns. In fact, any number of rows can include nulls for columns without NOT NULL constraints because nulls are not considered equal to anything. A null in a column (or in all columns of a composite UNIQUE key) always satisfies a UNIQUE key constraint.

Columns with both unique keys and NOT NULL integrity constraints are common. This combination forces the user to enter values in the unique key and also eliminates the possibility that any new row's data will ever conflict with an existing row's data.


Because of the search mechanism for UNIQUE constraints on more than one column, you cannot have identical values in the non-null columns of a partially null composite UNIQUE key constraint.

PRIMARY KEY Integrity Constraints

Each table in the database can have at most one PRIMARY KEY constraint. The values in the group of one or more columns subject to this constraint constitute the unique identifier of the row. In effect, each row is named by its primary key values.

The Oracle implementation of the PRIMARY KEY integrity constraint guarantees that both of the following are true:

Primary Keys

The columns included in the definition of a table's PRIMARY KEY integrity constraint are called the primary key. Although it is not required, every table should have a primary key so that:

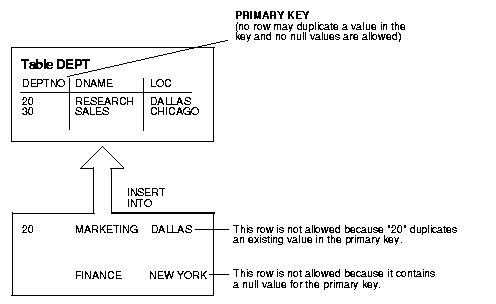

Figure 21-5 illustrates a PRIMARY KEY constraint in the departments table and examples of rows that violate the constraint.

Figure 21-5 A Primary Key Constraint

Text description of cncpt055.gif follows
Text description of the illustration cncpt055.gif

PRIMARY KEY Constraints and Indexes

Oracle enforces all PRIMARY KEY constraints using indexes. In Figure 21-5, the primary key constraint created for the department_id column is enforced by the implicit creation of:

Oracle enforces primary key constraints using indexes, and composite primary key constraints are limited to 32 columns, which is the same limitation imposed on composite indexes. The name of the index is the same as the name of the constraint. Also, you can specify the storage options for the index by including the ENABLE clause in the CREATE TABLE or ALTER TABLE statement used to create the constraint. If a usable index exists when a primary key constraint is created, then the primary key constraint uses that index rather than implicitly creating a new one.

Referential Integrity Constraints

Different tables in a relational database can be related by common columns, and the rules that govern the relationship of the columns must be maintained. Referential integrity rules guarantee that these relationships are preserved.

The following terms are associated with referential integrity constraints.

Term Definition

Foreign key

The column or set of columns included in the definition of the referential integrity constraint that reference a referenced key.

Referenced key

The unique key or primary key of the same or different table that is referenced by a foreign key.

Dependent or child table

The table that includes the foreign key. Therefore, it is the table that is dependent on the values present in the referenced unique or primary key.

Referenced or parent table

The table that is referenced by the child table's foreign key. It is this table's referenced key that determines whether specific inserts or updates are allowed in the child table.

A referential integrity constraint requires that for each row of a table, the value in the foreign key matches a value in a parent key.

Figure 21-6 shows a foreign key defined on the department_id column of the employees table. It guarantees that every value in this column must match a value in the primary key of the departments table (also the department_id column). Therefore, no erroneous department numbers can exist in the department_id column of the employees table.

Foreign keys can be defined as multiple columns. However, a composite foreign key must reference a composite primary or unique key with the same number of columns and the same datatypes. Because composite primary and unique keys are limited to 32 columns, a composite foreign key is also limited to 32 columns.

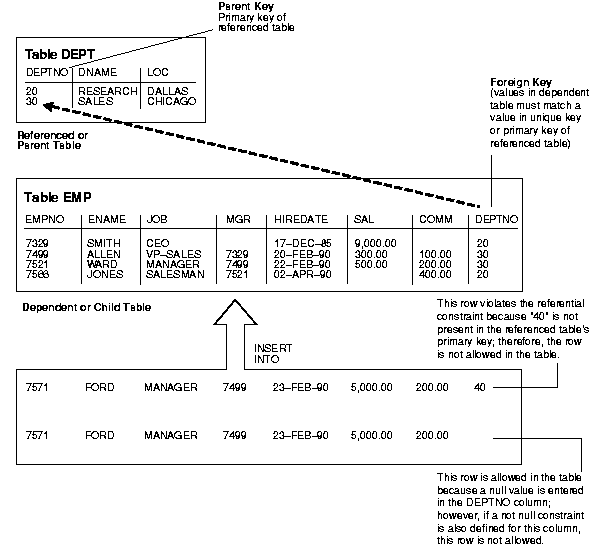

Figure 21-6 Referential Integrity Constraints

Text description of cncpt056.gif follows
Text description of the illustration cncpt056.gif

Self-Referential Integrity Constraints

Another type of referential integrity constraint, shown in Figure 21-7, is called a self-referential integrity constraint. This type of foreign key references a parent key in the same table.

In Figure 21-7, the referential integrity constraint ensures that every value in the manager_id column of the employees table corresponds to a value that currently exists in the employee_id column of the same table, but not necessarily in the same row, because every manager must also be an employee. This integrity constraint eliminates the possibility of erroneous employee numbers in the manager_id column.

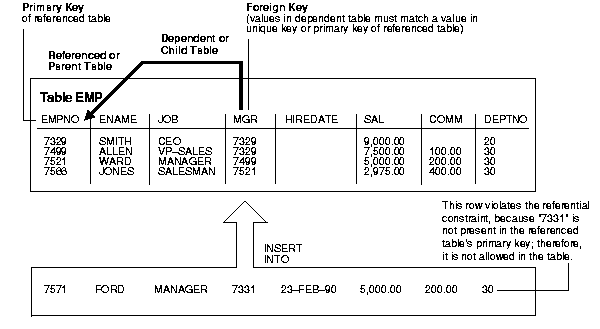

Figure 21-7 Single Table Referential Constraints

Text description of cncpt057.gif follows
Text description of the illustration cncpt057.gif

Nulls and Foreign Keys

The relational model permits the value of foreign keys either to match the referenced primary or unique key value, or be null. If any column of a composite foreign key is null, then the non-null portions of the key do not have to match any corresponding portion of a parent key.

Actions Defined by Referential Integrity Constraints

Referential integrity constraints can specify particular actions to be performed on the dependent rows in a child table if a referenced parent key value is modified. The referential actions supported by the FOREIGN KEY integrity constraints of Oracle are UPDATE and DELETE NO ACTION, and DELETE CASCADE.


Other referential actions not supported by FOREIGN KEY integrity constraints of Oracle can be enforced using database triggers.

See Chapter 17, "Triggers" for more information.

Update and Delete No Action

The No Action (default) option specifies that referenced key values cannot be updated or deleted if the resulting data would violate a referential integrity constraint. For example, if a primary key value is referenced by a value in the foreign key, then the referenced primary key value cannot be deleted because of the dependent data.

Delete Cascade

A delete cascades when rows containing referenced key values are deleted, causing all rows in child tables with dependent foreign key values to also be deleted. For example, if a row in a parent table is deleted, and this row's primary key value is referenced by one or more foreign key values in a child table, then the rows in the child table that reference the primary key value are also deleted from the child table.

Delete Set Null

A delete sets null when rows containing referenced key values are deleted, causing all rows in child tables with dependent foreign key values to set those values to null. For example, if employee_id references manager_id in the TMP table, then deleting a manager causes the rows for all employees working for that manager to have their manager_id value set to null.

DML Restrictions with Respect to Referential Actions

Table 21-1 outlines the DML statements allowed by the different referential actions on the primary/unique key values in the parent table, and the foreign key values in the child table.

Table 21-1 DML Statements Allowed by Update and Delete No Action
DML Statement Issued Against Parent Table Issued Against Child Table


Always OK if the parent key value is unique.

OK only if the foreign key value exists in the parent key or is partially or all null.

UPDATE No Action

Allowed if the statement does not leave any rows in the child table without a referenced parent key value.

Allowed if the new foreign key value still references a referenced key value.

DELETE No Action

Allowed if no rows in the child table reference the parent key value.

Always OK.

DELETE Cascade

Always OK.

Always OK.


Always OK.

Always OK.

Concurrency Control, Indexes, and Foreign Keys

You almost always index foreign keys. The only exception is when the matching unique or primary key is never updated or deleted.

Oracle maximizes the concurrency control of parent keys in relation to dependent foreign key values. You can control what concurrency mechanisms are used to maintain these relationships, and, depending on the situation, this can be highly beneficial. The following sections explain the possible situations and give recommendations for each.

No Index on the Foreign Key

Figure 21-8 illustrates the locking mechanisms used by Oracle when no index is defined on the foreign key and when rows are being updated or deleted in the parent table. Inserts into the parent table do not require any locks on the child table.

Oracle no longer requires a share lock on unindexed foreign keys when doing an update or delete on the primary key. It still obtains the table-level share lock, but then releases it immediately after obtaining it. If multiple primary keys are update or deleted, the lock is obtained and released once for each row.

In previous releases, a share lock of the entire child table was required until the transaction containing the DELETE statement for the parent table was committed. If the foreign key specifies ON DELETE CASCADE, then the DELETE statement resulted in a table-level share-subexclusive lock on the child table. A share lock of the entire child table was also required for an UPDATE statement on the parent table that affected any columns referenced by the child table. Share locks allow reading only. Therefore, no INSERT, UPDATE, or DELETE statements could be issued on the child table until the transaction containing the UPDATE or DELETE was committed. Queries were allowed on the child table.

INSERT, UPDATE, and DELETE statements on the child table do not acquire any locks on the parent table, although INSERT and UPDATE statements wait for a row-lock on the index of the parent table to clear.

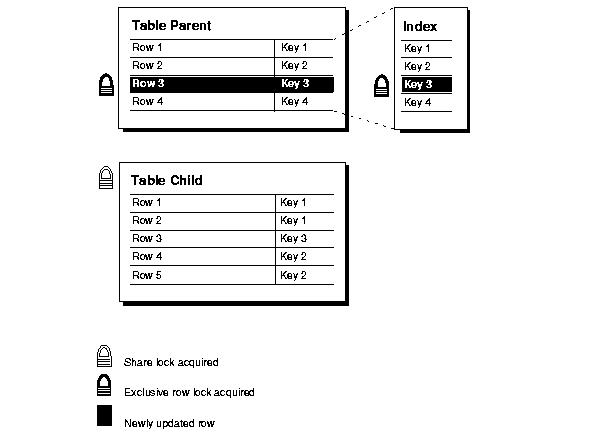

Figure 21-8 Locking Mechanisms When No Index Is Defined on the Foreign Key

Text description of cncpt155.gif follows
Text description of the illustration cncpt155.gif

Index on the Foreign Key

Figure 21-9 illustrates the locking mechanisms used by Oracle when an index is defined on the foreign key, and new rows are inserted, updated, or deleted in the child table.

Notice that no table locks of any kind are acquired on the parent table or any of its indexes as a result of the insert, update, or delete. Therefore, any type of DML statement can be issued on the parent table, including inserts, updates, deletes, and queries.

This situation is preferable if there is any update or delete activity on the parent table while update activity is taking place on the child table. Inserts, updates, and deletes on the parent table do not require any locks on the child table, although updates and deletes will wait for row-level locks on the indexes of the child table to clear.

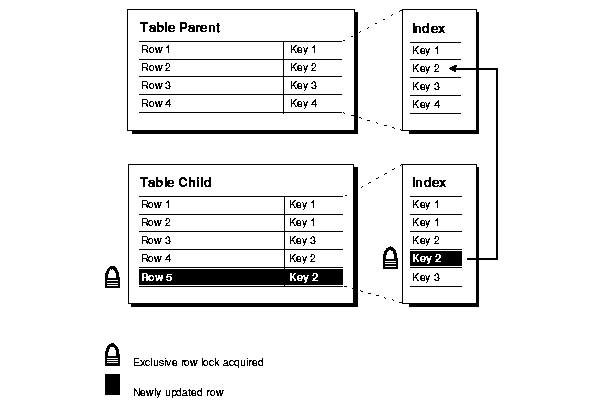

Figure 21-9 Locking Mechanisms When Index Is Defined on the Foreign Key

Text description of cncpt156.gif follows
Text description of the illustration cncpt156.gif

If the child table specifies ON DELETE CASCADE, then deletes from the parent table can result in deletes from the child table. In this case, waiting and locking rules are the same as if you deleted yourself from the child table after performing the delete from the parent table.

CHECK Integrity Constraints

A CHECK integrity constraint on a column or set of columns requires that a specified condition be true or unknown for every row of the table. If a DML statement results in the condition of the CHECK constraint evaluating to false, then the statement is rolled back.

The Check Condition

CHECK constraints enable you to enforce very specific integrity rules by specifying a check condition. The condition of a CHECK constraint has some limitations:

In evaluating CHECK constraints that contain string literals or SQL functions with globalization support parameters as arguments (such as TO_CHAR, TO_DATE, and TO_NUMBER), Oracle uses the database globalization support settings by default. You can override the defaults by specifying globalization support parameters explicitly in such functions within the CHECK constraint definition.

See Also:

Oracle9i Database Globalization Support Guide for more information on globalization support features

Multiple CHECK Constraints

A single column can have multiple CHECK constraints that reference the column in its definition. There is no limit to the number of CHECK constraints that you can define on a column.

If you create multiple CHECK constraints for a column, design them carefully so their purposes do not conflict. Do not assume any particular order of evaluation of the conditions. Oracle does not verify that CHECK conditions are not mutually exclusive.

The Mechanisms of Constraint Checking

To know what types of actions are permitted when constraints are present, it is useful to understand when Oracle actually performs the checking of constraints. To illustrate this, an example or two is helpful. Assume the following:

Consider the insertion of the first row into the employees table. No rows currently exist, so how can a row be entered if the value in the manager_id column cannot reference any existing value in the employee_id column? Three possibilities for doing this are:

Consider the same self-referential integrity constraint in this scenario. The company has been sold. Because of this sale, all employee numbers must be updated to be the current value plus 5000 to coordinate with the new company's employee numbers. Because manager numbers are really employee numbers, these values must also increase by 5000 (see Figure 21-10).

Figure 21-10 The EMP Table Before Updates

Text description of cncpt058.gif follows
Text description of the illustration cncpt058.gif

UPDATE employees
  SET employee_id = employee_id + 5000,
      manager_id = manager_id + 5000;

Even though a constraint is defined to verify that each manager_id value matches an employee_id value, this statement is legal because Oracle effectively performs its constraint checking after the statement completes. Figure 21-11 shows that Oracle performs the actions of the entire SQL statement before any constraints are checked.

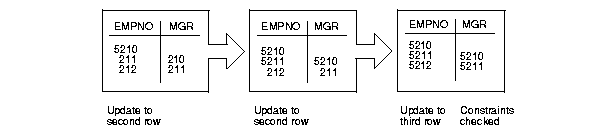

Figure 21-11 Constraint Checking

Text description of cncpt059.gif follows
Text description of the illustration cncpt059.gif

The examples in this section illustrate the constraint checking mechanism during INSERT and UPDATE statements. The same mechanism is used for all types of DML statements, including UPDATE, INSERT, and DELETE statements.

The examples also used self-referential integrity constraints to illustrate the checking mechanism. The same mechanism is used for all types of constraints, including the following:

Default Column Values and Integrity Constraint Checking

Default values are included as part of an INSERT statement before the statement is parsed. Therefore, default column values are subject to all integrity constraint checking.

Deferred Constraint Checking

You can defer checking constraints for validity until the end of the transaction.

If a constraint causes an action (for example, delete cascade), that action is always taken as part of the statement that caused it, whether the constraint is deferred or immediate.

Constraint Attributes

You can define constraints as either deferrable or not deferrable, and either initially deferred or initially immediate. These attributes can be different for each constraint. You specify them with keywords in the CONSTRAINT clause:

Constraints can be added, dropped, enabled, disabled, or validated. You can also modify a constraint's attributes.

See Also:


The SET CONSTRAINTS statement makes constraints either DEFERRED or IMMEDIATE for a particular transaction (following the ANSI SQL92 standards in both syntax and semantics). You can use this statement to set the mode for a list of constraint names or for ALL constraints.

The SET CONSTRAINTS mode lasts for the duration of the transaction or until another SET CONSTRAINTS statement resets the mode.

SET CONSTRAINTS ... IMMEDIATE causes the specified constraints to be checked immediately on execution of each constrained statement. Oracle first checks any constraints that were deferred earlier in the transaction and then continues immediately checking constraints of any further statements in that transaction, as long as all the checked constraints are consistent and no other SET CONSTRAINTS statement is issued. If any constraint fails the check, an error is signaled. At that point, a COMMIT causes the whole transaction to roll back.

The ALTER SESSION statement also has clauses to SET CONSTRAINTS IMMEDIATE or DEFERRED. These clauses imply setting ALL deferrable constraints (that is, you cannot specify a list of constraint names). They are equivalent to making a SET CONSTRAINTS statement at the start of each transaction in the current session.

Making constraints immediate at the end of a transaction is a way of checking whether COMMIT can succeed. You can avoid unexpected rollbacks by setting constraints to IMMEDIATE as the last statement in a transaction. If any constraint fails the check, you can then correct the error before committing the transaction.

The SET CONSTRAINTS statement is disallowed inside of triggers.

SET CONSTRAINTS can be a distributed statement. Existing database links that have transactions in process are told when a SET CONSTRAINTS ALL statement occurs, and new links learn that it occurred as soon as they start a transaction.

Unique Constraints and Indexes

A user sees inconsistent constraints, including duplicates in unique indexes, when that user's transaction produces these inconsistencies.

You can place deferred unique and foreign key constraints on materialized views, allowing fast and complete refresh to complete successfully.

Deferrable unique constraints always use nonunique indexes. When you remove a deferrable constraint, its index remains. This is convenient because the storage information remains available after you disable a constraint. Not-deferrable unique constraints and primary keys also use a nonunique index if the nonunique index is placed on the key columns before the constraint is enforced.

Constraint States

You can enable or disable integrity constraints at the table level using the CREATE TABLE or ALTER TABLE statement. You can also set constraints to VALIDATE or NOVALIDATE, in any combination with ENABLE or DISABLE, where:

In addition:

Transitions between these states are governed by the following rules:

Constraint State Modification

You can use the MODIFY CONSTRAINT clause of the ALTER TABLE statement to change the following constraint states:

Go to previous page Go to next page
Copyright © 1996, 2002 Oracle Corporation.

All Rights Reserved.
Go To Documentation Library
Go To Product List
Book List
Go To Table Of Contents
Go To Index

Master Index
