Information on Deprecated Features

This appendix contains information the following topics:

If you created your database with an earlier version of Oracle, then you could be using these features. Locally managed tablespaces are recommended over dictionary managed tablespaces, and automatic undo space management is recommended over manual undo space management, which uses rollback segment.

Allocating Extents in Dictionary Managed Tablespaces

Prior to Oracle8i, all tablespaces were created as dictionary managed. Dictionary managed tablespaces rely on data dictionary tables to track space utilization. Beginning with Oracle8i, you could create locally managed tablespaces, which use bitmaps (instead of data dictionary tables) to track used and free space. Because of the better performance and greater ease of management of locally managed tablespaces, the default for non-SYSTEM permanent tablespaces is locally managed whenever the type of extent management is not explicitly specified.


Oracle Corporation strongly recommends that you use locally managed tablespaces.

If you created your database with an earlier version of Oracle, then you could be using dictionary managed tablespaces. With dictionary managed tablespaces, Oracle controls the allocation of incremental extents for a given segment as follows:

  1. Oracle searches through the free space (in the tablespace that contains the segment) for the first free, contiguous set of data blocks of an incremental extent's size or larger, using the following algorithm:
    1. Oracle searches for a contiguous set of data blocks that matches the size of new extent plus one block to reduce internal fragmentation. (The size is rounded up to the size of the minimal extent for that tablespace, if necessary.) For example, if a new extent requires 19 data blocks, then Oracle searches for exactly 20 contiguous data blocks. If the new extent is five or fewer blocks, Oracle does not add an extra block to the request.
    2. If an exact match is not found, then Oracle then searches for a set of contiguous data blocks greater than the amount needed. If Oracle finds a group of contiguous blocks that is at least five blocks greater than the size of the extent needed, then it splits the group of blocks into separate extents, one of which is the size it needs. If Oracle finds a group of blocks that is larger than the size it needs, but less than five blocks larger, then it allocates all the contiguous blocks to the new extent.

      In this example, if Oracle does not find a set of exactly 20 contiguous data blocks, then Oracle searches for a set of contiguous data blocks greater than 20. If the first set it finds contains 25 or more blocks, then it breaks up the blocks and allocates 20 of them to the new extent and leaves the remaining five or more blocks as free space. Otherwise, it allocates all of the blocks (between 21 and 24) to the new extent.

    3. If Oracle does not find an equal or larger set of contiguous data blocks, then it coalesces any free, adjacent data blocks in the corresponding tablespace to form larger sets of contiguous data blocks. (The SMON background process also periodically coalesces adjacent free space.) After coalescing the data blocks in a tablespace, Oracle performs the searches described in 1a and 1b again.
    4. If an extent cannot be allocated after the second search, then Oracle tries to resize the files by autoextension. If Oracle cannot resize the files, then it returns an error.
  2. After Oracle finds and allocates the necessary free space in the tablespace, it allocates a portion of the free space that corresponds to the size of the incremental extent. If Oracle finds a larger amount of free space than was required for the extent, then Oracle leaves the remainder as free space (no smaller than five contiguous blocks).
  3. Oracle updates the segment header and data dictionary to show that a new extent has been allocated and that the allocated space is no longer free.

The blocks of a newly allocated extent, although they were free, may not be empty of old data. Usually, Oracle formats the blocks of a newly allocated extent when it starts using the extent, but only as needed (starting with the blocks on the segment free list). In a few cases, however, such as when a database administrator forces allocation of an incremental extent with the ALLOCATE EXTENT clause of an ALTER TABLE or ALTER CLUSTER statement, Oracle formats the blocks in the extent when it allocates the extent.

Introduction to Rollback Segments

In earlier releases, undo space management was performed using rollback segments. This method is now called manual undo management mode. Manual undo management mode is supported under any compatibility level. Use it when you need to run Oracle9i to take advantage of some new features, but are not yet not ready to convert to automatic undo management mode.


Although manual undo management mode is supported, Oracle Corporation strongly recommends that you run in automatic undo management mode.

Each database contains one or more rollback segments. A rollback segment records the old values of data that were changed by each transaction (whether or not committed). Rollback segments provide read consistency, roll back transactions, and recover the database.


Oracle Corporation strongly recommends using automatic undo management. This section is included only for backward compatibility with previous releases.

See Also:

Contents of a Rollback Segment

Information in a rollback segment consists of several rollback entries. Among other information, a rollback entry includes block information (the file number and block ID corresponding to the data that was changed) and the data as it existed before an operation in a transaction. Oracle links rollback entries for the same transaction, so the entries can be found easily if necessary for transaction rollback.

Neither database users nor administrators can access or read rollback segments. Only Oracle can write to or read them. (They are owned by the user SYS, no matter which user creates them.)

How Rollback Entries Are Logged

Rollback entries change data blocks in the rollback segment, and Oracle records all changes to data blocks, including rollback entries, in the redo log. This second recording of the rollback information is very important for active transactions (not yet committed or rolled back) at the time of a system crash. If a system crash occurs, then Oracle automatically restores the rollback segment information, including the rollback entries for active transactions, as part of instance or media recovery. When recovery is complete, Oracle performs the actual rollbacks of transactions that had been neither committed nor rolled back at the time of the system crash.

When Rollback Information Is Required

For each rollback segment, Oracle maintains a transaction table--a list of all transactions that use the associated rollback segment and the rollback entries for each change performed by these transactions. Oracle uses the rollback entries in a rollback segment to perform a transaction rollback and to create read-consistent results for queries.

Rollback segments record the data prior to change for each transaction. For every transaction, Oracle links each new change to the previous change. If you must roll back the transaction, then Oracle applies the changes in a chain to the data blocks in an order that restores the data to its previous state.

Similarly, when Oracle needs to provide a read-consistent set of results for a query, it can use information in rollback segments to create a set of data consistent with respect to a single point in time.

Transactions and Rollback Segments

Each time a user's transaction begins, the transaction is assigned to a rollback segment in one of two ways:

For the duration of a transaction, the associated user process writes rollback information only to the assigned rollback segment.

When you commit a transaction, Oracle releases the rollback information but does not immediately destroy it. The information remains in the rollback segment to create read-consistent views of pertinent data for queries that started before the transaction committed. To guarantee that rollback data is available for as long as possible for such views, Oracle writes the extents of rollback segments sequentially. When the last extent of the rollback segment becomes full, Oracle continues writing rollback data by wrapping around to the first extent in the segment. A long-running transaction (idle or active) can require a new extent to be allocated for the rollback segment.

See Figure B-1, Figure B-2, and Figure B-3 for more information about how transactions use the extents of a rollback segment.

Each rollback segment can handle a fixed number of transactions from one instance. Unless you explicitly assign transactions to particular rollback segments, Oracle distributes active transactions across available rollback segments so that all rollback segments are assigned approximately the same number of active transactions. Distribution does not depend on the size of the available rollback segments. Therefore, in environments where all transactions generate the same amount of rollback information, all rollback segments can be the same size.


The number of transactions that a rollback segment can handle is a function of the data block size, which depends on the operating system.

See your Oracle operating system-specific documentation for more information.

When you create a rollback segment, you can specify storage parameters to control the allocation of extents for that segment. Each rollback segment must have at least two extents allocated.

One transaction writes sequentially to a single rollback segment. Each transaction writes to only one extent of the rollback segment at any given time. Many active transactions can write concurrently to a single rollback segment--even the same extent of a rollback segment. However, each data block in a rollback segment's extent can contain information for only a single transaction.

When a transaction runs out of space in the current extent and needs to continue writing, Oracle finds an available extent of the same rollback segment in one of two ways:

The first transaction that needs to acquire more rollback space checks the next extent of the rollback segment. If the next extent of the rollback segment does not contain information from an active transaction, Oracle makes it the current extent, and all transactions that need more space from then on can write rollback information to the new current extent.

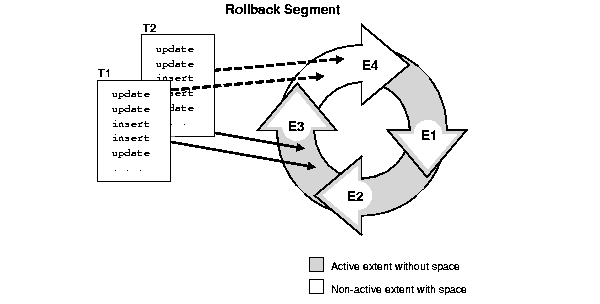

Figure B-1 illustrates two transactions, T1 and T2, which begin writing in the third extent (E3) and continue writing to the fourth extent (E4) of a rollback segment.

Figure B-1 Use of Allocated Extents in a Rollback Segment

Text description of cncpt033.gif follows
Text description of the illustration cncpt033.gif

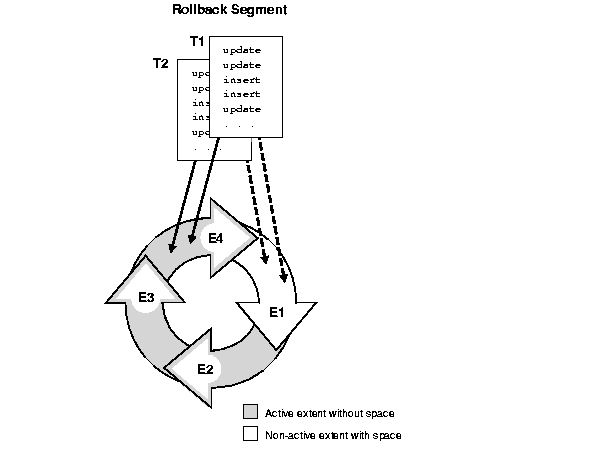

As the transactions continue writing and fill the current extent, Oracle checks the next extent already allocated for the rollback segment to determine if it is available. In Figure B-2, when E4 is completely full, T1 and T2 continue any further writing to the next extent allocated for the rollback segment that is available. In this figure, E1 is the next extent. This figure shows the cyclical nature of extent use in rollback segments.

Figure B-2 Cyclical Use of the Allocated Extents in a Rollback Segment

Text description of cncpt034.gif follows
Text description of the illustration cncpt034.gif

To continue writing rollback information for a transaction, Oracle always tries to reuse the next extent in the ring first. However, if the next extent contains data from an active transaction, then Oracle must allocate a new extent. Oracle can allocate new extents for a rollback segment until the number of extents reaches the value set for the rollback segment's storage parameter MAXEXTENTS.

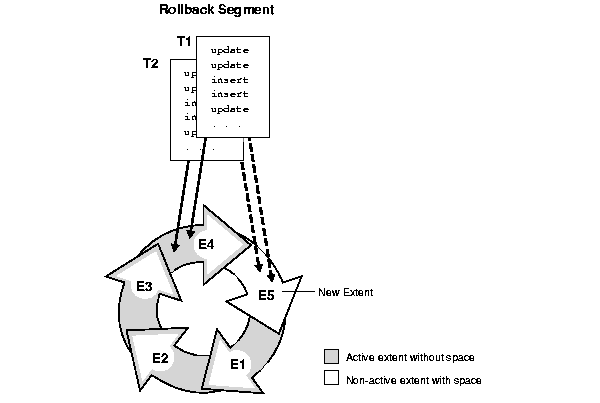

Figure B-3 shows a new extent allocated for a rollback segment. The uncommitted transactions are long running (either idle, active, or persistent in-doubt distributed transactions). At this time, they are writing to the fourth extent, E4, in the rollback segment. However, when E4 is completely full, the transactions cannot continue further writing to the next extent in sequence, E1, because it contains active rollback entries. Therefore, Oracle allocates a new extent, E5, for this rollback segment, and the transactions continue writing to this new extent.

Figure B-3 Allocation of a New Extent for a Rollback Segment

Text description of cncpt035.gif follows
Text description of the illustration cncpt035.gif

How Extents Are Deallocated from a Rollback Segment

When you drop a rollback segment, Oracle returns all extents of the rollback segment to its tablespace. The returned extents are then available to other segments in the tablespace.

When you create or alter a rollback segment, you can use the storage parameter OPTIMAL (which applies only to rollback segments) to specify the optimal size of the segment in bytes. If a transaction needs to continue writing rollback information from one extent to another extent in the rollback segment, Oracle compares the current size of the rollback segment to the segment's optimal size. If the rollback segment is larger than its optimal size, and if the extents immediately following the extent just filled are inactive, then Oracle deallocates consecutive nonactive extents from the rollback segment until the total size of the rollback segment is equal to or close to, but not less than, its optimal size. Oracle always frees the oldest inactive extents, as these are the least likely to be used by consistent reads.

A rollback segment's OPTIMAL setting cannot be less than the combined space allocated for the minimum number of extents for the segment. For example:

(INITIAL + NEXT + NEXT + ... up to MINEXTENTS) bytes

The Rollback Segment SYSTEM

Oracle creates an initial rollback segment called SYSTEM whenever a database is created. This segment is in the SYSTEM tablespace and uses that tablespace's default storage parameters. You cannot drop the SYSTEM rollback segment. An instance always acquires the SYSTEM rollback segment in addition to any other rollback segments it needs.

With multiple rollback segments, Oracle tries to use the SYSTEM rollback segment only for special system transactions and distributes user transactions among other rollback segments. If there are too many transactions for the nonSYSTEM rollback segments, then Oracle uses the SYSTEM segment as necessary. In general, after database creation, create at least one additional rollback segment in the SYSTEM tablespace.

Oracle Instances and Types of Rollback Segments

When an Oracle instance opens a database, it must acquire one or more rollback segments so that the instance can handle rollback information produced by subsequent transactions. An instance can acquire both private and public rollback segments. A private rollback segment is acquired explicitly by an instance when the instance opens a database. Public rollback segments form a pool of rollback segments that any instance requiring a rollback segment can use.

Any number of private and public rollback segments can exist in a database. As an instance opens a database, the instance attempts to acquire one or more rollback segments according to the following rules:

  1. The instance must acquire at least one rollback segment. If the instance is the only instance accessing the database, it acquires the SYSTEM segment. If the instance is one of several instances accessing the database in a Real Application Clusters environment, then it acquires the SYSTEM rollback segment and at least one other rollback segment. If it cannot, Oracle returns an error, and the instance cannot open the database.
  2. The instance always attempts to acquire at least the number of rollback segments equal to the quotient of the values for the following initialization parameters:

    CEIL is a SQL function that returns the smallest integer greater than or equal to the numeric input. In the previous example, if TRANSACTIONS equal 155 and TRANSACTIONS_PER_ROLLBACK_SEGMENT equal 10, then the instance tries to acquire at least 16 rollback segments. (However, an instance can open the database even if the instance cannot acquire the number of rollback segments given by the division in the previous example.)


    The TRANSACTIONS_PER_ROLLBACK_SEGMENT parameter does not limit the number of transactions that can use a rollback segment. Rather, it determines the number of rollback segments an instance attempts to acquire when opening a database.

  3. After acquiring the SYSTEM rollback segment, the instance next tries to acquire all private rollback segments specified by the instance's ROLLBACK_SEGMENTS parameter. If one instance in Oracle Real Application Clusters opens a database and attempts to acquire a private rollback segment already claimed by another instance, the second instance trying to acquire the rollback segment receives an error during startup. An error is also returned if an instance attempts to acquire a private rollback segment that does not exist.
  4. If the instance has acquired enough private rollback segments in step 3, then no further action is required. However, if an instance requires more rollback segments, then the instance attempts to acquire public rollback segments.

    After an instance claims a public rollback segment, no other instance can use that segment until either the rollback segment is taken offline or the instance that claimed the rollback segment is shut down.

A database used by Oracle9i Real Application Clusters can have both public and private segments. Use of private segments is recommended.

See Also:

for more information about rollback segment use with Real Application Clusters

Rollback Segment States

A rollback segment is always in one of several states, depending on whether it is offline, acquired by an instance, involved in an unresolved transaction, in need of recovery, or dropped. The state of the rollback segment determines whether it can be used in transactions, as well as which administrative procedures a database administrator can perform on it.

The rollback segment states are:


Has not been acquired (brought online) by any instance.


Has been acquired (brought online) by an instance and can contain data from active transactions.


Contains data from uncommitted transactions that cannot be rolled back (because the data files involved are inaccessible) or is corrupted.


Contains data from an in-doubt transaction (that is, an unresolved distributed transaction).


Has been dropped. (The space once allocated to this rollback segment is later used when a new rollback segment is created.)

The data dictionary table DBA_ROLLBACK_SEGS lists the state of each rollback segment, along with other rollback information.

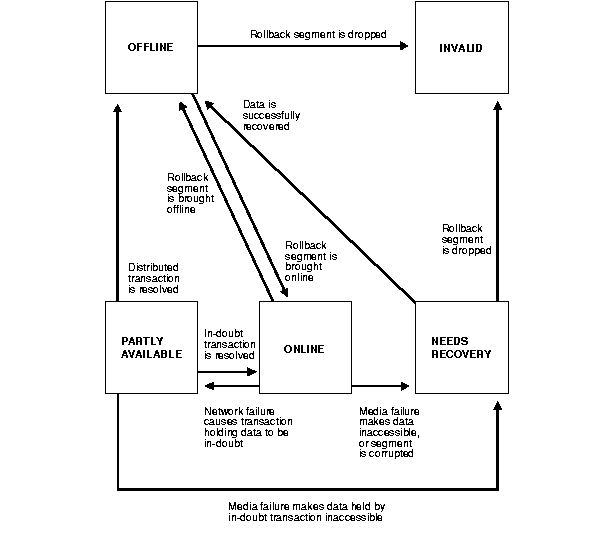

Figure B-4 shows how a rollback segment moves from one state to another.

Figure B-4 Rollback Segment States and State Transitions

Text description of cncpt036.gif follows
Text description of the illustration cncpt036.gif


The PARTLY REMOVE_AVAILABLE and NEEDS RECOVERY states are very similar. A rollback segment in either state usually contains data from an unresolved transaction.

If you bring a PARTLY REMOVE_AVAILABLE rollback segment online (by a statement or during instance startup), then Oracle can use it for new transactions. However, the in-doubt transaction still holds some of its transaction table entries, so the number of new transactions that can use the rollback segment is limited.

Until you resolve the in-doubt transaction, the transaction continues to hold the extents it acquired in the rollback segment, preventing other transactions from using them. Thus, the rollback segment may need to acquire new extents for the active transactions, and therefore grow. To prevent the rollback segment from growing, a database administrator can create a new rollback segment for transactions to use until the in-doubt transaction is resolved, rather than bring the PARTLY REMOVE_AVAILABLE segment online.

See Also:

Deferred Rollback Segments

When a tablespace goes offline so that transactions cannot be rolled back immediately, Oracle writes to a deferred rollback segment. The deferred rollback segment contains the rollback entries that could not be applied to the tablespace, so that they can be applied when the tablespace comes back online. These segments disappear as soon as the tablespace is brought back online and recovered. Oracle automatically creates deferred rollback segments in the SYSTEM tablespace.

High Water Mark

The high water mark is the boundary between used and unused space in a segment. As requests for new free blocks that cannot be satisfied by existing free lists are received, the block to which the high water mark points becomes a used block, and the high water mark is advanced to the next block. In other words, the segment space to the left of the high water mark is used, and the space to the right of it is unused.

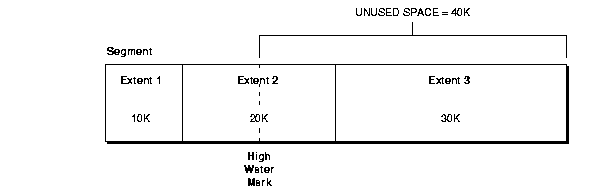

Figure B-5 shows a segment consisting of three extents containing 10K, 20K, and 30K of space, respectively. The high water mark is in the middle of the second extent. Thus, the segment contains 20K of used space to the left of the high water mark, and 40K of unused space to the right of the high water mark.

Figure B-5 High Water Mark

Text description of cncpt166.gif follows
Text description of the illustration cncpt166.gif

PCTFREE, PCTUSED, and Row Chaining

For manually managed tablespaces, two space management parameters, PCTFREE and PCTUSED, enable you to control the use of free space for inserts and updates to the rows in all the data blocks of a particular segment. Specify these parameters when you create or alter a table or cluster (which has its own data segment). You can also specify the storage parameter PCTFREE when creating or altering an index (which has its own index segment).


This discussion does not apply to LOB datatypes (BLOB, CLOB, NCLOB, and BFILE). They do not use the PCTFREE storage parameter or free lists.

See "LOB Datatypes" for more information.

The PCTFREE Parameter

The PCTFREE parameter sets the minimum percentage of a data block to be reserved as free space for possible updates to rows that already exist in that block. For example, assume that you specify the following parameter within a CREATE TABLE statement:


This states that 20% of each data block in this table's data segment be kept free and available for possible updates to the existing rows already within each block. New rows can be added to the row data area, and corresponding information can be added to the variable portions of the overhead area, until the row data and overhead total 80% of the total block size. Figure B-6 illustrates PCTFREE.

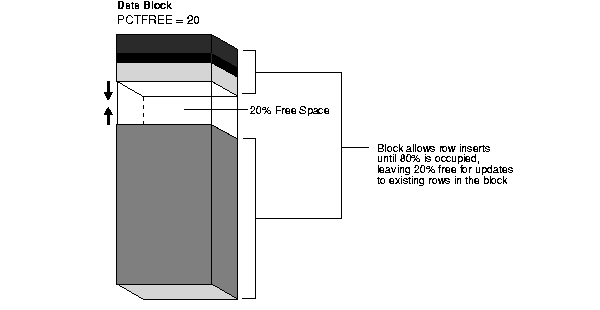

Figure B-6 PCTFREE

Text description of cncpt029.gif follows
Text description of the illustration cncpt029.gif

The PCTUSED Parameter

The PCTUSED parameter sets the minimum percentage of a block that can be used for row data plus overhead before new rows are added to the block. After a data block is filled to the limit determined by PCTFREE, Oracle considers the block unavailable for the insertion of new rows until the percentage of that block falls below the parameter PCTUSED. Until this value is achieved, Oracle uses the free space of the data block only for updates to rows already contained in the data block. For example, assume that you specify the following parameter in a CREATE TABLE statement:


In this case, a data block used for this table's data segment is considered unavailable for the insertion of any new rows until the amount of used space in the block falls to 39% or less (assuming that the block's used space has previously reached PCTFREE). Figure B-7 illustrates this.

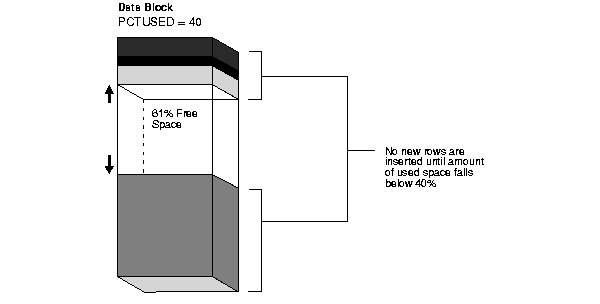

Figure B-7 PCTUSED

Text description of cncpt030.gif follows
Text description of the illustration cncpt030.gif

How PCTFREE and PCTUSED Work Together

PCTFREE and PCTUSED work together to optimize the use of space in the data blocks of the extents within a data segment. Figure B-8 illustrates the interaction of these two parameters.

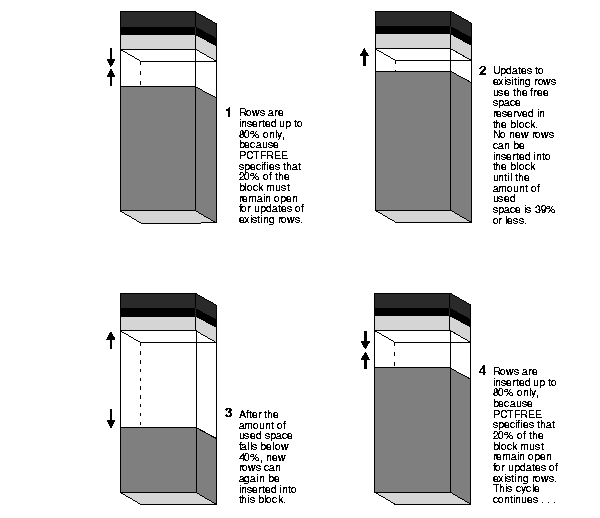

Figure B-8 Maintaining the Free Space of Data Blocks with PCTFREE and PCTUSED

Text description of cncpt031.gif follows
Text description of the illustration cncpt031.gif

In a newly allocated data block, the space available for inserts is the block size minus the sum of the block overhead and free space (PCTFREE). Updates to existing data can use any available space in the block. Therefore, updates can reduce the available space of a block to less than PCTFREE, the space reserved for updates but not accessible to inserts.

For each data and index segment, Oracle maintains one or more free lists--lists of data blocks that have been allocated for that segment's extents and have free space greater than PCTFREE. These blocks are available for inserts. When you issue an INSERT statement, Oracle checks a free list of the table for the first available data block and uses it if possible. If the free space in that block is not large enough to accommodate the INSERT statement, and the block is at least PCTUSED, then Oracle takes the block off the free list. Multiple free lists for each segment can reduce contention for free lists when concurrent inserts take place.

After you issue a DELETE or UPDATE statement, Oracle processes the statement and checks to see if the space being used in the block is now less than PCTUSED. If it is, then the block goes to the beginning of the transaction free list, and it is the first of the available blocks to be used in that transaction. When the transaction commits, free space in the block becomes available for other transactions.
