XSLT Processor for Java

This chapter contains the following sections:

Using XML Parser for Java: XSLT Processor

The XSLT processor operates on two inputs: the XML document to transform, and the XSLT stylesheet that is used to apply transformations on the XML. Each of these two can actually be multiple inputs. One stylesheet can be used to transform multiple XML inputs. Multiple stylesheets can be mapped to a single XML input.

To implement the XSLT Processor in the XML Parser for Java use XSLProcessor class.

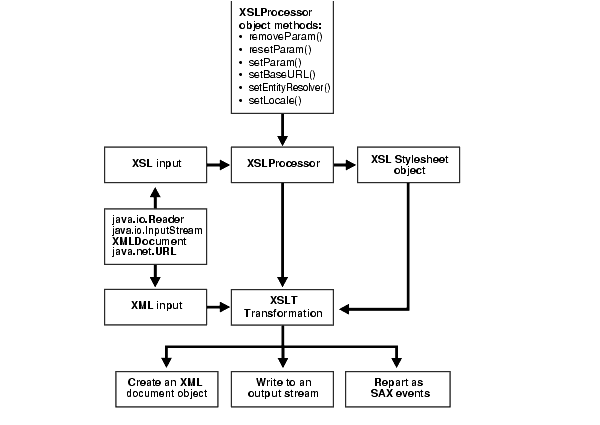

Figure 5-1 shows the overall process used by class XSLProcessor. Here are the steps:

Figure 5-1 Using XSL Processor for Java

Text description of adxml111.gif follows
Text description of the illustration adxml111.gif

XSLT Processor for Java Example

This example uses one XML document and one XSTT stylesheet as inputs.

public class XSLSample
   public static void main(String args[]) throws Exception
      if (args.length < 2)
         System.err.println("Usage: java XSLSample xslFile xmlFile.");

      // Create a new XSLProcessor.
      XSLProcessor processor = new XSLProcessor();
      // Register a base URL to resolve relative references
      // processor.setBaseURL(baseURL);
      // Or register an org.xml.sax.EntityResolver to resolve
      // relative references
      // processor.setEntityResolver(myEntityResolver);

      // Register an error log
      // processor.setErrorStream(new FileOutputStream("error.log"));
      // Set any global paramters to the processor
      // processor.setParam(namespace, param1, value1);
      // processor.setParam(namespace, param2, value2);

      // resetParam is for multiple XML documents with different parameters

      String xslFile = args[0];
      String xmlFile = args[1];

      // Create a XSLStylesheet
      //  The stylesheet can be created using one of following inputs:
      // XMLDocument xslInput = /* using DOMParser; see below in this code */
      // URL         xslInput = new URL(xslFile);
      // Reader      xslInput = new FileReader(xslFile);
      InputStream xslInput = new FileInputStream(xslFile);

      XSLStylesheet stylesheet = processor.newXSLStylesheet(xslInput);

      // Prepare the XML instance document
      //   The XML instance can be given to the processor in one of
      // following ways:
      // URL         xmlInput = new URL(xmlFile);
      // Reader      xmlInput = new FileReader(xmlFile);
      // InputStream xmlInput = new FileInputStream(xmlFile);
      // Or using DOMParser

      DOMParser parser = new DOMParser();
      XMLDocument xmlInput = parser.getDocument();

      // Transform the XML instance
      //   The result of the transformation can be one of the following:
      // 1. Return a XMLDocumentFragment
      // 2. Print the results to a OutputStream
      // 3. Report SAX Events to a ContentHandler

      // 1. Return a XMLDocumentFragment
      XMLDocumentFragment result;
      result = processor.processXSL(stylesheet, xmlInput);
      // Print the result to System.out

      // 2. Print the results to a OutputStream
      // processor.processXSL(stylesheet, xmlInput, System.out);

      // 3. Report SAX Events to a ContentHandler
      // ContentHandler cntHandler = new MyContentHandler();
      // processor.processXSL(stylesheet, xmlInput, cntHandler);

See Also:

.See "SAX: Event-Based API"

XSLT Processor for Java: Command-Line Interface, oraxsl

oraxsl - Oracle XSL processor

oraxsl is a command-line interface used to apply a stylesheet on multiple XML documents. It accepts a number of command-line options that dictate how it should behave.

To use oraxsl ensure the following:

Use the following syntax to invoke oraxsl:

oraxsl options source stylesheet result

oraxsl expects to be given a stylesheet, an XML file to transform, and optionally, a result file. If no result file is specified, it outputs the transformed document to standard out. If multiple XML documents need to be transformed by a stylesheet, the -l or -d options in conjunction with the -s and -r options should be used instead. These and other options are described in Table 5-1.

Table 5-1 oraxsl: Command Line Options
Option Purpose

-d directory

Directory with files to transform (the default behavior is to process all files in the directory). If only a certain subset of the files in that directory, for example, one file, need to be processed, this behavior must be changed by using -l and specifying just the files that need to be processed. You could also change the behavior by using the '-x' or '-i' option to select files based on their extension).


New - Debug mode (by default, debug mode is turned off)

-e error_log

A file to write errors to (specify a log file to write errors and warnings).


Help mode (prints oraxsl invocation syntax)

-i source_extension

Extensions to include (used in conjunction with -d. Only files with the specified extension will be selected).

-l xml_file_list

List of files to transform (enables you to explicitly list the files to be processed).

-o result_directory

Directory to place results (this must be used in conjunction with the -r option).

-p param_list

List of Parameters.

-r result_extension

Extension to use for results (if -d or -l is specified, this option must be specified to specify the extension to be used for the results of the transformation. So, if one specifies the extension "out", an input document "foo" would get transformed to "foo.out". By default, the results are placed in the current directory. This is can be changed by using the -o option which enables you to specify a directory to hold the results).

-s stylesheet

Stylesheet to use (if -d or -l is specified, this option needs to be specified to specify the stylesheet to be used. The complete path must be specified).

-t num_of_threads

Number of threads to use for processing (using multiple threads could provide performance improvements when processing multiple documents).


Verbose mode (some debugging information is printed and could help in tracing any problems that are encountered during processing)


Show warnings (by default, warnings are turned off)

-x source_extension

Extensions to exclude (used in conjunction with -d. All files with the specified extension will not be selected).

XML Extension Functions for XSLT Processing

XML extension functions for XSLT processing allow users of XSLT processor to call any Java method from XSL expressions.

XSLT Processor Extension Functions: Introduction

Java extension functions should belong to the namespace that starts with the following:

An extension function that belongs to the following namespace:

refers to methods in class classname. For example, the following namespace:

can be used to call java.lang.String methods from XSL expressions.

Static Versus Non-Static Methods

If the method is a non-static method of the class, then the first parameter will be used as the instance on which the method is invoked, and the rest of the parameters are passed on to the method.

If the extension function is a static method, then all the parameters of the extension function are passed on as parameters to the static function.

XML Parser for Java - XSL Example 1: Static function

The following XSL, static function example:

  <xsl:template match="/">
  <xsl:value-of select="math:ceil('12.34')"/>

prints out '13'.


The XSL class loader only knows about statically added JARs and paths in the CLASSPATH - those specified by wrapper.classpath. Files added dynamically using the repositories' keyword in Jserv are not visible to XSL processor.

Constructor Extension Function

The extension function 'new' creates a new instance of the class and acts as the constructor.

XML Parser for Java - XSL Example 2: Constructor Extension Function

The following constructor function example:

  <xsl:template match="/">
  <!-- creates a new java.lang.String and stores it in the variable str1 -->
  <xsl:variable name="str1" select="jstring:new('Hello World')"/>
  <xsl:value-of select="jstring:toUpperCase($str1)"/>

prints out 'HELLO WORLD'.

Return Value Extension Function

The result of an extension function can be of any type, including the five types defined in XSL:

They can be stored in variables or passed onto other extension functions.

If the result is of one of the five types defined in XSL, then the result can be returned as the result of an XSL expression.

XML Parser for Java XSL- XSL Example 3: Return Value Extension Function

Here is an XSL example illustrating the Return value extension function:

<!-- Declare extension function namespace -->
<xsl:stylesheet xmlns:parser =
xmlns:document =
"" >

<xsl:template match ="/"> <!-- Create a new instance of the parser, store it in
myparser variable -->
<xsl:variable name="myparser" select="parser:new()"/>
<!-- Call a non-static method of DOMParser. Since the method is anon-static
method, the first parameter is the instance on which themethod is called. This
is equivalent to $myparser.parse('test.xml') -->
<xsl:value-of select="parser:parse($myparser, 'test.xml')"/>
<!-- Get the document node of the XML Dom tree -->
<xsl:variable name="mydocument" select="parser:getDocument($myparser)"/>
<!-- Invoke getelementsbytagname on mydocument -->
<xsl:for-each select="document:getElementsByTagName($mydocument,'elementname')">
</xsl:for-each> </xsl:template>

Datatypes Extension Function

Overloading based on number of parameters and type is supported. Implicit type conversion is done between the five XSL types as defined in XSL.

Type conversion is done implicitly between (String, Number, Boolean, ResultTree) and from NodeSet to (String, Number, Boolean, ResultTree).

Overloading based on two types which can be implicitly converted to each other is not permitted.

XML Parser for Java - XSL Example 4: Datatype Extension Function

The following overloading will result in an error in XSL, since String and Number can be implicitly converted to each other:

Mapping between XSL type and Java type is done as following:

String -> java.lang.String
Number -> int, float, double
Boolean -> boolean
NodeSet -> XMLNodeList
ResultTree -> XMLDocumentFragment

Oracle XSLT Built-In Extensions: ora:node-set and ora:output

The following example illustrates both ora:node-set and ora:output in action.

If you enter:

$ oraxsl foo.xml slides.xsl toc.html

where "foo.xml" is any XML file, you get:

Frequently Asked Questions About the XSLT Processor and XSL

This section lists XSL and XSLT Processor questions and answers.

Why Am I Getting an HTML Error in XSL?

I don't know what is wrong here. This is my news_xsl.xsl file:

<?xml version ="1.0"?>
<xsl:stylesheet  xmlns:xsl="">
<xsl:template match="/">
        <TITLE>   Sample Form    </TITLE>
           <input type="text" name="country" size="15">    </FORM>
ERROR:End tag 'FORM' does not match the start tag 'input'. Line 14, Position 12
<?xml version="1.0" ?>
<?xml-stylesheet type="text/xsl" href="news_xsl.xsl"?>

Answer: Unlike in HTML, in XML every opening or starting tag must have an ending tag. Even the input that you are giving should have a matching ending tag, so you should modify your script like this:

<input type="text" name="country" size="15"> </input>


<input type="text" name="country" size="15"/>

Also, remember that in XML the tags are case sensitive, unlike in HTML.

Is the Output Method "html" Supported in the XSL Parser?

Is the output method html supported in the recent version of the XSL parser? I was trying to use the <BR> tag with the <xsl output method="xml"/> declaration but I got an XSL error message indicating a not well-formed XML document. Then I tried the following output method declaration: <xsl output method="html"/> but I got the same result.

Here's a simple XSL stylesheet I was using:

<?xml version="1.0"?> <xsl:stylesheet version="1.0"
xmlns:xsl=""> <xsl output method="html"/>
<xsl:template match="/">      <HTML>         <HEAD></HEAD>         <BODY>
<P>           Blah blah<BR>           More blah blah<BR>         </P>
</BODY>      </HTML>   </xsl:template>

How do I use a not well-formed tag like <IMG> or <BR> in an XSL stylesheet?

Answer: We fully support all options of <xsl output>. The problem here is that your XSL stylesheet must be a well-formed XML document, so everywhere you are using the <BR> element, you need to use <BR/> instead. The <xsl output method="html"/> requests that when the XSLT engine writes out the result of your transformation, it is a proper HTML document. What the XSLT engine reads in must be well-formed XML.

Question: I have a question regarding your reply. I have an XSL stylesheet that preforms XML to HTML conversion. Everything works correctly with the exception of those HTML tags that are not well formed. Using your example if I have something like:

<xsl:stylesheet xmlns:xsl="">
<xsl:output method="html"/>
<input type="text" name="{NAME}" size="{DISPLAY_LENGTH}" maxlength="{LENGTH}">

It would render HTML in the format of

<HTML>......<input type="text" name="in1" size="10" maxlength="20"/>

While Internet Explorer can handle this, Netscape cannot. Is there any way to generate completely cross-browser-compliant HTML with XSL?

Answer 2: If you are seeing:

<input ... />

instead of:


then you are likely using the incorrect way of calling XSLProcessor.processXSL(), since it appears that it's not doing the HTML output for you. Use:

void processXSL(style,sourceDoc,PrintWriter)

instead of:

DocumentFragment processXSL(style,sourceDoc)

and it will work correctly.

Can I Prevent XSL from Returning a Meta-Tag in Netscape 4.0?

I'm using <xsl output method="html" encoding="iso-8859-1" indent = "no" />. Is it possible to prevent XSLT from outputting <META http-equiv="Content-Type" content="text/html; charset=iso-8859-1"> in the HEAD element because Netscape 4.0 has difficulties with this statement. It renders the page twice.

Answer: The XSLT 1.0 recommendation says in Section 16.2 ("HTML Output Method") that if there is a HEAD element, then the HTML output method should add a META element immediately after the start-tag of the HEAD element specifying the character encoding actually used.

For example:

<HEAD><META http-equiv="Content-Type" content="text/html; charset=EUC-JP">.

So any XSLT 1.0-compliant engine needs to add this.

How Do I Work Around a Display Bug in the Browser?

Netscape 4.0 has following bug:

When Mozilla hits the meta-encoding tag it stops rendering the page and does a refresh, thereby producing an annoying flickering. I probably have to do a replacement in the servlets Outputstream, but I don't like doing so. Are there any alternatives?

Answer: The only alternatives I can think of are:

Neither is pretty, but either one might provide a workaround.

Where Can I Get More Information on XSL Error Messages?

I get the error XSL-1900, exception occurred. What does this mean? How can I find out what caused the exception?

Answer: If you are using Java, you could write exception routines to trap errors. Using tools such as JDeveloper also helps.

The error messages of our components are usually clearer. XSL-1900 indicates possible internal error or incorrect usage.

How Do I Generate the HTML "Less Than" (<) Character?

I am trying to generate an HTML form for inputting data using column names from the user_tab_columns table and the following XSL code:

<xsl:template match="ROW">
<xsl:value-of select="COLUMN_NAME"/>
<: lt;INPUT NAME="<xsl:value-of select="COLUMN_NAME"/>>

although gt; is generated as the greater than (>) character, lt; is generated as #60;. How do I generate the less than (<) character?

Answer: Use the following code:

<xsl:text disable-output-escaping="yes">entity-reference</xsl:text>

Why Does HTML "<" Conversion Work in oraxsl But Not in

I cannot display HTML from XML. In my XML file, I store the HTML snippet in an XML tag:

<&#60;table width="540" border="0" cellpadding="0"
cellspacing="0">&#60;tr>&#60;td>&#60;font face="Helvetica, Arial"
size="2">&#60;!-- STILL IMAGE GOES HERE -->&#60;img
src="graphics/imagegoeshere.jpg"  width="200" height="175" align="right"
vspace="0" hspace="7">&#60;!-- END STILL IMAGE TAG -->&#60;!-- CITY OR TOWN NAME
abbreviation&#60;/b> - &#60;!-- CITY OR TOWN NAME ENDS HERE -->&#60;!-- STORY
TEXT STARTS HERE -->Story text goes here.. &#60;!-- STORY TEXT ENDS HERE

I use the following in my XSL:

<xsl:value-of select="body.HTMLcontent" disable-output-escaping="yes"/>

However, the HTML output


still appears and all of the HTML tags are displayed in the browser. How do I display the HTML properly?

That doesn't look right. All of the less than (<) characters are #60; in the code with an ampersand in front of them. They are still that way when they are displayed in the browser.

Even more confusing is that it works with oraxsl, but not with

Answer: Here's why:

The former supports <xsl:output> and all options related to writing output that might not be valid XML (including the disable output escaping). The latter is pure XML-to-XML tree returned, so no <xsl:output> or disabled escaping can be used since nothing's being output, just a DOM tree fragment of the result is being returned.

Where Can I Find XSLT Examples?

Is there any site which has good examples or short tutorials on XSLT?

Answer: This site is an evolving tutorial on lots of different XML, XSLT, and XPath-related subjects:

Where Can I Find a List of XSLT Features?

Is there a list of features of the XSLT that the Oracle XDK uses?

Answer: Our version 2 parsers support the W3C Recommendation of w3c XSLT version 1.0, which you can see at

How Do I Use XSL to Convert an XML Document to Another Form?

I am in the process of trying to convert an XML document from one format to another by means of an XSL (or XSLT) stylesheet. Before incorporating it into my Java code, I tried testing the transformation from the command line:

 > java oracle.xml.parser.v2.oraxsl jwnemp.xml jwnemp.xsl newjwnemp.xml

The problem is that instead of returning the transformed XML file (newjwnemp.xml), the above command just returns a file with the XSL code from jwnemp.xsl in it. I cannot figure out why this is occurring. I have attached the two input files.

 <?xml version="1.0"?>

 <?xml version='1.0'?>
 <ROWSET xmlns:xsl="HTTP://">
    <xsl:for-each select="employee_data/employee_row">
       <EMPNO><xsl:value-of select="employee_number"/></EMPNO>
       <ENAME><xsl:value-of select="employee_name"/></ENAME>
       <JOB><xsl:value-of select="employee_title"/></JOB>
       <MGR><xsl:value-of select="manager"/></MGR>
       <HIREDATE><xsl:value-of select="date_of_hire"/></HIREDATE>
       <SAL><xsl:value-of select="salary"/></SAL>
       <COMM><xsl:value-of select="commission"/></COMM>
       <DEPTNO><xsl:value-of select="department_number"/></DEPTNO>

Answer: This is occurring most likely because you have the wrong XSL namespace URI for your xmlns:xsl="..." namespace declaration.

If you use the following URI:


then everything will work.

If you use xmlns:xsl="-- any other string here --" it will do what you're seeing.

Where Can I Find More Information on XSL?

I cannot find anything about using XSL. Can you help? I would like to get an XML and XSL file to show my company what they can expect from this technology. XML alone is not very impressive for users.

Answer: A pretty good starting place for XSL is the following page:

It provides a simple discussion of the gist of XSL. XSL isn't really anything more than an XML file, so I don't think that it will be anymore impressive to show to a customer. There's also the main Web site for XSL which is:

Can the XSL Processor Produce Multiple Outputs?

I recall seeing discussions about the XSL processor producing more than one result from one XML and XSL. How can this can be achieved?

Answer: The XML Parser version 2 release and above supports <ora:output> to handle this.

Go to previous page Go to next page
Copyright © 2001, 2002 Oracle Corporation.

All Rights Reserved.
Go To Documentation Library
Go To Product List
Book List
Go To Table Of Contents
Go To Index

Master Index
