Design Considerations for Oracle Objects

This chapter explains the implementation and performance characteristics of Oracle's object-relational model. Use this information to map a logical data model into an Oracle physical implementation, and when developing applications that use object-oriented features.

This chapter covers the following topics:

You should be familiar with the basic concepts behind Oracle objects before you read this chapter.

See Also:

Representing Objects as Columns or Rows

You can store objects in columns of relational tables as column objects, or in object tables as row objects. Objects that have meaning outside of the relational database object in which they are contained, or objects that are shared among more than one relational database object, should be made referenceable as row objects. That is, such objects should be stored in an object table instead of in a column of a relational table.

For example, an object of object type customer has meaning outside of any particular purchase order, and should be referenceable; therefore, customer objects should be stored as row objects in an object table. An object of object type address, however, has little meaning outside of a particular purchase order and can be one attribute within a purchase order; therefore, address objects should be stored as column objects in columns of relational tables or object tables. So, address might be a column object in the customer row object.

Column Object Storage

The storage of a column object is the same as the storage of an equivalent set of scalar columns that collectively make up the object. The only difference is that there is the additional overhead of maintaining the atomic null values of the object and its embedded object attributes. These values are called null indicators because, for every column object, a null indicator specifies whether the column object is null and whether each of its embedded object attributes is null. However, null indicators do not specify whether the scalar attributes of a column object are null. Oracle uses a different method to determine whether scalar attributes are null.

Consider a table that holds the identification number, name, address, and phone numbers of people within an organization. You can create three different object types to hold the name, address, and phone number. First, to create the name_objtyp object type, enter the following SQL statement:

  first       VARCHAR2(15),
  middle      VARCHAR2(15),
  last        VARCHAR2(15));

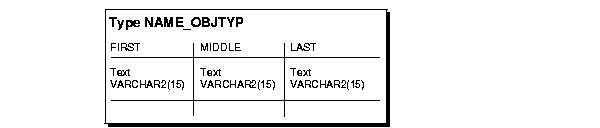

Figure 8-1 Object Relational Representation for the name_objtyp Type

Text description of adobj012.gif follows
Text description of the illustration adobj012.gif

Next, to create the address_objtyp object type, enter the following SQL statement:

CREATE TYPE address_objtyp AS OBJECT (
  street       VARCHAR2(200),
  city         VARCHAR2(200),
  state        CHAR(2),
  zipcode      VARCHAR2(20));

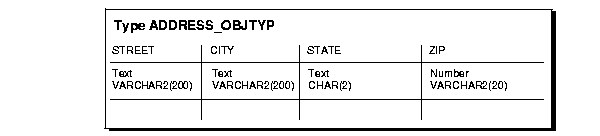

Figure 8-2 Object Relational Representation of the address_objtyp Type

Text description of adobj004.gif follows
Text description of the illustration adobj004.gif

Finally, to create the phone_objtyp object type, enter the following SQL statement:

CREATE TYPE phone_objtyp AS OBJECT (
  location     VARCHAR2(15),
  num          VARCHAR2(14));

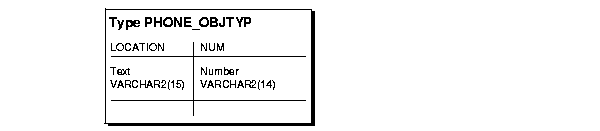

Figure 8-3 Object Relational Representation of the phone_objtyp Type

Text description of adobj013.gif follows
Text description of the illustration adobj013.gif

Because each person may have more than one phone number, create a nested table type phone_ntabtyp based on the phone_objtyp object type:

CREATE TYPE phone_ntabtyp AS TABLE OF phone_objtyp;

See Also:

"Nested Tables" for more information about nested tables.

Once all of these object types are in place, you can create a table to hold the information about the people in the organization with the following SQL statement:

CREATE TABLE people_reltab (
  id            NUMBER(4)   CONSTRAINT pk_people_reltab PRIMARY KEY,
  name_obj      name_objtyp,
  address_obj   address_objtyp,
  phones_ntab   phone_ntabtyp)
  NESTED TABLE  phones_ntab STORE AS phone_store_ntab;

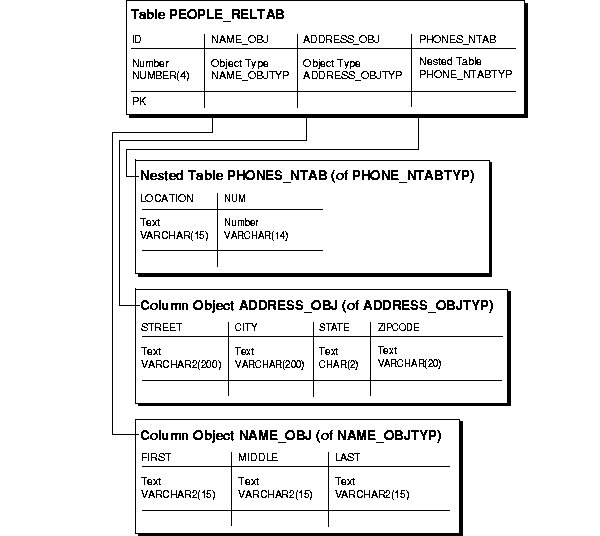

Figure 8-4 Representation of the people_reltab Relational Table

Text description of adobj014.gif follows
Text description of the illustration adobj014.gif

The people_reltab table has three column objects: name_obj, address_obj, and phones_ntab. The phones_ntab column object is also a nested table.


The people_reltab table and its columns and related types are used in examples throughout this chapter.

The storage for each object stored in the people_reltab table is the same as that of the attributes of the object. For example, the storage required for a name_obj object is the same as the storage for the first, middle, and last attributes combined, except for the null indicator overhead.

If the COMPATIBLE parameter is set to 8.1.0 or higher, the null indicators for an object and its embedded object attributes occupy one bit each. Thus, an object with n embedded object attributes (including objects at all levels of nesting) has a storage overhead of CEIL(n/8) bytes. In the people_reltab table, for example, the overhead of the null information for each row is one byte because it translates to CEIL(3/8) or CEIL(.37), which rounds up to one byte. In this case, there are three objects in each row: name_obj, address_obj, and phones_ntab.

If, however, the COMPATIBLE parameter is set to a value lower than 8.1.0, such as 8.0.0, the storage is determined by the following calculation:

CEIL(n/8) + 6

Here, n is the total number of all attributes (scalar and object) within the object. Therefore, in the people_reltab table, for example, the overhead of the null information for each row is seven bytes because it translates to the following calculation:

CEIL(4/8) + 6 = 7

CEIL(4/8) is CEIL(.5), which rounds up to one byte. In this case, there are three objects in each row and one scalar.

Therefore, the storage overhead and performance of manipulating a column object is similar to that of the equivalent set of scalar columns. The storage for collection attributes are described in the "Viewing Object Data in Relational Form with Unnesting Queries" section.

See Also:

Oracle9i SQL Reference for more information about CEIL.

Row Object Storage in Object Tables

Row objects are stored in object tables. An object table is a special kind of table that holds objects and provides a relational view of the attributes of those objects. An object table is logically and physically similar to a relational table whose column types correspond to the top level attributes of the object type stored in the object table. The key difference is that an object table can optionally contain an additional object identifier (OID) column and index.

Object Identifier (OID) Storage and OID Index

By default, Oracle assigns every row object a unique, immutable object identifier, called an OID. An OID allows the corresponding row object to be referred to from other objects or from relational tables. A built-in datatype called a REF represents such references. A REF encapsulates a reference to a row object of a specified object type.

By default, an object table contains a system-generated OID column, so that each row object is assigned a globally unique OID. This OID column is automatically indexed for efficient OID-based lookups. The OID column is the equivalent of having an extra 16-byte primary key column.

Primary-Key Based OIDs

If a primary key column is available, you can avoid the storage and performance overhead of maintaining the 16-byte OID column and its index. Instead of using the system-generated OIDs, you can use a CREATE TABLE statement to specify that the system use the primary key column(s) as the OIDs of the objects in the table. Therefore, you can use existing columns as the OIDs of the objects or use application generated OIDs that are smaller than the 16-byte globally unique OIDs generated by Oracle.

Performance of Object Comparisons

You can compare objects by invoking the map or order methods defined on the object type. A map method converts objects into scalar values while preserving the ordering of the objects. Mapping objects into scalar values, if it can be done, is preferred because it allows the system to efficiently order objects once they are mapped.

The way objects are mapped has significant performance implications when sorting is required on the objects for ORDER BY or GROUP BY processing because an object may need to be compared to other objects many times, and it is much more efficient if the objects can be mapped to scalar values first. If the comparison semantics are extremely complex, or if the objects cannot be mapped into scalar values for comparison, you can define an order method that, given two objects, returns the ordering determined by the object implementor. Order methods are not as efficient as map methods, so performance may suffer if you use order methods. In any one object type, you can implement either map or order methods, but not both.

Once again, consider an object type address consisting of four character attributes: street, city, state, and zipcode. Here, the most efficient comparison method is a map method because each object can be converted easily into scalar values. For example, you might define a map method that orders all of the objects by state.

On the other hand, suppose you want to compare binary objects, such as images. In this case, the comparison semantics may be too complex to use a map method; if so, you can use an order method to perform comparisons. For example, you could create an order method that compares images according to brightness or the number of pixels in each image.

If an object type does not have either a map or order method, only equality comparisons are allowed on objects of that type. In this case, Oracle performs the comparison by doing a field-by-field comparison of the corresponding object attributes, in the order they are defined. If the comparison fails at any point, a FALSE value is returned. If the comparison matches at every point, a TRUE value is returned. However, if an object has a collection of LOB attributes, then Oracle does not compare the object on a field-by-field basis. Such objects must have a map or order method to perform comparisons.

Storage Considerations for Object Identifiers (OIDs)

REFs use object identifiers (OIDs) to point to objects. You can use either system-generated OIDs or primary-key based OIDs. The differences between these types of OIDs are outlined in "Row Object Storage in Object Tables". If you use system-generated OIDs for an object table, Oracle maintains an index on the column that stores these OIDs. The index requires storage space, and each row object has a system-generated OID, which requires an extra 16 bytes of storage for each row.

You can avoid these added storage requirements by using the primary key for the object identifiers, instead of system-generated OIDs. You can enforce referential integrity on columns that store references to these row objects in a way similar to foreign keys in relational tables.

However, if each primary key value requires more than 16 bytes of storage and you have a large number of REFs, using the primary key might require more space than system-generated OIDs because each REF is the size of the primary key. In addition, each primary-key based OID is locally (but not necessarily globally) unique. If you require a globally unique identifier, you must ensure that the primary key is globally unique or use system-generated OIDs.

Storage Size of REFs

A REF contains the following three logical components:

Integrity Constraints for REF Columns

Referential integrity constraints on REF columns ensure that there is a row object for the REF. Referential integrity constraints on REFs create the same relationship as specifying a primary key/foreign key relationship on relational data. In general, you should use referential integrity constraints wherever possible because they are the only way to ensure that the row object for the REF exists. However, you cannot specify referential integrity constraints on REFs that are in nested tables.

Performance and Storage Considerations for Scoped REFs

A scoped REF is constrained to contain only references to a specified object table. You can specify a scoped REF when you declare a column type, collection element, or object type attribute to be a REF.

In general, you should use scoped REFs instead of unscoped REFs because scoped REFs are stored more efficiently. Whereas an unscoped REF takes at least 36 bytes to store (more if it uses rowids), a scoped REF is stored as just the OID of its target object and can take less than 16 bytes, depending on whether the referenced OID is system-generated or primary-key based. A system-generated OID requires 16 bytes; a PK-based OID requires enough space to store the primary key value, which may be less than 16 bytes. (However, a REF to a PK-based OID, which must be dynamically constructed on being selected, may take more space in memory than a REF to a system-generated OID.)

Besides requiring less storage space, scoped REFs often enable the optimizer to optimize queries that dereference a scoped REF into more efficient joins. This optimization is not possible for unscoped REFs because the optimizer cannot determine the containing table(s) for unscoped REFs at query-optimization time.

Unlike referential integrity constraints, scoped REFs do not ensure that the referenced row object exists; they only ensure that the referenced object table exists. Therefore, if you specify a scoped REF to a row object and then delete the row object, the scoped REF becomes a dangling REF because the referenced object no longer exists.


Referential integrity constraints are scoped implicitly.

Unscoped REFs are useful if the application design requires that the objects referenced be scattered in multiple tables. Because rowid hints are ignored for scoped REFs, you should use unscoped REFs if the performance gain of the rowid hint, as explained in the "Speeding up Object Access using the WITH ROWID Option" section, outweighs the benefits of the storage saving and query optimization of using scoped REFs.

Indexing Scoped REFs

You can build indexes on scoped REF columns using the CREATE INDEX command. Then, you can use the index to efficiently evaluate queries that dereference the scoped REFs. Such queries are turned into joins implicitly. For certain types of queries, Oracle can use an index on the scoped REF column to evaluate the join efficiently.

For example, suppose the object type address_objtyp is used to create an object table named address_objtab:

CREATE TABLE address_objtab OF address_objtyp ;

Then, a people_reltab2 table can be created that has the same definition as the people_reltab table discussed in "Column Object Storage", except that a REF is used for the address:

CREATE TABLE people_reltab2 (
  id            NUMBER(4)   CONSTRAINT pk_people_reltab2 PRIMARY KEY,
  name_obj      name_objtyp,
  address_ref   REF address_objtyp SCOPE IS address_objtab,
  phones_ntab   phone_ntabtyp)
  NESTED TABLE  phones_ntab STORE AS phone_store_ntab2 ;

Now, an index can be created on the address_ref column:

CREATE INDEX address_ref_idx ON people_reltab2 (address_ref) ;

The following query dereferences the address_ref:

SELECT id FROM people_reltab2 p
   WHERE p.address_ref.state = 'CA' ;

When this query is executed, the address_ref_idx index is used to efficiently evaluate it. Here, address_ref is a scoped REF column that stores references to addresses stored in the address_objtab object table. Oracle implicitly transforms the preceding query into a query with a join:

SELECT FROM people_reltab2 p, address_objtab a
   WHERE p.address_ref = ref(a) AND a.state = 'CA' ;

Oracle's optimizer might create a plan to perform a nested-loops join with address_objtab as the outer table and look up matching addresses using the index on the address_ref scoped REF column.

Speeding up Object Access using the WITH ROWID Option

If the WITH ROWID option is specified for a REF column, Oracle maintains the rowid of the object referenced in the REF. Then, Oracle can find the object referenced directly using the rowid contained in the REF, without the need to fetch the rowid from the OID index. Therefore, you use the WITH ROWID option to specify a rowid hint. Maintaining the rowid requires more storage space because the rowid adds 10 bytes to the storage requirements of the REF.

Bypassing the OID index search improves the performance of REF traversal (navigational access) in applications. The actual performance gain may vary from application to application depending on the following factors:

The WITH ROWID option is only a hint because, when you use this option, Oracle checks the OID of the row object with the OID in the REF. If the two OIDs do not match, Oracle uses the OID index instead. The rowid hint is not supported for scoped REFs, for REFs with referential integrity constraints, or for primary key-based REFs.

Viewing Object Data in Relational Form with Unnesting Queries

An unnesting query on a collection allows the data to be viewed in a flat (relational) form. You can execute unnesting queries on single-level and multilevel collections of either nested tables or varrays. This section contains examples of unnesting queries.

Nested tables can be unnested for queries using the TABLE syntax, as in the following example:

SELECT p.name_obj, n.num
   FROM people_reltab p, TABLE(p.phones_ntab) n ;

Here, phones_ntab specifies the attributes of the phones_ntab nested table. To retrieve even parent rows that have no child rows (no phone numbers, in this case), use the outer join syntax, with the "+". For example:

SELECT p.name_obj, n.num
   FROM people_reltab p, TABLE(p.phones_ntab) (+) n ;

If the SELECT list of a query does not refer to any columns from the parent table other than the nested table column, the query is optimized to execute only against the nested table's storage table.

The unnesting query syntax is the same for varrays as for nested tables. For instance, suppose the phones_ntab nested table is instead a varray named phones_var. The following example shows how to use the TABLE syntax to query the varray:

SELECT p.name_obj, n.num
   FROM people_reltab p, TABLE(p.phones_var) n ;

The next example shows an unnesting query on a multilevel nested table collection of nested tables. From a table of stars where each star has a nested table of planets, and each planet has a nested table of satellites, the query returns the names of all satellites.

  name        VARCHAR2(20),
  diameter    NUMBER);

CREATE TYPE nt_sat_t AS TABLE OF satellite_t;

  name        VARCHAR2(20),
  mass        NUMBER,
  satellites  nt_sat_t);

CREATE TYPE nt_pl_t AS TABLE OF planet_t;

  name     VARCHAR2(20),
  age      NUMBER,
  planets  nt_pl_t)
NESTED TABLE planets STORE AS planets_tab
  (NESTED TABLE satellites STORE AS satellites_tab);
SELECT FROM stars s, TABLE(s.planets) p, TABLE(p.satellites) t;

Because no columns of the base table stars appear in the SELECT list, the query is optimized to run directly against the satellites storage table.

Outer-join syntax can also be used with queries of multilevel collections.

Using Procedures and Functions in Unnesting Queries

You can create procedures and functions that you can then execute to perform unnesting queries. For example, you can create a function called home_phones() that returns only the phone numbers where location is "home." To create the home_phones() function, you enter code like the following:

CREATE OR REPLACE FUNCTION home_phones(allphones IN phone_ntabtyp)
         RETURN phone_ntabtyp IS
   homephones phone_ntabtyp := phone_ntabtyp();
   indx1      number;
   indx2      number := 0;
   FOR indx1 IN 1..allphones.count LOOP
         allphones(indx1).location = 'home'
         homephones.extend;    -- extend the local collection
         indx2 := indx2 + 1;
         homephones(indx2) := allphones(indx1);
      END IF;
   RETURN homephones;

Now, to query for a list of people and their home phone numbers, enter the following:

SELECT p.name_obj, n.num
   FROM people_reltab p, TABLE(
      CAST(home_phones(p.phones_ntab) AS phone_ntabtyp)) n ;

To query for a list of people and their home phone numbers, including those people who do not have a home phone number listed, enter the following:

SELECT p.name_obj, n.num
   FROM people_reltab p,
       TABLE(CAST(home_phones(p.phones_ntab) AS phone_ntabtyp))(+) n ;

See Also:

Oracle9i SQL Reference for more information about using the TABLE syntax.

Storage Considerations for Varrays

The size of a stored varray depends only on the current count of the number of elements in the varray and not on the maximum number of elements that it can hold. The storage of varrays incurs some overhead, such as null information. Therefore, the size of the varray stored may be slightly greater than the size of the elements multiplied by the count.

Varrays are stored in columns either as raw values or BLOBs. Oracle decides how to store the varray when the varray is defined, based on the maximum possible size of the varray computed using the LIMIT of the declared varray. If the size exceeds approximately 4000 bytes, then the varray is stored in BLOBs. Otherwise, the varray is stored in the column itself as a raw value. In addition, Oracle supports inline LOBs; therefore, elements that fit in the first 4000 bytes of a large varray (with some bytes reserved for the LOB locator) are stored in the column of the row itself.

Performance of Varrays Versus Nested Tables

If the entire collection is manipulated as a single unit in the application, varrays perform much better than nested tables. The varray is stored "packed" and requires no joins to retrieve the data, unlike nested tables.

Varray Querying

The unnesting syntax can be used to access varray columns similar to the way it is used to access nested tables.

See Also:

"Viewing Object Data in Relational Form with Unnesting Queries" for more information.

Varray Updates

Piece-wise updates of a varray value are not supported. Thus, when a varray is updated, the entire old collection is replaced by the new collection.

Nested Tables

The following sections contain design considerations for using nested tables.

Nested Table Storage

Oracle stores the rows of a nested table in a separate storage table. A system generated NESTED_TABLE_ID, which is 16 bytes in length, correlates the parent row with the rows in its corresponding storage table.

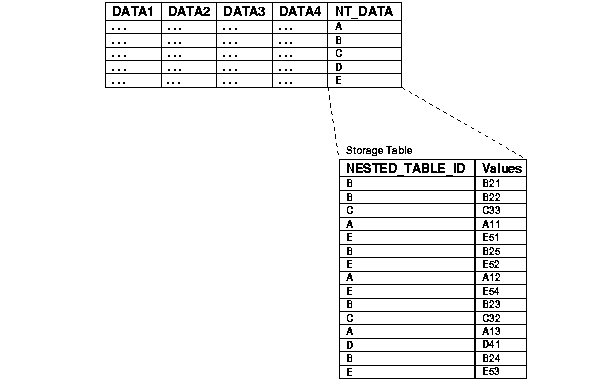

Figure 8-5 shows how the storage table works. The storage table contains each value for each nested table in a nested table column. Each value occupies one row in the storage table. The storage table uses the NESTED_TABLE_ID to track the nested table for each value. So, in Figure 8-5, all of the values that belong to nested table A are identified, all of the values that belong to nested table B are identified, and so on.

Figure 8-5 Nested Table Storage

Text description of adobj021.gif follows
Text description of the illustration adobj021.gif

Nested Table in an Index-Organized Table (IOT)

If a nested table has a primary key, you can organize the nested table as an index-organized table (IOT). If the NESTED_TABLE_ID column is a prefix of the primary key for a given parent row, Oracle physically clusters its child rows together. So, when a parent row is accessed, all its child rows can be efficiently retrieved. When only parent rows are accessed, efficiency is maintained because the child rows are not inter-mixed with the parent rows.

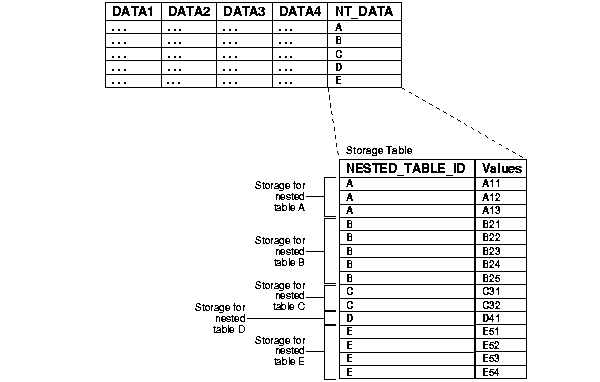

Figure 8-6 shows how the storage table works when the nested table is in an IOT. The storage table groups by NESTED_TABLE_ID the values for each nested table in a nested table column. In Figure 8-6, for each nested table in the NT_DATA column of the parent table, the data is grouped in the storage table: all of the values in nested table A are grouped together, all of the values in nested table B are grouped together, and so on.

Figure 8-6 Nested Table in IOT Storage

Text description of adobj019.gif follows
Text description of the illustration adobj019.gif

In addition, the COMPRESS clause enables prefix compression on the IOT rows. It factors out the key of the parent in every child row. That is, the parent key is not repeated in every child row, thus providing significant storage savings.

In other words, if you specify nested table compression using the COMPRESS clause, the amount of space required for the storage table is reduced because the NESTED_TABLE_ID is not repeated for each value in a group. Instead, the NESTED_TABLE_ID is stored only once for each group, as illustrated in Figure 8-7.

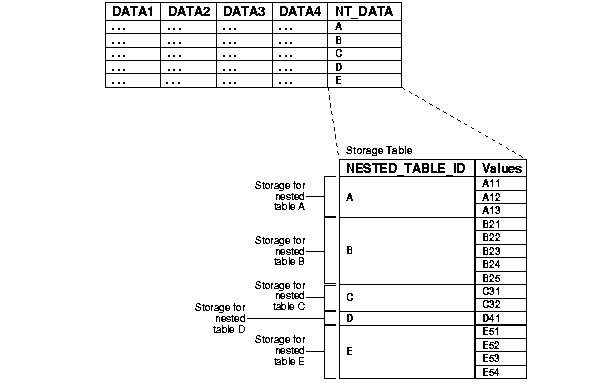

Figure 8-7 Nested Table in IOT Storage with Compression

Text description of adobj020.gif follows
Text description of the illustration adobj020.gif

In general, Oracle Corporation recommends that nested tables be stored in an IOT with the NESTED_TABLE_ID column as a prefix of the primary key. Further, prefix compression should be enabled on the IOT. However, if you usually do not retrieve the nested table as a unit and you do not want to cluster the child rows, do not store the nested table in an IOT and do not specify compression.

Nested Table Indexes

For nested tables stored in heap tables (as opposed to IOTs), you should create an index on the NESTED_TABLE_ID column of the storage table. The index on the corresponding ID column of the parent table is created by Oracle automatically when the table is created. Creating an index on the NESTED_TABLE_ID column enables Oracle to access the child rows of the nested table more efficiently, because Oracle must perform a join between the parent table and the nested table using the NESTED_TABLE_ID column.

Nested Table Locators

For large child sets, the parent row and a locator to the child set can be returned so that the child rows can be accessed on demand; the child sets also can be filtered. Using nested table locators enables you to avoid unnecessarily transporting child rows for every parent.

You can perform either one of the following actions to access the child rows using the nested table locator:

In a multilevel collection, you can use a locator with a specified collection at any level of nesting. Following are described two ways in which to specify that a collection is to be retrieved as a locator.

At table creation time

When the collection type is being used as a column type and the NESTED TABLE storage clause is used, you can use the RETURN LOCATOR clause to specify that a particular collection is to be retrieved as a locator.

For instance, suppose that third_level is a collection type consisting of three levels of nested tables. In the following example, the RETURN LOCATOR clause specifies that the second, middle level of nested tables is always to be retrieved as a locator.

  a  NUMBER,
  b  third_level)

As a HINT during retrieval

A query can retrieve a collection as a locator by means of the hint NESTED_TABLE_GET_REFS. Here is an example of retrieving the column b from the table tab1 as a locator:

FROM tab1
WHERE a = 2;

Unlike with the RETURN LOCATOR clause, however, you cannot specify a particular inner collection to return as a locator when using the hint.

Optimizing Set Membership Queries

Set membership queries are useful when you want to search for a specific item in a nested table. For example, the following query tests the membership in a child-set; specifically, whether the location home is in the nested table phones_ntab, which is in the parent table people_reltab:

SELECT * FROM people_reltab p
   WHERE 'home' IN (SELECT location FROM TABLE(p.phones_ntab)) ;

Oracle can execute a query that tests the membership in a child-set more efficiently by transforming it internally into a semi-join. However, this optimization only happens if the ALWAYS_SEMI_JOIN initialization parameter is set. If you want to perform semi-joins, the valid values for this parameter are MERGE and HASH; these parameter values indicate which join method to use.


In the preceding example, home and location are child set elements. If the child set elements are object types, they must have a map or order method to perform a set membership query.

DML Operations on Nested Tables

You can perform DML operations on nested tables. Rows can be inserted into or deleted from a nested table, and existing rows can be updated, by using the appropriate SQL command against the nested table. In these operations, the nested table is identified by a TABLE subquery. The following example inserts a new person into the people_reltab table, including phone numbers into the phones_ntab nested table:

INSERT INTO people_reltab values (
      'john', 'william', 'foster'),
      '111 Maple Road', 'Fairfax', 'VA', '22033'),
      phone_objtyp('home', '650.331.1222'),
      phone_objtyp('work', '650.945.4389'))) ;

The following example inserts a phone number into the nested table phones_ntab for an existing person in the people_reltab table whose identification number is 0001:

INSERT INTO TABLE(SELECT p.phones_ntab FROM people_reltab p WHERE = '0001')
   VALUES ('cell', '650.331.9337') ;

To drop a particular nested table, you can set the nested table column in the parent row to NULL, as in the following example:

UPDATE people_reltab SET phones_ntab = NULL WHERE id = '0001' ;

Once you drop a nested table, you cannot insert values into it until you re-create it. To re-create the nested table in the phones_ntab nested table column object for the person whose identification number is 0001, enter the following SQL statement:

UPDATE people_reltab SET phones_ntab = phone_ntabtyp() WHERE id = '0001' ;

You also can insert values into the nested table as you re-create it:

UPDATE people_reltab
   SET phones_ntab = phone_ntabtyp(phone_objtyp('home', '650.331.1222'))
   WHERE id = '0001' ;

DML operations on a nested table lock the parent row. Therefore, only one modification at a time can be made to the data in a particular nested table, even if the modifications are on different rows in the nested table. However, if only part of the data in your nested table must support simultaneous modifications, while other data in the nested table does not require this support, you should consider using REFs to the data that requires simultaneous modifications.

For example, if you have an application that processes purchase orders, you might include customer information and line items in the purchase orders. In this case, the customer information does not change often and so you do not need to support simultaneous modifications for this data. Line items, on the other hand, might change very often. To support simultaneous updates on line items that are in the same purchase order, you can store the line items in a separate object table and reference them with REFs in the nested table.

Multilevel Collections

Chapter 2 describes how to nest collection types to create a true multilevel collection--a nested table of nested tables, a nested table of varrays, a varray of nested tables, a varray of nested tables, or a varray or nested table of an object type that has an attribute of a collection type.

You can also nest collections indirectly using REFs. For example, you can create a nested table of an object type that has an attribute that references an object that has a nested table or varray attribute. If you do not actually need to access all elements of a multilevel collection, then nesting a collection with REFs may provide better performance because only the REFs need to be loaded, not the elements themselves.

True multilevel collections (specifically multilevel nested tables) perform better for queries that access individual elements of the collection. Using nested table locators can improve the performance of programmatic access if you do not need to access all elements.

For an example of a collection that uses REFs to nest another collection, suppose you want to create a new object type called person_objtyp using the object types described in "Column Object Storage", which are name_objtyp, address_objtyp, and phone_ntabtyp. Remember that the phone_ntabtyp object type is a nested table because each person may have more than one phone number.

To create the person_objtyp object type, issue the following SQL statement:

CREATE TYPE person_objtyp AS OBJECT (
   id            NUMBER(4),
   name_obj      name_objtyp,
   address_obj   address_objtyp,
   phones_ntab   phone_ntabtyp);

To create an object table called people_objtab of person_objtyp object type, issue the following SQL statement:

CREATE TABLE people_objtab OF person_objtyp (id PRIMARY KEY)
   NESTED TABLE phones_ntab STORE AS phones_store_ntab ;

The people_objtab table has the same attributes as the people_reltab table discussed in "Column Object Storage". The difference is that the people_objtab is an object table with row objects, while the people_reltab table is a relational table with three column objects.

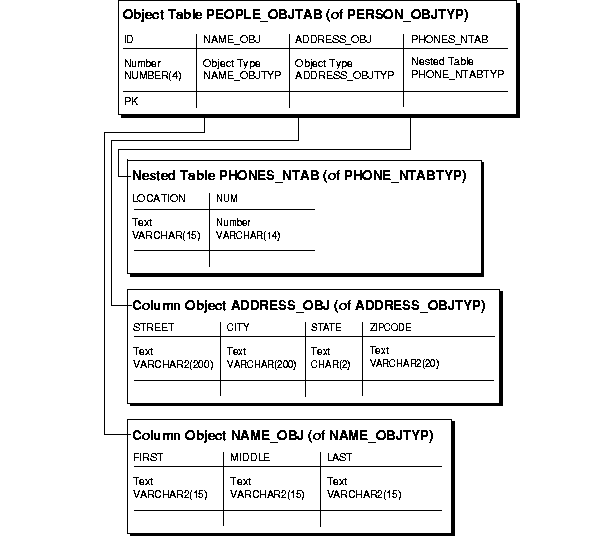

Figure 8-8 Object Relational Representation of the people_objtab Object Table

Text description of adobj015.gif follows
Text description of the illustration adobj015.gif

Now you can reference the row objects in the people_objtab object table from other tables. For example, suppose you want to create a projects_objtab table that contains:

You can use REFs to the people_objtab for the project leads, and you can use a nested table collection of REFs for the team. To begin, create a nested table object type called personref_ntabtyp based on the person_objtyp object type:

CREATE TYPE personref_ntabtyp AS TABLE OF REF person_objtyp;

Now you are ready to create the object table projects_objtab. First, create the object type projects_objtyp by issuing the following SQL statement:

CREATE TYPE projects_objtyp AS OBJECT (
   id              NUMBER(4),
   title           VARCHAR2(15),
   projlead_ref    REF person_objtyp,
   description     CLOB,
   team_ntab       personref_ntabtyp);

Next, create the object table projects_objtab based on the projects_objtyp:

CREATE TABLE projects_objtab OF projects_objtyp (id PRIMARY KEY)
   NESTED TABLE team_ntab STORE AS team_store_ntab ;

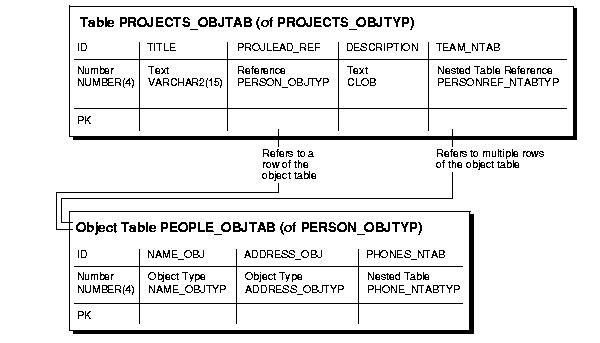

Figure 8-9 Object Relational Representation of the projects_objtab Object Table

Text description of adobj016.gif follows
Text description of the illustration adobj016.gif

Once the people_objtab object table and the projects_objtab object table are in place, you indirectly have a nested collection. That is, the projects_objtab table contains a nested table collection of REFs that point to the people in the people_objtab table, and the people in the people_objtab table have a nested table collection of phone numbers.

You can insert values into the people_objtab table in the following way:

INSERT INTO people_objtab VALUES (
   name_objtyp('JOHN', 'JACOB', 'SCHMIDT'),
   address_objtyp('1252 Maple Road', 'Fairfax', 'VA', '22033'),
      phone_objtyp('home', '650.339.9922'),
      phone_objtyp('work', '510.563.8792'))) ;

INSERT INTO people_objtab VALUES (
   name_objtyp('MARY', 'ELLEN', 'MILLER'),
   address_objtyp('33 Spruce Street', 'McKees Rocks', 'PA', '15136'),
      phone_objtyp('home', '415.642.6722'),
      phone_objtyp('work', '650.891.7766'))) ;

INSERT INTO people_objtab VALUES (
   name_objtyp('SARAH', 'MARIE', 'SINGER'),
   address_objtyp('525 Pine Avenue', 'San Mateo', 'CA', '94403'),
      phone_objtyp('home', '510.804.4378'),
      phone_objtyp('work', '650.345.9232'),
      phone_objtyp('cell', '650.854.9233'))) ;

Then, you can insert into the projects_objtab relational table by selecting from the people_objtab object table using a REF operator, as in the following examples:

INSERT INTO projects_objtab VALUES (
   'Demo Product',
   (SELECT REF(p) FROM people_objtab p WHERE id = 0001),
   'Demo the product, show all the great features.',
      (SELECT REF(p) FROM people_objtab p WHERE id = 0001),
      (SELECT REF(p) FROM people_objtab p WHERE id = 0002),
      (SELECT REF(p) FROM people_objtab p WHERE id = 0003))) ;

INSERT INTO projects_objtab VALUES (
   'Create PRODDB',
   (SELECT REF(p) FROM people_objtab p WHERE id = 0002),
   'Create a database of our products.',
      (SELECT REF(p) FROM people_objtab p WHERE id = 0002),
      (SELECT REF(p) FROM people_objtab p WHERE id = 0003))) ;


This example uses nested tables to store REFs, but you also can store REFs in varrays. That is, you can have a varray of REFs.

Choosing a Language for Method Functions

Method functions can be implemented in any of the languages supported by Oracle, such as PL/SQL, Java, or C. Consider the following factors when you choose the language for a particular application:

In general, if the application performs intense computations, C is preferable, but if the application performs a relatively large number of database calls, PL/SQL or Java is preferable.

A method implemented in C executes in a separate process from the server using external procedures. In contrast, a method implemented in Java or PL/SQL executes in the same process as the server.

Example: Implementing a Method

The example described in this section involves an object type whose methods are implemented in different languages. In the example, the object type ImageType has an ID attribute, which is a NUMBER that uniquely identifies it, and an IMG attribute, which is a BLOB that stores the raw image. The object type ImageType has the following methods:

For implementing a method in C, a LIBRARY object must be defined to point to the library that contains the external C routines. For implementing a method implemented in Java, this example assumes that the Java class with the method has been compiled and uploaded into Oracle.

Here is the object type specification and its methods:

   id   NUMBER,
   img  BLOB,
   MEMBER FUNCTION get_name() return VARCHAR2,
   MEMBER FUNCTION rotate() return BLOB,
   STATIC FUNCTION clear(color NUMBER) return BLOB
   imgname VARCHAR2(100);
      SELECT name INTO imgname FROM imgtab WHERE imgid = id;
      RETURN imgname;
   NAME "Crotate"
   LIBRARY myCfuncs;
   NAME 'myJavaClass.clear(color oracle.sql.NUMBER) RETURN oracle.sql.BLOB';



Type methods can be mapped only to static Java methods.

See Also:

Static Methods

Static methods differ from member methods in that the SELF value is not passed in as the first parameter. Methods in which the value of SELF is not relevant should be implemented as static methods. Static methods can be used for user-defined constructors.

The following example is a constructor-like method that constructs an instance of the type based on the explicit input parameters and inserts the instance into the specified table:

      p1        NUMBER,
      tabname   VARCHAR2,
      schname   VARCHAR2));

    STATIC PROCEDURE newa (p1 NUMBER, tabname VARCHAR2, schname VARCHAR2)
      sqlstmt VARCHAR2(100);
      sqlstmt := 'INSERT INTO '||schname||'.'||tabname|| ' VALUES (atype(:1))';

CREATE TABLE atab OF atype;
     atype.newa(1, 'atab', 'scott');

Writing Reusable Code using Invoker Rights

To create generic object types that can be used in any schema, you must define the type to use invoker-rights, through the AUTHID CURRENT_USER option of CREATE OR REPLACE TYPE. In general, use invoker-rights when both of the following conditions are true:

For example, you can grant user SARA execute privileges on type atype created by SCOTT in "Static Methods", and then create table atab based on the type:

CREATE TABLE atab OF scott.atype ;

Now, suppose user SARA tries to use atype in the following statement:

  scott.atype.newa(1, 'atab', 'SARA'); -- raises an error

This statement raises an error because the definer of the type (SCOTT) does not have the privileges required to perform the insert in the newa procedure. You can avoid this error by defining atype using invoker-rights. Here, you first drop the atab table in both schemas and re-create atype using invoker-rights:


   STATIC PROCEDURE newa(p1 NUMBER, tabname VARCHAR2, schname VARCHAR2));

  STATIC PROCEDURE newa(p1 NUMBER, tabname VARCHAR2, schname VARCHAR2)
     sqlstmt VARCHAR2(100);
      sqlstmt := 'INSERT INTO '||schname||'.'||tabname|| ' VALUES

Now, if user SARA tries to use atype again, the statement executes successfully:

CREATE TABLE atab OF scott.atype;

  scott.atype.newa(1, 'atab', 'SARA'); -- executes successfully

The statement is successful this time because the procedure is executed under the privileges of the invoker (SARA), not the definer (SCOTT).

In a type hierarchy, a subtype has the same rights model as its immediate supertype. That is, it implicitly inherits the rights model of the supertype and cannot explicitly specify one. Furthermore, if the supertype was declared with definer's rights, the subtype must reside in the same schema as the supertype. These rules allow invoker rights type hierarchies to span schemas. However, type hierarchies that use a definer rights model must reside within a single schema.

Examples :

CREATE TYPE deftype1 AS OBJECT (...); -- Definer rights type
CREATE TYPE subtype1 UNDER deftype1(...); -- subtype in same schema as supertype
CREATE TYPE schema2.subtype2 UNDER deftype1(...); -- ERROR

CREATE TYPE invtype1 AUTHID CURRENT_USER AS OBJECT (...); -- Invoker rights type
CREATE TYPE schema2.subtype2 UNDER invtype1 (...); -- LEGAL

Function-Based Indexes on the Return Values of Type Methods

A function-based index is an index based on the return values of an expression or function. The function may be a method function of an object type.

A function-based index built on a method function precomputes the return value of the function for each object instance in the column or table being indexed and stores those values in the index. There they can be referenced without having to evaluate the function again.

Function-based indexes are useful for improving the performance of queries that have a function in the WHERE clause. For example, the following code contains a query of an object table emps:

  name   VARCHAR2
  salary NUMBER,

  RETURN self.salary * .1;

CREATE TABLE emps OF emp_t ;

  FROM emps
  WHERE e.bonus() > 2000 ;

To evaluate this query, Oracle must evaluate bonus() for each row object in the table. If there is a function-based index on the return values of bonus(), then this work has already been done, and Oracle can simply look up the results in the index. This enables Oracle to return a result from the query more quickly.

Return values of a function can be usefully indexed only if those values are constant, that is, only if the function always returns the same value for each object instance. For this reason, to use a user-written function in a function-based index, the function must have been declared with the DETERMINISTIC keyword, as in the preceding example. This keyword promises that the function always returns the same value for each object instance's set of input argument values.

The following example creates a function-based index on the method bonus() in the table emps:

CREATE INDEX emps_bonus_idx ON emps x (x.bonus()) ;

See Also:

Oracle9i Database Concepts and Oracle9i SQL Reference for detailed information about function-based indexes.

Converting to the Current Object Format

Tables created in release 8.1 or higher store objects in a new format that uses less storage space and has better performance characteristics than the previous (relase 8.0) format. A more efficient transport protocol is used as well. If the COMPATIBLE parameter is set to 8.1.0 or higher, all objects in new tables and columns that you create are automatically stored in release 8.1 format, and all objects (new or old) are transported in the release 8.1 format. Tables created in release 8.0 will continue to store objects in the release 8.0 format unless explicitly converted.

You can convert objects created in a release 8.0 database to the format introduced in release 8.1. To do so, do the following steps:

  1. Re-create the tables using a CREATE TABLE...AS SELECT... statement.
  2. Export/import the data in the tables.

    See Also:

    Oracle9i Database Migration for more information about compatibility and the COMPATIBLE initialization parameter.


    The release 8.0 format will be deprecated in a future release.

Replicating Object Tables and Columns

Object tables and object views can be replicated as materialized views. You can also replicate relational tables that contain columns of an object, collection, or REF type. Such materialized views are called object-relational materialized views.

All user-defined types required by an object-relational materialized view must exist at the materialized view site as well as at the master site. They must have the same object type IDs and versions at both sites.

Replicating Columns of Object, Collection, or REF Type

To be updatable, a materialized view based on a table that contains an object column must select the column as an object in the query that defines the view: if the query selects only certain attributes of the column's object type, then the materialized view is read-only.

The view-definition query can also select columns of collection or REF type. REFs can be either primary-key based or have a system-generated key, and they can be either scoped or unscoped. Scoped REF columns can be rescoped to a different table at the site of the materialized view--for example, to a local materialized view of the master table instead of the original, remote table.

Replicating Object Tables

A materialized view based on an object table is called an object materialized view. Such a materialized view is itself an object table. An object materialized view is created by adding the OF <type> keyword to the CREATE MATERIALIZED VIEW statement. For example:

CREATE MATERIALIZED VIEW customer OF cust_objtyp
AS SELECT * FROM Scott.Customer_objtab@dbs1;

As with an ordinary object table, each row of an object materialized view is an object instance, so the view-definition query that creates the materialized view must select entire objects from the master table: the query cannot select only a subset of the object type's attributes. For example, the following materialized view is not allowed:

CREATE MATERIALIZED VIEW customer OF cust_objtyp
AS SELECT CustNo FROM Scott.Customer_objtab@dbs1;

You can create an object-relational materialized view from an object table by omitting the OF <type> keyword, but such a view is read-only: you cannot create an updatable object-relational materialized view from an object table.

For example, the following CREATE MATERIALIZED VIEW statement creates a read-only object-relational materialized view of an object table. Even though the view-definition query selects all columns/attributes of the object type, it does not select them as attributes of an object, so the view created is object-relational and read-only:

AS SELECT * FROM Scott.Customer_objtab@dbs1;

For both object-relational and object materialized views that are based on an object table, if the type of the master object table is not FINAL, the FROM clause in the materialized view definition query must include the ONLY keyword. For example:

CREATE MATERIALIZED VIEW customer OF cust_objtyp
AS SELECT CustNo FROM ONLY Scott.Customer_objtab@dbs1;

Otherwise, the FROM clause must omit the ONLY keyword.

See Also:

Oracle9i Replication for more information on replicating object tables and columns

Constraints on Objects

Oracle does not support constraints and defaults in type specifications. However, you can specify the constraints and defaults when creating the tables:

   cust_id INTEGER);

   deptno INTEGER);
CREATE TABLE customer_tab OF customer_type (
   cust_id default 1 NOT NULL);

CREATE TABLE department_tab OF department_type (
   deptno PRIMARY KEY);

CREATE TABLE customer_tab1 (
   cust customer_type DEFAULT customer_type(1)
   CHECK (cust.cust_id IS NOT NULL),
   some_other_column VARCHAR2(32));

Type Evolution

The following sections contain design considerations relating to type evolution.

Pushing a Type Change Out to Clients

Once a type has evolved on the server side, all client applications using this type need to make the necessary changes to structures associated with the type. You can do this with OTT/JPUB. You also may need to make programmatic changes associated with the structural change. After making these changes, you must recompile your application and relink.

Types may be altered between releases of a third-party application. To inform client applications that they need to recompile to become compatible with the latest release of the third-party application, you can have the clients call a release-oriented compatibility initialization function. This function could take as input a string that tells it which release the client application is working with. If the release string mismatches with the latest version, an error is generated. The client application must then change the release string as part of the changes required to become compatible with the latest release.

For example:

FUNCTION compatibility_init(rel IN VARCHAR2, errmsg OUT VARCHAR2)


rel is a release string that is chosen by the product--for example, 'Release 8.2'

errmsg is any error message that may need to be returned

The function returns 0 on success and a nonzero value on error.

Changing Default Constructors

When a type is altered, its default, system-defined constructors need to be changed in order (for example) to include newly added attributes in the parameter list. If you are using default constructors, you need to modify their invocations in your program in order for the calls to compile.

You can avoid having to modify constructor calls if you define your own constructor functions instead of using the system-defined default ones.

See Also:

"User-Defined Constructors"

Altering the FINAL Property of a Type

When you alter a type T1 from FINAL to NOT FINAL, any attribute of type T1 in the client program changes from being an inlined structure to a pointer to T1. This means that you need to change the program to use dereferencing when this attribute is accessed.

Conversely, when you alter a type from NOT FINAL to FINAL, the attributes of that type change from being pointers to inlined structures.

For example, say that you have the types T1(a int) and T2(b T1), where T1's property is FINAL. The C/JAVA structure corresponding to T2 is T2(T1 b). But if you change T1's property to NOT FINAL, then T2's structure becomes T2(T1 *b).

Performance Tuning

See Oracle9i Database Performance Tuning Guide and Reference for details on measuring and tuning the performance of your application. In particular, some of the key performance factors are the following:

Parallel Queries with Oracle Objects

Oracle lets you perform parallel queries with objects, when you follow these rules:

Tips and Techniques

The following sections provide assorted tips on various aspects of working with Oracle object types.

Deciding Whether to Evolve a Type or Create a Subtype Instead

As an application goes through its life cycle, the question often arises whether to change an existing user-defined type or to create a specialized subtype to meet new requirements. The answer depends on the nature of the new requirements and their context in the overall application semantics. Here are two examples:

Changing a Widely Used Base Type

Suppose that we have a user-defined type address with attributes Street, State, and ZIP:

Street  VARCHAR2(80),
State   VARCHAR2(20),
ZIP     VARCHAR2(10)

We later find that we need to extend the address type by adding a Country attribute to support addresses internationally. Is it better to create a subtype of address or to evolve the address type itself?

With a general base type that has been widely used throughout an application, it is better to implement the change using type evolution.

Adding Specialization

Suppose that an existing type hierarchy of Graphic types (for example, curve, circle, square, text) needs to accommodate an additional variation, namely, Bezier curve. To support a new specialization of this sort that does not reflect a shortcoming of the base type, we should use inheritance and create a new subtype BezierCurve under the Curve type.

To sum up, the semantics of the required change dictates whether we should use type evolution or inheritance. For a change that is more general and affects the base type, use type evolution. For a more specialized change, implement the change using inheritance.

How ANYDATA Differs from User-Defined Types

ANYDATA is an Oracle-supplied type that can hold instances of any Oracle datatype, whether built-in or user-defined. ANYDATA is a self-describing type and supports a reflection-like API that you can use to determine the shape of an instance.

While both inheritance, through the substitutability feature, and ANYDATA provide the polymorphic ability to store any of a set of possible instances in a placeholder, the two models give the capability two very different forms.

In the inheritance model, the polymorphic set of possible instances must form part of a single type hierarchy. A variable can potentially hold instances only of its defined type or of its subtypes. You can access attributes of the supertype and call methods defined in the supertype (and potentially overridden by the subtype). You can also test the specific type of an instance using the IS OF and the TREAT operators.

ANYDATA variables, however, can store heterogeneous instances. You cannot access attributes or call methods of the actual instance stored in an ANYDATA variable (unless you extract out the instance). You use the ANYDATA methods to discover and extract the type of the instance. ANYDATA is a very useful mechanism for parameter passing when the function/procedure does not care about the specific type of the parameter(s).

Inheritance provides better modeling, strong typing, specialization, and so on. Use ANYDATA when you simply want to be able to hold one of any number of possible instances that do not necessarily have anything in common.

Polymorphic Views: An Alternative to an Object View Hierarchy

Chapter 5 describes how to build up a view hierarchy from a set of object views each of which contains objects of a single type. Such a view hierarchy enables queries on a view within the hierarchy to see a polymorphic set of objects contained by the queried view or its subviews.

As an alternative way to support such polymorphic queries, you can define an object view based on a query that returns a polymorphic set of objects. This approach is especially useful when you want to define a view over a set of tables or views that already exists.

For example, an object view of Person_t can be defined over a query that returns Person_t instances, including Employee_t instances. The following statement creates a view based on queries that select persons from a persons table and employees from an employees table.

CREATE VIEW Persons_view OF Person_t AS
   SELECT Person_t(...) FROM persons
   SELECT TREAT(Employee_t(...) AS Person_t) FROM employees;

An INSTEAD OF trigger defined for this view can use the VALUE function to access the current object and to take appropriate action based on the object's most specific type.

Polymorphic views and object view hierarchies have these important differences:

The SQLJ Object Type

What is the intended use of SQLJ Object Type?

According to the Information Technology - SQLJ - Part 2 document (SQLJ Standard), a SQLJ object type is a database object type designed for Java. A SQLJ object type maps to a Java class. Once the mapping is "registered" through the extended SQL CREATE TYPE command (a DDL statement), the Java application can insert or select the Java objects directly into or from the database through an Oracle9i JDBC driver. This enables the user to deploy the same class in the client, through JDBC, and in the server, through SQL method dispatch.

What is involved in creating a SQLJ Object Type?

The extended SQL CREATE TYPE command:

When would you use SQLJ Object Type?

The SQLJ object type is a special case of SQL object type in which all methods are implemented in a Java class(es). The mapping between a Java class and its corresponding SQL type is managed by the SQLJ object type specification. That is, the SQLJ Object type specification cannot have a corresponding type body specification.

Also, the inheritance rules among SQLJ object types specify the legal mapping between a Java class hierarchy and its corresponding SQLJ object type hierarchy. These rules ensure that the SQLJ Type hierarchy contains a valid mapping. That is, the supertype or subtype of a SQLJ object type has to be another SQLJ object type.

When would you use Custom Object Type?

The custom object type is the Java interface for accessing SQL object type. A SQL object type may include methods that are implemented in languages such as PLSQL, Java, and C. Methods implemented in Java in a given SQL object type can belong to different unrelated classes. That is, the SQL object type does not map to a specific Java class.

In order for the client to access these objects, JPub can be used to generate the corresponding Java class. Furthermore, the user has to augment the generated classes with the code of the corresponding methods. Alternatively, the user can create the class corresponding to the SQL object type.

At runtime, the JDBC user has to register the correspondence between a SQL Type name and its corresponding Java class in a map.

What are the differences between the SQLJ and Custom Object Types through JDBC?

The following table summarizes the differences between SQLJ object types and custom object types.

Feature SQLJ Object Type Behavior Custom Object Type Behavior


Use the OracleTypes.JAVA_STRUCT typecode to register a SQLJ object type as a SQL OUT parameter. The OracleTypes.JAVA_STRUCT typecode is also used in the _SQL_TYPECODE field of a class implementing the ORAData or SQLData interface.

Use the OracleTypes.STRUCT typecode to register a custom object type as a SQL OUT parameter. The OracleTypes.STRUCT typecode is also used in the _SQL_TYPECODE field of a class implementing the ORAData or SQLData interface.


Create a Java class implementing the SQLData or ORAData and ORADataFactory interfaces first and then load the Java class into the database. Next, you issue the extended SQL CREATE TYPE command for SQLJ object type.

Issue the extended SQL CREATE TYPE command for a custom object type and then create the SQLData or ORAData Java wrapper class using JPublisher or do this manually.

Method Support

Supports external names, constructor calls, and calls for member functions with side effects.

There is no default class for implementing type methods as Java methods. Some methods may also be implemented in SQL.

Type Mapping

Type mapping is automatically done by the extended SQL CREATE TYPE command. However, the SQLJ object type must have a defining Java class on the client.

Register the correspondence between SQL and Java in a type map. Otherwise, the type is materialized as oracle.sql.STRUCT.

Type Mapping

Type mapping is automatically done by the extended SQL CREATE TYPE command. However, the SQLJ object type must have a defining Java class on the client.

Register the correspondence between SQL and Java in a type map. Otherwise, the type is materialized as oracle.sql.STRUCT.


There are rules for mapping SQL hierarchy to a Java class hierarchy. See the Oracle9i SQL Reference for a complete description of these rules.

There are no mapping rules.

Miscellaneous Tips

Column Substitutability and the Number of Attributes in a Hierarchy

If a column or table is of type T, Oracle adds a hidden column for each attribute of type T and, if the column or table is substitutable, for each attribute of every subtype of T, to store attribute data. A hidden typeid column is added as well, to keep track of the type of the object instance in a row.

The number of columns in a table is limited to 1,000. A type hierarchy with a number of total attributes approaching 1,000 puts you at risk of running up against this limit when using substitutable columns of a type in the hierarchy. To avoid problems as a result of this, consider one of the following options for dealing with a hierarchy that has a large number of total attributes:

Circular Dependencies Among Types

Avoid creating circular dependencies among types. In other words, do not create situations in which a method of type T returns a type T1, which has a method that returns a type T.


PL/SQL does not currently support the TREAT and IS OF operators (see Chapter 2), but SQL does. To use these operators, use SQL.

Go to previous page Go to next page
Copyright © 1996, 2002 Oracle Corporation.

All Rights Reserved.
Go To Documentation Library
Go To Product List
Book List
Go To Table Of Contents
Go To Index

Master Index
