2 Administering Oracle Database for Data Mining

Because Oracle Data Mining is completely integrated with Oracle Database, you use the same tools for administering Data Mining as you would a database for any other purpose.

In this chapter, you will learn about some post-installation administrative tasks, such as creating a sample schema that can be used for data mining, and creating database users with sufficient privileges to mine the data.

This chapter contains the following topics:

Introduction to Oracle Administration Tools
Creating a Sample Schema for Data Mining
Creating Oracle Database Users for Data Mining
Exporting and Importing Data Mining Models

Introduction to Oracle Administration Tools

You can administer Oracle Database locally or from a remote computer with network access.

Local Administration on Microsoft Windows

Several tools for administrators and application developers are installed along with Oracle Database. For Microsoft Windows platforms, the Program menu contains an Oracle home program group with links to the tools.

Following are descriptions of a few of the basic administrative tools.

Oracle Enterprise Manager Database Control

Database Control provides a Web-based graphical interface for managing all aspects of Oracle Database.

To open Database Control, click Start > All Programs > Oracle - oracle_home > Database Control - database_instance.

You can also open Database Control from the URL provided during installation.

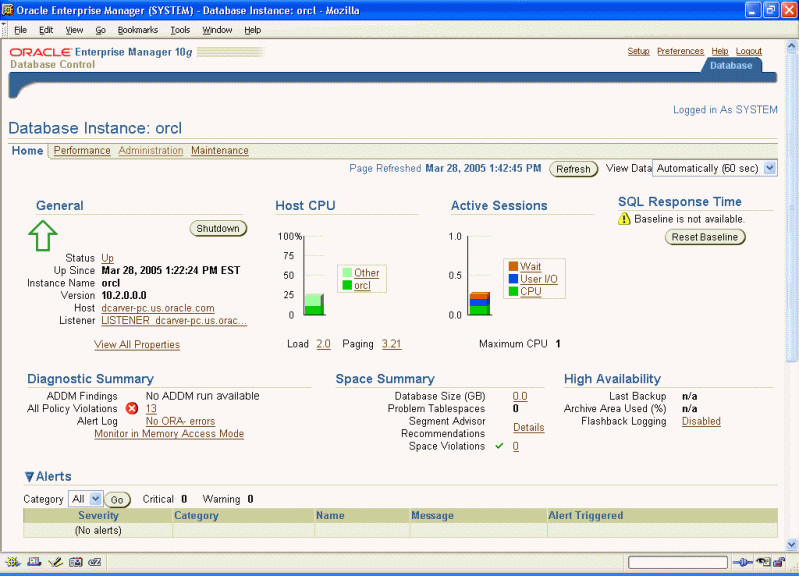

The following figure shows the Database Control home page.

Description of the illustration oem_home.gif

SQL*Plus

SQL*Plus is a command-line interface for the SQL language. You can perform all Oracle administrative tasks using SQL.

To open SQL*Plus, click Start > All Programs > Oracle - oracle_home > Application Development > SQL Plus.

You will be prompted for your user name and password. You must supply a host string only when connecting to a remote computer. The host string takes the form host_name:port:SID, such as myhost:1521:orcl.

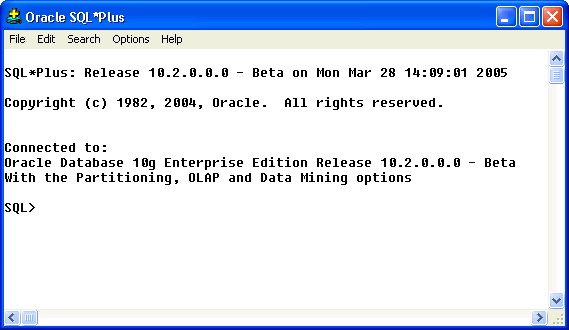

The following figure shows the SQL Plus window.

Description of the illustration sqlplus.gif

Database Configuration Assistant

Database Configuration Assistant provides a graphical user interface for creating, configuring, and deleting database instances. A single installation of Oracle Database can support numerous individual database instances. You can use Database Configuration Assistant to install the sample schemas if you did not install them with the database.

To open Database Configuration Assistant, click Start > All Programs > Oracle - oracle_home > Configuration and Migration Tools > Database Configuration Assistant.

Oracle Universal Installer

You can use Oracle Universal Installer to list the Oracle products on your computer or to deinstall them.

To open Oracle Universal Installer, click Start > All Programs > Oracle - oracle_home > Oracle Installation Products > Universal Installer.

You must shut down all databases and supporting services before deinstalling Oracle Database. Refer to the installation guide for your platform for more information.

Oracle Services

The Oracle Database installation creates several services. The following table describes some of them.

Service Name	Description	Usage
`OracleServiceSID`	Oracle Database	Enables you to start and stop Oracle Database from the Service window.
`OracleHome_NameTNSListener`	Oracle Database listener	Enables you to open a connection with Oracle Database from a remote computer.
`OracleHome_NameiSQL*Plus`	iSQL*Plus application server	Enables you to open iSQL*Plus from a browser.
`OracleDBConsoleSID`	Oracle Enterprise Manager Database Control console	Enables you to open Database Control from a browser.

To manage them, open Administrative Tools in the Windows Control Panel and choose Services.

Local Administration on Linux

The same tools that are installed locally on a Windows platform are also installed on Linux. You can run the local administrative tools from the shell command line. They are located in $ORACLE_HOME/bin. These are a few of the tools:

To open SQL*Plus, type sqlplus.
To open Database Configuration Assistant, type dbca.
To open Enterprise Manager Database Control, open a browser and type the URL provided during installation.
To open Oracle Universal Installer, type $ORACLE_HOME/oui/bin/runInstaller.
To start and stop the various Oracle processes, use these commands:
- lsnrctl: Oracle Database listener
- isqlplusctl: iSQL*Plus application server
- emctl: Oracle Enterprise Manager Database Control console

For descriptions of these tools, refer to "Local Administration on Microsoft Windows".

Remote Administration

You can open these tools in any browser by typing the URLs listed during installation on the End of Installation page:

iSQL*Plus is a version of SQL*Plus that runs in a browser.
Enterprise Manager Database Control is the same thin-client application that you access locally.

If you prefer, you can install on a client computer all of the same tools that are installed on the host computer with Oracle Database. They are available on Client Disk 1 (of 1).

Creating Oracle Database Users for Data Mining

Anyone who wants to use Oracle Database must have a user name and password. Oracle Data Mining requires a small number of database permissions, plus SELECT access to the tables containing data for analysis.

Creating a Demo User for Data Mining

If you plan to use the Data Mining demo programs, then take these steps:

Open SQL*Plus and log in as the SYSTEM user.
Create a user name. The following command creates a user named dmuser with the password change_now, and provides default access to two tablespaces shared by several other sample schemas:
```
CREATE USER dmuser IDENTIFIED BY change_now
     DEFAULT TABLESPACE users
     TEMPORARY TABLESPACE temp
     QUOTA UNLIMITED on users;
```
Run the dmshgrants SQL script, which assigns all of the necessary permissions. The following command passes two arguments to the script: The password for the SH user (which is also SH in this example) and the user name getting the access rights (DMUSER).
```
@%ORACLE_HOME%\rdbms\demo\dmshgrants sh dmuser
```
On Linux, this is the equivalent command:
```
@$ORACLE_HOME/rdbms/demo/dmshgrants sh dmuser
```

Creating Analytic Users for Data Mining

An analyst who wants to mine real data needs to have the appropriate resources. These resources include:

Personal tablespaces (permanent and temporary)
Access rights to the data

The examples in this guide show how to allocate these resources using SQL commands, which you can cut and paste into SQL*Plus. However, you can use Enterprise Manager if you prefer using a graphical interface.

Creating Default Tablespaces

All users require a permanent tablespace and a temporary tablespace in which to do their work. Performance may start to degrade if multiple users are sharing the same tablespace while mining large data sets. You can improve performance by creating individual tablespaces for each user.

The following SQL command creates a new permanent tablespace.

CREATE TABLESPACE "ODMPERM" DATAFILE
    'C:\ORACLE\PRODUCT\10.2.0\ORADATA\ORCL\odm1.dbf'
     SIZE 20M REUSE AUTOEXTEND ON NEXT 20M;

The next SQL command creates a new temporary tablespace.

CREATE TEMPORARY TABLESPACE "ODMTEMP" TEMPFILE
    'C:\ORACLE\PRODUCT\10.2.0\ORADATA\ORCL\odmtemp.tmp'
     SIZE 20M REUSE AUTOEXTEND ON NEXT 20M;

Creating Database Users for Data Mining

To create a user for Data Mining, you use the same SQL command as the one shown in "Creating a Demo User for Data Mining", except that you may identify personal tablespaces. The following example shows how to change the default tablespaces for an existing user.

ALTER USER dmuser DEFAULT TABLESPACE odmperm
     DEFAULT TEMPORARY TABLESPACE odmtemp
     QUOTA UNLIMITED ON odmperm;

Granting Access Rights

You can grant access rights to users by running the dmshgrants PL/SQL script, as described in "Creating a Demo User for Data Mining", or using the graphical interface provided by Enterprise Manager Database Control, or issuing SQL commands.

What the dmshgrants Script Does

The dmshgrants script grants the following database permissions. If you do not have access to the script, you can set permissions using the SQL GRANT command or Enterprise Manager Database Control.

CREATE PROCEDURE
CREATE SESSION
CREATE TABLE
CREATE SEQUENCE
CREATE VIEW
CREATE JOB
CREATE TYPE
CREATE SYNONYM

The dmshgrants script grants SELECT rights on these tables in the SH schema:

COUNTRIES
CUSTOMERS
PRODUCTS
SUPPLEMENTARY_DEMOGRAPHICS
SALES

For text mining, dmshgrants grants access rights to an Oracle Text package:

EXECUTE ON ctxsys.ctx_ddl

What the dmshgrants Script Does Not Do

The dmshgrants script does not grant access rights to any data other than the Sales History sample schema. Unless a user owns the data being analyzed, you must grant access rights to that data using a SQL command like this one:

GRANT SELECT ON owner.tablename TO user

For example, the following SQL command grants SELECT access to the EMPLOYEES table in the sample HR schema to DMUSER.

GRANT SELECT ON hr.employees TO dmuser

Users who want to export and import Data Mining models need additional access rights, as described in "Exporting and Importing Data Mining Models".

About the DMSYS Schema

Information about all models created in a database is stored in tables owned by the DMSYS user. During a typical installation, the DMSYS user has SYSAUX defined as its default tablespace.

Do not delete, truncate, or modify the tables in the DMSYS schema. They support the data mining activities of all users in the database.

Creating a Sample Schema for Data Mining

The sample programs for Data Mining reference the SH schema and some additional tables and views. You can create the new tables and views in the DMUSER schema so that all users can share them, or individual users can create the tables and views in their own schemas.

To create the data sets used by the Data Mining sample programs, take these steps:

Open SQL*Plus and connect as the user who will own the new tables and views.

This user must have all of the privileges granted by the dmshgrants script, as described in "Creating Oracle Database Users for Data Mining". For example, you might connect as dmuser.
Run the dmsh SQL script, using this command on Windows:
```
@%ORACLE_HOME%\rdbms\demo\dmsh
```
On Linux, this is the equivalent command:
```
@$ORACLE_HOME/rdbms/demo/dmsh
```

Exporting and Importing Data Mining Models

You can export data mining models to flat files to back up work in progress or to move models to a different instance of Oracle Database Enterprise Edition (such as from a development database to a production database). All methods for exporting and importing models are based in Oracle Data Pump technology.

Oracle Data Pump consists of two command-line clients and two PL/SQL APIs. The command-line clients, expdp and impdp, provide an easy-to-use interface to the Data Pump export and import utilities. The Data Mining APIs also use the Data Pump export and import utilities.

You can export and import models at different levels, depending on your access rights in the database:

Database. When a DBA exports a full database using expdp, an Oracle Data Pump utility, all data mining models in the database are exported. Another Data Pump utility, impdp, imports all the models with the other objects in the database.
Schema. When a DBA or an individual user exports a schema using expdp, all the data mining models in the schema are exported. Likewise, impdp imports all the models with the other objects in the schema.
Models Only. The Data Mining APIs contain utilities for exporting and importing either all Data Mining models in a schema or models that match specific criteria.

The Data Pump export utility writes the tables and metadata that constitute a model to a dump file set, which consists of one or more files. The Data Pump import utility retrieves the tables and metadata from the dump file and restores them to the target database. Because the expdp and impdp clients and the Data Mining APIs use the Data Pump export and import utilities, you can use the APIs to extract individual models from a dump file of a schema or database.

Note that the older exp and imp database utilities do not export or import data mining models.

Prerequisites

To export and import Data Mining models, you must have read and write access to a directory object, and you may need additional database permissions.

Directory Objects

A directory object is a logical name in the database for a physical directory on the host computer. Without read and write access to a directory object, you cannot access the host computer file system from within Oracle Database.

You must have the CREATE ANY DIRECTORY privilege to create directory objects.

The following SQL command creates, or re-creates if it already exists, a directory object named DMTEST. The file system directory (in this example, C:\ORACLE\PRODUCT\10.2.0\DMINING) must already exist and have shared read/write access rights granted by the operating system.

CREATE OR REPLACE DIRECTORY dmtest AS 'c:\oracle\product\10.2.0\dmining';

This SQL command gives user DMUSER both read and write access to DMTEST.

GRANT ALL ON DIRECTORY dmtest TO dmuser;

For more information about creating database directories, refer to the CREATE DIRECTORY and GRANT commands in the Oracle Database SQL Reference.

Additional Database Privileges

You may need special privileges in the database to take full advantage of all Data Pump features, such as importing models and other objects into a different schema. These privileges are granted by the EXP_FULL_DATABASE and IMP_FULL_DATABASE roles.

You do not need these roles to export models from your own schema. To import models, you must have the same database roles or be as privileged as the user who created the dump file set. Otherwise, you need the IMP_FULL_DATABASE role.

Privileged users (such as SYS or a user with the DBA role) have sufficient access rights and do not need these additional roles.

The following SQL commands grant these roles to DMUSER:

GRANT EXP_FULL_DATABASE TO dmuser;
GRANT IMP_FULL_DATABASE TO dmuser;

PL/SQL APIs for Exporting and Importing Models

The DBMS_DATA_MINING PL/SQL package contains these two procedures:

EXPORT_MODEL
IMPORT_MODEL

For more information about these procedures, refer to the Oracle Database PL/SQL Packages and Types Reference.

Java APIs for Exporting and Importing Models

Oracle Database implements the industry-standard Java Data Mining (JDM) API Specification, which includes these two interfaces:

javax.datamining.task.ExportTask
javax.datamining.task.ImportTask

For more information about the standard JDM API, refer to the Java Help for the JSR-73 Specification, which is available on the Oracle Technology Network at

http://www.oracle.com/technology/products/bi/odm/JSR-73/index.html

Tables Created By Exporting and Importing Models

Two tables are created in the user's schema by the Data Mining export and import utilities:

DM$P_MODEL_EXPIMP_TEMP. Used for internal purposes during export and import, and provides a job history.
DM$P_MODEL_TABKEY_TEMP. Used only for internal purposes during export and import.

Do not alter these tables. However, you may drop them when no export or import job is running. The utilities will re-create them for the next job.

Example: Exporting and Importing Models

This example creates a dump file with three models and imports the models from the dump file.

Exporting Models from the DMUSER Schema

The following command exports all models from DMUSER, who is currently connected to the database in SQL*Plus.

SQL> EXECUTE DBMS_DATA_MINING.EXPORT_MODEL('allmodels.dmp','DMTEST');

PL/SQL procedure successfully completed.

An export or import creates a log file in the same directory as the dump file. Error messages are returned to the current output device (such as the screen), and the log file may provide additional information.

This command was successful and creates two files in the DMTEST directory:

A dump file named allmodels01.dmp (note the 2-digit suffix added to the name)
A log file with a default name of DMUSER_exp_4589.log

For detailed information about the default names of files, see the DBMS_DATA_MINING package in the Oracle Database PL/SQL Packages and Types Reference.

You can view the log file using a system command or editor. You must know the path of the physical directory in order to locate the file.

DMUSER_exp_4589.log lists the three Data Mining models that were in the schema, plus additional objects as shown here:

Starting "DMUSER"."DMUSER_exp_45":  DM_EXPIMP_JOB_ID=45
Estimate in progress using BLOCKS method...
Processing object type TABLE_EXPORT/TABLE/TABLE_DATA
Total estimation using BLOCKS method: 1.062 MB
>>> . . exported Data Mining Model "DMUSER"."ABN_CLAS_SAMPLE"
>>> . . exported Data Mining Model "DMUSER"."ASSOCIATION_RULES_SAMPLE"
>>> . . exported Data Mining Model "DMUSER"."NAIVE_BAYES_SAMPLE"
Processing object type TABLE_EXPORT/TABLE/PROCACT_INSTANCE
Processing object type TABLE_EXPORT/TABLE/TABLE
Processing object type TABLE_EXPORT/TABLE/GRANT/OWNER_GRANT/OBJECT_GRANT
Processing object type TABLE_EXPORT/TABLE/INDEX/INDEX
Processing object type TABLE_EXPORT/TABLE/CONSTRAINT/CONSTRAINT
Processing object type TABLE_EXPORT/TABLE/INDEX/STATISTICS/INDEX_STATISTICS
Processing object type TABLE_EXPORT/TABLE/INDEX/FUNCTIONAL_AND_BITMAP/INDEX
Processing object type TABLE_EXPORT/TABLE/INDEX/STATISTICS/FUNCTIONAL_AND_BITMAP/INDEX_STATISTICS
Processing object type TABLE_EXPORT/TABLE/STATISTICS/TABLE_STATISTICS
. . exported "DMUSER"."DM$P0ASSOCIATION_RULES_SAMPLE"    7.640 KB      15 rows
. . exported "DMUSER"."DM$P0NAIVE_BAYES_SAMPLE"          18.35 KB     219 rows
. . exported "DMUSER"."DM$P1ABN_CLAS_SAMPLE"             6.945 KB       2 rows
. . exported "DMUSER"."DM$P1NAIVE_BAYES_SAMPLE"          5.929 KB       2 rows
. . exported "DMUSER"."DM$P2ASSOCIATION_RULES_SAMPLE"    6.210 KB      11 rows
. . exported "DMUSER"."DM$P3ASSOCIATION_RULES_SAMPLE"    6.179 KB      18 rows
. . exported "DMUSER"."DM$P4ASSOCIATION_RULES_SAMPLE"    5.492 KB      26 rows
. . exported "DMUSER"."DM$P5ABN_CLAS_SAMPLE"             5.304 KB       2 rows
. . exported "DMUSER"."DM$P5NAIVE_BAYES_SAMPLE"          5.984 KB      27 rows
. . exported "DMUSER"."DM$P6ABN_CLAS_SAMPLE"             16.47 KB      34 rows
. . exported "DMUSER"."DM$P7ABN_CLAS_SAMPLE"             7.007 KB       5 rows
. . exported "DMUSER"."DM$P8ABN_CLAS_SAMPLE"             5.414 KB       5 rows
. . exported "DMUSER"."DM$P8ASSOCIATION_RULES_SAMPLE"    5.335 KB       3 rows
. . exported "DMUSER"."DM$P8NAIVE_BAYES_SAMPLE"          5.359 KB       3 rows
. . exported "DMUSER"."DM$PEABN_CLAS_SAMPLE"             9.093 KB     116 rows
. . exported "DMUSER"."DM$PENAIVE_BAYES_SAMPLE"          8.742 KB     116 rows
. . exported "DMUSER"."DM$P_MODEL_EXPIMP_TEMP"           6.273 KB      10 rows
. . exported "DMUSER"."DM$PEASSOCIATION_RULES_SAMPLE"        0 KB       0 rows
Master table "DMUSER"."DMUSER_exp_45" successfully loaded/unloaded
******************************************************************************
Dump file set for DMUSER.DMUSER_exp_45 is:
  /dat2/10gR2/oracle/product/10.2.0/db_1/dmtest/allmodels01.dmp
Job "DMUSER"."DMUSER_exp_45" successfully completed at 08:40:08

Importing Models Into the Same Schema

DMUSER can restore these models from the dump file at a later date if, for whatever reason, he or she wants to revert to this version of the models. Note that an import will not overwrite an existing model with the same name unless the model is incomplete or corrupted.

The following command restores all models from the dump file to the DMUSER schema:

SQL> EXECUTE DBMS_DATA_MINING.IMPORT_MODEL('allmodels01.dmp','DMTEST');

Importing Models Into a Different Schema

A user with the necessary privileges can load the models from a dump file into a different schema. In the next example, the SYSTEM user issues the following command, which loads the three models into the SCOTT schema:

SQL> EXECUTE DBMS_DATA_MINING.IMPORT_MODEL('allmodels01.dmp', 'DMTEST', null, null, null, 'toscott', 'DMUSER:SCOTT');

This import command specifies toscott.log as the name of the log file; the .log extension is added automatically to the name. The log file shows the names of the imported models and supporting metadata.

Master table "SYSTEM"."toscott" successfully loaded/unloaded
Starting "SYSTEM"."toscott":  DM_EXPIMP_JOB_ID=51|DM_SELECT_IMPORT
Processing object type TABLE_EXPORT/TABLE/PROCACT_INSTANCE
>>> . . imported Data Mining Model "SCOTT"."ABN_CLAS_SAMPLE"
>>> . . imported Data Mining Model "SCOTT"."ASSOCIATION_RULES_SAMPLE"
>>> . . imported Data Mining Model "SCOTT"."NAIVE_BAYES_SAMPLE"
Processing object type TABLE_EXPORT/TABLE/TABLE
Processing object type TABLE_EXPORT/TABLE/TABLE_DATA
Processing object type TABLE_EXPORT/TABLE/GRANT/OWNER_GRANT/OBJECT_GRANT
Processing object type TABLE_EXPORT/TABLE/INDEX/INDEX
Processing object type TABLE_EXPORT/TABLE/CONSTRAINT/CONSTRAINT
Processing object type TABLE_EXPORT/TABLE/INDEX/STATISTICS/INDEX_STATISTICS
Processing object type TABLE_EXPORT/TABLE/STATISTICS/TABLE_STATISTICS
Job "SYSTEM"."toscott" completed with 1 error(s) at 09:08:12
