3 Cloning Oracle Clusterware

Introduction to Cloning Oracle Clusterware

Cloning is the process of copying an existing Oracle installation to a different location and then updating the copied installation to work in the new environment. The changes made by one-off patches applied on the source Oracle home are also present after the clone operation. During cloning, you run a script that replays the actions that installed the Oracle Clusterware home.

Cloning requires that you start with a successfully installed Oracle Clusterware home that you use as the basis for implementing a script that extends the Oracle Clusterware home to either create a new cluster or to extend the Oracle Clusterware environment to more nodes in the same cluster. Manually creating the cloning script can be prone to errors, because you must prepare the script without the benefit of any interactive checks to validate your input. Despite this, the initial effort is worthwhile for scenarios where you run a single script to install tens or even hundreds of clusters. If you have only one cluster to install, then you should use the traditional automated and interactive installation methods, such as Oracle Universal Installer (OUI) or the Provisioning Pack feature of Oracle Enterprise Manager.

The following list describes some situations in which cloning is useful:

• Cloning provides a way to prepare a Oracle Clusterware home once and deploy it to many hosts simultaneously. You can complete the installation in silent mode, as a noninteractive process. You do not need to use a graphical user interface (GUI) console, and you can perform cloning from a Secure Shell (SSH) terminal session, if required.

• Cloning enables you to create a new installation (copy of a production, test, or development installation) with all patches applied to it in a single step. Once you have performed the base installation and applied all patch sets and patches on the source system, the clone performs all of these individual steps as a single procedure. This is in contrast to going through the installation process to perform the separate steps to install, configure, and patch the installation on each node in the cluster.

• Installing Oracle Clusterware by cloning is a quick process. For example, cloning an Oracle Clusterware home to a new cluster with more than two nodes requires a few minutes to install the Oracle software, plus a few minutes more for each node (approximately the amount of time it takes to run the root.sh script).

• Cloning provides a guaranteed method of repeating the same Oracle Clusterware installation on multiple clusters.

The cloned installation acts the same as the source installation. For example, you can remove the cloned Oracle Clusterware home using OUI or patch it using OPatch. You can also use the cloned Oracle Clusterware home as the source for another cloning operation. You can create a cloned copy of a test, development, or production installation by using the command-line cloning scripts. The default cloning procedure is adequate for most cases. However, you can also customize some aspects of the cloning process, for example, to specify custom port assignments or to preserve custom settings.

The cloning process works by copying all of the files from the source Oracle Clusterware home to the destination Oracle Clusterware home. Thus, any files used by the source instance that are located outside the source Oracle Clusterware home's directory structure are not copied to the destination location.

The size of the binary files at the source and the destination may differ because these are relinked as part of the cloning operation, and the operating system patch levels may also differ between these two locations. Additionally, the number of files in the cloned home would increase because several files copied from the source, specifically those being instantiated, are backed up as part of the clone operation.

Preparing the Oracle Clusterware Home for Cloning

To prepare the source Oracle Clusterware home to be cloned, you create a copy of an installed Oracle Clusterware home that you then use to perform the cloning procedure on one or more nodes.

Use the following step-by-step procedure to prepare a copy of the Oracle Clusterware home.

Step 1   Install Oracle Clusterware.

Use the detailed instructions in your platform-specific Oracle Clusterware installation guide to perform the following steps on the source node:

1. Install the Oracle Clusterware 11g release.

2. Install any patches that are required (for example, 11.1.0.n), if necessary.

3. Apply one-off patches, if necessary.

Step 2   Shutdown Oracle Clusterware.

Before copying the source Oracle Clusterware home, shut down Oracle Clusterware using the crsctl stop crs command. The following example shows the command and the messages that display during the shutdown:

[root@node1 root]# crsctl stop crs
Stopping resources.
This could take several minutes.
Successfully stopped Oracle Clusterware resources
Stopping Cluster Synchronization Services.
Shutting down the Cluster Synchronization Services daemon.
Shutdown request successfully issued.

Note that you copy the Oracle Clusterware home from only one of the nodes.

Step 3   Make a copy of the Oracle Clusterware home

To keep the installed Oracle Clusterware home as a working home, you should make a full copy of the source Oracle Clusterware home and remove the unnecessary files from the copy. For example, as the root user on Linux systems you could issue the cp command:

cp -prf CRS_HOME location_for_the_copy_of_crs_home

Step 4   Remove unnecessary files from the copy of the Oracle Clusterware home.

The Oracle Clusterware home contains files that are relevant only to the source node so you should remove the unnecessary files from the copy. You should exclude files in the log, crs/init, racg/dump, srvm/log, and cdata directories.

Use one of the following methods to exclude files from your backup file:

• Make a copy of the source CRS home and delete the unnecessary files from the copy.

  The following example shows the commands you can issue to remove unnecessary files from the copy of the CRS home. In the example, crscluster represents the name of the cluster:

  [root@node1 root]# cd /opt/oracle/product/11g/crs
  [root@node1 crs]# rm –rf ./opt/oracle/product/11g/crs/log/hostname
  [root@node1 crs]# find . -name '*.ouibak' -exec rm {} \;
  [root@node1 crs]# find . -name '*.ouibak.1' -exec rm {} \;
  [root@node1 crs]# rm –rf ./cdata/*
  [root@node1 crs]# rm –rf root.sh*
  [root@node1 crs]# cd cfgtoollogs
  [root@node1 cfgtoollogs]# find . -type f -exec rm -f {} \;


• Create an excludeFileList file and then use the tar command or Winzip to create a copy of the CRS home. For example, on Linux, issue the tar cpfX - excludFileList.txt command to create a tar file that does not excludes the unnecessary files.

Step 5   Create a copy of the source Oracle Clusterware home.

On the source node, create a copy of the Oracle Clusterware home using WinZip on Windows systems and tar or gzip on Linux and UNIX systems. Make sure that the tool that you use preserves the permissions and file timestamps.

When creating the copy, the best practice is to include the release number in the name of the file. For example, the following Linux example uses the cd command to change to the Oracle Clusterware home location, and then uses the tar command to create the copy named crs11101.tgz.

The following examples describe how to archive and compress the source Oracle Clusterware home on various platforms:

• On Linux and UNIX systems, issue the following command if you are using an excludeFileList file:

  tar cpfX - excludeFileList . | compress -fv > temp_dir/crs11101.tar.Z


  The following example shows the Linux and UNIX commands to create a copy when you are not using an excludeFileList file. In the tar command, the pathname variable represents the location of the file:

  [root@node1 root]# cd /opt/oracle/product/11g/crs/
  [root@node1 crs]# tar –zcvf /pathname/crs11101.tgz .


• On AIX or HPUX systems:

  tar cpf - . | compress -fv > temp_dir/crs11101.tar.Z


• On Windows systems, use WinZip to create a zip file

Cloning Oracle Clusterware to Create a New Cluster

This section explains how to create a new cluster by cloning a successfully installed Oracle Clusterware environment and copying it to the nodes on the destination cluster. The procedures in this section describe how to use cloning for Linux, UNIX, and Windows systems.

For example, you can use cloning to quickly duplicate a successfully installed Oracle Clusterware environment to create a new cluster. Figure 3-1 shows the end result of a cloning procedure in which the Oracle Clusterware home on Node 1 has been cloned to Node 2 and Node 3 on Cluster 2, making Cluster 2 a new two-node cluster.

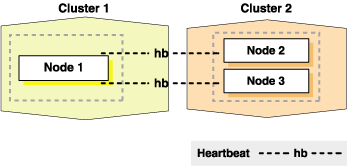

Figure 3-1 Cloning to Create a New Oracle Clusterware Environment

Description of "Figure 3-1 Cloning to Create a New Oracle Clusterware Environment"

At a high level, the steps to create a new cluster through cloning are as follows:

1. Prepare the new cluster nodes

2. Deploy Oracle Clusterware on the destination nodes

3. Run the clone.pl script on each destination node

4. Run the orainstRoot.sh script on each node

5. Run the CRS_home/root.sh script

6. Run the configuration assistants and the Oracle Cluster Verify utility

Step 1   Prepare the new cluster nodes

On each destination node, perform the following preinstallation steps:

• Specify the kernel parameters.

• Configure block devices for Oracle Clusterware devices.

• Ensure you have set the block device permissions correctly.

• Use short, nondomain-qualified names for all names in the Hosts file.

• Test whether or not the interconnect interfaces are reachable using the ping command.

• Verify that the VIP addresses are not active at the start of the cloning process by using the ping command (the ping command of the VIP address must fail).

• Run the Cluster Verification Utility (CVU) to verify your hardware and operating system environment.

See your platform-specific Oracle Clusterware installation guide for the complete preinstallation checklist.

Step 2   Deploy Oracle Clusterware on the destination nodes

Before you begin the cloning procedure described in this section, ensure that you have completed the prerequisite tasks to create a copy of the Oracle Clusterware home, as described in the "Preparing the Oracle Clusterware Home for Cloning" section.

On each destination node, deploy the copy of the Oracle Clusterware home by performing the following steps:

1. If you do not have a shared Oracle Clusterware home, then restore the copy of the Oracle Clusterware home on each node in the destination cluster in the equivalent directory structure as the directory structure in which the Oracle Clusterware home resided on the source node. Skip this step if you have a shared Oracle Clusterware home.

   For example:

   • On Linux or UNIX systems, issue commands similar to the following:

     [root@node1 root]# mkdir -p /opt/oracle/product/11g/crs
     [root@node1 root]# cd /opt/oracle/product/11g/crs
     [root@node1 crs]# tar –zxvf /pathname/crs11101.tgz


     In the example, the pathname variable represents the directory structure in which you want to install the Oracle Clusterware home.

   • On Windows systems, unzip the Oracle Clusterware home on the destination node in the equivalent directory structure as the directory structure in which the Oracle Clusterware home resided on the source node.

2. Change the ownership of all files to oracle:oinstall group, and create a directory for the Oracle Inventory. For example, the following commands are for a Linux system:

   [root@node1 crs]# chown –R oracle:oinstall /opt/oracle/product/11g/crs
   [root@node1 crs]# mkdir -p /opt/oracle/oraInventory
   [root@node1 crs]# chown oracle:oinstall /opt/oracle/oraInventory


   Note:

   You can perform this step at the same time you perform steps 3 and 4 that run the clone.pl and orainstRoot.sh scripts on each cluster node.

3. Run the preupgrade.sh script from the CRS_Home/install directory on each target node as follows:

   @ preupgrade.sh -crshome target_crs_oh   -crsuser user_who_runs_cloning -noshutdown



Step 3   Run the clone.pl script on each destination node

To set up the new Oracle Clusterware environment, the clone.pl script requires you to provide a number of setup values to the script. You can supply the variables by either supplying input when you run the clone.pl script, or by creating a file in which you can assign values to the cloning variables. The following discussions describe these options.

• Supplying Input to the clone.pl Script On the Command Line

  If you do not have a shared Oracle Clusterware home, then on each destination node, then navigate to the $ORACLE_HOME/clone/bin directory and run the clone.pl script, which performs the main Oracle Clusterware cloning tasks. To run the script, you need supply input to a number of variables, as shown in the following example:

  perl clone.pl ORACLE_BASE=/opt/oracle ORACLE_HOME=CRS_home ORACLE_HOME_ NAME=Oracle_home_name '-On_storageTypeVDSK=2' '-On_storageTypeOCR=2' '-O"sl_tableList={new_node:new_node-priv:new_node-vip}"' '-O-noConfig' '-O"INVENTORY_LOCATION=central_inventory_location"'

  Note:

  When cloning Oracle Clusterware using the clone.pl script, you must set a value for the ORACLE_BASE variable even though specifying Oracle Base is not a requirement of the Oracle Clusterware installation. You can set the ORACLE_BASE variable to any directory location (for example, you could set it to the CRS Home location), because the value is ignored.

  The clone.pl script takes the following variables:

  • Oracle_home_name is the name of the destination Oracle Clusterware home

  • new_node is the name of the destination node

  • new_node-priv is the private interconnect protocol address of the destination node

  • new_node-vip is the virtual interconnect protocol address of the destination node

  • central_inventory_location is the location of the Oracle central inventory

  For example:

  • On Linux and UNIX systems:

    perl clone.pl ORACLE_BASE=/opt/oracle ORACLE_HOME=CRS_home ORACLE_HOME_
    NAME=CRS_HOME_NAME '-On_storageTypeVDSK=2' '-On_storageTypeOCR=2'
    '-O"sl_tableList={node2:node2-priv:node2-vip, node3:node3-priv:node3-vip}"'
    '-O"ret_PrivIntrList=private interconnect list"'
    '-O"sl_OHPartitionsAndSpace_valueFromDlg={partition and space information}"'
     '-O-noConfig'


  • On Windows systems:

    perl clone.pl ORACLE_BASE=D:\oracle ORACLE_HOME=CRS_home ORACLE_HOME_
    NAME=CRS_HOME_NAME '-On_storageTypeVDSK=2' '-On_storageTypeOCR=2'
    '-O"sl_tableList={node2:node2-priv:node2-vip, node3:node3-priv:node3-vip}"'
     '-O"ret_PrivIntrList=private interconnect list"'
    '-O"sl_OHPartitionsAndSpace_valueFromDlg={partition and space information}"'
     '-O-noConfig' '-OPERFORM_PARTITION_TASKS=FALSE'


  If you have a shared Oracle Clusterware home, then append the -cfs option to the command example in this step and provide a complete path location for the cluster file system. Ensure that the variables n_storageTypeOCR and n_storageTypeVDSK are set to 2 for redundant storage. Ensure that the values are set to 1 for nonredundant storage. In this case, you must also specify the mirror locations. On the other nodes, issue the same command, by passing an additional argument PERFORM_PARTITION_TASKS=FALSE.

  For example:

  perl clone.pl ORACLE_BASE=/opt/oracle ORACLE_HOME=CRS_home
  ORACLE_HOME_NAME=CRS_home_name '-On_storageTypeVDSK=2'
  '-On_storageTypeOCR=2' '-O"sl_tableList={node2:node2-priv:node2-vip,
   node3:node3-priv:node3-vip}"' '-O"ret_PrivIntrList=private interconnect list"'
  '-O"sl_OHPartitionsAndSpace_valueFromDlg={partition and space information}"'
  '-O-noConfig' '-OPERFORM_PARTITION_TASKS=FALSE'


  See Also:

  The "Cloning Script Variables Reference" section for more information about setting these variables.

• Supplying Input to the clone.pl Script in a File

  Because the clone.pl script is sensitive to the parameters being passed to it, you must be accurate in your use of brackets, single quotation marks, and double quotation marks. To make running the clone.pl script less prone to errors, you can create a file that is similar to the start.sh script shown in Example 3-1 in which you can specify environment variables and cloning parameters to the clone.pl script.

  Example 3-1 shows an excerpt from the example file example called start.sh script that calls the clone.pl script and has been set up for a cluster named crscluster. Invoke the script as the operating system user that installed Oracle Clusterware.

  Example 3-1 Excerpt From the start.sh Script to Clone Oracle Clusterware

  #!/bin/sh
  ORACLE_BASE=/opt/oracle
  CRS_home=/opt/oracle/product/11g/crs
  E01=CRS_home=/opt/oracle/product/11g/crs
  E02=ORACLE_HOME=${CRS_home}
  E03=ORACLE_HOME_NAME=OraCrs11g
  E04=ORACLE_BASE=/opt/oracle
  #C00="-O'-debug'"
  C01="-O's_clustername=crscluster'"
  C02="-O'INVENTORY_LOCATION=/opt/oracle/oraInventory'"
  C03="-O'sl_tableList={node1:node1int:node1vip:N:Y,node2:node2int:node2vip:N:Y}'"
  C04="-O'ret_PrivIntrList={eth0:144.25.212.0:1,eth1:10.10.10.0:2}'"
  C05="-O'n_storageTypeVDSK=1'"
  C06="-O's_votingdisklocation=/dev/sdc1' -O's_OcrVdskMirror1RetVal=/dev/sdd1'
           -O's_VdskMirror2RetVal=/dev/sde1'"
  C07="-O'n_storageTypeOCR=1'"
  C08="-O's_ocrpartitionlocation=/dev/sdc2' -O's_ocrMirrorLocation=/dev/sdd2'"

  perl CRS_home/clone/bin/clone.pl $E01 $E02 $E03 $E04 $C01 $C02 $C03 $C04 $C05 $C06
  $C07 $C08


  The start.sh script sets several environment variables and cloning parameters, as described in Table 3-1 and Table 3-2, respectively.

  Table 3-1 describes the environment variables E01, E02, E03, and E04 that are shown in bold typeface in Example 3-1.

  Table 3-1 Environment Variables Passed to the clone.pl Script

  Symbol	Variable	Description
  E01	CRS_home	The location of the Oracle Clusterware home. This directory location must exist and must be owned by the Oracle operating system group: oinstall.
  E02	ORACLE_HOME	The location of the Oracle Clusterware home. This directory location must exist and must be owned by the Oracle operating system group: oinstall.
  E03	ORACLE_HOME_NAME	The name of the Oracle Clusterware home. This is stored in the Oracle Inventory.
  E04	ORACLE_BASE	The location of the Oracle Base directory.




  Also, see "Cloning Script Variables Reference" for a description of the cloning parameters C01 through C08, that are shown in bold typeface in Example 3-1.

Step 4   Run the orainstRoot.sh script on each node

In the Central Inventory directory on each destination node, run the orainstRoot.sh script as the operating system user that installed Oracle Clusterware. This script populates the /etc/oraInst.loc directory with the location of the central inventory.

Note that you can run the script on each node simultaneously. For example:

[root@node1 root]# /opt/oracle/oraInventory/orainstRoot.sh

Ensure the orainstRoot.sh script has completed on each destination node before proceeding to the next step.

Step 5   Run the CRS_home/root.sh script

On each destination node, run the CRS_home/root.sh script. You can run the script on only one node at a time. The following example is for a Linux or UNIX system:

1. On the first node, issue the following command:

   [root@node1 root]# /opt/oracle/product/11g/crs/root.sh


   Ensure the CRS_home/root.sh script has completed on the first node before running it on the second node.

2. On each subsequent node, issue the following command:

   [root@node2 root]# /opt/oracle/product/11g/crs/root.sh


The root.sh script automatically sets up the node applications: Global Services Daemon (GSD), Oracle Notification Services (ONS), and Virtual IP (VIP) resources in the OCR.

Step 6   Run the configuration assistants and the Oracle Cluster Verify utility

At the end of the Oracle Clusterware installation on each new node, run the configuration assistants and CVU using the commands in the CRS_home/cfgtoollogs/configToolAllCommands file.

Cloning to Extend Oracle Clusterware to More Nodes in the Same Cluster

For example, you can use cloning to quickly extend a successfully installed Oracle Clusterware environment to more nodes in the same cluster. Figure 3-2 shows the end result of a cloning procedure in which the Oracle Clusterware home on Node 1 has been cloned to Node 2 in the same cluster, making it a two-node cluster.

Figure 3-2 Cloning to Extend the Oracle Clusterware Environment to Another Node

Description of "Figure 3-2 Cloning to Extend the Oracle Clusterware Environment to Another Node"

At a high level, the steps to extend Oracle Clusterware to more nodes are nearly identical to the steps described in the "Cloning Oracle Clusterware to Create a New Cluster" section.

The following list describes the steps you perform to extend Oracle Clusterware to additional nodes in the cluster:

1. Prepare the new cluster nodes.

2. Deploy Oracle Clusterware on the destination nodes.

3. Run the clone.pl script on each destination node. The following example is for Linux or UNIX systems:

   perl clone.pl ORACLE_BASE=/opt/oracle ORACLE_HOME=$ORACLE_HOME ORACLE_HOME_
   NAME=Oracle_home_name "sl_tableList={node2:node2_priv:node2-vip}"
   INVENTORY_LOCATION=central_inventory_location -noConfig


4. Run the orainstRoot.sh script on each node on each destination node.

5. Run the addNode script on the source node.

   Run the following command on the source node, where new_node is the name of the new node, new_node-priv is the private interconnect protocol address for the new node, and new_node-vip is the virtual interconnect protocol address for the new node:

   $ORACLE_HOME/oui/bin/addNode.sh –silent "CLUSTER_NEW_NODES=(new_nodes)"
    "CLUSTER_NEW_PRIVATE_NODE_NAMES=(new_node-priv)" "CLUSTER_NEW_VIRTUAL_
   HOSTNAMES=(new_node-vip)" –noCopy


   Note:

   Because the clone.pl script has already been run on the new node, this step only updates the inventories on the nodes and instantiates scripts on the local node

6. On the source node, run a script to instantiate the node:

   • On Linux and UNIX systems, run the rootaddnode.sh script from the CRS_HOME/install directory as root user.

   • On Windows systems, run the crssetup.add.bat script from the %CRS_HOME%\install directory.

7. Run the CRS_home/root.sh script on each destination node in Linux and UNIX environments.

8. Run the configuration assistants and the CLUVFY utility.

   As the user that owns the clusterware on the source node of the cluster, run the configuration assistants as described in the following steps:

   1. On Linux or UNIX systems, issue the following onsconfig command:

      onsconfig add_config node2:remote_port node3:remote_port


      You can obtain the remote port by issuing the cat ons.config command from the /opmn/conf directory in the CRS home location.

   2. On Windows systems, issue the racgons command:

      ./racgons add_config node2:remote_port node3:remote_port


   3. On Linux, UNIX, or Windows systems, run the CLUVFY utility in postinstallation verification mode to confirm that the installation of Oracle Clusterware was successful. For example:

      CRS_HOME/bin/cluvfy stage -post crsinst -n node1,node2


Cloning Script Variables Reference

Table 3-2 describes the variables that can be passed to the clone.pl script when you include the -O option on the command.

{"node1:node1-priv:node1-vip:N:Y","node2:node2-priv:node2-vip:N:Y"}.

{"eth0:10.87.24.0:2","eth1:140.87.24.0:1","eth3:140.74.30.0:3"}

node1    node1-priv    node1-vip
node2    node2-priv    node2-vip

/oradbshare/oradata/vdisk

/oradbshare/oradata/vdiskmirror1

/oradbshare/oradata/ocr

/oradbshare/oradata/ocrmirror

/oradbshare/oradata/vdiskmirror2

CLUSTER_NODES = {"node1"}

sl_OhPartitionsAndSpace_valueFromDlg =
 {Disk,Partition,partition size, 0,N/A,1,Disk,Partition,
 partition size,0,N/A,2,.....)

Locating and Viewing Log Files Generated During Cloning

The cloning script runs multiple tools, each of which may generate its own log files. After the clone.pl script finishes running, you can view log files to obtain more information about the cloning process.

The following log files that are generated during cloning are the key log files of interest for diagnostic purposes:

• Central_Inventory/logs/cloneActions timestamp.log

  Contains a detailed log of the actions that occur during the OUI part of the cloning.

• Central_Inventory/logs/oraInstall timestamp.err

  Contains information about errors that occur when OUI is running.

• Central_Inventory/logs/oraInstall timestamp.out

  Contains other miscellaneous messages generated by OUI.

• $ORACLE_HOME/clone/logs/clone timestamp.log

  Contains a detailed log of the actions that occur prior to cloning as well as during the cloning operations.

• $ORACLE_HOME/clone/logs/error timestamp.log

  Contains information about errors that occur prior to cloning as well as during cloning operations.

Table 3-3 describes how to find the location of the Oracle inventory directory.
