12 Working with the Oracle Studio for IMS, VSAM, and Adabas Gateways Workbench

The workbench is a collection of screens. Each screen contains a menu bar, a toolbar, a shortcut bar, and perspectives. A perspective is a visual container for a set of views and content editors. The views are associated with a perspective and are not shared; however, editors are shared across perspectives.

A perspective is like a page within a book. It exists within a screen along with any number of other perspectives and, like a page within a book, only one perspective is visible at any time.

This section contains the following topics:

12.1 Using Workbench Parts

This section contains the following topics:

12.1.1 Main Screen

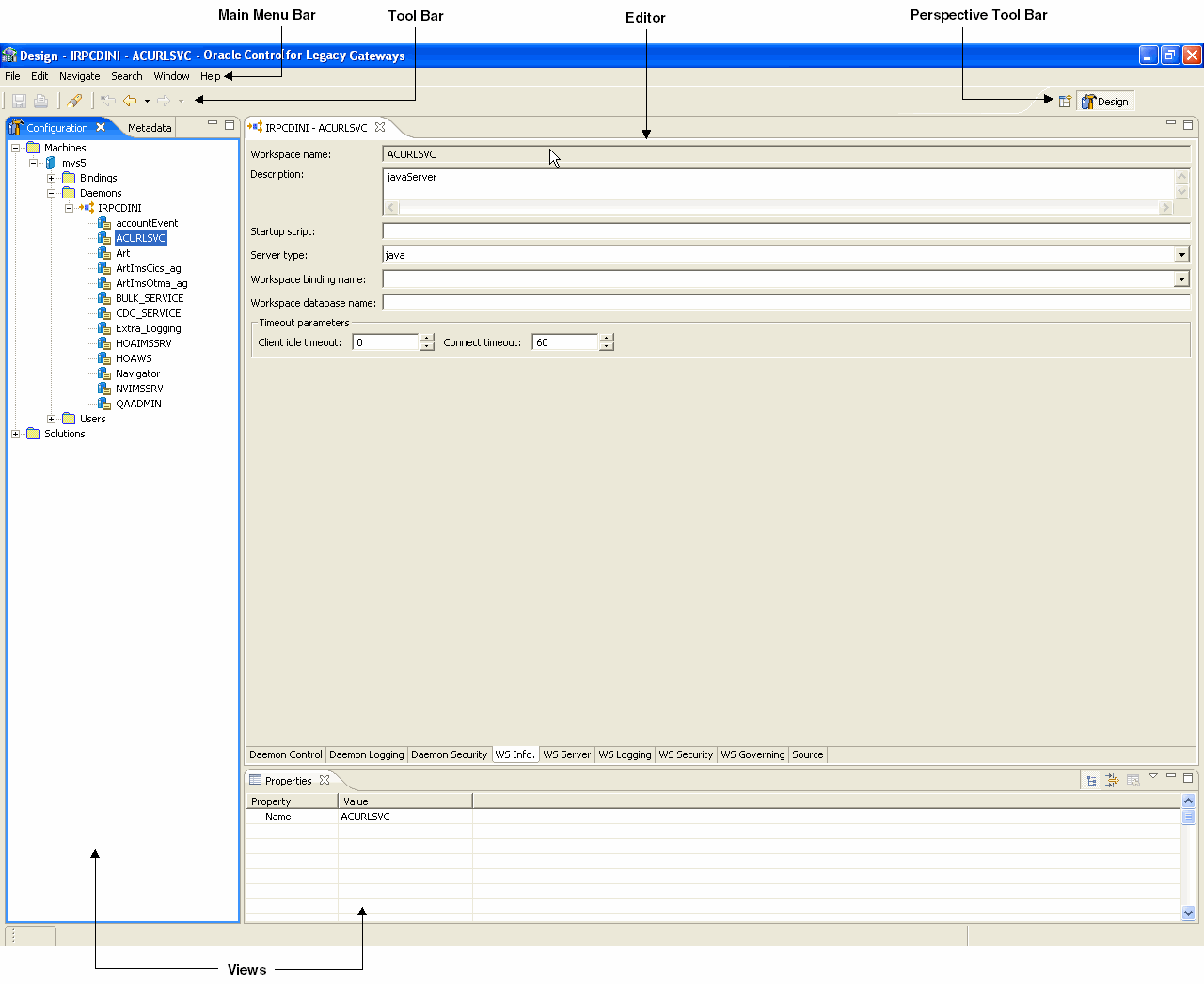

The Main Screen shows the main parts in Oracle Studio for IMS, VSAM, and Adabas Gateways:

Figure 12-1 Main Screen

Main screen

12.1.2 Main Menu Bar

The Workbench main menu bar contains the File, Edit, Navigate, Search, Window, and Help top-level menus.

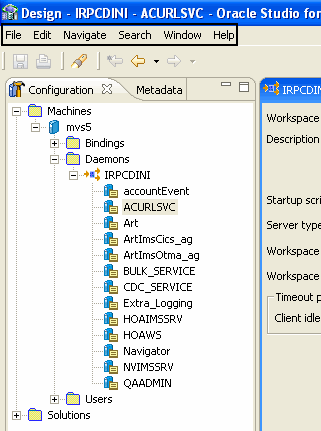

Figure 12-2 Main Menu Bar

Main menu bar
Description of "Figure 12-2 Main Menu Bar"

12.1.3 Working with Views

Views support editors and provide alternative presentations as well as ways to navigate the information in the Workbench.

You can change the layout of a perspective by opening and closing views and by docking them in different positions in the Workbench screen. Views can be opened and closed according to your needs. See Customizing Views below.

The Workbench contains the following Views:

12.1.3.1 Customizing Views

Views can be customized to let you set up a workbench perspective in a way that is comfortable for you. This section describes how:

To move views into different positions

Click the tab at the top of a view and drag and drop it to the top, bottom, or sides of the workbench where you want to view it.

When you drag and drop a view, you see an outline for it at the position you dragged it to. The outline provides you with a guide to see where you are moving the view.

You can move to the same position as another view. If two views are in the same place, click the tab at the top of the view you want to see. For example, by default the Metadata and Configuration views are in the same place, at the left of the workspace (in the Design perspective). To change from the Metadata view to the Configuration view, click the Configuration tab.

When you move it to a new position, you can resize it.

To resize a view

  1. Place your cursor on the edge of the view you want to resize. The cursor turns into a double-sided arrow.

  2. Drag the view until it has the size you want.

    Note:

    You cannot resize a view from all sides (top, bottom, left, right) The sides that are active for resizing depend on the view's position in the workbench.

To open and close views

  1. From the Window menu, click Show View and then select the view you want to open from the submenu.

  2. Select the view from the list, or point to Other and select the view from the Show View window.

12.1.3.2 Properties View

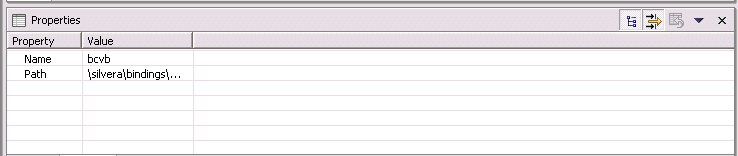

The Properties view shows the properties of a selected object, with its respective attributes.

Figure 12-3 Properties View

Properties View
Description of "Figure 12-3 Properties View"

12.1.3.3 Error Log View

The Error Log View shows errors of which you should be aware. The errors are listed by title.

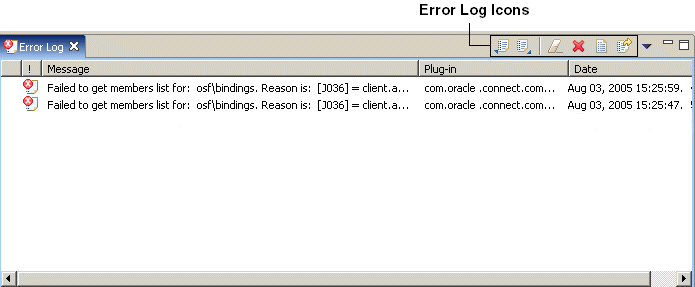

Figure 12-4 Error Log View

Error log view

The Error Log view lets you perform various tasks.

12.1.3.4 Configuration View

The Configuration view lets you configure all levels of access to data. Together with the Metadata View, it makes up the Design Perspective.

Figure 12-5 Configuration View

Configuration View
Description of "Figure 12-5 Configuration View"

12.1.3.5 Metadata View

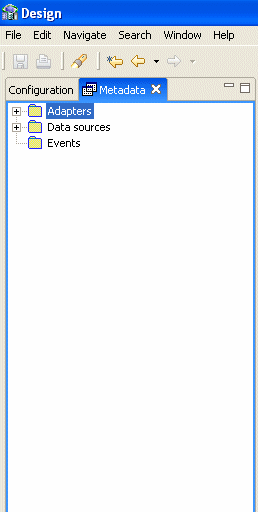

The Metadata View lets you define the metadata for objects. Together with the Configuration View, it makes up the Design Perspective.

Figure 12-6 Metadata View

Metadata View
Description of "Figure 12-6 Metadata View"

12.1.4 Working with Perspectives

A perspective defines the initial set and layout of views in the Workbench screen. In the workbench, each perspective shares the same set of editors and each has its own functions. This lets you carry out a specific type of task or works with individual resources. Perspectives control what appears in certain menus and toolbars.

The following perspectives are available:

12.1.4.1 Design Perspective

Use the Design perspective to define your environment and create the necessary connections between the relevant data sources that contain the data you want to access.

The Design perspective is made up of the Configuration View and the Metadata View.

12.1.4.2 Runtime Perspective

The Runtime perspective lets you monitor the status of daemons and servers. You can view, print and export reports for each daemon and server, and reload and refresh daemons, servers, and configurations.

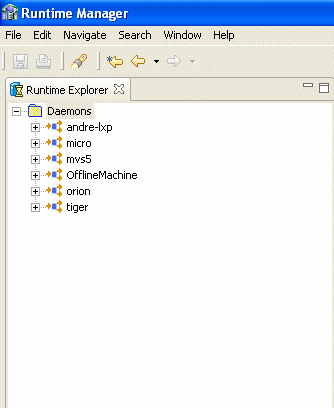

Figure 12-7 Runtime Perspective

Runtime perspective screen.
Description of "Figure 12-7 Runtime Perspective"

12.1.4.3 Selecting a Perspective

You can move between the perspectives in Oracle Studio for IMS, VSAM, and Adabas Gateways using the perspective tool bar on the upper right part of the screen or from the Window menu.

To open a Perspective

Do one of the following:

  • From the Window menu, click Open Perspective and select the perspective you want to open.

  • Click the Perspective button on the perspective toolbar and select the perspective you want.

12.2 Workbench Icons

Oracle Studio for IMS, VSAM, and Adabas Gateways icons are divided into the following categories:

12.2.1 General

The following table describes the general icons.

Table 12-1 General Icons

Icon Description
Document

Document

Error

Error

File object

File object

Folder icon

Folder

Help

Help

Import wizard

Import wizard

Information

Information

Large image

Large image

Sample

Sample

Star

Star

Horizontal

Horizontal

Vertical

Vertical

Warning

Warning


12.2.2 Actions

The following table describes the action icons.

Table 12-2 Action Icons

Icon Description
Add

Add

Back

Back

Cancel

Cancel

Change directory

Change directory

Checkmark

Check mark

Clear log viewer

Clear log viewer

Collapse all

Collapse all

Connect

Connect

Copy

Copy

Cut

Cut

Deploy

Deploy

Disconnect

Disconnect

Delete

Delete

Execute

Execute

Expand all

Expand all

Export log file

Export log file

Export to XML

Export to XML

File transfer

File transfer

Import log file

Import log file

Import XML

Import XML

Load

Load

Move

Move

Next

Next

Paste

Paste

Props

Props

Move down

Move down

Move up

Move up

Open error log file in Notepad

Open error log file

Rename

Rename

Restore error log

Reload error log

Resume

Resume

Save as

Save as

Search

Search

Select

Select

Set up workspace

Set up workspace

Stop

Stop

Undo edit

Undo edit


12.2.3 Objects

The following table describes the object icons.

Table 12-3 Object Icons

Icon Description
Add FTP

Add FTP

Binding

Binding

Build metadata

Build metadata

Changed data capture

Changed data capture

Client information

Client information

Column

Column

Completed task

Completed task

Computer up

Computer up

Computer down

Computer down

Configuration

Configuration

Configure data source

Configure data source

Configure service point

Configure service point

Configure staging area

Configure staging area

Daemon

Daemon

Daemon down

Daemon down

Daemon offline

Daemon offline

Data source

Data source

Database view

Database view

Design machine

Design machine

Data source link

Data source link

Element

Element

Enable backend database

Enable back-end database

Encryption

Encryption

Delete

Delete

Error

Error

Error in task

Error in task

Event

Event

Execute

Execute

File

File

Group

Group

Hard disk

Hard disk

Import

Import

Index

Index

Input

Input

Interaction

Interaction

Join

Join

Login

Login

Machine

Machine

Machine down

Machine down

Machine offline

Machine offline

Metadata

Metadata

My computer

My Computer

My FTP

My FTP

Native data source

Native data source

Native metadata

Native metadata

New project

New project

Open project

Open project

Output

Output

Procedcure

Procedure

Project

Project

Query

Query

Record

Record

Schema

Schema

Search

Search

Segment

Segment

Server

Server

Solution Perspective

Solution Perspective

Stored procedure

Stored procedure

Synonym

Synonym

Table

Table

Table (light)

Table Ext.

Local table

Local table

Native table

Native table

Transparent table

Transparent table

Task

Task

User

User

Virtual data source

Virtual data source

Workspace

Workspace

XML

XML


12.2.4 Manipulation

The following table describes the manipulation icons.

Table 12-4 Manipulation Icons

Icon Description
Change data type

Change data type

Column normalization

Column normalization

Combine fields

Combine fields

Create array

Create array

Data file

Data file

Fixed

Fixed

Flatten group

Flatten group

Free XSL

Free XSL

Hide

Hide

Mark selector

Mark selector

Nullable

Nullable

Replace variant

Replace variant

Select counter

Select counter

Set dimension

Set dimension

Set scale

Set scale

Set size

Set size

Show

Show

Test

Test

Unfixed

Unfixed


12.3 Setting Oracle Studio for IMS, VSAM, and Adabas Gateways Preferences

You set preferences for Oracle Studio for IMS, VSAM, and Adabas Gateways from the Window menu. When you open the Preferences screen, a list of categories appears on the left side. You can expand the entries in the tree to find additional subentries where you can set the preferences. The preferences that are important for Oracle Connect for IMS, VSAM, and Adabas Gateways are:

12.3.1 Studio

Note:

Do not edit any Solution preferences available.

The following tables describe the Studio preferences. The Studio preferences section has two tabs.

Table 12-5 Studio Security Tab

Option Description

Use Compression

Select this option to compress data used in Oracle Studio for IMS, VSAM, and Adabas Gateways.

Use encrypted communication

Select this option to encrypt communication between Oracle Studio for IMS, VSAM, and Adabas Gateways and servers.

Remember Password

Select this option if you want Oracle Studio for IMS, VSAM, and Adabas Gateways to automatically enter the user's password each time you sign on.

Change Master Password

Click this option to open the Change Master Password screen and change or create a password for using any module in Oracle Connect for IMS, VSAM, and Adabas Gateways.

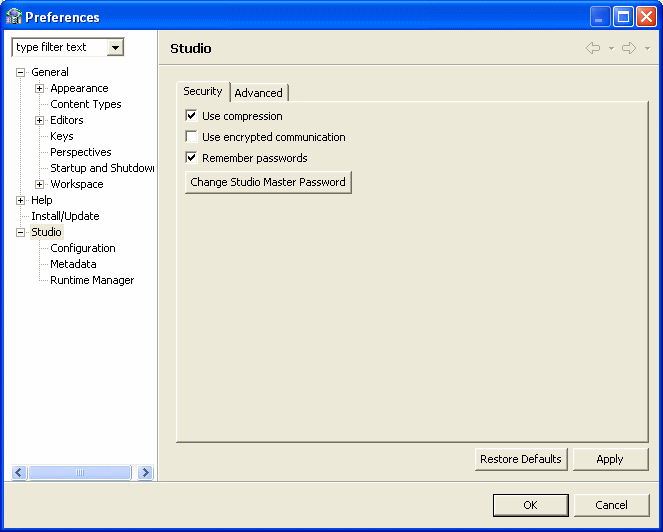

Figure 12-8 Studio Security Tab

This shows the Studio Security preferences.
Description of "Figure 12-8 Studio Security Tab"

Table 12-6 Studio Advanced Tab

Option Description

Quick Startup (editors closed)

Select this option to start Oracle Studio for IMS, VSAM, and Adabas Gateways with all editors closed and the Design perspective Configuration views collapsed. In this case, none of the editors left open at the end of the previous session will open when you start a new session. This is the default setting. If you clear this check box, all windows open at the end of the previous session will open when you start a new session and Oracle Studio for IMS, VSAM, and Adabas Gateways will take longer to load.

Show advanced environment parameters

Select this option to display advanced binding environment properties. These properties should only be displayed in coordination with Oracle Support.

Activate JCA tracing

Select this option to implement tracing and logging on the network and communication transport layer. When you select this check box, the following fields are available:

  • JCA log level: Select Error, Info, or Debug from the list.

  • JCA log file: Enter the location of the JCA log file or click Browse to browse for a location.

Network XML Protocol

Select Text or Binary.

Connection timeout

Enter the amount of time (in seconds) that Oracle Studio for IMS, VSAM, and Adabas Gateways waits for a connection to another machine (such as a server) before returning an error message. The default value is 60. In this case, Oracle Studio for IMS, VSAM, and Adabas Gateways waits one minute before returning an error message.

Interaction timeout

Enter the amount of time (in seconds) that Oracle Studio for IMS, VSAM, and Adabas Gateways waits for a connection to a specific interaction (such as a data source) before returning an error message. The default value is 120. In this case, Oracle Studio for IMS, VSAM, and Adabas Gateways waits two minutes before returning an error message.

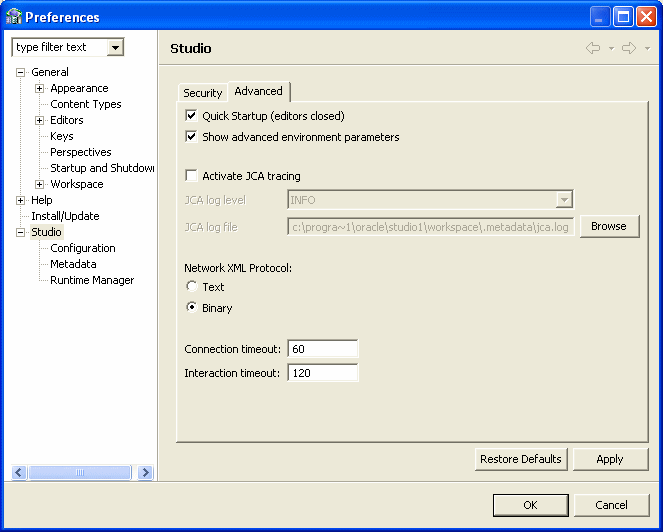

Figure 12-9 Studio Advanced Tab

This is the Studio Advanced preferences tab.
Description of "Figure 12-9 Studio Advanced Tab"

12.3.1.1 Configuration

The following table describes the Configuration preferences

Table 12-7 Configuration Preferences

Option Description

Enable specifying administration authorization directly in the source XML

Select this option if you want to enter administration authorization information on the machine level. It is added to the machine's source XML.

Show SYS data source

Select this option to display the SYS data source, including stored procedures and views defined for it in the Design perspective Metadata tab. This option is selected by default.


Figure 12-10 Configuration Preferences

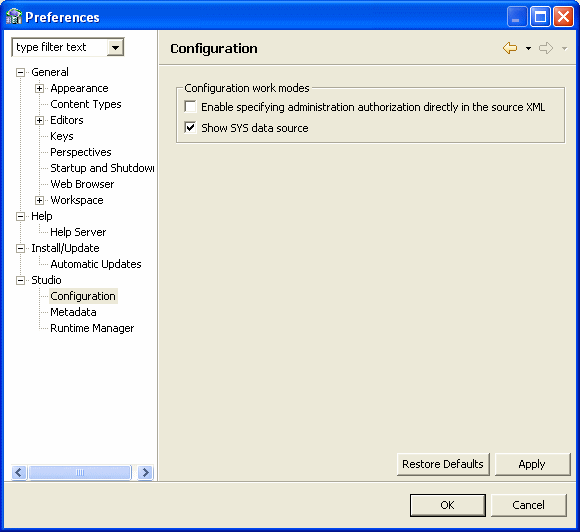

Description of Figure 12-10 follows
Description of "Figure 12-10 Configuration Preferences"

12.3.1.2 Metadata

The following table describes the Metadata preferences.

Table 12-8 Metadata Preferences

Options Description

Enable editing source XML

Select this option to allow editing of the source tabs' XML content.


Figure 12-11 Metadata Preferences

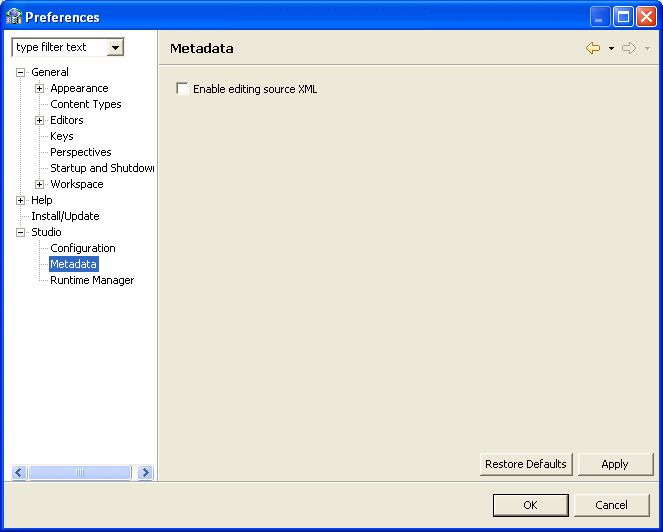

This is the Metadata preferences screen.
Description of "Figure 12-11 Metadata Preferences"

12.3.1.3 Runtime Manager

The following table describes the Runtime Manager preferences.

Table 12-9 Runtime Manager Preferences

Option Description

Enable periodic machine check

Select this option to set up a machine check on a scheduled basis.

If you select this option, enter a time interval in the field below. The time interval is in seconds. For example, if you want a machine check every minute, enter 60.

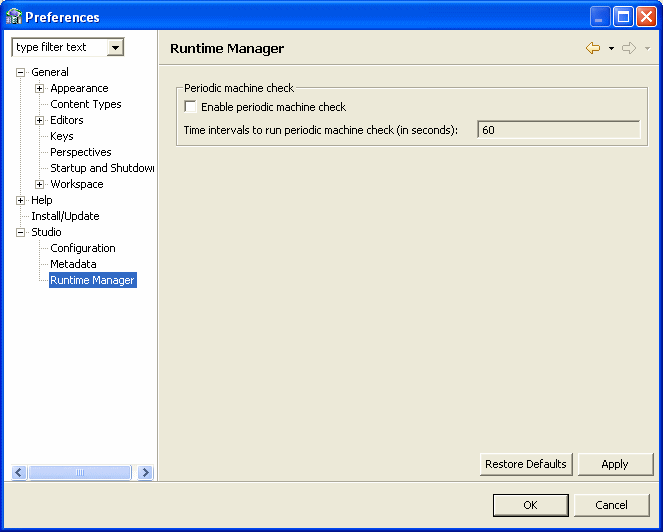

Figure 12-12 Runtime Manager Preferences

Thiis is the Runtime Manager preferences screen.
Description of "Figure 12-12 Runtime Manager Preferences"

12.3.2 Keys

Oracle Studio for IMS, VSAM, and Adabas Gateways has many built-in keyboard shortcuts. You can also customize keyboard shortcuts in Oracle Studio for IMS, VSAM, and Adabas Gateways. The key preferences has two tabs. The View tab shows the list of default shortcuts.

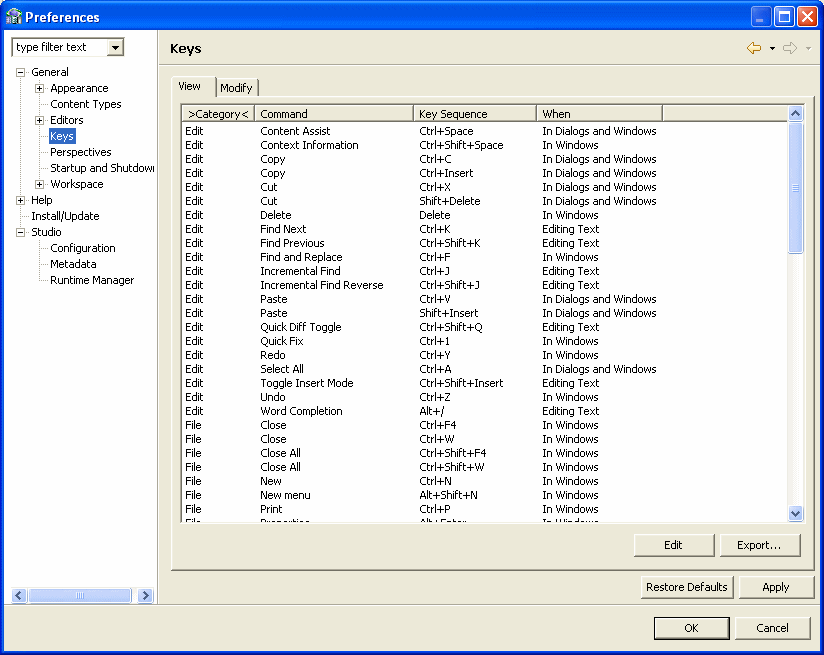

Figure 12-13 Key View Tab

This screen shows the Key view preferences.
Description of "Figure 12-13 Key View Tab"

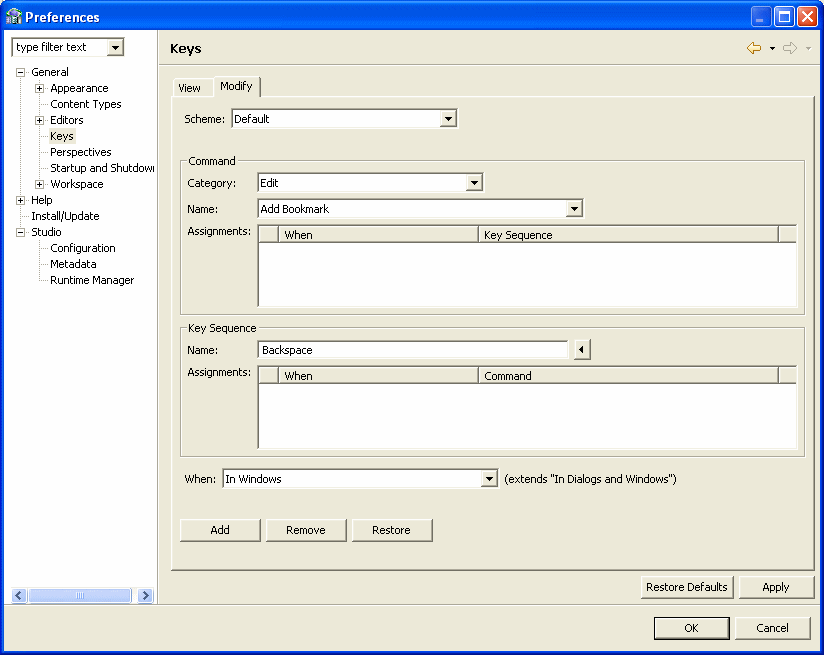

The Modify tab lets you make changes to the current keyboard shortcuts or add new shortcuts. If you want to return to the default settings, click Restore Defaults at the bottom of the screen.

Figure 12-14 Key Modify Tab

This is the Key Modify tab.

12.3.2.1 Default Keyboard Shortcuts

This following table shows the default shortcuts available in Oracle Studio for IMS, VSAM, and Adabas Gateways.

Table 12-10 Default Keyboard Shortcuts

Command Key Sequence Context in which the command is available

Content Assist

Ctrl+Space

In Dialogs and Windows

Context Information

Ctrl+Shift+Space

In Windows

Copy

Ctrl+C

In Dialogs and Windows

Copy

Ctrl+Insert

In Dialogs and Windows

Cut

Ctrl+X

In Dialogs and Windows

Cut

Shift+Delete

In Dialogs and Windows

Delete

Delete

In Windows

Find Next

Ctrl+K

Editing Text

Find Previous

Ctrl+Shift+K

Editing Text

Find and Replace

Ctrl+F

In Windows

Incremental Find

Ctrl+J

Editing Text

Incremental Find Reverse

Ctrl+Shift+J

Editing Text

Paste

Ctrl+V

In Dialogs and Windows

Paste

Shift+Insert

In Dialogs and Windows

Quick Diff Toggle

Ctrl+Shift+Q

Editing Text

Quick Fix

Ctrl+1

In Windows

Redo

Ctrl+Y

In Windows

Select All

Ctrl+A

In Dialogs and Windows

Toggle Insert Mode

Ctrl+Shift+Insert

Editing Text

Undo

Ctrl+Z

In Windows

Word Completion

Alt+/

Editing Text

Close

Ctrl+F4

In Windows

Close

Ctrl+W

In Windows

Close All

Ctrl+Shift+F4

In Windows

Close

All,Ctrl+Shift+W

In Windows

New

Ctrl+N

In Windows

New menu

Alt+Shift+N

In Windows

Print

Ctrl+P

In Windows

Properties

Alt+Enter

In Windows

Refresh

F5

In Windows

Rename

F2

In Windows

Save

Ctrl+S

In Windows

Save All

Ctrl+Shift+S

In Windows

Backward History

Alt+Left

In Windows

Forward History

Alt+Right

In Windows

Go to Line,

Ctrl+L

Editing Text

Last Edit Location

Ctrl+Q

In Windows


Next,Ctrl+.

In Windows

Open Resource

Ctrl+Shift+R

In Windows

Previous,

Ctrl+,

In Windows

Show In menu

Alt+Shift+W

In Windows

Build All

Ctrl+B

In Windows

Open Search Dialog

Ctrl+H

In Windows

Collapse

Ctrl+Numpad_Subtract

Editing Text

Copy Lines

Ctrl+Alt+Down

Editing Text

Delete Line

,Ctrl+D

Editing Text

Delete Next Word

Ctrl+Delete

Editing Text

Delete Previous Word

Ctrl+Backspace

Editing Text

Delete to End of Line

Ctrl+Shift+Delete

Editing Text

Duplicate Lines

Ctrl+Alt+Up

Editing Text

Expand

Ctrl+Numpad_Add

Editing Text

Expand

All,Ctrl+Numpad_Multiply

Editing Text

Insert Line Above Current Line

Ctrl+Shift+Enter

Editing Text

Insert Line Below Current Line

Shift+Enter

Editing Text

Move Lines Down

Alt+Down

Editing Text

Move Lines Up

Alt+Up

Editing Text

Next Word Editing Text

Ctrl+Right

Editing Text

Previous Word

Ctrl+Left

Editing Text

Scroll Line Down

Ctrl+Down

Editing Text

Scroll Line Up

Ctrl+Up

Editing Text

Select Next Word

Ctrl+Shift+Right

Editing Text

Select Previous Word

Ctrl+Shift+Left

Editing Text

To Lower Case

Ctrl+Shift+Y

Editing Text

To Upper Case Editing Text

Ctrl+Shift+X

Editing Text

Toggle Folding

Ctrl+Numpad_Divide

Editing Text

Toggle Overwrite

Insert

Editing Text

Cheat Sheets In Windows

Alt+Shift+Q, H

In Windows

Console In Windows

Alt+Shift+Q, C

In Windows

Search In Windows

Alt+Shift+Q, S

In Windows

Show View (View: Outline) In Windows

Alt+Shift+Q, O

In Windows

Show View (View:)

Alt+Shift+Q, X

In Windows

Activate Editor

F12

In Windows

Maximize Active View or Editor

Ctrl+M

In Windows

Next Editor

Ctrl+F6

In Windows

Next Perspective

Ctrl+F8

In Windows

Next View In Windows

Ctrl+F7

In Windows

Open Editor Drop Down

Ctrl+E

In Windows

Previous Editor

,Ctrl+Shift+F6

In Windows

Previous Perspective In Windows

Ctrl+Shift+F8

In Windows

Previous View In Windows

Ctrl+Shift+F7

In Windows

Show Key Assist In Dialogs and Windows

Ctrl+Shift+L

In Dialogs and Windows

Show Ruler Context Menu

Ctrl+F10

Editing Text

Show System Menu

Alt+-

In Windows

Show View Menu

Ctrl+F10

In Windows

Switch to Editor

Ctrl+Shift+E

In Windows
