SET

Purpose

Use the SET command to control RMAN behavior within a job or session. Use CONFIGURE to configure options that persist across sessions.

Prerequisites

You can use the SET command either at the RMAN prompt or within a RUN block. When used at the RMAN prompt, changes made by SET persist until you exit the RMAN client (see setRmanOption). When used inside of a RUN block, changes made by SET persist until the end of the RUN block or the next SET command that changes the value of the same attribute (see setRunOption).

Syntax

set::=

Description of the illustration set.gif

(setRmanOption::=, setRunOption::=)

setRmanOption::=

Description of the illustration setrmanoption.gif

(deviceSpecifier::=, formatSpec::=)

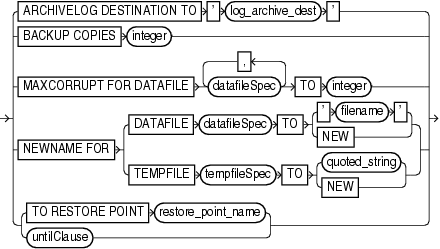

setRunOption::=

Description of the illustration setrunoption.gif

(deviceSpecifier::=, formatSpec::=, datafileSpec::=, tempfileSpec::=, untilClause::=)

setRmanOrRunOption::=

Description of the illustration setrmanorrunoption.gif

(deviceSpecifier::=, formatSpec::=)

Semantics

setRmanOption

This subclause specifies SET options that are usable outside of a RUN block.

Syntax Element	Description
`COMPRESSION ALGORITHM` `'algorithm_name'`	Specifies the compression algorithm for backup sets. This command overrides the current `CONFIGURE` `COMPRESSION` `ALGORITHM` setting for the current RMAN session. The default compression algorithm is `BZIP2`. Specify either `ZLIB` or `BZIP2`. By default, RMAN uses `ZLIB` compression, which is very fast but whose compression ratio is not as good as other algorithms. `BZIP2` has a very good compression ratio, but is somewhat slow. In short, the `ZLIB` algorithm is faster than `BZIP2`, but this improvement in speed is obtained at the cost of a slightly worse compression ratio. The `COMPATIBLE` initialization parameter must be set to 11.0.0 or higher for `ZLIB` compression. Note: The view `V$RMAN_COMPRESSION_ALGORITHM` describes supported algorithms.
`DECRYPTION` `IDENTIFIED` `BY` `password`	Specifies one or more decryption passwords to be used when reading dual-mode or password-encrypted backups. Password-encrypted backups require the correct password to be entered before they can be restored. When RMAN reads an encrypted backup piece, it tries each password in the list until it finds the correct one to decrypt this backup piece. RMAN signals an error if none of the specified keys work. Note: If restoring from a group of backups created with different passwords, then specify all of the required passwords on the `SET` `DECRYPTION` command. RMAN will automatically use the correct password with each backup set. See Also: "Encryption of Backup Sets" for more details on encryption of backup sets
`ECHO` `{OFF` `\|` `ON}`	Controls whether RMAN commands appear in the message log. When reading commands from a command file, RMAN automatically echoes them to the message log. When reading commands from standard input, by default RMAN does not echo these commands to the message log. To force RMAN to echo the commands, run the `SET` `ECHO` `ON` command before running your command file. Run `SET ECHO OFF` to disable echoing to the command log. The command is useful when `stdin` and `stdout` have been redirected. For example, in UNIX you can redirect RMAN's input and output in this manner: % rman TARGET sys/pwd@prod1 CATALOG rman/pwd@catdb < in_file > out_file By including `SET` `ECHO` `ON` in the `in_file`, you enable the commands contained in `in_file` to be visible in `out_file`.
`ENCRYPTION`	Specifies encryption-related options that apply to `BACKUP` commands that create backup sets for the duration of the RMAN session. See Also: "Encryption of Backup Sets" for more details on encryption of backup sets
`ALGORITHM` `'algorithm_name'`	Specifies the algorithm used during this RMAN session. Overrides the configured default encryption algorithm specified by `CONFIGURE` `ALGORITHM`. Possible values are listed in `V$RMAN_ENCRYPTION_ALGORITHMS`.
`IDENTIFIED BY` `password` `[ONLY]`	Specifies whether to employ a user-specified password in encryption according to the following rules: Omit `IDENTIFIED BY` `password` clause to specify transparent-mode encrypted backups. Use `IDENTIFIED BY` `password` `ONLY` to specify password-mode encrypted backups. Use `IDENTIFIED BY` `password` without `ONLY` to create dual-mode encrypted backups. See Also: "Encryption of Backup Sets" for details on the different encryption modes Note: If the password is not surrounded by quotes, then it is translated internally into upper case. Thus, the following clauses are all synonyms for `IDENTIFIED BY` `"SOMEPWD"`: `IDENTIFIED BY` `somepwd` `IDENTIFIED BY` `Somepwd` `IDENTIFIED BY` `sOmEpWd`
`{OFF` \| `ON}`	Specifies whether to encrypt backup sets. If `ON`, then the default is to encrypt backup sets. If `OFF`, then the default is to not encrypt backup sets. This option overrides settings made with the `CONFIGURE` `ENCRYPTION FOR` command. If no datafiles are configured for encryption, then you must explicitly use `ON` to encrypt required datafiles. If `FOR ALL TABLESPACES` is not specified, then this setting controls encryption of backups for tablespaces where `CONFIGURE` `ENCRYPTION` `FOR` `TABLESPACE` `tablespace_name` has not been used to control encryption behavior.
`FOR` `ALL` `TABLESPACES`	Controls encryption for all tablespaces, overriding any `CONFIGURE` `ENCRYPTION` `FOR` `TABLESPACE` `tablespace_name` setting.

setRunOption

This subclause specifies SET options that are usable within a RUN block.

Syntax Element	Description
`ARCHIVELOG DESTINATION` `TO 'log_archive_dest'`	Overrides the `LOG_ARCHIVE_DEST_1` initialization parameter in the target database when forming names for restored archived redo logs during subsequent `RESTORE` and `RECOVER` commands. RMAN restores the logs to the destination specified in `'log_archive_dest'`. You can use this command to stage archived logs to different locations while restoring a database. RMAN knows where to find the newly restored archived logs; it does not require them to be in the destination specified by `LOG_ARCHIVE_DEST_1`. For example, if you specify a different destination from the one in the parameter file and restore archived log backups, subsequent restore and recovery operations detect this new location. Use this parameter to restore archived redo logs that are not already on disk. RMAN always looks for logs on disk first before restoring them from backups.
`BACKUP` `COPIES` `integer`	Specifies the number of copies of each backup piece that the channels should create: `1`, `2`, `3`, or `4` (see Example 2-136). RMAN can duplex backups to either disk or tape but cannot duplex backups to tape and disk simultaneously. When backing up to tape, ensure that the number of copies does not exceed the number of available tape devices. Also, if `BACKUP COPIES` is greater than 1, then the `BACKUP_TAPE_IO_SLAVES` initialization parameter must be enabled on the target database. The `SET BACKUP COPIES` command affects all `BACKUP` commands in the `RUN` block issued after `SET BACKUP COPIES` (but not before) and is in effect until explicitly disabled or changed. The `SET BACKUP COPIES` command affects only `BACKUP` commands, but does not apply to the `BACKUP` `AS` `COPY` command. The `SET` `BACKUP` `COPIES` command affects all channels allocated in the session. The order of precedence is as follows, with settings higher on the list overriding settings lower on the list: `BACKUP` `COPIES` `SET` `BACKUP` `COPIES` `CONFIGURE` `...` `BACKUP` `COPIES` The names of the backup pieces are dependent on the `FORMAT` clause in the `BACKUP` command. You can specify up to four `FORMAT` strings. RMAN uses the second, third, and fourth values only when `BACKUP` `COPIES`, `SET BACKUP COPIES`, or `CONFIGURE` `...` `BACKUP` `COPIES` is in effect. When choosing which format to use for each backup piece, RMAN uses the first format value for copy 1, the second format value for copy 2, and so on. If the number of format values exceeds the number of copies, then the extra formats are not used. If the number of format values is less than the number of copies, RMAN reuses the format values, starting with the first one. Note: `BACKUP COPIES` option is not valid when files are created in flash recovery area. Backups to the flash recovery area cannot be duplexed. Note: Control file autobackups on disk are a special case and are never duplexed: RMAN always writes one and only copy.
`MAXCORRUPT` `FOR` `DATAFILE` `datafileSpec` `TO` `integer`	Sets a limit on the number of previously undetected block corruptions that the database will permit in a specified datafile or group of datafiles. The default limit is zero, meaning that RMAN tolerates no corrupt blocks. The `SET MAXCORRUPT` command specifies the total number of physical and logical corruptions permitted in a datafile during a backup or restore job. If the sum of physical and logical corruptions detected for a datafile is no more than its `MAXCORRUPT` setting, then the `BACKUP` or `RESTORE` command completes. If more than `MAXCORRUPT` corrupt blocks exist, then RMAN terminates without creating output files. Whether or not the `MAXCORRUPT` limit is exceeded, RMAN populates the `V$DATABASE_BLOCK_CORRUPTION` view with any corrupt block ranges that it finds. However, a backup or restore job is terminated after `MAXCORRUPT+1` corrupt blocks are found, so in this case RMAN only records `MAXCORRUPT+1` corruptions. Any block corruptions beyond the point at which the backup or restore job terminated are not recorded. Note: If you specify `CHECK` `LOGICAL`, then the `MAXCORRUPT` limit applies to the sum of logical and physical corruptions detected. Otherwise, `MAXCORRUPT` only applies to the number of physical block corruptions. See Also: `datafileSpec`
`NEWNAME` `FOR` `DATAFILE` `datafileSpec`	Sets the default name for all subsequent `RESTORE` or `SWITCH` commands that affect the specified datafile. If you do not issue this command before the datafile restore operation, then RMAN restores the file to its default location. After you restore a datafile to a new location, then you can run `SWITCH` to rename the file in the control file to the `NEWNAME`. If you do not run `SWITCH`, then the restored file is recorded as a datafile copy in the repository. You cannot use `SET NEWNAME TO NEW` when creating a duplicate or standby database or performing RMAN TSPITR. Note: The `SET` `NEWNAME` command supports ASM disk groups. See Also: `datafileSpec`
`NEWNAME` `FOR` `TEMPFILE` `tempfileSpec`	Sets the new tempfile name for a subsequent `SWITCH` command that renames the specified tempfile to the specified name. You cannot use `SET NEWNAME TO NEW` when creating a duplicate or standby database or performing RMAN TSPITR. Note: The `SET` `NEWNAME` command supports ASM disk groups. See Also: `tempfileSpec`
`TO 'filename'`	Specifies a user-defined filename or Automatic Storage Management disk group for the restored datafile or tempfile. If you set the `NEWNAME` to a disk group for a datafile and run a `RESTORE`, then RMAN restores the file to the disk group. If you specify a filename for a tempfile, then this will the new name of the tempfile after the database is recovered and opened.
`TO NEW`	Creates an Oracle-managed file in the directory specified in `DB_CREATE_FILE_DEST`. If the original file is an Oracle-managed file or is on an Automatic Storage Management disk group, then RMAN attempts to delete the original file. If you specify `TO NEW` for a tempfile, then the tempfile is created in `DB_CREATE_FILE_DEST` when the database is opened. You cannot use this option when using the `DUPLICATE` command or performing RMAN TSPITR. See Also: Oracle Database Administrator's Guide for information about Oracle-managed files
`TO` `RESTORE` `POINT` `restore_point_name`	Specifies a restore point for a subsequent `RESTORE` or `RECOVER` command, with the SCN at which the restore point was created as the upper, inclusive limit. Because the limit is inclusive, RMAN selects only files that can be used to restore or recover up to and including the SCN corresponding to the restore point. Note: You can only use `SET TO RESTORE POINT` when the database is mounted because the defined restore points are recorded in the control file. For example, you cannot use `SET TO RESTORE POINT` to specify the target SCN for a `RESTORE` `CONTROLFILE` operation.
`untilClause`	Specifies an end time, SCN, or log sequence number for a subsequent `RESTORE` or `RECOVER` command. See Also: `untilClause`

setRmanOrRunOption

This subclause specifies SET options that are usable inside or outside of a RUN block.

Syntax Element	Description
`AUXILIARY INSTANCE PARAMETER FILE TO` `'filename'`	Specifies the path to the parameter file to use in starting the instance. You can use this parameter when customizing TSPITR with an automatic auxiliary instance or when cloning RMAN tablespaces with RMAN. Note: The `filename` is on the host running the RMAN client. See Also: Oracle Database Reference for more on `V$SESSION.CLIENT_INFO`
`COMMAND` `ID` `TO` `'string'`	Enters the specified string into the `V$SESSION.CLIENT_INFO` column of all channels. Use this information to determine which database server sessions correspond to which RMAN channels. The `SET` `COMMAND` `ID` command applies only to channels that are already allocated. The `V$SESSION.CLIENT_INFO` column contains information for each RMAN server session. The data appears in one of the following formats: `id=string` `id=string`, `ch=channel_id` The first form appears in the RMAN target database connection. The second form appears in all allocated channels. When the current job is complete, the `V$SESSION.CLIENT_INFO` column will be cleared. See Also: Oracle Database Reference for more on `V$SESSION.CLIENT_INFO`
`CONTROLFILE` `AUTOBACKUP` `FORMAT` `FOR` `DEVICE` `TYPE` `deviceSpecifier` `TO` `formatSpec`	Overrides the default filename format for the control file autobackup on the specified device type. You can use this command either in `RUN` or at the RMAN prompt. The order of precedence is as follows: `SET` `CONTROLFILE` `AUTOBACKUP` executed within a `RUN` block `SET` `CONTROLFILE` `AUTOBACKUP` executed at the RMAN prompt `CONFIGURE` `CONTROLFILE` `AUTOBACKUP` `FORMAT` The `%F` substitution variable is required to be in the new `formatSpec`. No other substitution variable is legal in a control file autobackup `formatSpec`. See Also: `formatSpec` for the semantics of the `%F` substitution variable
`DBID` `integer`	Specifies the DBID, which is a unique 32-bit identification number computed when the database is created. RMAN displays the DBID upon connection to the target database. You can obtain the DBID by querying the `V$DATABASE` view or the `RC_DATABASE` and `RC_DATABASE_INCARNATION` recovery catalog views. You should only run the `SET DBID` command in the following specialized circumstances: You are not connected to a recovery catalog and want to restore the control file (see Example 2-137). The same restriction applies when you use the Data Recovery Advisor to restore a control file autobackup. `CONFIGURE` can locate an autobackup and restore it only if `SET DBID` is issued before `ADVISE FAILURE`. You want to restore the server parameter file (see Example 2-138). You are connected to the recovery catalog but not the target database and use the `FOR DB_UNIQUE_NAME` option on the `CONFIGURE`, `LIST`, `REPORT`, `SHOW`, or `UNREGISTER` commands.

Examples

Example 2-135 Setting the Command ID

This example sets the command ID to rman, backs up the database, and then archives the online redo logs. You can use the command ID to query V$SESSION with WHERE LIKE '%rman%' for job status information.

RUN
{
  ALLOCATE CHANNEL d1 DEVICE TYPE DISK FORMAT '/disk1/%U';
  ALLOCATE CHANNEL d2 DEVICE TYPE DISK FORMAT '/disk2/%U';
  SET COMMAND ID TO 'rman';
  BACKUP INCREMENTAL LEVEL 0 DATABASE;
  SQL 'ALTER SYSTEM ARCHIVE LOG CURRENT';
}

Example 2-136 Duplexing a Backup Set

Assume that the current duplexing configuration is as follows:

CONFIGURE ARCHIVELOG COPIES FOR DEVICE TYPE sbt TO 3;
CONFIGURE DATAFILE COPIES FOR DEVICE TYPE sbt TO 3;

One of the tape drives goes bad, leaving only two available. The guideline for tape backups is that the number of devices should equal the number of copies multiplied by the number of channels. The following example overrides the persistent duplexing configuration with SET BACKUP COPIES and writes two copies of a database backup to the two functioning tape drives:

RUN
{
  ALLOCATE CHANNEL dev1 DEVICE TYPE sbt
    PARMS 'ENV=(OB_DEVICE_1=stape1,OB_DEVICE_2=stape2)';
  SET BACKUP COPIES 2;
  BACKUP DATABASE PLUS ARCHIVELOG;
}

Example 2-137 Setting the Control File Autobackup Format During a Restore

Assume that the disk containing the control file fails. You edit the CONTROL_FILES parameter in the initialization parameter file to point to a new location.

In this example, you do not have access to a recovery catalog. The example starts the instance, sets the DBID, and then restores a control file autobackup. After the database is mounted, you can recover the database.

CONNECT TARGET /
STARTUP FORCE NOMOUNT
SET DBID 28014364;
RUN
{
  SET CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE DISK TO '/disk2/cf_%F.bak';
  RESTORE CONTROLFILE FROM AUTOBACKUP MAXSEQ 100;
}
ALTER DATABASE MOUNT;
RECOVER DATABASE;
ALTER DATABASE OPEN RESETLOGS;

Example 2-138 Restoring the Server Parameter File

Assume that the database is closed while maintenance is being performed on the database host. During this time, the server parameter file is accidentally deleted. This example restores a server parameter file from an autobackup on tape and then restarts the instance.

CONNECT TARGET /
CONNECT CATALOG rman/password@catdb
SET DBID 3257174182;  # set dbid so RMAN knows the database name
STARTUP FORCE NOMOUNT # rman starts database with a dummy server parameter file
RUN
{
  ALLOCATE CHANNEL t1 DEVICE TYPE sbt;
  RESTORE SPFILE FROM AUTOBACKUP;
}
STARTUP FORCE; # needed so that RMAN restarts database with restored server parameter file
