2 Rules Manager Concepts

Rules Manager is a feature of Oracle Database that uses the Expression Filter and object relational features to provide the features of a special-purpose rules engine with greater scalability and better operational characteristics.

2.1 Rules Terminology

Rules Manager uses the following terminology:

2.2 Database Representation of a Rule Class and Rules

Rules Manager uses a relational table to hold the contents of a rule class with each row in the table representing a rule. The rule class table minimally has three columns, one for rule identifiers (rlm$ruleid), one for rule conditions (rlm$rulecond), and one for the description of the rule (rlm$ruledesc). In addition, the rule class table can have one or more columns to store rule action preferences.

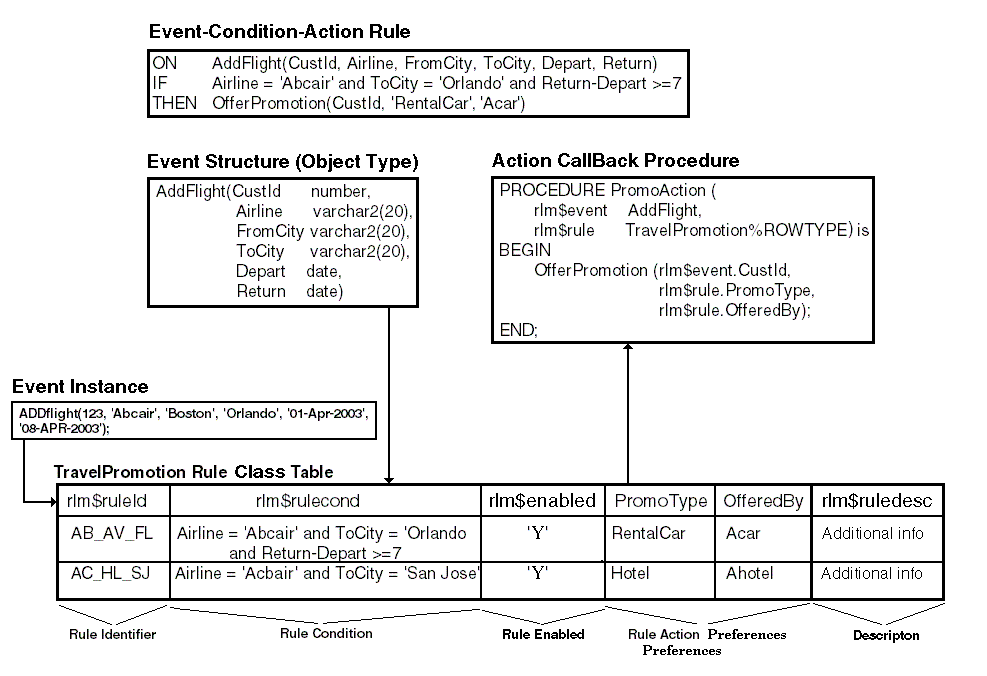

Figure 2-1 shows a database representation of the TravelPromotion rule class and its rules for processing the AddFlight event instances.

Figure 2-1 Database Representation of Rule Class and Rules

Description of Figure 2-1 follows
Description of "Figure 2-1 Database Representation of Rule Class and Rules"

The TravelPromotion rule class consists of the following columns:

An ECA rule is stored in a row of the TravelPromotion rule class table. The event structure, defined as an object type in the database, is associated with the rule condition column and this provides the necessary vocabulary for the rule conditions (stored in the column). The event structure, the rule class table, and the action callback procedure are all created as part of rule class creation.

Once all the rules are added to the rule class, events are ready to be processed and rules evaluated. At runtime, each rule in the rule class is processed against each instance of the event structure. When a rule evaluates to true for a particular event, the PromoAction action callback procedure calls the designated OfferPromotion procedure using rule action preferences to execute the prescribed action of offering a specific type of promotion from a particular vendor. Rules Manager enforces various event management policies, such as conflict resolution when an event matches more than one rule, or immediate event consumption when the first match is found and no further evaluation is necessary. These and other event management policies are described in more detail in Chapter 3.

Section 2.3, Section 2.6, and Section 2.4 describe the process of creating rules applications that use a simple event, that span multiple tiers, and that use composite events, respectively. Though the basic five steps are the same for all three cases, the details vary, and some additional steps are necessary for multiple tier applications.

2.3 Creating Rules Applications That Use Simple or Non-Composite Events

The basic steps to create a rules application that uses a simple or non-composite event are as follows:

  1. Create the event structure as an object type in the database.

    Using the AddFlight example, the event structure is defined as:

    CREATE TYPE AddFlight AS OBJECT (
        CustId       NUMBER,
        Airline      VARCHAR2(20),
        FromCity     VARCHAR2(30),
        ToCity       VARCHAR2(30),
        Depart       DATE,
        Return       DATE);


  2. Create the rule class for the event structure.

    Note:

    For successful creation of a rule class, you should have sufficient privileges to create views, object types, tables, packages, and procedures.

    For this example, create the TravelPromotion rule class for the AddFlight event structure and define the PromoType and OfferedBy columns as its action preferences. This procedure takes the name of the rule class, the name of the existing event structure created in Step 1, the name of the action callback procedure, and the action preference specification as arguments. The action preferences specification defines the data types of action preferences that are associated with each rule in the rule class.

    BEGIN
    dbms_rlmgr.create_rule_class (
         rule_class   => 'TravelPromotion',
         event_struct => 'AddFlight',
         action_cbk   => 'PromoAction',
         actprf_spec  => 'PromoType  VARCHAR2(20),
                          OfferedBy  VARCHAR2(20)');
    END;



    Rule class creation creates a table to store the corresponding rule definitions and action preferences. The rule class table uses the same name as the rule class and it is created in the user's schema. The rule class table defines three columns to store the rule identifiers, rule descriptions, and the rule conditions. In this example, the table also creates the rule action preferences columns specified with the previous command to store the action preferences.

    TABLE TravelPromotion (
                     rlm$ruleid     VARCHAR2(100),
                     rlm$rulecond   VARCHAR2(4000),
                     rlm$enabled    CHAR(1) DEFAULT 'Y',
                     rlm$ruledesc   VARCHAR2(1000),
                     PromoType      VARCHAR2(20),
                     OfferedBy      VARCHAR2(20));



    You can query the table to see the rules defined in the rule class as well as perform SQL INSERT, UPDATE, and DELETE operations to add, update, and delete rules.

    Rule class creation implicitly creates the skeleton for a callback procedure to perform the action. The action callback procedure acts as an entry point for executing actions for all the rules in the rule class. The action callback is called once for every rule that matches an event. The implementation of the action callback procedure can rely on values in the event instance and the action preferences associated with the matching rule.

    PROCEDURE  PromoAction (rlm$event      AddFlight,
                            rlm$rule       TravelPromotion%ROWTYPE) is
    BEGIN
      null;
      --- The action for the matching rules can be performed here.
      --- The appropriate action can be determined from the event
      --- instance and the action preferences associated with each rule.
    END;



    The action callback procedure, in this case, is created with the name the user provides and has two arguments:

    • The event as an instance of the corresponding object type.

    • The action preferences as a ROWTYPE of the corresponding rule class table. The %ROWTYPE attribute provides a record type that represents a row in a table.

  3. Replace the system-generated callback procedure with the user implementation to perform the appropriate action for each matching rule. The following action callback procedure can be implemented to invoke the OfferPromotion procedure with arguments obtained from the event instance and the rule definition:

    For this example,

    PROCEDURE  PromoAction (
                rlm$event      AddFlight,
                rlm$rule       TravelPromotion%ROWTYPE) is
    BEGIN
       OfferPromotion (rlm$event.CustId,
                       rlm$rule.PromoType,
                       rlm$rule.OfferedBy);
    END;



    In this example, the procedure OfferPromotion performs the action and each matching rule provides the appropriate action preferences. Appendix G shows alternate ways for implementing the action callback procedure for a different choice of action preferences.

  4. Add rules to the rule class.

    Adding rules consists of using the SQL INSERT statement to add a row for each rule. Each row inserted typically contains a rule identifier, a condition, and values for action preferences. The following rule is inserted into the TravelPromotion table:

    INSERT INTO TravelPromotion (rlm$ruleid, PromoType, OfferedBy, rlm$rulecond) VALUES
    ('UN_AV_FL', 'Rental Car', 'Acar',
    'Airline= ''Abcair'' and ToCity = ''Orlando'' and Return-Depart >= 7');


  5. Process the rules for an event.

    Use the dbms_rlmgr.process_rules( ) procedure to process the rules in a rule class for an event instance. Processing the rules consists of passing in an event instance as a string of name-value pairs (generated using the getVarchar( ) procedure) or as an AnyData instance for an event consisting of binary data types as described in Section 11.3. Recall that the Oracle supplied getVarchar( ) method is used to represent the data item as string-formatted name-value pairs when this is possible and that AnyData is an Oracle supplied object type that can hold instances of any Oracle data type, both Oracle supplied and user-defined.

    The following example processes the rules in the TravelPromotion rule class for an AddFlight event instance using the getVarchar( ) function.

    BEGIN
    dbms_rlmgr.process_rules (
       rule_class  => 'TravelPromotion',
       event_inst  => AddFlight.getVarchar(987, 'Abcair', 'Boston', 'Orlando', '01-APR-2003', '08-APR-2003'));
    END;



    The following example processes the rules in the TravelPromotion rule class for an AddFlight event instance using the AnyData.ConvertObject( ) procedure.

    BEGIN
    dbms_rlmgr.process_rules (
       rule_class  => 'TravelPromotion',
       event_inst  => AnyData.convertObject(AddFlight(987, 'Abcair', 'Boston', 'Orlando', '01-APR-2003', '08-APR-2003')));
    END;



    The previous command processes the rules in the TravelPromotion rule class for an AddFlight event instance and performs the action associated with each matching rule through the action callback procedure.

2.4 Creating Rules Applications That Use Composite Events

Probably the more common types of rules applications are those that use a composite event structure that combines two or more primitive events. Evaluating rule classes for composite events creates additional requirements. Rules Manager addresses these requirements by:

Designing Rules Applications with Composite Events

Developing a rules application for composite events has some similarities with that of developing a database (SQL) application. The event structure definitions in a rules application are similar to table definitions in a database application. SQL queries operating on these tables are similar to the rule conditions defined in a rule class. In a database application, constraints and indexes specific to each application are created for data integrity and performance. Similarly, in the case of a rules application, properties specified for the rule class enforce the event management policies and improve the performance. These rule class properties are summarized in Section 2.5 and described Chapter 3.

2.4.1 How to Create a Rules Application That Uses Composite Events

The basic steps to create a rules application with composite events are the same as those described for simple events in Section 2.3, with accommodations for multiple primitive events.

The steps to create a rules application with composite events are as follows:

  1. Create the composite event structure as an object type in the database.

    First, each primitive event structure is created as an object type. For example:

    CREATE or REPLACE TYPE AddFlight AS OBJECT (
        CustId       NUMBER,
        Airline      VARCHAR2(20),
        FromCity     VARCHAR2(30),
        ToCity       VARCHAR2(30),
        Depart       DATE,
        Return       DATE);

    CREATE or REPLACE TYPE AddRentalCar AS OBJECT  (
        CustId       NUMBER,
        CarType      VARCHAR2(20),
        CheckOut     DATE,
        CheckIn      DATE,
        Options      VARCHAR2(30));



    Next, all the primitive event structures that constitute the composite event are created as (first level) embedded types in this object type. For example:

    CREATE or REPLACE TYPE TSCompEvent AS OBJECT (Flt AddFlight,
                                                  Car AddRentalCar);



    The attribute names, Flt and Car, are used in the rule conditions for identifying the predicates on individual primitive events and for specifying join conditions between primitive events; Flt and Car are the primitive event variables used for composite events.

  2. Create the rule class for the composite event structure. The rule class is configured for composite events using an XML properties document that is assigned to the properties argument of the dbms_rlmgr.create_rule_class procedure.

    BEGIN
       dbms_rlmgr.create_rule_class (
                   rule_class    => 'CompTravelPromo',
                   event_struct  => 'TSCompEvent',
                   action_cbk    => 'CompPromoAction',
                   rslt_viewnm   => 'CompMatchingPromos',
                   actprf_spec   => 'PromoType  VARCHAR2(20),
                                     OfferedBy  VARCHAR2(20)',
                   rlcls_prop    => '<composite equal="Flt.CustId, Car.CustId"/>');
    END;



    The previous code example creates the rule class for the composite event structure. The rlcls_prop argument specifies the XML element <composite> to configure the rule class for composite events. The properties also include an equal specification that identifies the common equality join predicate in all the rules in the rule class. Other critical rule class properties such as consumption, duration, and ordering of events can be specified using the syntax discussed in Section 3.1 through Section 3.7.

    This step re-creates each object type representing a primitive event structure to include a timestamp attribute, rlm$CrtTime, which captures the corresponding event creation times. This attribute is created with the TIMESTAMP data type and its value is defaulted to the database timestamp (SYSTIMESTAMP) at the time of event instantiation. Alternately, an application can explicitly set an event creation time by assigning a valid timestamp value to this attribute.

    As previously mentioned, this rule class creation also creates the action callback procedure with the specified name as follows:

    PROCEDURE CompPromotion (Flt       AddFlight,
                             Car       AddRentalCar,
                             rlm$rule  CompTravelPromo%ROWTYPE)  is
    BEGIN
       null;
      --- The action for the matching rules can be performed here.
      --- The appropriate action can be determined from the event
      --- instance and the action preferences associated with each rule.
    END;



    Note:

    The primitive events within the composite events are passed in as separate arguments to the callback procedure. The action callback procedure includes additional arguments when the rule class is configured for the RULE consumption policy or when the rule class is enabled for one or more collection events.
  3. Replace the system generated action callback procedure with the user implementation to perform the appropriate action for each matching rule. For example:

    PROCEDURE  CompPromoAction (Flt       AddFlight,
                                Car       AddRentalCar,
                                rlm$rule  CompTravelPromo%ROWTYPE) is
    BEGIN
       OfferPromotion (Flt.CustId,
                       rlm$rule.PromoType,
                       rlm$rule.OfferedBy);
    END;


  4. Add the rules to the rule class. In this case, add a rule with a conditional expression that uses XML tags. See Section 5.1 for more information about using XML tag extensions in rule conditions to support complex rule constructs.

    INSERT INTO CompTravelPromo (rlm$ruleid, PromoType, OfferedBy, rlm$rulecond)
      VALUES ('UN-HT-FL', 'RentalCar', 'Acar',
              '<condition>
                 <and join="Flt.CustId = Car.CustId">
                    <object name="Flt">
                        Airline=''Abcair'' and ToCity=''Orlando''
                    </object>
                    <object name="Car">
                        CarType = ''Luxury''
                    </object>
                 </and>
               </condition>');


  5. Process the rules using one primitive event at a time. For example:

    BEGIN
       dbms_rlmgr.process_rules (
                 rule_class     => 'CompTravelPromo',
                 event_inst     =>
                    AnyData.ConvertObject(
                                  AddFlight(987, 'Abcair', 'Boston', 'Orlando',
                                            '01-APR-2003', '08-APR-2003')));


       dbms_rlmgr.process_rules (
                 rule_class     => 'CompTravelPromo',
                 event_inst     =>
                    AnyData.ConvertObject(
                                  AddFlight(567, 'Abdair', 'Boston', 'Miami',
                                            '03-APR-2003', '09-APR-2003')));

       dbms_rlmgr.process_rules (
                 rule_class     => 'CompTravelPromo',
                 event_inst     =>
                    AnyData.ConvertObject(
                                  AddRentalCar(987, 'Luxury', '03-APR-2003',
                                            '08-APR-2003', NULL)));
    END;



This command adds three primitive events to the Rules Manager. For the rule defined in Step 4, the first event matches the primitive rule condition for the AddFlight event and the third event matches the condition for the AddRentalCar event. Additionally, these two events satisfy the join predicate in the rule condition. So for the previous example, the first and last primitive events together form a composite event that matches the rule condition specified in Step 4. These primitive event instances are passed to the action callback procedure for action execution. The type information for the primitive events that is passed in is embedded in the corresponding AnyData instance. However, when a string-formatted event is used, the primitive event type information should be explicitly passed in as follows:

BEGIN
   dbms_rlmgr.process_rules (
             rule_class     => 'TravelPromotion',
             event_type     => 'AddFlight',
             event_inst     =>
                 AddFlight.getVarchar(987, 'Abcair', 'Boston', 'Orlando',
                                      '01-APR-2003', '08-APR-2003'));
END;

2.4.2 Evaluating Composite Events Using Complex Rule Conditions

Evaluating composite events using complex rule conditions is supported by Rules Manager with the following:

  • Incremental evaluation of rules by allowing predicate joins between and among primitive events

  • Negation in rule conditions to raise exceptions in processes (that is, when something does not happen, do something)

  • Sequencing in rule conditions by tracking primitive event creation time and enforcing or detecting sequencing among events

  • Set semantics in rule conditions to allow instances of primitive events of the same type to be monitored as a group

  • Any n in rule conditions to allow matching of a subset of primitive events

Rules Manager supports incremental evaluation of rules involving composite events. To support complex rule conditions, the conditional expressions in the SQL WHERE clause are extended with some XML tags that identify different parts of a conditional expression and add special semantics to these expressions. Chapter 5 describes more about each type of complex rule condition. Section 5.1 describes implementing incremental evaluation of rules.

2.5 Setting Event Management Policies (Rule Class Properties) for Rule Applications

Rule class properties define the event management policies that the Rules Manager should enforce for each rules application. Rule class properties include:

Rule class properties are specified at the time of rule class creation using an XML properties document that is assigned to the rlcls_prop argument of the dbms_rlmgr.create_rule_set( ) procedure. For rule classes configured for composite events these properties can be specified at the composite event level (for all the primitive events). In addition, you can specify overrides for one or more primitive events in the properties document. Section 3.1 through Section 3.8 describe each of these rules properties in more detail and how each is implemented.

2.6 Creating Rules Applications That Span Multiple Tiers

For rules applications that span multiple tiers and where rule management is handled in the database, but the action execution for the rules is handled in the application server, the actions for the rules matching an event cannot be invoked from an action callback procedure. Instead, a results view is populated with the events and the matching rules, both of which are available for external action execution. The results view can be queried to determine the rules that match an event and their corresponding actions can then be executed.

To handle rules applications with certain rules having their action execution occurring on the application server, you must also configure the rule class for external execution (in addition to configuring the action callback procedure). The steps to do this are similar to those described in Section 2.3, but are modified and briefly described as follows (see Chapter 6 for a complete description of each step):

  1. Create the event structure as an object type in the database (same as Step 1 in Section 2.3).

  2. Create the rule class and also define the results view. See Step 2 in Section 6.1 for the details.

  3. Implement the action callback procedure (same as Step 3 in Section 2.3).

  4. Add rules to the rule class (same as Step 4 in Section 2.3).

  5. Identify the matching rules for an event. Use the add event procedure (dbms_rlmgr.add_event( )) that adds each event to the rule class one at a time and identifies the matching rules for a given event that is later accessed using the results view. See Step 5 in Section 6.1 for the details.

  6. Find the matching rules by querying the results view. See Step 6 in Section 6.1 for the details.

  7. Consume the event that is used in a rule execution. See Step 7 in Section 6.1 for the details.

For more information about creating rules applications that span multiple tiers, see Section 6.1, and for more information about running rules applications in multitier mode see Section 6.2.

2.7 Using Rules Manager with SQL*Loader and Export/Import Utilities

Section 2.7.1 describes using SQL*Loader to load data into a rule class table. Section 2.7.2 describes exporting and importing rules applications.

2.7.1 SQL*Loader

SQL*Loader can be used to bulk load data from an ASCII file into a rule class table. For the loader operations, the rule conditions stored in the rlm$rulecond column of the rule class table are treated as strings loaded into a VARCHAR2 column. The data file can hold the XML and SQL based rule conditions in any format allowed for VARCHAR2 data and the values for the action preference columns in the rule class table are loaded using normal SQL*Loader semantics.

The data loaded into the rule condition column is automatically validated using the event structure associated with the rule class. The validation is done by a trigger defined on the rule condition column, due to which, a direct load cannot be used while loading rule definitions into a rule class table.

2.7.2 Export/Import

A rules application defined using a set of event structures and a rule class can be exported and imported back to the same database or a different Oracle database. A rule class in a schema is automatically exported when the corresponding rule class table is exported using the export command's (expdp) tables parameter or when the complete schema is exported. When a rule class is exported, definitions for the associated primitive and composite event structures and the rules defined in the rule class are all placed in the export dump file. However, the internal database objects that maintain the information about event instances and incremental states for partially matched rules are not exported with the rule class. When the tables parameter is used to export a particular rule class, the implementation for the action callback procedure is not written to the export dump file. The action callback procedure is only exported with the schema export.

Note:

In the case of a rule class with references to shareable primitive rule conditions, the conditions table storing the conditions are not exported unless the schema is exported or the conditions table is explicitly listed in the tables parameter of the export command. See the note at the end of Section 4.6 for more information.

The dump file created with the export of a rule class can be used to import the rule class and its event structures into the same or a different Oracle database. At the time of import, the internal database objects used for the rule class state maintenance are re-created. Due to the order in which certain objects are created and skipped in an import session, the rule class creation raises some errors and warnings that can be safely ignored. In the case of a schema level import of the rule class, the implementation for action callback procedure is also re-created on the import site However, in the case of a table-level import, only the skeleton for the action callback procedure is created.

Note:

In the case of the rule class with references to shareable primitive rule conditions, the rules are validated during import and any broken references due to missing conditions table or the specific primitive condition in the conditions table will result in an ORA-41704 error message being returned. However, the broken references can be fixed as a post-import operation. For this purpose, all the rule conditions with broken references are marked FAILED with the corresponding rlm$enabled column storing 'F'.
