1 Introduction

This chapter introduces you to the Pro*COBOL Precompiler. You look at its role in developing application programs that manipulate Oracle data and find out what it enables your applications to do. The following questions are answered:

What is Pro*COBOL?

To access an Oracle database, you use a high-level query language called Structured Query Language (SQL). You often use SQL through an interactive interface, such as SQL*Plus.

Pro*COBOL is a programming tool that enables you to embed SQL statements in a COBOL program. The Pro*COBOL precompiler converts the SQL statements in the COBOL program into standard Oracle run-time library calls. The generated output file can then be compiled, linked, and run in the usual manner.

Use the Pro*COBOL precompiler when rapid development and compatibility with other systems are your priorities.

The Pro*COBOL Precompiler

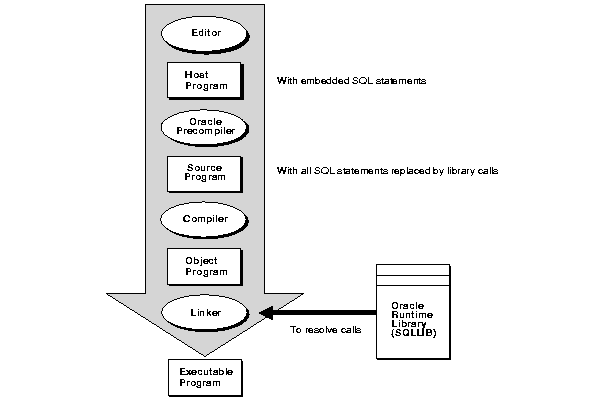

The Pro*COBOL Precompiler is a programming tool that enables you to embed SQL statements in a host COBOL program. As Figure 1-1 shows, the precompiler accepts the host program as input, translates the embedded SQL statements into standard Oracle run-time library calls, and generates a source program that you can compile, link, and execute in the usual way.

Figure 1-1 Embedded SQL Program Development

Embedded SQL
Description of "Figure 1-1 Embedded SQL Program Development"

Note:

Pro*COBOL supports the MERANT Micro Focus NetExpress version 4.0 for 32-bit Windows 2000.

Note:

Pro*COBOL does not support Object Oriented COBOL (OOCOBOL) specifications.

Language Alternatives

Oracle Precompilers are available (but not on all systems) for the following high-level languages:

  • C/C++

  • COBOL

  • FORTRAN

Pro*Pascal, Pro*ADA, and Pro*PL/I will not be released again. However, Oracle will continue to issue patch releases for Pro*FORTRAN as bugs are reported and corrected.

Advantages of the Pro*COBOL Precompiler

The Pro*COBOL Precompiler lets you pack the power and flexibility of SQL into your application programs. You can embed SQL statements in COBOL. A convenient, easy to use interface lets your application access Oracle directly.

Unlike many application development tools, Pro*COBOL lets you create highly customized applications. For example, you can create user interfaces that incorporate the latest windowing and mouse technology. You can also create applications that run in the background without the need for user interaction.

Furthermore, with Pro*COBOL you can fine-tune your applications. It enables close monitoring of resource usage, SQL statement execution, and various run-time indicators. With this information, you can adjust program parameters for maximum performance.

The SQL Language

If you want to access and manipulate Oracle data, you need SQL. Whether you use SQL interactively or embedded in an application program depends on the job at hand. If the job requires the procedural processing power of COBOL, or must be done on a regular basis, use embedded SQL.

SQL has become the database language of choice because it is flexible, powerful, and easy to learn. Being non-procedural, it lets you specify what you want done without specifying how to do it. A few English-like statements make it easy to manipulate Oracle data one row or many rows at a time.

You can execute any SQL (not SQL*Plus) statement from an application program. For example, you can:

Before embedding SQL statements in an application program, you can test them interactively using SQL*Plus. Usually, only minor changes are required to switch from interactive to embedded SQL.

The PL/SQL Language

An extension to SQL, PL/SQL is a transaction processing language that supports procedural constructs, variable declarations, and robust error handling. Within the same PL/SQL block, you can use SQL and all the PL/SQL extensions.

The main advantage of embedded PL/SQL is better performance. Unlike SQL, PL/SQL enables you to group SQL statements logically and send them to Oracle in a block rather than one by one. This reduces network traffic and processing overhead.

For more information about PL/SQL including how to embed it in an application program, see Chapter 6, "Embedded PL/SQL".

Pro*COBOL Features and Benefits

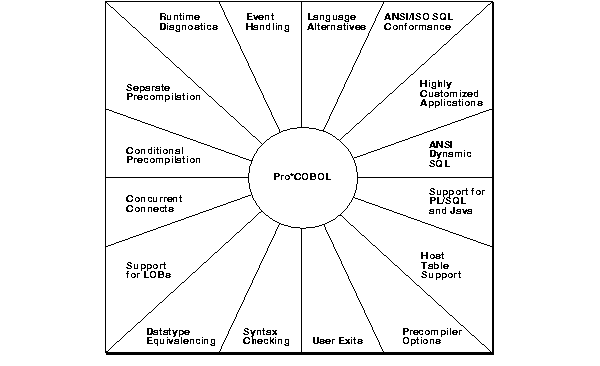

As Figure 1-2 shows, Pro*COBOL offers many features and benefits that help you to develop effective, reliable applications.

Figure 1-2 Pro*COBOL Features and Benefits

Pro*COBOL Features
Description of "Figure 1-2 Pro*COBOL Features and Benefits"

For example, the Pro*COBOL Precompiler enables you to:

Directory Structure

When you install Pro*COBOL, Oracle Universal Installer creates a directory called \precomp in your ORACLE_BASE\ORACLE_HOME directory.

Note:

The \precomp directory can contain files for other products, such as Pro*C/C++.

The \precomp directory contains the directories listed in Table 1-1.

Table 1-1 Directories

Directory Name Contents

\admin

Configuration files

\demo\procob2

Sample programs for Pro*COBOL release 9.2.0

\demo\sql

SQL scripts for sample programs

\doc\procob2

Readme files for Pro*COBOL 9.2.0

\lib

Library files

\mesg

Message files

\public

Header files


Header Files

The ORACLE_BASE\ORACLE_HOME\precomp\public directory contains the Pro*COBOL header files listed in Table 1-2.

Table 1-2 Header Files

Header File Description

oraca.cob

Contains the Oracle Communications Area (ORACA), which helps you to diagnose runtime errors and to monitor your program's use of various Oracle resources.

oraca5.cob

ORACA5 is the COMP-5 version of ORACA.

sqlca.cob

Contains the SQL Communications Area (SQLCA), which helps you to diagnose runtime errors. The SQLCA is updated after every executable SQL statement.

sqlca5.cob

SQLCA5 is the COMP-5 version of SQLCA.

sqlda.cob

Contains the SQL Descriptor Area (SQLDA), which is a data structure required for programs that use dynamic SQL Method 4.

sqlda5.cob

This is the COMP-5 version of SQLDA.


Library File

The ORACLE_BASE\ORACLE_HOME \precomp\lib directory contains the library file that you use when linking Pro*COBOL applications. The library file is called orasql9.lib.

Known Problems, Restrictions, and Workarounds

  1. Although all Windows operating systems allow spaces in filenames and directory names, the Oracle Pro*COBOL precompilers do not precompile files that include spaces in the file name or directory name. For example, do not use the following formats:

    • proc iname=test one.pc

    • proc iname=d:\dir1\second dir\sample1.pc

  2. Users running PROCOB application that are not linked using /LITLINK option and failing at runtime with the error,

    Load error: file 'ORASQL8'



    need to copy orasql9.dll to orasql8.dll in the same directory where orasql9.dll exists.

Compatibility, Upgrading, and Migration

The additional "array insert" and "array select" syntax will help migrating DB2 precompiler applications to the Pro*Cobol application. This is because you will not need to change DB2 array INSERT and SELECT syntax to that of Oracle Pro*Cobol.

The ""Implicit Buffered Insert" feature supported by Pro*Cobol helps you to migrate DB2 precompiler applications to Pro*Cobol applications without using the array syntax of Pro*Cobol for better performance.
