155 DBMS_XMLDOM

The DBMS_XMLDOM package is used to access XMLType objects, and implements the Document Object Model (DOM), an application programming interface for HTML and XML documents.

See Also:

Oracle XML Developer's Kit Programmer's Guide

This chapter contains the following topics:


Using DBMS_XMLDOM


Overview

The Document Object Model (DOM) is an application programming interface (API) for HTML and XML documents. It defines the logical structure of documents, and the manner in which they are accessed and manipulated. In the DOM specification, the term "document" is used in the broad sense. XML is being increasingly used to represent many different kinds of information that may be stored in diverse systems. This information has been traditionally be seen as "data"; nevertheless, XML presents this data as documents, and the DBMS_XMLDOM package allows you access to both schema-based and non schema-based documents.

Note:

  • Before database startup, the read-from and write-to directories in the initialization.ORA file must be specified; for example: UTL_FILE_DIR=/mypath/insidemypath.

  • Read-from and write-to files must be on the server file system.

With DOM, anything found in an HTML or XML document can be accessed, changed, deleted, or added using the Document Object Model, with a few exceptions. In particular, the DOM interfaces for the XML internal and external subsets have not yet been specified.

One important objective of the W3C DOM specification is to provide a standard programming interface that can be used in a wide variety of environments, programming languages, and applications. Because the DOM standard is object-oriented while PL/SQL is essentially a procedural language, some changes had to be made:

DOM defines an inheritance hierarchy. For example, Document, Element, and Attr are defined to be subtypes of Node (see Figure 155-1). Thus, a method defined in the Node interface should be available in these as well. Since such inheritance is not supported in PL/SQL, it is implemented through direct invocation of the MAKENODE function. Calling MAKENODE on various DOM types converts these types into a DOMNode. The appropriate functions or procedures that accept DOMNodes can then be called to operate on these types. If, subsequently, type specific functionality is desired, the DOMNode can be converted back into the original type by the makeXXX functions, where DOMXXX is the desired DOM type.

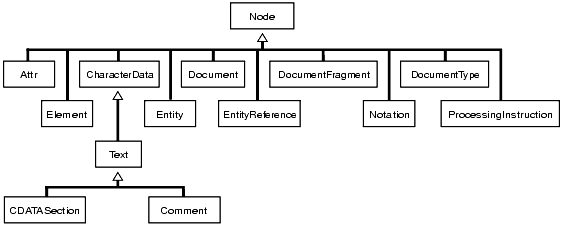

Figure 155-1 Inheritance Diagram for DOM Types

Description of arpls010.gif follows
Description of the illustration arpls010.gif

The implementation of this interface follows the REC-DOM-Level-1-19981001.


Constants

Defined constants of DBMS_XMLDOM are listed in Table 155-1.

Table 155-1 Defined Constants for DBMS_XMLDOM

Constant Type Value Description
ELEMENT_NODE PLS_INTEGER 1 The Node is an Element.
ATTRIBUTE_NODE PLS_INTEGER 2 The Node is an Attribute.
TEXT_NODE PLS_INTEGER 3 The Node is a Text node.
CDATA_SECTION_NODE PLS_INTEGER 4 The Node is a CDataSection.
ENTITY_REFERENCE_NODE PLS_INTEGER 5 The Node is an Entity Reference.
ENTITY_NODE PLS_INTEGER 6 The Node is an Entity.
PROCESSING_INSTRUCTION_NODE PLS_INTEGER 7 The Node is a Processing Instruction.
COMMENT_NODE PLS_INTEGER 8 The Node is a Comment.
DOCUMENT_NODE PLS_INTEGER 9 The Node is a Document.
DOCUMENT_TYPE_NODE PLS_INTEGER 10 The Node is a Document Type Definition.
DOCUMENT_FRAGMENT_NODE PLS_INTEGER 11 The Node is a Document fragment.
NOTATION_NODE PLS_INTEGER 12 The Node is a Notation.


Types

The following types for DBMS_XMLDOM.DOMTYPE are defined in Table 155-2:

Table 155-2 XDB_XMLDOM Types

Type Description
DOMATTR Implements the DOM Attribute interface.
DOMCDATASECTION Implements the DOM CDataSection interface.
DOMCHARACTERDATA Implements the DOM Character Data interface.
DOMCOMMENT Implements the DOM Comment interface.
DOMDOCUMENT Implements the DOM Document interface.
DOMDOCUMENTFRAGMENT Implements the DOM DocumentFragment interface.
DOMDOCUMENTTYPE Implements the DOM Document Type interface.
DOMELEMENT Implements the DOM Element interface.
DOMENTITY Implements the DOM Entity interface.
DOMENTITYREFERENCE Implements the DOM EntityReference interface.
DOMIMPLEMENTATION Implements the DOM Implementation interface.
DOMNAMEDNODEMAP Implements the DOM Named Node Map interface.
DOMNODE Implements the DOM Node interface.
DOMNODELIST Implements the DOM NodeList interface.
DOMNOTATION Implements the DOM Notation interface.
DOMPROCESSINGINSTRUCTION Implements the DOM Processing instruction interface.
DOMTEXT Implements the DOM Text interface.


Exceptions

The exceptions listed in Table 155-3 are defined for DBMS_XMLDOM:

Table 155-3 Exceptions for DBMS_XMLDOM

Exception Description
DOMSTRING_SIZE_ERR If the specified range of text does not fit into a DOMString.
HIERARCHY_REQUEST_ERR If any node is inserted somewhere it doesn't belong.
INDEX_SIZE_ERR If index or size is negative, or greater than the allowed value.
INUSE_ATTRIBUTE_ERR If an attempt is made to add an attribute that is already in use elsewhere.
INVALID_CHARACTER_ERR If an invalid or illegal character is specified, such as in a name. See production 2 in the XML specification for the definition of a legal character, and production 5 for the definition of a legal name character.
NO_DATA_ALLOWED_ERROR If data is specified for a node that does not support data.
NOT_FOUND_ERR If an attempt is made to reference a node in a context where it does not exist.
NO_MODIFICATION_ALLOWED_ERR If an attempt is made to modify an object where modifications are not allowed.
NOT_SUPPORTED_ERR If the implementation does not support the requested type of object or operation.
WRONG_DOCUMENT_ERR If a node is used in a different document than the one that created it (that doesn't support it).


Subprogram Groups

DBMS_XMLDOM subprograms are divided into groups according to W3C Interfaces.


DOMNode Subprograms

Table 155-4 Summary of DOMNode Subprograms; DBMS_XMLDOM

Subprogram Description
ADOPTNODE Function
Adopts a node from another document.
APPENDCHILD Function
Appends a new child to the node.
CLONENODE Function
Clones the node.
FREENODE Procedure
Frees all resources associated with the node.
GETATTRIBUTES Function
Retrieves the attributes of the node.
GETCHILDNODES Function
Retrieves the children of the node.
GETEXPANDEDNAME Procedure and Functions
Retrieves the expanded name of the node.
GETFIRSTCHILD Function
Retrieves the first child of the node.
GETLASTCHILD Function
Retrieves the last child of the node.
GETLOCALNAME Procedure and Functions
Retrieves the local part of the qualified name.
GETNAMESPACE Procedure and Functions
Retrieves the node's namespace URI.
GETNEXTSIBLING Function
Retrieves the next sibling of the node.
GETNODENAME Function
Retrieves the Name of the Node.
GETNODETYPE Function
Retrieves the Type of the node.
GETNODEVALUE Function
Retrieves the Value of the Node.
GETNODEVALUEASBINARYSTREAM Function & Procedure
Retrieves Node Value as binary stream.
GETNODEVALUEASCHARACTERSTREAM Function & Procedure
Retrieves Node Value as character stream.
GETOWNERDOCUMENT Function
Retrieves the owner document of the node.
GETPARENTNODE Function Retrieves the parent of this node.
GETPREFIX Function
Retrieves the namespace prefix.
GETPREVIOUSSIBLING Function
Retrieves the previous sibling of the node.
GETSCHEMANODE Function
Retrieves the associated schema URI.
HASATTRIBUTES Function
Tests if the node has attributes.
HASCHILDNODES Function
Tests if the node has child nodes.
IMPORTNODE Function
Imports a node from another document.
INSERTBEFORE Function
Inserts a child before the reference child.
ISNULL Functions
Tests if the node is NULL
MAKEATTR Function
Casts the node to an Attribute.
MAKECDATASECTION Function
Casts the node to a CData Section.
MAKECHARACTERDATA Function
Casts the node to Character Data.
MAKECOMMENT Function
Casts the node to a Comment.
MAKEDOCUMENT Function
Casts the node to a DOM Document.
MAKEDOCUMENTFRAGMENT Function
Casts the node to a DOM Document Fragment.
MAKEDOCUMENTTYPE Function
Casts the node to a DOM Document Type.
MAKEELEMENT Function
Casts the node to a DOM Element.
MAKEENTITY Function
Casts the node to a DOM Entity.
MAKEENTITYREFERENCE Function
Casts the node to a DOM Entity Reference.
MAKENOTATION Function
Casts the node to a DOM Notation.
MAKEPROCESSINGINSTRUCTION Function
Casts the node to a DOM Processing Instruction.
MAKETEXT Function
Casts the node to a DOM Text.
REMOVECHILD Function
Removes a specified child from a node.
REPLACECHILD Function
Replaces the old child with a new child.
SETNODEVALUE Procedure
Sets the Value of the node.
SETNODEVALUEASBINARYSTREAM Function & Procedure
Sets the Node Value as binary stream.
SETNODEVALUEASCHARACTERSTREAM Function & Procedure
Sets the Node Value as a character stream
SETPREFIX Procedure
Sets the namespace prefix.
USEBINARYSTREAM Function
Establishes that the stream is valid.
WRITETOBUFFER Procedures
Writes the contents of the node to a buffer.
WRITETOCLOB Procedures
Writes the contents of the node to a CLOB.
WRITETOFILE Procedures
Writes the contents of the node to a file.


DOMAttr Subprograms

Table 155-5 Summary of DOMAttr Subprograms; DBMS_XMLDOM

Method Description
GETEXPANDEDNAME Procedure and Functions
Retrieves the expanded name of the attribute.
GETLOCALNAME Procedure and Functions
Retrieves the local name of the attribute.
GETNAME Functions
Retrieves the name of the attribute.
GETNAMESPACE Procedure and Functions
Retrieves the NS URI of the attribute.
GETOWNERELEMENT Function
Retrieves the Element node, parent of the attribute.
GETQUALIFIEDNAME Functions
Retrieves the Qualified Name of the attribute.
GETSPECIFIED Function
Tests if attribute was specified in the element.
GETVALUE Function
Retrieves the value of the attribute.
ISNULL Functions
Tests if the Attribute node is NULL.
MAKENODE Functions
Casts the Attribute to a node.
SETVALUE Procedure
Sets the value of the attribute.


DOMCDataSection Subprograms

Table 155-6 Summary of DOMCdata Subprograms; DBMS_XMLDOM

Method Description
ISNULL Functions
Tests if the CDataSection is NULL.
MAKENODE Functions
Casts the CDatasection to a node.


DOMCharacterData Subprograms

Table 155-7 Summary of DOMCharacterData Subprograms; DBMS_XMLDOM

Method Description
APPENDDATA Procedure
Appends the given data to the node data.
DELETEDATA Procedure
Deletes the data from the given offSets.
GETDATA Functions
Retrieves the data of the node.
GETLENGTH Functions
Retrieves the length of the data.
INSERTDATA Procedure
Inserts the data in the node at the given offSets.
ISNULL Functions
Tests if the CharacterData is NULL.
MAKENODE Functions
Casts the CharacterData to a node.
REPLACEDATA Procedure
Changes a range of characters in the node.
SETDATA Procedures
Sets the data to the node.
SUBSTRINGDATA Function
Retrieves the substring of the data.


DOMComment Subprograms

Table 155-8 Summary of DOMComment Subprograms; DBMS_XMLDOM

Method Description
ISNULL Functions
Tests if the comment is NULL.
MAKENODE Functions
Casts the Comment to a node.


DOMDocument Subprograms

Table 155-9 Summary of DOMDocument Subprograms; DBMS_XMLDOM

Method Description
CREATEATTRIBUTE Functions
Creates an Attribute.
CREATECDATASECTION Function
Creates a CDataSection node.
CREATECOMMENT Function
Creates a Comment node.
CREATEDOCUMENT Function
Creates a new Document.
CREATEDOCUMENTFRAGMENT Function
Creates a new Document Fragment.
CREATEELEMENT Functions
Creates a new Element.
CREATEENTITYREFERENCE Function
Creates an Entity reference.
CREATEPROCESSINGINSTRUCTION Function
Creates a Processing Instruction.
CREATETEXTNODE Function
Creates a Text node.
FREEDOCFRAG Procedure
Frees the document fragment.
FREEDOCUMENT Procedure
Frees the document.
GETDOCTYPE Function
Retrieves the DTD of the document.
GETDOCUMENTELEMENT Function
Retrieves the root element of the document.
GETELEMENTSBYTAGNAME Functions
Retrieves the elements in the by tag name.
GETIMPLEMENTATION Function
Retrieves the DOM implementation.
GETSTANDALONE Function
Retrieves the standalone property of the document.
GETVERSION Function
Retrieves the version of the document.
GETXMLTYPE Function
Retrieves the XMLType associated with the DOM Document.
ISNULL Functions
Tests if the document is NULL.
MAKENODE Functions
Casts the document to a node.
NEWDOMDOCUMENT Functions
Creates a new document.
SETDOCTYPE Procedure
Sets the DTD of the document.
SETSTANDALONE Procedure
Sets the standalone property of the document.
SETVERSION Procedure
Sets the version of the document.
WRITETOBUFFER Procedures
Writes the document to a buffer.
WRITETOCLOB Procedures
Writes the document to a CLOB.
WRITETOFILE Procedures
Writes the document to a file.


DOMDocumentFragment Subprograms

Table 155-10 Summary of DOMDocumentFragment Subprograms; DBMS_XMLDOM

Method Description
FREEDOCFRAG Procedure
Frees the specified document fragment.
ISNULL Functions
Tests if the DocumentFragment is NULL.
MAKENODE Functions
Casts the Document Fragment to a node.
WRITETOBUFFER Procedures
Writes the contents of a document fragment into a buffer.


DOMDocumentType Subprograms

Table 155-11 Summary of DOMDocumentType Subprograms; DBMS_XMLDOM

Method Description
FINDENTITY Function
Finds the specified entity in the document type.
FINDNOTATION Function
Finds the specified notation in the document type.
GETENTITIES Function
Retrieves the nodemap of entities in the Document type.
GETNAME Functions
Retrieves the name of the Document type.
GETNOTATIONS Function
Retrieves the nodemap of the notations in the Document type.
GETPUBLICID Functions
Retrieves the public ID of the document type.
GETSYSTEMID Functions
Retrieves the system ID of the document type.
ISNULL Functions
Tests if the Document Type is NULL.
MAKENODE Functions
Casts the document type to a node.


DOMElement Subprograms

Table 155-12 Summary of DOMElement Subprograms; DBMS_XMLDOM

Method Description
GETATTRIBUTE Functions
Retrieves the attribute node by name.
GETATTRIBUTENODE Functions
Retrieves the attribute node by name.
GETCHILDRENBYTAGNAME Functions
Retrieves children of the element by tag name.
GETELEMENTSBYTAGNAME Functions
Retrieves elements in the subtree by tagname.
GETEXPANDEDNAME Procedure and Functions
Retrieves the expanded name of the element.
GETLOCALNAME Procedure and Functions
Retrieves the local name of the element.
GETNAMESPACE Procedure and Functions
Retrieves the NS URI of the element.
GETQUALIFIEDNAME Functions
Retrieves the qualified name of the element.
GETTAGNAME Function
Retrieves the Tag name of the element.
HASATTRIBUTE Functions
Tests if an attribute exists.
ISNULL Functions
Tests if the Element is NULL.
MAKENODE Functions
Casts the Element to a node.
NORMALIZE Procedure
Normalizes the text children of the element.
REMOVEATTRIBUTE Procedures
Removes the attribute specified by the name.
REMOVEATTRIBUTENODE Function
Removes the attribute node in the element.
RESOLVENAMESPACEPREFIX Function
Resolve the prefix to a namespace URI.
SETATTRIBUTE Procedures
Sets the attribute specified by the name.
SETATTRIBUTENODE Functions
Sets the attribute node in the element.


DOMEntity Subprograms

Table 155-13 Summary of DOMEntity Subprograms; DBMS_XMLDOM

Method Description
GETNOTATIONNAME Function
Retrieves the notation name of the entity.
GETPUBLICID Functions
Retrieves the public Id of the entity.
GETSYSTEMID Functions
Retrieves the system Id of the entity.
ISNULL Functions
Tests if the Entity is NULL.
MAKENODE Functions
Casts the Entity to a node.


DOMEntityReference Subprograms

Table 155-14 Summary of DOMEntityReference Subprograms; DBMS_XMLDOM

Method Description
ISNULL Functions
Tests if the DOMEntityReference is NULL.
MAKENODE Functions
Casts the DOMEntityReference to NULL.


DOMImplementation Subprograms

Table 155-15 Summary of DOMImplementation Subprograms; DBMS_XMLDOM

Method Description
ISNULL Functions
Tests if the DOMImplementation node is NULL.
HASFEATURE Function
Tests if the DOMImplementation implements a feature.


DOMNamedNodeMap Subprograms

Table 155-16 Summary of DOMNamedNodeMap Subprograms; DBMS_XMLDOM

Method Description
GETLENGTH Functions
Retrieves the number of items in the map.
GETNAMEDITEM Function
Retrieves the item specified by the name.
ISNULL Functions
Tests if the NamedNodeMap is NULL.
ITEM Functions
Retrieves the item given the index in the map.
REMOVENAMEDITEM Function
Removes the item specified by name.
SETNAMEDITEM Function
Sets the item in the map specified by the name.


DOMNodeList Subprograms

Table 155-17 Summary of DOMNodeList Subprograms; DBMS_XMLDOM

Method Description
GETLENGTH Functions
Retrieves the number of items in the list.
ISNULL Functions
Tests if the NodeList is NULL.
ITEM Functions
Retrieves the item given the index in the NodeList.


DOMNotation Subprograms

Table 155-18 Summary of DOMNotation Subprograms; DBMS_XMLDOM

Method Description
GETPUBLICID Functions
Retrieves the public Id of the notation.
GETSYSTEMID Functions
Retrieves the system Id of the notation.
ISNULL Functions
Tests if the Notation is NULL.
MAKENODE Functions
Casts the notation to a node.


DOMProcessingInstruction Subprograms

Table 155-19 Summary of DOMProcessingInstruction Subprograms; DBMS_XMLDOM

Method Description
GETDATA Functions
Retrieves the data of the processing instruction.
GETTARGET Function
Retrieves the target of the processing instruction.
ISNULL Functions
Tests if the Processing Instruction is NULL.
MAKENODE Functions
Casts the Processing Instruction to a node.
SETDATA Procedures
Sets the data of the processing instruction.


DOMText Subprograms

Table 155-20 Summary of DOMText Subprograms; DBMS_XMLDOM

Method Description
ISNULL Functions
Tests if the text is NULL.
MAKENODE Functions
Casts the text to a node.
SPLITTEXT Function
Splits the contents of the text node into 2 text nodes.


Summary of DBMS_XMLDOM Subprograms

Table 155-21 Summary of DBMS_XMLDOM Package Subprogram

Subprogram Description Group
ADOPTNODE Function
Adopts a node from another document DOMNode Subprograms
APPENDCHILD Function
Appends a new child to the node DOMNode Subprograms
APPENDDATA Procedure
Appends the given data to the node data DOMCharacterData Subprograms
CLONENODE Function
Clones the node DOMNode Subprograms
CREATEATTRIBUTE Functions
Creates an Attribute DOMDocument Subprograms
CREATECDATASECTION Function
Creates a CDataSection node DOMDocument Subprograms
CREATECOMMENT Function
Creates a Comment node DOMDocument Subprograms
CREATEDOCUMENT Function
Creates a new Document DOMDocument Subprograms
CREATEDOCUMENTFRAGMENT Function
Creates a new Document Fragment DOMDocument Subprograms
CREATEELEMENT Functions
Creates a new Element DOMDocument Subprograms
CREATEENTITYREFERENCE Function
Creates an Entity reference DOMDocument Subprograms
CREATEPROCESSINGINSTRUCTION Function
Creates a Processing Instruction DOMDocument Subprograms
CREATETEXTNODE Function
Creates a Text node DOMDocument Subprograms
DELETEDATA Procedure
Deletes the data from the given offSets DOMCharacterData Subprograms
FINDENTITY Function
Finds the specified entity in the document type DOMDocumentType Subprograms
FINDNOTATION Function
Finds the specified notation in the document type DOMDocumentType Subprograms
FREEDOCFRAG Procedure
Frees the document fragment DOMDocument Subprograms and DOMDocumentFragment Subprograms
FREEDOCUMENT Procedure
Frees the document DOMDocument Subprograms
FREENODE Procedure
Frees all resources associated with the node DOMNode Subprograms
GETATTRIBUTE Functions
Retrieves the attribute node by name DOMElement Subprograms
GETATTRIBUTENODE Functions
Retrieves the attribute node by name DOMElement Subprograms
GETATTRIBUTES Function
Retrieves the attributes of the node DOMNode Subprograms
GETCHILDNODES Function
Retrieves the children of the node DOMNode Subprograms
GETCHILDRENBYTAGNAME Functions
Retrieves children of the element by tag name DOMCharacterData Subprograms
GETDATA Functions
Retrieves
  • the data of the node

  • the data of the processing instruction


GETDOCTYPE Function
Retrieves the DTD of the document DOMDocument Subprograms
GETDOCUMENTELEMENT Function
Retrieves the root element of the document DOMDocument Subprograms
GETELEMENTSBYTAGNAME Functions
Retrieves
  • the elements in the by tag name

  • elements in the subtree by tagname


GETENTITIES Function
Retrieves the nodemap of entities in the Document type DOMDocumentType Subprograms
GETEXPANDEDNAME Procedure and Functions
Retrieves
  • the expanded name of the node

  • the expanded name of the attribute

  • the expanded name of the element


GETFIRSTCHILD Function
Retrieves the first child of the node DOMNode Subprograms
GETIMPLEMENTATION Function
Retrieves the DOM implementation DOMDocument Subprograms
GETLASTCHILD Function
Retrieves the last child of the node DOMNode Subprograms
GETLENGTH Functions
Retrieves
  • the length of the data

  • the number of items in the map

  • the number of items in the list


GETLOCALNAME Procedure and Functions
Retrieves
  • the local part of the qualified name

  • the local name of the attribute

  • the local name of the element


GETNAME Functions
Retrieves
  • the name of the attribute

  • the name of the Document type


GETNAMEDITEM Function
Retrieves
  • an item specified by name

  • and namespace URI )


GETNAMESPACE Procedure and Functions
Retrieves
  • the node's namespace URI

  • the NS URI of the attribute

  • the NS URI of the element


GETNEXTSIBLING Function
Retrieves the next sibling of the node DOMNode Subprograms
GETNODENAME Function
Retrieves the Name of the Node DOMNode Subprograms
GETNODETYPE Function
Retrieves the Type of the node DOMNode Subprograms
GETNODEVALUE Function
Retrieves the Value of the Node DOMNode Subprograms
GETNODEVALUEASBINARYSTREAM Function & Procedure
Retrieves the Node Value as bianry stream DOMNode Subprograms
GETNODEVALUEASCHARACTERSTREAM Function & Procedure
Retrieves the Node Value as character stream DOMNode Subprograms
GETNOTATIONNAME Function
Retrieves the notation name of the entity DOMEntity Subprograms
GETNOTATIONS Function
Retrieves the nodemap of the notations in the Document type DOMDocumentType Subprograms
GETTARGET Function
Retrieves the target of the processing instruction DOMProcessingInstruction Subprograms
GETOWNERDOCUMENT Function
Retrieves the owner document of the node DOMNode Subprograms
GETOWNERELEMENT Function
Retrieves the Element node, parent of the attribute DOMAttr Subprograms
GETPARENTNODE Function Retrieves the parent of this node DOMNode Subprograms
GETPREFIX Function
Retrieves the namespace prefix

)

DOMNode Subprograms
GETPREVIOUSSIBLING Function
Retrieves the previous sibling of the node DOMNode Subprograms
GETPUBLICID Functions
Retrieves
  • the public ID of the document type

  • the public Id of the entity

  • the public Id of the notation


GETQUALIFIEDNAME Functions
Retrieves
  • the Qualified Name of the attribute

  • the qualified name of the element


GETSCHEMANODE Function
Retrieves the associated schema URI DOMNode Subprograms
GETSPECIFIED Function
Tests if attribute was specified in the element. DOMAttr Subprograms
GETSTANDALONE Function
Retrieves the standalone property of the document DOMDocument Subprograms
GETSYSTEMID Functions
Retrieves
  • the system ID of the document type

  • the system Id of the entity

  • the system Id of the notation


GETTAGNAME Function
Retrieves the Tag name of the element DOMElement Subprograms
GETVALUE Function
Retrieves the value of the attribute DOMAttr Subprograms
GETVERSION Function
Retrieves the version of the document DOMDocument Subprograms)
GETXMLTYPE Function
Retrieves the XMLType associated with the DOM Document DOMDocument Subprograms
HASATTRIBUTES Function
Tests if the node has attributes DOMNode Subprograms
HASATTRIBUTE Functions
Tests if an attribute exists DOMElement Subprograms
HASCHILDNODES Function
Tests if the node has child nodes DOMNode Subprograms
HASFEATURE Function
Tests if the DOMImplementation implements a feature DOMImplementation Subprograms
IMPORTNODE Function
Imports a node from another document DOMNode Subprograms
INSERTBEFORE Function
Inserts a child before the reference child DOMNode Subprograms
INSERTDATA Procedure
Inserts the data in the node at the given offSets DOMCharacterData Subprograms
ISNULL Functions
Tests
  • if the node is NULL

  • if the Attribute node is NULL

  • if the CDataSection is NULL

  • if the CharacterData is NULL

  • if the comment is NULL

  • if the document is NULL

  • if the DocumentFragment is NULL

  • if the Document Type is NULL

  • if the Element is NULL

  • if the Entity is NULL

  • if the DOMEntityReference is NULL

  • if the DOMImplementation node is NULL

  • if the NamedNodeMap is NULL

  • if the NodeList is NULL

  • if the Notation is NULL

  • if the Processing Instruction is NULL

  • if the text is NULL


ITEM Functions
Retrieves
  • the item given the index in the map

  • the item given the index in the NodeList


MAKEATTR Function
Casts the node to an Attribute DOMNode Subprograms
MAKECDATASECTION Function
Casts the node to a CData Section DOMNode Subprograms
MAKECHARACTERDATA Function
Casts the node to Character Data DOMNode Subprograms
MAKECOMMENT Function
Casts the node to a Comment DOMNode Subprograms
MAKEDOCUMENT Function
Casts the node to a DOM Document DOMNode Subprograms
MAKEDOCUMENTFRAGMENT Function
Casts the node to a DOM Document Fragment DOMNode Subprograms)
MAKEDOCUMENTTYPE Function
Casts the node to a DOM Document Type DOMNode Subprograms
MAKEELEMENT Function
Casts the node to a DOM ElemenT DOMNode Subprograms
MAKEENTITY Function
Casts the node to a DOM Entity DOMNode Subprograms
MAKEENTITYREFERENCE Function
Casts the node to a DOM Entity Reference DOMNode Subprograms
MAKENODE Functions
Casts
  • the Attribute to a node

  • the CDatasection to a node

  • the CharacterData to a node

  • the Comment to a node

  • the document to a node

  • the Document Fragment to a node

  • the document type to a node

  • the Element to a node

  • the Entity to a node

  • the DOMEntityReference to NULL

  • the notation to a node

  • the Processing Instruction to a node

  • the text to a node


MAKENOTATION Function
Casts the node to a DOM Notation DOMNode Subprograms
MAKEPROCESSINGINSTRUCTION Function
Casts the node to a DOM Processing Instruction DOMNode Subprograms
MAKETEXT Function
Casts the node to a DOM Text DOMNode Subprograms
NEWDOMDOCUMENT Functions
Creates a new document DOMDocument Subprograms
NORMALIZE Procedure
Normalizes the text children of the element DOMElement Subprograms
REMOVEATTRIBUTE Procedures
Removes the attribute specified by the name DOMElement Subprograms
REMOVEATTRIBUTENODE Function
Removes the attribute node in the element DOMElement Subprograms
REMOVECHILD Function
Removes a specified child from a node DOMNode Subprograms
REMOVENAMEDITEM Function
Removes the item specified by name DOMNamedNodeMap Subprograms
REPLACECHILD Function
Replaces the old child with a new child DOMNode Subprograms
REPLACEDATA Procedure
Changes a range of characters in the node DOMCharacterData Subprograms
RESOLVENAMESPACEPREFIX Function
Resolve the prefix to a namespace URI DOMElement Subprograms
SETATTRIBUTE Procedures
Sets the attribute specified by the name DOMElement Subprograms
SETATTRIBUTENODE Functions
Sets the attribute node in the element DOMElement Subprograms
SETDATA Procedures
Sets
  • the data to the node

  • the data of the processing instruction


SETDOCTYPE Procedure
Sets the DTD of the document. DOMDocument Subprograms
SETNAMEDITEM Function
Sets the item in the map specified by the name DOMNamedNodeMap Subprograms
SETNODEVALUE Procedure
Sets the Value of the node DOMNode Subprograms
SETNODEVALUEASBINARYSTREAM Function & Procedure
Sets the Node Value as a binary stream DOMNode Subprograms
SETNODEVALUEASCHARACTERSTREAM Function & Procedure
Sets the Node Value as a character stream DOMNode Subprograms
SETPREFIX Procedure
Sets the namespace prefix DOMNode Subprograms
SETSTANDALONE Procedure
Sets the standalone property of the document DOMDocument Subprograms
SETVALUE Procedure
Sets the value of the attribute DOMAttr Subprograms
SETVERSION Procedure
Sets the version of the document DOMDocument Subprograms
SPLITTEXT Function
Splits the contents of the text node into 2 text nodes DOMText Subprograms
SUBSTRINGDATA Function
Retrieves the substring of the data DOMCharacterData Subprograms
USEBINARYSTREAM Function
Estrablishes that the stream is valid for use DOMNode Subprograms
WRITETOBUFFER Procedures
Writes
  • the contents of the node to a buffer

  • the document to a buffer

  • the contents of a document fragment into a buffer


WRITETOCLOB Procedures
Writes
  • the contents of the node to a CLOB

  • the document to a CLOB


WRITETOFILE Procedures
Writes
  • the contents of the node to a file

  • the document to a file




ADOPTNODE Function

This function adopts a node from another document, and returns this new node.

See Also:

DOMNode Subprograms for other subprograms in this group

Syntax

DBMS_XMLDOM.ADOPTNODE(
   doc            IN   DOMDocument,
   importedNode   IN   DOMNode)
 RETURN DOMNODE;

Parameters

Table 155-22 ADOPTNODE Function Parameters

Parameter Description
doc Document that is adopting the node
importedNode Node to adopt

Usage Notes

Note that the ADOPTNODE Function removes the node from the source document while the IMPORTNODE Function clones the node in the source document.


APPENDCHILD Function

This function adds the node newchild to the end of the list of children of this node, and returns the newly added node. If the newchild is already in the tree, it is first removed.

Syntax

DBMS_XMLDOM.APPENDCHILD(
   n          IN    DOMNode,
   newchild   IN    DOMNode)
 RETURN DOMNODE;

Parameters

Table 155-23 APPENDCHILD Function Parameters

Parameter Description
n DOMNode
newchild The child to be appended to the list of children of node n


APPENDDATA Procedure

This procedure appends the string to the end of the character data of the node. Upon success, data provides access to the concatenation of data and the specified string argument.

Syntax

DBMS_XMLDOM.APPENDDATA(
   cd      IN    DOMCHARACTERDATA,
   arg     IN    VARCHAR2);

Parameters

Table 155-24 APPENDDATA Procedure Parameters

Parameter Description
cd DOMCHARACTERDATA
arg The data to append to the existing data


CLONENODE Function

This function returns a duplicate of this node, and serves as a generic copy constructor for nodes. The duplicate node has no parent, its parent node is NULL.

Syntax

DBMS_XMLDOM.CLONENODE(
   n       IN    DOMNODE,
   deep    IN    BOOLEAN)
 RETURN DOMNODE;

Parameters

Table 155-25 CLONENODE Function Parameters

Parameter Description
n DOMNODE
deep Determines if children are to be cloned

Usage Notes


CREATEATTRIBUTE Functions

This function creates a DOMATTR node.

Syntax

Creates a DOMATTR with the specified name:

DBMS_XMLDOM.CREATEATTRIBUTE(
   doc     IN    DOMDOCUMENT,
   name    IN    VARCHAR2)
 RETURN DOMATTR;

Creates a DOMATTR with the specified name and namespace URI:

DBMS_XMLDOM.CREATEATTRIBUTE(
   doc     IN    DOMDOCUMENT,
   qname    IN    VARCHAR2,
   ns      IN     VARCHAR2)
RETURN DOMATTR;

Parameters

Table 155-26 CREATEATTRIBUTE Function Parameters

Parameter Description
doc DOMDOCUMENT
qname New attribute qualified name
ns Namespace


CREATECDATASECTION Function

This function creates a DOMCDATASECTION node.

Syntax

DBMS_XMLDOM.CREATECDATASECTION(
   doc     IN      DOMDOCUMENT,
   data    IN      VARCHAR2)
 RETURN DOMCDATASECTION;

Parameters

Table 155-27 CREATECDATASECTION Function Parameters

Parameter Description
doc DOMDOCUMENT
data Content of the DOMCDATASECTION node


CREATECOMMENT Function

This function creates a DOMCOMMENT node.

Syntax

DBMS_XMLDOM.CREATECOMMENT(
   doc      IN      DOMDOCUMENT,
   data     IN      VARCHAR2)
 RETURN DOMCOMMENT;

Parameters

Table 155-28 CREATECOMMENT Function Parameters

Parameter Description
doc DOMDOCUMENT
data Content of the DOMComment node


CREATEDOCUMENT Function

This function creates a DOMDOCUMENT with specified namespace URI, root element name, DTD.

Syntax

DBMS_XMLDOM.CREATEDOCUMENT(
   namespaceURI      IN     VARCHAR2,
   qualifiedName     IN     VARCHAR2,
   doctype           IN     DOMTYPE := NULL)
 RETURN DOMDOCUMENT;

Parameters

Table 155-29 CREATEDOCUMENT Function Parameters

Parameter Description
namespaceURI Namespace URI
qualifiedName Root element name
doctype Document type


CREATEDOCUMENTFRAGMENT Function

This function creates a DOMDOCUMENTFRAGMENT.

Syntax

DBMS_XMLDOM.CREATEDOCUMENTFRAGMENT(
   doc      IN     DOMDOCUMENT)
 RETURN DOMDOCUMENTFRAGMENT;

Parameters

Table 155-30 CREATEDOCUMENTFRAGMENT Function Parameters

Parameter Description
doc DOMDocument


CREATEELEMENT Functions

This function creates a DOMELEMENT.

Syntax

Creates a DOMElement with specified name:

DBMS_XMLDOM.CREATEELEMENT(
   doc        IN      DOMDOCUMENT,
   tagName    IN      VARCHAR2)
 RETURN DOMELEMENT;

Creates a DOMElement with specified name and namespace URI:

DBMS_XMLDOM.CREATEELEMENT(
   doc        IN     DOMDOCUMENT,
   tagName    IN     VARCHAR2,
   ns         IN     VARCHAR2)
 RETURN DOMELEMENT;

Parameters

Table 155-31 CREATEELEMENT Function Parameters

Parameter Description
doc DOMDOCUMENT
tagName Tagname for new DOMELEMENT
ns Namespace


CREATEENTITYREFERENCE Function

This function creates a DOMENTITYREFERENCE node.

Syntax

DBMS_XMLDOM.CREATEENTITYREFERENCE(
   doc        IN     DOMDOCUMENT,
   name       IN     VARCHAR2)
 RETURN DOMENTITYREFERENCE;

Parameters

Table 155-32 CREATEENTITYREFERENCE Function Parameters

Parameter Description
doc DOMDOCUMENT
name New entity reference name


CREATEPROCESSINGINSTRUCTION Function

This function creates a DOMPROCESSINGINSTRUCTION node.

Syntax

DBMS_XMLDOM.CREATEPROCESSINGINSTRUCTION(
   doc       IN      DOMDocument,
   target    IN      VARCHAR2,
   data      IN      VARCHAR2)
 RETURN DOMPROCESSINGINSTRUCTION;

Parameters

Table 155-33 CREATEPROCESSINGINSTRUCTION Function Parameters

Parameter Description
doc DOMDOCUMENT
target Target of the new processing instruction
data Content data of the new processing instruction


CREATETEXTNODE Function

This function creates a DOMTEXT node.

Syntax

DBMS_XMLDOM.CREATETEXTNODE(
   doc      IN     DOMDocument,
   data     IN     VARCHAR2)
 RETURN DOMTEXT;

Parameters

Table 155-34 CREATETEXTNODE Function Parameters

Parameter Description
doc DOMDOCUMENT
data Content of the DOMText node


DELETEDATA Procedure

This procedure removes a range of characters from the node. Upon success, data and length reflect the change.

Syntax

DBMS_XMLDOM.DELETEDATA(
   cd        IN     DOMCHARACTERDATA,
   offset    IN     NUMBER,
   cnt       IN     NUMBER);

Parameters

Table 155-35 DELETEDATA PROCEDURE Parameters

Parameter Description
cd DOMCHARACTERDATA
offset The offset from which to delete the data
cnt The number of characters (starting from offset) to delete


FINDENTITY Function

This function finds an entity in the given DTD, and returns that entity if found.

Syntax

DBMS_XMLDOM.FINDENTITY(
   dt     IN     DOMDOCUMENTTYPE,
   name   IN     VARCHAR2,
   par    IN     BOOLEAN)
 RETURN  DOMENTITY;

Parameters

Table 155-36 FINDENTITY Function Parameters

Parameter Description
dt The DTD
name Entity to find
par Flag to indicate type of entity; TRUE for parameter entity and FALSE for normal entity


FINDNOTATION Function

This function finds the notation in the given DTD, and returns it, if found.

Syntax

DBMS_XMLDOM.FINDNOTATION(
   dt        IN     DOMDocumentType,
   name      IN     VARCHAR2)
 RETURN DOMNOTATION;

Parameters

Table 155-37 FINDNOTATION Function Parameters

Parameter Description
dt The DTD
name The notation to find


FREEDOCFRAG Procedure

This procedure frees the specified document fragment.

Syntax

DBMS_XMLDOM.FREEDOCFRAG(
   df    IN    DOMDOCUMENTFRAGMENT);

Parameters

Table 155-38 FREEDOCFRAG Procedure Parameters

Parameter Description
df DOM document fragment


FREEDOCUMENT Procedure

This procedure frees DOMDOCUMENT object.

Syntax

DBMS_XMLDOM.FREEDOCUMENT(
   doc     IN     DOMDOCUMENT);

Parameters

Table 155-39 FREEDOCUMENT Procedure Parameters

Parameter Description
doc DOMDOCUMENT


FREENODE Procedure

This procedure frees all resources associated with a DOMNODE.

Syntax

DBMS_XMLDOM.FREENODE(
   n      IN     DOMNODE);

Parameters

Table 155-40 FREENODE Procedure Parameters

Parameter Description
n DOMNODE


GETATTRIBUTE Functions

This function returns the value of a DOMELEMENT's attribute by name.

Syntax

Returns the value of a DOMELEMENT's attribute by name:

DBMS_XMLDOM.GETATTRIBUTE(
   elem       IN      DOMELEMENT,
   name       IN      VARCHAR2)
 RETURN VARCHAR2;

Returns the value of a DOMELEMENT's attribute by name and namespace URI:

DBMS_XMLDOM.GETATTRIBUTE(
   elem      IN     DOMELEMENT,
   name      IN     VARCHAR2,
   ns        IN     VARCHAR2)
 RETURN VARCHAR2;

Parameters

Table 155-41 GETATTRIBUTE Function Parameters

Parameter Description
elem The DOMELEMENT
name Attribute name
ns Namespace


GETATTRIBUTENODE Functions

This function returns an attribute node from the DOMELEMENT by name. The function is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Returns an attribute node from the DOMELEMENT by name:

DBMS_XMLDOM.GETATTRIBUTENODE(
   elem      IN     DOMElement,
   name      IN     VARCHAR2)
 RETURN DOMATTR;

Returns an attribute node from the DOMELEMENT by name and namespace URI:

DBMS_XMLDOM.GETATTRIBUTENODE(
   elem      IN     DOMElement,
   name      IN     VARCHAR2,
   ns        IN     VARCHAR2)
RETURN DOMATTR;

Parameters

Table 155-42 GETATTRIBUTENODE Function Parameters

Parameter Description
elem The DOMELEMENT
name Attribute name; * matches any attribute
ns Namespace


GETATTRIBUTES Function

This function retrieves a NAMEDNODEMAP containing the attributes of this node (if it is an Element) or NULL otherwise.

Syntax

DBMS_XMLDOM.GETATTRIBUTES(
   n      IN      DOMNode)
 RETURN DOMNAMEDNODEMAP;

Parameters

Table 155-43 GETATTRIBUTES Function Parameters

Parameter Description
n DOMNODE


GETCHILDNODES Function

This function retrieves a DOMNODELIST that contains all children of this node. If there are no children, this is a DOMNODELIST containing no nodes.

Syntax

DBMS_XMLDOM.GETCHILDNODES(
   n      IN    DOMNode)
 RETURN DOMNodeList;

Parameters

Table 155-44 GETCHILDNODES Function Parameters

Parameter Description
n DOMNODE


GETCHILDRENBYTAGNAME Functions

This function returns the children of the DOMELEMENT.

Syntax

Returns children of the DOMELEMENT given the tag name:

DBMS_XMLDOM.GETCHILDRENBYTAGNAME(
   elem      IN      DOMElement,
   name      IN      VARCHAR2)
 RETURN DOMNODELIST;

Returns children of the DOMELEMENT given the tag name and namespace:

DBMS_XMLDOM.GETCHILDRENBYTAGNAME(
   elem      IN      DOMElement,
   name      IN      VARCHAR2,
   ns        IN      VARCHAR2)
RETURN DOMNODELIST;

Parameters

Table 155-45 GETCHILDRENBYTAGNAME Function Parameters

Parameter Description
elem The DOMELEMENT
name Tag name
ns Namespace


GETDATA Functions

This function is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Gets the character data of the node that implements this interface (See Also: DOMCharacterData Subprograms):

DBMS_XMLDOM.GETDATA(
   cd      IN    DOMCHARACTERDATA)
 RETURN VARCHAR2;

Returns the content data of the DOMProcessingInstruction (See Also: DOMProcessingInstruction Subprograms):

DBMS_XMLDOM.GETDATA(
   pi      IN    DOMPROCESSINGINSTRUCTION)
 RETURN VARCHAR2;

Parameters

Table 155-46 GETDATA Function Parameters

Parameter Description
cd DOMCHARACTERDATA
pi The DOMPROCESSINGINSTRUCTION


GETDOCTYPE Function

This function returns the DTD associated to the DOMDOCUMENT.

Syntax

DBMS_XMLDOM.GETDOCTYPE(
   doc      IN     DOMDOCUMENT)
RETURN DOMDOCUMENTTYPE;

Parameters

Table 155-47 GETDOCTYPE Function Parameters

Parameter Description
doc DOMDOCUMENT


GETDOCUMENTELEMENT Function

This function returns the root element of the DOMDOCUMENT.

Syntax

DBMS_XMLDOM.GETDOCUMENTELEMENT(
   doc      IN      DOMDOCUMENT)
 RETURN DOMELEMENT;

Parameters

Table 155-48 GETDOCUMENTELEMENT Function Parameters

Parameter Description
doc DOMDOCUMENT


GETELEMENTSBYTAGNAME Functions

This function is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Returns a DOMNODELIST of all the elements with a given tagname (See Also: DOMDocument Subprograms):

DBMS_XMLDOM.GETELEMENTSBYTAGNAME(
   doc         IN      DOMDOCUMENT,
   tagname     IN      VARCHAR2)
 RETURN DOMNODELIST;

Returns the element children of the DOMELEMENT given the tag name (See Also: DOMElement Subprograms):

DBMS_XMLDOM.GETELEMENTSBYTAGNAME(
   elem      IN     DOMELEMENT,
   name      IN     VARCHAR2)
 RETURN DOMNODELIST;

Returns the element children of the DOMELEMENT given the tag name and namespace (See Also: DOMElement Subprograms):

DBMS_XMLDOM.GETELEMENTSBYTAGNAME(
   elem      IN     DOMELEMENT,
   name      IN     VARCHAR2,
   ns        IN     VARCHAR2)
 RETURN DOMNODELIST;

Parameters

Table 155-49 GETELEMENTSBYTAGNAME Function Parameters

Parameter Description
doc DOMDOCUMENT
tagname Name of the tag to match on
elem The DOMELEMENT
name Tag name; using a wildcard(*) would match any tag
ns Namespace


GETENTITIES Function

This function retrieves a DOMNAMEDNODEMAP containing the general entities, both external and internal, declared in the DTD.

Syntax

DBMS_XMLDOM.GETENTITIES(
   dt      IN     DOMDocumentType)
 RETURN DOMNAMEDNODEMAP;

Parameters

Table 155-50 GETENTITIES Function Parameters

Parameter Description
dt DOMDOCUMENTTYPE


GETEXPANDEDNAME Procedure and Functions

This subprogram is overloaded as a procedure and two functions. The specific forms of functionality are described along with the syntax declarations.

Syntax

Retrieves the expanded name of the Node if is in an Element or Attribute type; otherwise, returns NULL (See Also: DOMNode Subprograms)

DBMS_XMLDOM.GETEXPANDEDNAME(
   n       IN      DOMNODE
   data    OUT     VARCHAR);

Returns the expanded name of the DOMAttr (See Also: DOMAttr Subprograms):

DBMS_XMLDOM.GETEXPANDEDNAME(
   a       IN     DOMAttr)
 RETURN VARCHAR2;

Returns the expanded name of the DOMElement (See Also: DOMElement Subprograms):

DBMS_XMLDOM.GETEXPANDEDNAME(
   elem      IN    DOMELEMENT)
 RETURN VARCHAR2;

Parameters

Table 155-51 GETEXPANDEDNAME Procedure and Function Parameters

Parameter Description
n DOMNODE
data Returned expanded name of the Node
a DOMATTR
elem DOMELEMENT


GETFIRSTCHILD Function

This function retrieves the first child of this node. If there is no such node, this returns NULL.

Syntax

DBMS_XMLDOM.GETFIRSTCHILD(
   n      IN      DOMNODE)
 RETURN DOMNODE;

Parameters

Table 155-52 GETFIRSTCHILD Function Parameters

Parameter Description
n DOMNODE


GETIMPLEMENTATION Function

This function returns the DOMIMPLEMENTATION object that handles this DOMDOCUMENT.

Syntax

DBMS_XMLDOM.GETIMPLEMENTATION(
   doc      IN     DOMDOCUMENT)
 RETURN DOMIMPLEMENTATION;

Parameters

Table 155-53 GETIMPLEMENTATION Function Parameters

Parameter Description
doc DOMDOCUMENT


GETLASTCHILD Function

This function retrieves the last child of this node. If there is no such node, this returns NULL.

Syntax

DBMS_XMLDOM.GETLASTCHILD(
   n     IN   DOMNODE)
 RETURN DOMNODE;

Parameters

Table 155-54 GETLASTCHILD Function Parameters

Parameter Description
n DOMNODE


GETLENGTH Functions

This function is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Gets the number of characters in the data. This may have the value zero, because CharacterData nodes may be empty (See Also: DOMCharacterData Subprograms):

DBMS_XMLDOM.GETLENGTH(
   cd     IN     DOMCHARACTERDATA)
 RETURN NUMBER;

Gets the number of nodes in this map. The range of valid child node indexes is 0 to length-1, inclusive (See Also: DOMNamedNodeMap Subprograms):

DBMS_XMLDOM.GETLENGTH(
   nnm      IN     DOMNAMEDNODEMAP)
 RETURN NUMBER;

Gets the number of nodes in the list. The range of valid child node indexes is 0 to length-1, inclusive (See Also: DOMNodeList Subprograms):

DBMS_XMLDOM.GETLENGTH(
   nl     IN    DOMNODELIST)
 RETURN NUMBER;

Parameters

Table 155-55 GETLENGTH Function Parameters

Parameter Description
cd DOMCHARACTERDATA
nnm DOMNAMEDNODEMAP
nl DOMNODELIST


GETLOCALNAME Procedure and Functions

This function is overloaded as a procedure and two functions. The specific forms of functionality are described alongside the syntax declarations.

Syntax

Retrieves the local part of the node's qualified name (See Also: DOMNode Subprograms):

DBMS_XMLDOM.GETLOCALNAME(
   n       IN     DOMNODE,
   data    OUT    VARCHAR2);

Returns the local name of the DOMAttr (See Also: DOMAttr Subprograms):

DBMS_XMLDOM.GETLOCALNAME(
   a       IN     DOMATTR)
 RETURN VARCHAR2;

Returns the local name of the DOMElement (See Also: DOMElement Subprograms)

DBMS_XMLDOM.GETLOCALNAME(
   elem       IN     DOMELEMENT)
 RETURN VARCHAR2;

Parameters

Table 155-56 GETLOCALNAME Procedure and Function Parameters

Parameter Description
n DOMNode
data Returned local name.
a DOMAttr.
elem DOMElement.


GETNAME Functions

This function is overloaded. The specific forms of functionality are described alongside the syntax declarations.

Syntax

Returns the name of this attribute (See Also: DOMAttr Subprograms):

DBMS_XMLDOM.GETNAME(
   a       IN     DOMATTR)
 RETURN VARCHAR2;

Retrieves the name of DTD, or the name immediately following the DOCTYPE keyword (See Also: DOMDocumentType Subprograms):

DBMS_XMLDOM.GETNAME(
   dt       IN     DOMDOCUMENTTYPE)
 RETURN VARCHAR2;

Parameters

Table 155-57 GETNAME Function Parameters

Parameter Description
a DOMATTR
dt DOMDOCUMENTTYPE


GETNAMEDITEM Function

This function retrieves a node specified by name.

Syntax

Retrieves a node specified by name:

DBMS_XMLDOM.GETNAMEDITEM(
   nnm    IN  DOMNAMEDNODEMAP,
   name   IN  VARCHAR2)
 RETURN DOMNODE;

Retrieves a node specified by name and namespace URI:

DBMS_XMLDOM.GETNAMEDITEM(
   nnm    IN  DOMNAMEDNODEMAP,
   name   IN  VARCHAR2,
   ns     IN  VARCHAR2)
 RETURN DOMNODE;

Parameters

Table 155-58 GETNAMEDITEM Function Parameters

Parameter Description
nnm DOMNAMEDNODEMAP
name Name of the item to be retrieved
ns Namespace


GETNAMESPACE Procedure and Functions

This subprogram is overloaded as a procedure and two functions. The specific forms of functionality are described alongside the syntax declarations.

Syntax

Retrieves the namespace URI associated with the node (See Also: DOMNode Subprograms):

DBMS_XMLDOM.GETNAMESPACE(
   n       IN     DOMNODE,
   data    OUT    VARCHAR2);

Retrieves the namespace of the DOMATTR (See Also: DOMAttr Subprograms):

DBMS_XMLDOM.GETNAMESPACE(
   a       IN     DOMATTR)
 RETURN VARCHAR2;

Retrieves the namespace of the DOMELEMENT (See Also: DOMElement Subprograms):

DBMS_XMLDOM.GETNAMESPACE(
   elem       IN     DOMELEMENT)
 RETURN VARCHAR2;

Parameters

Table 155-59 GETNAMESPACE Procedure and Function Parameters

Parameter Description
n DOMNODE
data Returned namespace URI
a DOMATTR
elem DOMELEMENT


GETNEXTSIBLING Function

This function retrieves the node immediately following this node. If there is no such node, this returns NULL.

Syntax

DBMS_XMLDOM.GETNEXTSIBLING(
   n       IN     DOMNODE)
 RETURN DOMNode;

Parameters

Table 155-60 GETNEXTSIBLING Function Parameters

Parameter Description
n DOMNODE


GETNODETYPE Function

This function retrieves a code representing the type of the underlying object.

Syntax

DBMS_XMLDOM.GETNODETYPE(
   n       IN     DOMNODE)
 RETURN NUMBER;

Parameters

Table 155-61 GETNODETYPE Function Parameters

Parameter Description
n DOMNODE


GETNODENAME Function

This function gets the name of the node depending on its type.

Syntax

DBMS_XMLDOM.GETNODENAME(
   n       IN     DOMNODE)
 RETURN VARCHAR2;

Parameters

Table 155-62 GETNODENAME Function Parameters

Parameter Description
n DOMNODE


GETNODEVALUE Function

This function gets the value of this node, depending on its type.

Syntax

DBMS_XMLDOM.GETNODEVALUE(
   n       IN     DOMNODE)
 RETURN VARCHAR2;*

Parameters

Table 155-63 GETNODEVALUE Function Parameters

Parameter Description
n DOMNODE


GETNODEVALUEASBINARYSTREAM Function & Procedure

The operation of these subprograms is described with each syntax implementation.

Syntax

This function returns an instance of the PL/SQL XMLBinaryInputStream. The node data type must be RAW or BLOB – if not an exception is raised.

DBMS_XMLDOM.GETNODEVALUEASBINARYSTREAM (
   n      IN     DOMNODE)
 RETURN SYS.UTL_BINARYINPUTSTREAM;

Using this procedure, the application passes an implementation of SYS.UTL_BINARYOUTPUTSTREAM into which XDB writes the contents of the node. The data type of the node must be RAW or CLOB – if not an exception is raised.

DBMS_XMLDOM.GETNODEVALUEASBINARYSTREAM (
   n        in   DOMNODE,
   value    in   SYS.UTL_BINARYOUTPUTSTREAM);

Parameters

Table 155-64 GETNODEVALUEASBINARYSTREAM Function & Procedure Parameters

Parameter Description
n DOMNODE
value BINARYOUTPUTSTREAM


GETNODEVALUEASCHARACTERSTREAM Function & Procedure

The operation of these subprograms is described with each syntax implementation.

Syntax

This function returns an instance of the PL/SQL XMLCharacterInputStream. If the node data is character it is converted to the current session character set. If the node data is not character data, it is first converted to character data.

DBMS_XMLDOM.GETNODEVALUEASCHARACTERSTREAM  (
   n        IN     DOMNODE)
 RETURN SYS.UTL_CHARACTERINPUTSTREAM;

Using this procedure, the node data is converted, as necessary, to the session character set and then "pushed" into the SYS.UTL_CHARACTEROUTPUTSTREAM.

DBMS_XMLDOM.GETNODEVALUEASCHARACTERSTREAM  (
   n        IN   DOMNODE,
   value    IN   SYS.UTL_CHARACTEROUTPUTSTREAM);

Parameters

Table 155-65 GETNODEVALUEASCHARACTERSTREAM Function & Procedure Parameters

Parameter Description
n DOMNODE
value CHARACTEROUTPUTSTREAM


GETNOTATIONNAME Function

This function returns the notation name of the DOMENTITY.

Syntax

DBMS_XMLDOM.GETNOTATIONNAME(
   ent       IN     DOMENTITY)
 RETURN VARCHAR2;

Parameters

Table 155-66 GETNOTATIONNAME Function Parameters

Parameter Description
ent DOMENTITY


GETNOTATIONS Function

This function retrieves a DOMNAMEDNODEMAP containing the notations declared in the DTD.

Syntax

DBMS_XMLDOM.GETNOTATIONS(
   dt       IN     DOMDOCUMENTTYPE)
 RETURN DOMNAMEDNODEMAP;

Parameters

Table 155-67 GETNOTATIONS Function Parameters

Parameter Description
dt DOMDOCUMENTTYPE


GETTARGET Function

This function returns the target of the DOMPROCESSINGINSTRUCTION.

Syntax

DBMS_XMLDOM.GETTARGET(
   pi       IN     DOMPROCESSINGINSTRUCTION)
 RETURN VARCHAR2;

Parameters

Table 155-68 GETTARGET Function Parameters

Parameter Description
pi DOMPROCESSINGINSTRUCTION


GETOWNERDOCUMENT Function

This function retrieves the Document object associated with this node. This is also the Document object used to create new nodes. When this node is a Document or a Document Type that is not used with any Document yet, this is NULL.

Syntax

DBMS_XMLDOM.GETOWNERDOCUMENT(
   n       IN     DOMNODE)
 RETURN DOMDOCUMENT;

Parameters

Table 155-69 GETOWNERDOCUMENT Function Parameters

Parameter Description
n DOMNODE


GETOWNERELEMENT Function

This function retrieves the Element node to which the specified Attribute is attached.

Syntax

DBMS_XMLDOM.GETOWNERELEMENT(
   a       IN     DOMATTR)
 RETURN DOMElement;

Parameters

Table 155-70 GETOWNERELEMENT Function Parameters

Parameter Description
a Attribute


GETPARENTNODE Function

This function retrieves the parent of this node. All nodes, except Attr, Document, DocumentFragment, Entity, and Notation may have a parent. However, if a node has just been created and not yet added to the tree, or if it has been removed from the tree, this is NULL.

Syntax

DBMS_XMLDOM.GETPARENTNODE(
   n       IN     DOMNODE)
 RETURN DOMNODE;

Parameters

Table 155-71 GETPARENTNODE Function Parameters

Parameter Description
n DOMNODE


GETPREFIX Function

This function retrieves the namespace prefix of the node.

Syntax

DBMS_XMLDOM.GETPREFIX(
   n       IN     DOMNODE)
 RETURN VARCHAR2;

Parameters

Table 155-72 GETPREFIX Function Parameters

Parameter Description
n DOMNODE


GETPREVIOUSSIBLING Function

This function retrieves the node immediately preceding this node. If there is no such node, this returns NULL.

Syntax

DBMS_XMLDOM.GETPREVIOUSSIBLING(
   n       IN     DOMNODE)
 RETURN DOMNODE;

Parameters

Table 155-73 GETPREVIOUSSIBLING Function Parameters

Parameter Description
n DOMNODE


GETPUBLICID Functions

This function is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Returns the public identifier of the given DTD (See Also: DOMDocumentType Subprograms):

DBMS_XMLDOM.GETPUBLICID(
   dt       IN     DOMDOCUMENTTYPE)
 RETURN VARCHAR2;

Returns the public identifier of the DOMENTITY (See Also: DOMEntity Subprograms):

DBMS_XMLDOM.GETPUBLICID(
   ent      IN     DOMENTITY)
 RETURN VARCHAR2;

Returns the public identifier of the DOMNOTATION (See Also: DOMNotation Subprograms):

DBMS_XMLDOM.GETPUBLICID(
   n        IN     DOMNOTATION)
 RETURN VARCHAR2;

Parameters

Table 155-74 GETPUBLICID Function Parameters

Parameter Description
dt The DTD
ent DOMENTITY
n DOMNOTATION


GETQUALIFIEDNAME Functions

This function is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Returns the qualified name of the DOMATTR (See Also: DOMAttr Subprograms):

DBMS_XMLDOM.GETQUALIFIEDNAME(
   a        IN     DOMATTR)
 RETURN VARCHAR2;

Returns the qualified name of the DOMElement (See Also: DOMElement Subprograms):

DBMS_XMLDOM.GETQUALIFIEDNAME(
   elem     IN     DOMELEMENT)
 RETURN VARCHAR2;

Parameters

Table 155-75 GETQUALIFIEDNAME Functions Parameters

Parameter Description
a DOMATTR
elem DOMELEMENT


GETSCHEMANODE Function

This function retrieves the schema URI associated with the node.

Syntax

DBMS_XMLDOM.GETSCHEMANODE(
   n       IN     DOMNODE)
 RETURN DOMNODE;

Parameters

Table 155-76 GETSCHEMANODE Function Parameters

Parameter Description
n DOMNODE


GETSPECIFIED Function

If this attribute was explicitly given a value in the original document, this is true; otherwise, it is false.

Syntax

DBMS_XMLDOM.GETSPECIFIED(
   a       IN     DOMATTR)
 RETURN BOOLEAN;

Parameters

Table 155-77 GETSPECIFIED Function Parameters

Parameter Description
a DOMATTR


GETSTANDALONE Function

This function returns the standalone property associated with the DOMDOCUMENT.

Syntax

DBMS_XMLDOM.GETSTANDALONE(
   doc       IN     DOMDOCUMENT)
 RETURN VARCHAR2;

Parameters

Table 155-78 GETSTANDALONE Function Parameters

Parameter Description
doc DOMDOCUMENT.


GETSYSTEMID Functions

This function is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Returns the system id of the given DTD (See Also: DOMDocumentType Subprograms):

DBMS_XMLDOM.GETSYSTEMID(
   dt       IN     DOMDOCUMENTTYPE)
 RETURN VARCHAR2;

Returns the system identifier of the DOMENTITY (See Also: DOMEntity Subprograms):

DBMS_XMLDOM.GETSYSTEMID(
   ent      IN     DOMENTITY)
 RETURN VARCHAR2;

Returns the system identifier of the DOMNOTATION (See Also: DOMNotation Subprograms):

DBMS_XMLDOM.GETSYSTEMID(
   n        IN     DOMNOTATION)
 RETURN VARCHAR2;

Parameters

Table 155-79 GETSYSTEMID Function Parameters

Parameter Description
dt The DTD.
ent DOMEntity.
n DOMNotation.


GETTAGNAME Function

This function returns the name of the DOMELEMENT.

Syntax

DBMS_XMLDOM.GETTAGNAME(
   elem       IN     DOMELEMENT)
 RETURN VARCHAR2;

Parameters

Table 155-80 GETTAGNAME Function Parameters

Parameter Description
elem The DOMELEMENT


GETVALUE Function

This function retrieves the value of the attribute.

Syntax

DBMS_XMLDOM.GETVALUE(
   a       IN     DOMATTR)
 RETURN VARCHAR2;

Parameters

Table 155-81 GETVALUE Function Parameters

Parameter Description
a DOMATTR


GETVERSION Function

This function returns the version of the DOMDOCUMENT.

Syntax

DBMS_XMLDOM.GETVERSION(
   doc       IN     DOMDOCUMENT)
 RETURN VARCHAR2;

Parameters

Table 155-82 GETVERSION Function Parameters

Parameter Description
doc DOMDOCUMENT


GETXMLTYPE Function

This function returns the XMLType associated with the DOMDOCUMENT.

Syntax

DBMS_XMLDOM.GETXMLTYPE(
   doc       IN     DOMDOCUMENT)
 RETURN SYS.XMLTYPE;

Parameters

Table 155-83 GETXMLTYPE Function Parameters

Parameter Description
doc DOMDOCUMENT


HASATTRIBUTE Functions

Verifies whether an attribute has been defined for DOMELEMENT, or has a default value.

Syntax

Verifies whether an attribute with the specified name has been defined for DOMElement:

DBMS_XMLDOM.HASATTRIBUTE(
   elem     IN  DOMELEMENT,
   name     IN  VARCHAR2)
 RETURN VARCHAR2;

Verifies whether an attribute with specified name and namespace URI has been defined for DOMELEMENT; namespace enabled:

DBMS_XMLDOM.HASATTRIBUTE(
   elem     IN  DOMELEMENT,
   name     IN  VARCHAR2,
   ns       IN  VARCHAR2)
 RETURN VARCHAR2;

Parameters

Table 155-84 HASATTRIBUTE Function Parameters

Parameter Description
elem The DOMELEMENT
name Attribute name; * matches any attribute
ns Namespace


HASATTRIBUTES Function

This function returns whether this node has any attributes.

Syntax

DBMS_XMLDOM.HASATTRIBUTES(
   n       IN     DOMNODE)
 RETURN BOOLEAN;

Parameters

Table 155-85 HASATTRIBUTES Function Parameters

Parameter Description
n DOMNODE


HASCHILDNODES Function

This function determines whether this node has any children.

Syntax

DBMS_XMLDOM.HASCHILDNODES(
   n       IN     DOMNODE)
 RETURN BOOLEAN;

Parameters

Table 155-86 HASCHILDNODES Function Parameters

Parameter Description
n DOMNODE


HASFEATURE Function

This function tests if the DOMIMPLEMENTATION implements a specific feature.

Syntax

DBMS_XMLDOM.HASFEATURE(
   di       IN     DOMIMPLEMENTATION,
   feature  IN     VARCHAR2,
   version  IN     VARCHAR2)
 RETURN BOOLEAN;

Parameters

Table 155-87 HASFEATURE Function Parameters

Parameter Description
di DOMIMPLEMENTATION
feature The feature to check for
version The version of the DOM to check in


IMPORTNODE Function

This function imports a node from an external document and returns this new node.

Syntax

DBMS_XMLDOM.IMPORTNODE(
   doc            IN  DOMDOCUMENT,
   importedNode   IN  DOMNODE,
   deep           IN  BOOLEAN)
  RETURN DOMNODE;

Parameters

Table 155-88 IMPORTNODE Function Parameters

Parameter Description
doc Document from which the node is imported
importedNode Node to import
deep Setting for recursive import.
  • If this value is TRUE, the entire subtree of the node will be imported with the node.

  • If this value is FALSE, only the node itself will be imported.


Usage Notes

Note that the ADOPTNODE Function removes the node from the source document while the IMPORTNODE Function clones the node in the source document.


INSERTBEFORE Function

This function inserts the node newchild before the existing child node refchild. If refchild is NULL, insert newchild at the end of the list of children.

If newchild is a DOCUMENTFRAGMENT object, all of its children are inserted, in the same order, before refchild. If the newchild is already in the tree, it is first removed.

Syntax

DBMS_XMLDOM.INSERTBEFORE(
   n          IN     DOMNODE,
   newchild   IN     DOMNODE,
   refchild   IN     DOMNODE)
  RETURN DOMNode;

Parameters

Table 155-89 INSERTBEFORE Function Parameters

Parameter Description
n DOMNODE
newChild The child to be inserted in the DOMNODE
refChild The reference node before which the newchild is to be inserted


INSERTDATA Procedure

This procedure inserts a string at the specified character offset.

Syntax

DBMS_XMLDOM.INSERTDATA(
   cd       IN     DOMCHARACTERDATA,
   offset   IN     NUMBER,
   arg      IN     VARCHAR2);

Parameters

Table 155-90 INSERTDATA Procedure Parameters

Parameter Description
cd DOMCHARACTERDATA
offset The offset at which to insert the data
arg The value to be inserted


ISNULL Functions

This function is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Checks if the given DOMNODE is NULL. Returns TRUE if it is NULL, FALSE otherwise (See Also: DOMNode Subprograms):

DBMS_XMLDOM.ISNULL(
  n        IN     DOMNODE)
 RETURN BOOLEAN;

Checks that the given DOMATTR is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMAttr Subprograms):

DBMS_XMLDOM.ISNULL(
   a       IN     DOMATTR)
 RETURN BOOLEAN;

Checks that the given DOMCDATASECTION is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMCDataSection Subprograms):

DBMS_XMLDOM.ISNULL(
   cds      IN     DOMCDATASECTION)
 RETURN BOOLEAN;

Checks that the given DOMCHARACTERDATA is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMCharacterData Subprograms):

DBMS_XMLDOM.ISNULL(
   cd       IN     DOMCHARACTERDATA)
 RETURN BOOLEAN;

Checks that the given DOMCOMMENT is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMComment Subprograms):

DBMS_XMLDOM.ISNULL(
   com       IN     DOMCOMMENT)
 RETURN BOOLEAN;

Checks that the given DOMDOCUMENT is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMDocument Subprograms):

DBMS_XMLDOM.ISNULL(
   doc       IN     DOMDOCUMENT)
 RETURN BOOLEAN;

Checks that the given DOMDOCUMENTFRAGMENT is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMDocumentFragment Subprograms):

DBMS_XMLDOM.ISNULL(
   df       IN     DOMDOCUMENTFRAGMENT)
 RETURN BOOLEAN;

Checks that the given DOMDOCUMENTTYPE is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMDocumentType Subprograms):

DBMS_XMLDOM.ISNULL(
   dt       IN     DOMDOCUMENTTYPE)
 RETURN BOOLEAN;

Checks that the given DOMELEMENT is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMElement Subprograms):

DBMS_XMLDOM.ISNULL(
   elem     IN     DOMELEMENT)
 RETURN BOOLEAN;

Checks that the given DOMENTITY is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMEntity Subprograms):

DBMS_XMLDOM.ISNULL(
   ent       IN     DOMENTITY)
 RETURN BOOLEAN;

Checks that the given DOMENTITYREFERENCE is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMEntityReference Subprograms):

DBMS_XMLDOM.ISNULL(
   EREF       IN     DOMENTITYREFERENCE)
 RETURN BOOLEAN;

Checks that the DOMIMPLEMENTATION is NULL; returns TRUE if it is NULL (See Also: DOMImplementation Subprograms):

DBMS_XMLDOM.ISNULL(
   di       IN     DOMIMPLEMENTATION)
 RETURN BOOLEAN;

Checks that the given DOMNAMEDNODEMAP is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMNamedNodeMap Subprograms):

DBMS_XMLDOM.ISNULL(
   nnm       IN     DOMNAMEDNODEMAP)
 RETURN BOOLEAN;

Checks that the given DOMNODELIST is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMNodeList Subprograms):

DBMS_XMLDOM.ISNULL(
   nl       IN     DOMNODELIST)
 RETURN BOOLEAN;

Checks that the given DOMNOTATION is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMNotation Subprograms):

DBMS_XMLDOM.ISNULL(
   n       IN     DOMNOTATION)
 RETURN BOOLEAN;

Checks that the given DOMPROCESSINGINSTRUCTION is NULL; returns TRUE if it is (See Also: DOMProcessingInstruction Subprograms):

DBMS_XMLDOM.ISNULL(
   pi       IN     DOMPROCESSINGINSTRUCTION)
 RETURN BOOLEAN;

Checks that the given DOMTEXT is NULL; returns TRUE if it is NULL, FALSE otherwise (See Also: DOMText Subprograms):

DBMS_XMLDOM.ISNULL(
   t       IN     DOMTEXT)
 RETURN BOOLEAN;

Parameters

Table 155-91 ISNULL Function Parameters

Parameter Description
n DOMNODE to check
a DOMATTR to check
cds DOMCDATASECTION to check
cd DOMCHARACTERDATA to check
com DOMCOMMENT to check
doc DOMDOCUMENT to check
dF DOMDOCUMENTFRAGMENT to check
dt DOMDOCUMENTTYPE to check
elem DOMELEMENT to check
ent DOMENTITY to check
eref DOMENTITYREFERENCE to check
di DOMIMPLEMENTATION to check
nnm DOMNAMENODEMAP to check
nl DOMNODELIST to check
n DOMNOTATION to check
pi DOMPROCESSINGINSTRUCTION to check
t DOMTEXT to check


ITEM Functions

This function is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Returns the item in the map which corresponds to the INDEX parameter. If INDEX is greater than or equal to the number of nodes in this map, this returns NULL (See Also: DOMNamedNodeMap Subprograms):

DBMS_XMLDOM.ITEM(
   nnm       IN     DOMNAMEDNODEMAP,
   index     IN     NUMBER)
 RETURN DOMNODE;

Returns the item in the collection which corresponds to the INDEX parameter. If index is greater than or equal to the number of nodes in the list, this returns NULL (See Also: DOMNodeList Subprograms):

DBMS_XMLDOM.ITEM(
   nl       IN     DOMNODELIST,
   index    IN     NUMBER)
 RETURN DOMNODE;

Parameters

Table 155-92 ITEM Function Parameters

Parameter Description
nnm DOMNAMEDNODEMAP
index The index in the node map at which the item is to be retrieved
nl DOMNODELIST
index The index in the NodeList used to retrieve the item


MAKEATTR Function

This function casts a given DOMNODE to a DOMATTR, and returns the DOMATTR.

Syntax

DBMS_XMLDOM.MAKEATTR(
   n       IN     DOMNODE)
 RETURN DOMATTR;

Parameters

Table 155-93 MAKEATTR Function Parameters

Parameter Description
n DOMNODE to cast


MAKECDATASECTION Function

This function casts a given DOMNODE to a DOMCDATASECTION.

Syntax

DBMS_XMLDOM.MAKECDATASECTION(
   n       IN     DOMNODE)
 RETURN DOMCDATASECTION;

Parameters

Table 155-94 MAKECDATASECTION Function Parameters

Parameter Description
n DOMNODE to cast


MAKECHARACTERDATA Function

This function casts a given DOMNODE to a DOMCHARACTERDATA, and returns the DOMCHARACTERDATA.

Syntax

DBMS_XMLDOM.MAKECHARACTERDATA(
   n       IN     DOMNode)
 RETURN DOMCharacterData;

Parameters

Table 155-95 MAKECHARACTERDATA Function Parameters

Parameter Description
n DOMNODE to cast


MAKECOMMENT Function

This function casts a given DOMNODE to a DOMCOMMENT, and returns the DOMCOMMENT.

Syntax

DBMS_XMLDOM.MAKECOMMENT(
   n       IN     DOMNODE)
 RETURN DOMCOMMENT;

Parameters

Table 155-96 MAKECOMMENT Function Parameters

Parameter Description
n DOMNODE to cast


MAKEDOCUMENT Function

This function casts a given DOMNODE to a DOMDOCUMENT, and returns the DOMDOCUMENT.

Syntax

DBMS_XMLDOM.MAKEDOCUMENT(
   n       IN     DOMNODE)
 RETURN DOMDocument;

Parameters

Table 155-97 MAKEDOCUMENT Function Parameters

Parameter Description
n DOMNODE to cast


MAKEDOCUMENTFRAGMENT Function

This function casts a given DOMNODE to a DOMDOCUMENTFRAGMENT, and returns the DOMDOCUMENTFRAGMENT.

Syntax

DBMS_XMLDOM.MAKEDOCUMENTFRAGMENT(
   n       IN     DOMNODE)
 RETURN DOMDOCUMENTFRAGMENT;

Parameters

Table 155-98 MAKEDOCUMENTFRAGMENT Function Parameters

Parameter Description
n DOMNODE to cast


MAKEDOCUMENTTYPE Function

This function casts a given DOMNODE to a DOMDOCUMENTTYPE and returns the DOMDOCUMENTTYPE.

Syntax

DBMS_XMLDOM.MAKEDOCUMENTTYPE(
   n       IN     DOMNODE)
 RETURN DOMDOCUMENTTYPE;

Parameters

Table 155-99 MAKEDOCUMENTTYPE Function Parameters

Parameter Description
n DOMNODE to cast.


MAKEELEMENT Function

This function casts a given DOMNODE to a DOMELEMENT, and returns the DOMELEMENT.

Syntax

DBMS_XMLDOM.MAKEELEMENT(
   n       IN     DOMNODE)
 RETURN DOMELEMENT;

Parameters

Table 155-100 MAKEELEMENT Function Parameters

Parameter Description
n DOMNODE to cast


MAKEENTITY Function

This function casts a given DOMNODE to a DOMENTITY, and returns the DOMENTITY.

Syntax

DBMS_XMLDOM.MAKEENTITY(
   n       IN     DOMNODE)
 RETURN DOMENTITY;

Parameters

Table 155-101 MAKEENTITY Function Parameters

Parameter Description
n DOMNODE to cast


MAKEENTITYREFERENCE Function

This function casts a given DOMNODE to a DOMENTITYREFERENCE, and returns the DOMENTITYREFERENCE.

Syntax

DBMS_XMLDOM.MAKEENTITYREFERENCE(
   n       IN     DOMNODE)
 RETURN DOMENTITYREFERENCE;

Parameters

Table 155-102 MAKEENTITYREFERENCE Function Parameters

Parameter Description
n DOMNODE to cast


MAKENODE Functions

This function is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Casts given DOMATTR to a DOMNODE, and returns the DOMNODE (See Also: DOMAttr Subprograms):

DBMS_XMLDOM.MAKENODE(
   a        IN     DOMATTR)
 RETURN DOMNODE;

Casts the DOMCDATASECTION to a DOMNODE, and returns that DOMNODE (See Also: DOMCDataSection Subprograms):

DBMS_XMLDOM.MAKENODE(
   cds      IN     DOMCDATASECTION)
 RETURN DOMNODE;

Casts the given DOMCHARACTERDATA as a DOMNODE, and returns that DOMNODE (See Also: DOMCharacterData Subprograms):

DBMS_XMLDOM.MAKENODE(
   cd       IN     DOMCHARACTERDATA)
 RETURN DOMNODE;

Casts the given DOMCOMMENT to a DOMNODE, and returns that DOMNODE (See Also: DOMComment Subprograms):

DBMS_XMLDOM.MAKENODE(
   com      IN     DOMCOMMENT)
 RETURN DOMNODE;

Casts the DOMDOCUMENT to a DOMNODE, and returns that DOMNODE (See Also: DOMDocument Subprograms):

DBMS_XMLDOM.MAKENODE(
   doc      IN     DOMDOCUMENT)
 RETURN DOMNODE;

Casts the given DOMDOCUMENTFRAGMENT to a DOMNODE, and returns that DOMNODE (See Also: DOMDocumentFragment Subprograms):

DBMS_XMLDOM.MAKENODE(
   df       IN     DOMDOCUMENTFRAGMENT)
 RETURN DOMNode;

Casts the given DOMDOCUMENTTYPE to a DOMNODE, and returns that DOMNODE (See Also: DOMDocumentType Subprograms):

DBMS_XMLDOM.MAKENODE(
   dt       IN     DOMDOCUMENTTYPE)
 RETURN DOMNODE;

Casts the given DOMELEMENT to a DOMNODE, and returns that DOMNODE (See Also: DOMElement Subprograms):

DBMS_XMLDOM.MAKENODE(
   elem       IN     DOMELEMENT)
 RETURN DOMNODE;

Casts given DOMENTITY to a DOMNODE, and returns that DOMNODE (See Also: DOMEntity Subprograms):

DBMS_XMLDOM.MAKENODE(
   ent       IN     DOMENTITY)
 RETURN DOMNODE;

Casts the DOMENTITYREFERENCE to a DOMNODE, and returns that DOMNODE (See Also: DOMEntityReference Subprograms):

DBMS_XMLDOM.MAKENODE(
   eref       IN     DOMENTITYREFERENCE)
 RETURN DOMNODE;

Casts the DOMNOTATION to a DOMNODE, and returns that DOMNODE (See Also: DOMNotation Subprograms):

DBMS_XMLDOM.MAKENODE(
   n       IN     DOMNOTATION)
 RETURN DOMNODE;

Casts the DOMPROCESSINGINSTRUCTION to a DOMNODE, and returns the DOMNODE (See Also: DOMProcessingInstruction Subprograms):

DBMS_XMLDOM.MAKENODE(
   pi       IN     DOMPROCESSINGINSTRUCTION)
 RETURN DOMNODE;

Casts the DOMTEXT to a DOMNODE, and returns that DOMNODE (See Also: DOMText Subprograms):

DBMS_XMLDOM.MAKENODE(
   t       IN     DOMTEXT)
 RETURN DOMNODE;

Parameters

Table 155-103 MAKENODE Function Parameters

Parameter Description
a DOMATTR to cast
cds DOMCDATASECTION to cast
cd DOMCHARACTERDATA to cast
com DOMCOMMENT to cast
doc DOMDOCUMENT to cast
df DOMDOCUMENTFRAGMENT to cast
dt DOMDOCUMENTTYPE to cast
elem DOMELEMENT to cast
ent DOMENTITY to cast
eref DOMENTITYREFERENCE to cast
n DOMNOTATION to cast
pi DOMPROCESSINGINSTRUCTION to cast
t DOMTEXT to cast


MAKENOTATION Function

This function casts a given DOMNODE to a DOMNOTATION, and returns the DOMNOTATION.

Syntax

DBMS_XMLDOM.MAKENOTATION(
   n       IN     DOMNODE)
 RETURN DOMNOTATION;

Parameters

Table 155-104 MAKENOTATION Function Parameters

Parameter Description
n DOMNODE to cast


MAKEPROCESSINGINSTRUCTION Function

This function casts a given DOMNODE to a DOMPROCESSINGINSTRUCTION, and returns the Domprocessinginstruction.

Syntax

DBMS_XMLDOM.MAKEPROCESSINGINSTRUCTION(
   n       IN     DOMNODE)
 RETURN DOMPROCESSINGINSTRUCTION;

Parameters

Table 155-105 MAKEPROCESSINGINSTRUCTION Function Parameters

Parameter Description
n DOMNODE to cast


MAKETEXT Function

This function casts a given DOMNODE to a DOMTEXT, and returns the DOMTEXT.

Syntax

DBMS_XMLDOM.MAKETEXT(
   n       IN     DOMNODE)
 RETURN DOMTEXT;

Parameters

Table 155-106 MAKETEXT Function Parameters

Parameter Description
n DOMNODE to cast


NEWDOMDOCUMENT Functions

This function returns a new DOMDOCUMENT instance.

Syntax

Returns a new DOMDOCUMENT instance:

DBMS_XMLDOM.NEWDOMDOCUMENT
 RETURN DOMDOCUMENT;

Returns a new DOMDOCUMENT instance created from the specified XMLType object:

DBMS_XMLDOM.NEWDOMDOCUMENT(
   xmldoc    IN SYS.XMLTYPE)
 RETURN DOMDOCUMENT;

Returns a new DOMDOCUMENT instance created from the specified CLOB:

DBMS_XMLDOM.NEWDOMDOCUMENT(
   cl       IN    CLOB)
 RETURN DOMDOCUMENT;

Parameters

Table 155-107 NEWDOMDOCUMENT Function Parameters

Parameter Description
xmldoc XMLType source for the DOMDOCUMENT
cl CLOB source for the DOMDOCUMENT


NORMALIZE Procedure

This procedure normalizes the text children of the DOMELEMENT.

Syntax

DBMS_XMLDOM.NORMALIZE(
   elem       IN     DOMELEMENT);

Parameters

Table 155-108 NORMALIZE Procedure Parameters

Parameter Description
elem The DOMELEMENT


REMOVEATTRIBUTE Procedures

This procedure removes an attribute from the DOMELEMENT by name.

Syntax

Removes the value of a DOMELEMENT's attribute by name:

DBMS_XMLDOM.REMOVEATTRIBUTE(
   elem     IN    DOMELEMENT,
   name     IN    VARCHAR2);

Removes the value of a DOMELEMENT's attribute by name and namespace URI.

DBMS_XMLDOM.REMOVEATTRIBUTE(
   elem     IN    DOMELEMENT,
   name     IN    VARCHAR2,
   ns       IN    VARCHAR2);

Parameters

Table 155-109 REMOVEATTRIBUTE Procedure Parameters

Parameter Description
elem The DOMELEMENT
name Attribute name
ns Namespace


REMOVEATTRIBUTENODE Function

This function removes the specified attribute node from the DOMELEMENT. The method returns the removed node.

Syntax

DBMS_XMLDOM.REMOVEATTRIBUTENODE(
   elem       IN     DOMELEMENT,
   oldAttr    IN     DOMATTR)
  RETURN DOMAttr;

Parameters

Table 155-110 REMOVEATTRIBUTENODE Function Parameters

Parameter Description
elem The DOMELEMENT.
oldAttr The old DOMATTR.


REMOVECHILD Function

This function removes the child node indicated by oldchild from the list of children, and returns it.

Syntax

DBMS_XMLDOM.REMOVECHILD(
   n          IN     DOMNode,
   oldchild   IN     DOMNode)
 RETURN DOMNODE;

Parameters

Table 155-111 REMOVECHILD Function Parameters

Parameter Description
n DOMNODE
oldCHild The child of the node n to be removed


REMOVENAMEDITEM Function

This function removes from the map a node specified by name, and returns this node. When this map contains the attributes attached to an element, if the removed attribute is known to have a default value, an attribute immediately appears containing the default value as well as the corresponding namespace URI, local name, and prefix when applicable.

Syntax

Removes a node specified by name:

DBMS_XMLDOM.REMOVENAMEDITEM(
   nnm      IN     DOMNamedNodeMap,
   name     IN     VARCHAR2)
 RETURN DOMNode;

Removes a node specified by name and namespace URI:

DBMS_XMLDOM.REMOVENAMEDITEM(
   nnm      IN     DOMNamedNodeMap,
   name     IN     VARCHAR2,
   ns       IN     VARCHAR2)
 RETURN DOMNode;

Parameters

Table 155-112 REMOVENAMEDITEM Function Parameters

Parameter Description
nnm DOMNamedNodeMap
name The name of the item to be removed from the map
ns Namespace


REPLACECHILD Function

This function replaces the child node oldchild with newchild in the list of children, and returns the oldchild node. If newchild is a DocumentFragment object, oldchild is replaced by all of the DocumentFragment children, which are inserted in the same order. If the newchild is already in the tree, it is first removed.

Syntax

DBMS_XMLDOM.REPLACECHILD(
   n           IN     DOMNode,
   newchild    IN     DOMNode,
   oldchild    IN     DOMNode)
 RETURN DOMNode;

Parameters

Table 155-113 REPLACECHILD Function Parameters

Parameter Description
n DOMNode
newchild The new child which is to replace the old child
oldchild The child of the node n which is to be replaced


REPLACEDATA Procedure

This procedure changes a range of characters in the node. Upon success, data and length reflect the change.

Syntax

DBMS_XMLDOM.REPLACEDATA(
   cd        IN     DOMCHARACTERDATA,
   offset    IN     NUMBER,
   cnt       IN     NUMBER,
   arg       IN     VARCHAR2);

Parameters

Table 155-114 REPLACEDATA Procedure Parameters

Parameter Description
cd DOMCHARACTERDATA
offset The offset at which to replace
cnt The number of characters to replace
arg The value to replace with


RESOLVENAMESPACEPREFIX Function

This function resolves the given namespace prefix, and returns the resolved namespace.

Syntax

DBMS_XMLDOM.RESOLVENAMESPACEPREFIX(
   elem       IN     DOMELEMENT,
   prefix     IN     VARCHAR2)
 RETURN VARCHAR2;

Parameters

Table 155-115 RESOLVENAMESPACEPREFIX Function Parameters

Parameter Description
elem The DOMELEMENT
prefix Namespace prefix


SETATTRIBUTE Procedures

Sets the value of a DOMELEMENT's attribute by name.

Syntax

Sets the value of a DOMELEMENT's attribute by name:

DBMS_XMLDOM.SETATTRIBUTE(
   elem    IN  DOMELEMENT,
   name    IN  VARCHAR2,
   value   IN  VARCHAR2);

Sets the value of a DOMElement's attribute by name and namespace URI:

DBMS_XMLDOM.SETATTRIBUTE(
   elem    IN  DOMELEMENT,
   name    IN  VARCHAR2,
   value   IN  VARCHAR2,
   ns      IN  VARCHAR2);

Parameters

Table 155-116 SETATTRIBUTE Function Parameters

Parameter Description
elem The DOMELEMENT
name Attribute name
value Attribute value
ns Namespace


SETATTRIBUTENODE Functions

Adds a new attribute node to the DOMELEMENT.

Syntax

Adds a new attribute node to the DOMELEMENT:

DBMS_XMLDOM.SETATTRIBUTENODE(
   elem      IN  DOMELEMENT,
   newAttr   IN  DOMATTR)
 RETURN DOMATTR;

Adds a new attribute node to the DOMElement; namespace enabled:

DBMS_XMLDOM.SETATTRIBUTENODE(
   elem      IN  DOMELEMENT,
   newAttr   IN  DOMATTR,
   ns        IN  VARCHAR2)
 RETURN DOMATTR;

Parameters

Table 155-117 SETATTRIBUTENODE Function Parameters

Parameter Description
elem The DOMELEMENT
newAttr The new DOMATTR
ns The namespace


SETDATA Procedures

This procedure is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Sets the character data of the node that implements this interface (See Also: DOMCharacterData Subprograms):

DBMS_XMLDOM.SETDATA(
   cd       IN     DOMCHARACTERDATA,
   data     IN     VARCHAR2);

Sets the content data of the DOMPROCESSINGINSTRUCTION (See Also: DOMProcessingInstruction Subprograms):

DBMS_XMLDOM.SETDATA(
   pi       IN     DOMPROCESSINGINSTRUCTION,
   data     IN     VARCHAR2);

Parameters

Table 155-118 SETDATA Procedure Parameters

Parameter Description
cd DOMCHARACTERDATA
data The data to which the node is set
pi DOMPROCESSINGINSTRUCTION
data New processing instruction content data


SETDOCTYPE Procedure

Given a DOM document, this procedure creates a new DTD with the given name, system id and public id and sets it in the document. This DTD can later be retrieved using the GETDOCTYPE Function.

Syntax

DBMS_XMLDOM.SETDOCTYPE(
  doc     IN   DOMDocument,
  name    IN   VARCHAR2,
  sysid   IN   VARCHAR2,
  pubid   IN   VARCHAR2);

Parameters

Table 155-119 SETDOCTYPE Procedure Parameters

Parameter Description
doc The document whose DTD has to be set
name The name that the doctype needs to be initialized with
sysid The system ID that the doctype needs to be initialized with
pubid The public ID that the doctype needs to be initialized with


SETNAMEDITEM Function

This function adds a node using its NodeName attribute. If a node with that name is already present in this map, it is replaced by the new one. The old node is returned on replacement; if no replacement is made, NULL is returned.

As the NodeName attribute is used to derive the name under which the node must be stored, multiple nodes of certain types, those that have a "special" string value, cannot be stored because the names would clash. This is seen as preferable to allowing nodes to be aliased.

Syntax

Adds a node using its NodeName attribute:

DBMS_XMLDOM.SETNAMEDITEM(
   nnm     IN     DOMNAMEDNODEMAP,
   arg     IN     DOMNODE)
 RETURN DOMNode;

Adds a node using its NodeName attribute and namespace URI:

DBMS_XMLDOM.SETNAMEDITEM(
   nnm     IN     DOMNAMEDNODEMAP,
   arg      IN    DOMNODE,
   ns      IN     VARCHAR2)
 RETURN DOMNode;

Parameters

Table 155-120 SETNAMEDITEM Function Parameters

Parameter Description
nnm DOMNAMEDNODEMAP
arg The Node to be added using its NodeName attribute
ns Namespace


SETNODEVALUE Procedure

This procedure sets the value of this node, depending on its type. When it is defined to be NULL, setting it has no effect.

Syntax

DBMS_XMLDOM.SETNODEVALUE(
   n         IN     DOMNODE,
   nodeValue IN     VARCHAR2);

Parameters

Table 155-121 SETNODEVALUE Procedure Parameters

Parameter Description
n DOMNode
nodeValue The value to which node is set


SETNODEVALUEASBINARYSTREAM Function & Procedure

The operation of these subprograms is described with each syntax implementation.

Syntax

This function returns an instance of the PL/SQL XMLBINARYOUTPUTSTREAM into which the caller can write the node value. The data type of the node must be RAW or BLOB – if not, an exception is raised.

DBMS_XMLDOM.SETNODEVALUEASBINARYSTREAM (
   n      IN     DOMNODE)
 RETURN SYS.UTL_BINARYOUTPUTSTREAM;

Using this procedure, the application passes in an implementation of sys.utl_BinaryInputStream from which XDB reads data to populate the node. The data type of the node must be RAW or BLOB – if not an exception is raised.

DBMS_XMLDOM.SETNODEVALUEASBINARYSTREAM (
   n        in   DOMNODE,
   value    in   SYS.UTL_BINARYINPUTSTREAM);

Parameters

Table 155-122 SETNODEVALUEASBINARYSTREAM Function & Procedure Parameters

Parameter Description
n DOMNODE
value BINARYINPUTSTREAM


SETNODEVALUEASCHARACTERSTREAM Function & Procedure

The operation of these subprograms is described with each syntax implementation.

Syntax

This function returns an instance of the PL/SQL XMLCHARACTEROUTPUTSTREAM type into which the caller can write the node value. The data type of the node can be any valid XDB data type. If the type is not character or CLOB, the character data written to the stream is converted to the node data type. If the data type of the node is character or CLOB, then the character data written to the stream is converted from PL/SQL session character set to the character set of the node.

DBMS_XMLDOM.SETNODEVALUEASCHARACTERSTREAM  (
   n        IN     DOMNODE)
 RETURN SYS.UTL_CHARACTEROUTPUTSTREAM;

Using this procedure, the application passes in an implementation of SYS.UTL_CHARACTERINPUTSTREAM from which XDB reads to populate the node. The data type of the node may be any valid type supported by XDB. If a non-character data type, the character data read from the stream is converted to the data type of the node. If the data type of the node is either character or CLOB, then no conversion occurs and the character set of the node becomes the character set of the PL/SQL session.

DBMS_XMLDOM.SETNODEVALUEASCHARACTERSTREAM  (
   n        IN   DOMNODE,
   value    IN   SYS.UTL_CHARACTERINPUTSTREAM);

Parameters

Table 155-123 SETNODEVALUEASCHARACTERSTREAM Function & Procedure Parameters

Parameter Description
n DOMNODE
value CHARACTERINPUTSTREAM


SETPREFIX Procedure

This procedure sets the namespace prefix for this node to the given value.

Syntax

DBMS_XMLDOM.SETPREFIX(
   n       IN     DOMNODE,
   prefix  IN     VARCHAR2);

Parameters

Table 155-124 SETPREFIX Procedure Parameters

Parameter Description
n DOMNODE
prefix The value for the namespace prefix of the node


SETSTANDALONE Procedure

This procedure sets the standalone property of the DOMDOCUMENT.

Syntax

DBMS_XMLDOM.SETSTANDALONE(
   doc         IN     DOMDOCUMENT,
   newvalue    IN     VARCHAR2);

Parameters

Table 155-125 SETSTANDALONE Procedure Parameters

Parameter Description
doc DOMDOCUMENT
newvalue Value of the standalone property of the document


SETVALUE Procedure

This procedure sets the value of the attribute.

Syntax

DBMS_XMLDOM.SETVALUE(
   a       IN     DOMATTR,
   value   IN     VARCHAR2);

Parameters

Table 155-126 SETVALUE Procedure Parameters

Parameter Description
a DOMATTR
value The value to which to set the attribute


SETVERSION Procedure

This procedure sets the version of the DOMDOCUMENT.

Syntax

DBMS_XMLDOM.SETVERSION(
   doc        IN     DOMDOCUMENT,
   version    IN     VARCHAR2);

Parameters

Table 155-127 SETVERSION Procedure Parameters

Parameter Description
doc DOMDOCUMENT
version The version of the document


SPLITTEXT Function

This function breaks this DOMTEXT node into two DOMTEXT nodes at the specified offset.

Syntax

DBMS_XMLDOM.SPLITTEXT(
   t        IN     DOMTEXT,
   offset   IN     NUMBER)
 RETURN DOMText;

Parameters

Table 155-128 SPLITTEXT Function Parameters

Parameter Description
t DOMTEXT
offset Offset at which to split


SUBSTRINGDATA Function

This function extracts a range of data from the node.

Syntax

DBMS_XMLDOM.SUBSTRINGDATA(
   cd        IN     DOMCHARACTERDATA,
   offset    IN     NUMBER,
   cnt       IN     NUMBER)
 RETURN VARCHAR2;

Parameters

Table 155-129 SUBSTRINGDATA Function Parameters

Parameter Description
cd DOMCHARACTERDATA
offset The starting offset of the data from which to get the data
cnt The number of characters (from the offset) of the data to get


USEBINARYSTREAM Function

This function returns TRUE if the data type of the node is RAW or BLOB so that the node value may be read or written using an UTL_BINARYINPUTSTREAM or UTL_BINARYOUTPUTSTREAM. If a value of FALSE is returned, the node value may only be accessed via an UTL_CHARACTERINPUTSTREAM or UTL_CHARACTEROUTPUTSTREAM..

Syntax

DBMS_XMLDOM.USEBINARYSTREAM   (
   n        IN     DOMNODE)
 RETURN BOOLEAN;

Parameters

Table 155-130 USEBINARYSTREAM Function Parameters

Parameter Description
n DOMNODE


WRITETOBUFFER Procedures

This procedure is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Writes XML node to specified buffer using the database character set (See Also: DOMNode Subprograms):

DBMS_XMLDOM.WRITETOBUFFER(
   n        IN      DOMNODE,
   buffer   IN OUT  VARCHAR2);

Writes XML document to a specified buffer using database character set (See Also: DOMDocument Subprograms):

DBMS_XMLDOM.WRITETOBUFFER(
   doc       IN      DOMDOCUMENT,
   buffer    IN OUT  VARCHAR2);

Writes the contents of the specified document fragment into a buffer using the database character set (See Also: DOMDocumentFragment Subprograms):

DBMS_XMLDOM.WRITETOBUFFER(
   df        IN      DOMDOCUMENTFRAGMENT,
   buffer    IN OUT  VARCHAR2);

Parameters

Table 155-131 WRITETOBUFFER Procedure Parameters

Parameter Description
n DOMNODE
buffer Buffer to which to write
doc DOMDOCUMENT
df DOM document fragment


WRITETOCLOB Procedures

This procedure is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Writes XML node to specified CLOB using the database character set (See Also: DOMNode Subprograms):

DBMS_XMLDOM.WRITETOCLOB(
   n       IN      DOMNODE,
   cl      IN OUT  CLOB);

Writes XML document to a specified CLOB using database character set (See Also: DOMDocument Subprograms):

DBMS_XMLDOM.WRITETOCLOB(
   doc     IN      DOMDOCUMENT,
   cl      IN OUT  CLOB);

Parameters

Table 155-132 WRITETOCLOB Procedure Parameters

Parameter Description
n DOMNODE
cl CLOB to which to write
doc DOMDOCUMENT


WRITETOFILE Procedures

This procedure is overloaded. The specific forms of functionality are described along with the syntax declarations.

Syntax

Writes XML node to specified file using the database character set (See Also: DOMNode Subprograms):

DBMS_XMLDOM.WRITETOFILE(
   n          IN      DOMNODE,
   fileName   IN      VARCHAR2);

Writes XML node to specified file using the given character set, which is passed in as a separate parameter (See Also: DOMNode Subprograms):

DBMS_XMLDOM.WRITETOFILE(
   n          IN      DOMNODE,
   fileName   IN      VARCHAR2,
   charset    IN      VARCHAR2);

Writes an XML document to a specified file using database character set (See Also: DOMDocument Subprograms):

DBMS_XMLDOM.WRITETOFILE(
   doc        IN   DOMDOCUMENT,
   filename   IN   VARCHAR2);

Writes an XML document to a specified file using given character set (See Also: DOMDocument Subprograms):

DBMS_XMLDOM.WRITETOFILE(
   doc       IN   DOMDOCUMENT,
   fileName  IN   VARCHAR2,
   charset   IN   VARCHAR2);

Parameters

Table 155-133 WRITETOFILE Procedure Parameters

Parameter Description
n DOMNODE
fileName File to which to write
charset Given character set
doc DOMDOCUMENT
charset Character set
