1 Overview of PL/SQL

This chapter introduces the main features of the PL/SQL language. It shows how PL/SQL meets the challenges of database programming, and how you can reuse techniques that you know from other programming languages.

Topics:

Advantages of PL/SQL

PL/SQL is a completely portable, high-performance transaction processing language that offers the following advantages:

Tight Integration with SQL

SQL has become the standard database language because it is flexible, powerful, and easy to learn. A few English-like statements such as SELECT, INSERT, UPDATE, and DELETE make it easy to manipulate the data stored in a relational database.

PL/SQL lets you use all the SQL data manipulation, cursor control, and transaction control statements, as well as all the SQL functions, operators, and pseudocolumns. This extensive SQL support lets you manipulate Oracle data flexibly and safely. Also, PL/SQL fully supports SQL datatypes, reducing the need to convert data passed between your applications and the database.

The PL/SQL language is tightly integrated with SQL. You do not have to translate between SQL and PL/SQL datatypes; a NUMBER or VARCHAR2 column in the database is stored in a NUMBER or VARCHAR2 variable in PL/SQL. This integration saves you both learning time and processing time. Special PL/SQL language features let you work with table columns and rows without specifying the datatypes, saving on maintenance work when the table definitions change.

Running a SQL query and processing the result set is as easy in PL/SQL as opening a text file and processing each line in popular scripting languages. Using PL/SQL to access metadata about database objects and handle database error conditions, you can write utility programs for database administration that are reliable and produce readable output about the success of each operation. Many database features, such as triggers and object types, use PL/SQL. You can write the bodies of triggers and methods for object types in PL/SQL.

PL/SQL supports both static and dynamic SQL. Static SQL is SQL whose full text is known at compilation time. Dynamic SQL is SQL whose full text is not known until run time. Dynamic SQL enables you to make your applications more flexible and versatile. For information about using static SQL with PL/SQL, see Chapter 6, "Using Static SQL". For information about using dynamic SQL, see Chapter 7, "Using Dynamic SQL".

Better Performance

With PL/SQL, an entire block of statements can be sent to Oracle at one time. This can drastically reduce network traffic between the database and an application. As Figure 1-1 shows, you can use PL/SQL blocks and subprograms (procedures and functions) to group SQL statements before sending them to the database for execution. PL/SQL also has language features to further speed up SQL statements that are issued inside a loop.

PL/SQL stored subprograms are compiled once and stored in executable form, so subprogram calls are efficient. Because stored subprograms execute in the database server, a single call over the network can start a large job. This division of work reduces network traffic and improves response times. Stored subprograms are cached and shared among users, which lowers memory requirements and call overhead.

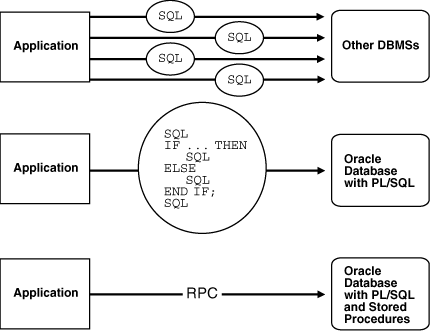

Figure 1-1 PL/SQL Boosts Performance

Description of Figure 1-1 follows
Description of "Figure 1-1 PL/SQL Boosts Performance"

Higher Productivity

PL/SQL lets you write very compact code for manipulating data. In the same way that scripting languages such as Perl can read, transform, and write data from files, PL/SQL can query, transform, and update data in a database. PL/SQL saves time on design and debugging by offering a full range of software-engineering features, such as exception handling, encapsulation, data hiding, and object-oriented datatypes.

PL/SQL extends tools such as Oracle Forms. With PL/SQL in these tools, you can use familiar language constructs to build applications. For example, you can use an entire PL/SQL block in an Oracle Forms trigger, instead of multiple trigger steps, macros, or user exits. PL/SQL is the same in all environments. After you learn PL/SQL with one Oracle tool, you can transfer your knowledge to other tools.

Full Portability

Applications written in PL/SQL can run on any operating system and platform where the Oracle database runs. With PL/SQL, you can write portable program libraries and reuse them in different environments.

Tight Security

PL/SQL stored subprograms move application code from the client to the server, where you can protect it from tampering, hide the internal details, and restrict who has access. For example, you can grant users access to a subprogram that updates a table, but not grant them access to the table itself or to the text of the UPDATE statement. Triggers written in PL/SQL can control or record changes to data, making sure that all changes obey your business rules.

For information on wrapping, or hiding, the source of a PL/SQL unit, see Appendix A, "Wrapping PL/SQL Source Code".

Access to Predefined Packages

Oracle provides product-specific packages that define APIs you can invoke from PL/SQL to perform many useful tasks. These packages include DBMS_ALERT for using database triggers, DBMS_FILE for reading and writing operating system text files, DBMS_HTTP for making hypertext transfer protocol (HTTP) callouts, DBMS_OUTPUT for display output from PL/SQL blocks and subprograms, and DBMS_PIPE for communicating over named pipes. For additional information on these packages, see "Overview of Product-Specific PL/SQL Packages".

For complete information on the packages supplied by Oracle, see Oracle Database PL/SQL Packages and Types Reference.

Support for Object-Oriented Programming

Object types are an ideal object-oriented modeling tool, which you can use to reduce the cost and time required to build complex applications. Besides enabling you to create software components that are modular, maintainable, and reusable, object types allow different teams of programmers to develop software components concurrently.

By encapsulating operations with data, object types let you move data-maintenance code out of SQL scripts and PL/SQL blocks into methods. Also, object types hide implementation details, so that you can change the details without affecting client programs.

In addition, object types allow for realistic data modeling. Complex real-world entities and relationships map directly into object types. This direct mapping helps your programs better reflect the world they are trying to simulate. For information on object types, see Oracle Database Object-Relational Developer's Guide.

Support for Developing Web Applications and Pages

You can use PL/SQL to develop Web applications and Server Pages (PSPs). For an overview of the use of PL/SQL with the Web, see "Using PL/SQL to Create Web Applications and Server Pages".

Understanding the Main Features of PL/SQL

PL/SQL combines the data-manipulating power of SQL with the processing power of procedural languages. You can control program flow with statements like IF and LOOP. As with other procedural programming languages, you can declare variables, define subprograms (procedures and functions), and trap run-time errors.

PL/SQL lets you break complex problems down into easily understandable procedural code, and reuse this code across multiple applications. When a problem can be solved through plain SQL, you can issue SQL statements directly inside your PL/SQL programs, without learning new APIs. PL/SQL's data types correspond with SQL's column types, making it easy to interchange PL/SQL variables with data inside a table.

Topics:

Understanding PL/SQL Block Structure

The basic units of a PL/SQL program are logical blocks (procedures, functions, and anonymous blocks), which can be nested. A block groups related declarations and statements. You can place declarations close to where they are used, such as inside a large subprogram. The declarations are local to the block and cease to exist when the block completes, helping to avoid cluttered namespaces for variables and subprograms. For a syntax description of the block structure, see "Block Declaration".

As Example 1-1 shows the three parts of a PL/SQL block. Only the executable part is required. For an example of PL/SQL block structure, see Example 1-4.

Example 1-1 PL/SQL Block Structure

-- Declarative part (optional):
DECLARE
  -- Declarations of types, variables, and subprograms
-- Executable part (required):
BEGIN
  -- Statements (which can use items declared in declarative part)
-- Exception-handling part (optional:
[EXCEPTION
   -- Exception handlers for exceptions raised in executable part]
END;

You can nest blocks in the executable and exception-handling parts of a PL/SQL block or subprogram but not in the declarative part. You can define local subprograms in the declarative part of any block. You can invoke local subprograms only from the block in which they are defined.

Understanding PL/SQL Variables and Constants

PL/SQL lets you declare variables and constants, then use them in SQL and procedural statements anywhere an expression can be used. You must declare a constant or variable before referencing it in any other statements. For additional information, see "Declarations".

Topics:

Declaring Variables

Variables can have any SQL datatype, such as CHAR, DATE, or NUMBER, or a PL/SQL-only datatype, such as BOOLEAN or PLS_INTEGER. For example, assume that you want to declare variables for part data, such as part_no to hold 6-digit numbers and in_stock to hold the Boolean value TRUE or FALSE. You declare these and related part variables as shown in Example 1-2. Note that there is a semicolon (;) at the end of each line in the declaration section.

Example 1-2 Declaring Variables in PL/SQL

DECLARE
  part_no    NUMBER(6);
  part_name  VARCHAR2(20);
  in_stock   BOOLEAN;
  part_price NUMBER(6,2);
  part_desc  VARCHAR2(50);

You can also declare nested tables, variable-size arrays (varrays for short), and records using the TABLE, VARRAY, and RECORD composite datatypes. See Chapter 5, "Using PL/SQL Collections and Records".

Assigning Values to Variables

You can assign values to a variable in three ways. The first way uses the assignment operator (:=), a colon followed by an equal sign, as shown in Example 1-3. You place the variable to the left of the operator and an expression, including function calls, to the right. Note that you can assign a value to a variable when it is declared.

Example 1-3 Assigning Values to Variables with the Assignment Operator

DECLARE
   wages          NUMBER;
   hours_worked   NUMBER := 40;
   hourly_salary  NUMBER := 22.50;
   bonus          NUMBER := 150;
   country        VARCHAR2(128);
   counter        NUMBER := 0;
   done           BOOLEAN;
   valid_id       BOOLEAN;
   emp_rec1       employees%ROWTYPE;
   emp_rec2       employees%ROWTYPE;
   TYPE commissions IS TABLE OF NUMBER INDEX BY PLS_INTEGER;
   comm_tab       commissions;
BEGIN
   wages := (hours_worked * hourly_salary) + bonus;
   country := 'France';
   country := UPPER('Canada');
   done := (counter > 100);
   valid_id := TRUE;
   emp_rec1.first_name := 'Antonio';
   emp_rec1.last_name := 'Ortiz';
   emp_rec1 := emp_rec2;
   comm_tab(5) := 20000 * 0.15;
END;
/

The second way to assign values to a variable is by selecting (or fetching) database values into it. In Example 1-4, 10% of an employee's salary is selected into the bonus variable. Now you can use the bonus variable in another computation or insert its value into a database table.

Example 1-4 Using SELECT INTO to Assign Values to Variables

DECLARE
  bonus  NUMBER(8,2);
  emp_id NUMBER(6) := 100;
BEGIN
  SELECT salary * 0.10 INTO bonus FROM employees
    WHERE employee_id = emp_id;
END;
/

The third way to assign a value to a variable is by passing it as an OUT or IN OUT parameter to a subprogram, and then assigning the value inside the subprogram. Example 1-5 passes the sal variable to a subprogram, and the subprogram updates the variable.

In the example, DBMS_OUTPUT.PUT_LINE is used to display output from the PL/SQL program. For more information, see "Inputting and Outputting Data with PL/SQL". For information on the DBMS_OUTPUT package, see "DBMS_OUTPUT Package".

Example 1-5 Assigning Values to Variables as Parameters of a Subprogram

REM SERVEROUTPUT must be set to ON
REM to display output with DBMS_OUTPUT
SET SERVEROUTPUT ON FORMAT WRAPPED
DECLARE
  new_sal NUMBER(8,2);
  emp_id  NUMBER(6) := 126;
  PROCEDURE adjust_salary(emp_id NUMBER, sal IN OUT NUMBER) IS
    emp_job VARCHAR2(10);
    avg_sal NUMBER(8,2);
    BEGIN
      SELECT job_id INTO emp_job FROM employees
        WHERE employee_id = emp_id;
      SELECT AVG(salary) INTO avg_sal FROM employees
        WHERE job_id = emp_job;
      DBMS_OUTPUT.PUT_LINE
        ('The average salary for ' || emp_job
         || ' employees: ' || TO_CHAR(avg_sal));
      sal := (sal + avg_sal)/2;
        -- adjust sal value which is returned
    END;
BEGIN
  SELECT AVG(salary) INTO new_sal FROM employees;
  DBMS_OUTPUT.PUT_LINE ('The average salary for all employees: '
                        || TO_CHAR(new_sal));
  adjust_salary(emp_id, new_sal);
    -- assigns a new value to new_sal
  DBMS_OUTPUT.PUT_LINE
    ('The adjusted salary for employee ' || TO_CHAR(emp_id)
                        || ' is ' || TO_CHAR(new_sal)); -- sal has new value
END;
/

Bind Variables

Bind variables improve performance by allowing Oracle to reuse SQL statements.

When you embed a SQL INSERT, UPDATE, DELETE, or SELECT statement directly in your PL/SQL code, PL/SQL turns the variables in the WHERE and VALUES clauses into bind variables automatically. Oracle can reuse these SQL statements each time the same code is executed. To run similar statements with different variable values, you can save parsing overhead by invoking a stored subprogram that accepts parameters and then issues the statements with the parameters substituted in the appropriate places.

PL/SQL does not create bind variables automatically when you use dynamic SQL, but you can use them with dynamic SQL by specifying them explicitly.

Declaring Constants

Declaring a constant is like declaring a variable except that you must add the keyword CONSTANT and immediately assign a value to the constant. No further assignments to the constant are allowed. The following example declares a constant:

credit_limit CONSTANT NUMBER := 5000.00;

See "Constants".

Processing Queries with PL/SQL

Processing a SQL query with PL/SQL is like processing files with other languages. For example, a Perl program opens a file, reads the file contents, processes each line, then closes the file. In the same way, a PL/SQL program issues a query and processes the rows from the result set as shown in Example 1-6.

Example 1-6 Processing Query Results in a LOOP

BEGIN
  FOR someone IN (SELECT * FROM employees WHERE employee_id < 120 )
  LOOP
    DBMS_OUTPUT.PUT_LINE('First name = ' || someone.first_name ||
                         ', Last name = ' || someone.last_name);
  END LOOP;
END;
/

You can use a simple loop like the one shown here, or you can control the process precisely by using individual statements to perform the query, retrieve data, and finish processing.

Declaring PL/SQL Subprograms

Subprograms are named PL/SQL blocks that can be invoked with a set of parameters. PL/SQL has two types of subprograms: procedures and functions. The following is an example of a declaration of a PL/SQL procedure:

DECLARE
  in_string  VARCHAR2(100) := 'This is my test string.';
  out_string VARCHAR2(200);
  PROCEDURE double
    ( original IN VARCHAR2, new_string OUT VARCHAR2 ) AS
    BEGIN
      new_string := original || original;
    END;

For example of a subprogram declaration in a package, see Example 1-14. For more information on subprograms, see "What Are PL/SQL Subprograms?".

You can create standalone subprograms with SQL statements that are stored in the database. See "Subprograms (Procedures and Functions)".

Declaring Datatypes for PL/SQL Variables

As part of the declaration for each PL/SQL variable, you declare its datatype. Usually, this datatype is one of the types shared between PL/SQL and SQL, such as NUMBER or VARCHAR2. For easier maintenance of code that interacts with the database, you can also use the special qualifiers %TYPE and %ROWTYPE to declare variables that hold table columns or table rows. For more information on datatypes, see Chapter 3, "PL/SQL Datatypes".

Topics:

%TYPE

The %TYPE attribute provides the datatype of a variable or database column. This is particularly useful when declaring variables that will hold database values. For example, assume there is a column named last_name in a table named employees. To declare a variable named v_last_name that has the same datatype as column last_name, use dot notation and the %TYPE attribute, as follows:

v_last_name employees.last_name%TYPE;

Declaring v_last_name with %TYPE has two advantages. First, you need not know the exact datatype of last_name. Second, if you change the database definition of last_name, perhaps to make it a longer character string, the datatype of v_last_name changes accordingly at run time.

For more information on %TYPE, see "Using the %TYPE Attribute" and "%TYPE Attribute".

%ROWTYPE

In PL/SQL, records are used to group data. A record consists of a number of related fields in which data values can be stored. The %ROWTYPE attribute provides a record type that represents a row in a table. The record can store an entire row of data selected from the table or fetched from a cursor or cursor variable. See "Cursors".

Columns in a row and corresponding fields in a record have the same names and datatypes. In the following example, you declare a record named dept_rec. Its fields have the same names and datatypes as the columns in the departments table.

DECLARE
  dept_rec departments%ROWTYPE; -- declare record variable

You use dot notation to reference fields, as the following example shows:

v_deptid := dept_rec.department_id;

If you declare a cursor that retrieves the last name, salary, hire date, and job class of an employee, you can use %ROWTYPE to declare a record that stores the same information as shown in Example 1-7. When you execute the FETCH statement, the value in the last_name column of the employees table is assigned to the last_name field of employee_rec, the value in the salary column is assigned to the salary field, and so on.

Example 1-7 Using %ROWTYPE with an Explicit Cursor

DECLARE
  CURSOR c1 IS
    SELECT last_name, salary, hire_date, job_id FROM employees
       WHERE employee_id = 120;
-- declare record variable that represents a row
-- fetched from the employees table
   employee_rec c1%ROWTYPE;
BEGIN
-- open the explicit cursor
-- and use it to fetch data into employee_rec
  OPEN c1;
  FETCH c1 INTO employee_rec;
  DBMS_OUTPUT.PUT_LINE('Employee name: ' || employee_rec.last_name);
END;
/

For more information on %ROWTYPE, see "Using the %ROWTYPE Attribute" and "%ROWTYPE Attribute".

Understanding PL/SQL Control Structures

Control structures are the most important PL/SQL extension to SQL. Not only does PL/SQL let you manipulate Oracle data, it lets you process the data using conditional, iterative, and sequential flow-of-control statements such as IF-THEN-ELSE, CASE, FOR-LOOP, WHILE-LOOP, CONTINUE-WHEN, EXIT-WHEN, and GOTO. For additional information, see Chapter 4, "Using PL/SQL Control Structures".

Topics:

Conditional Control

Often, it is necessary to take alternative actions depending on circumstances. The IF-THEN-ELSE statement lets you execute a sequence of statements conditionally. The IF clause checks a condition, the THEN clause defines what to do if the condition is true and the ELSE clause defines what to do if the condition is false or null. Example 1-8 shows the use of IF-THEN-ELSE to determine the salary raise an employee receives based on the current salary of the employee.

To choose among several values or courses of action, you can use CASE constructs. The CASE expression evaluates a condition and returns a value for each case. The case statement evaluates a condition and performs an action, such as an entire PL/SQL block, for each case. See Example 1-8.

Example 1-8 Using the IF-THEN_ELSE and CASE Statement for Conditional Control

DECLARE
   jobid      employees.job_id%TYPE;
   empid      employees.employee_id%TYPE := 115;
   sal        employees.salary%TYPE;
   sal_raise  NUMBER(3,2);
BEGIN
  SELECT job_id, salary INTO jobid, sal from employees
    WHERE employee_id = empid;
  CASE
    WHEN jobid = 'PU_CLERK' THEN
        IF sal < 3000 THEN sal_raise := .12;
          ELSE sal_raise := .09;
        END IF;
    WHEN jobid = 'SH_CLERK' THEN
        IF sal < 4000 THEN sal_raise := .11;
          ELSE sal_raise := .08;
        END IF;
    WHEN jobid = 'ST_CLERK' THEN
        IF sal < 3500 THEN sal_raise := .10;
          ELSE sal_raise := .07;
        END IF;
    ELSE
     BEGIN
       DBMS_OUTPUT.PUT_LINE('No raise for this job: ' || jobid);
     END;
  END CASE;
  UPDATE employees SET salary = salary + salary * sal_raise
    WHERE employee_id = empid;
  COMMIT;
END;
/

A sequence of statements that uses query results to select alternative actions is common in database applications. Another common sequence inserts or deletes a row only if an associated entry is found in another table. You can bundle these common sequences into a PL/SQL block using conditional logic.

Iterative Control

LOOP statements let you execute a sequence of statements multiple times. You place the keyword LOOP before the first statement in the sequence and the keywords END LOOP after the last statement in the sequence. The following example shows the simplest kind of loop, which repeats a sequence of statements continually:

LOOP
  -- sequence of statements
END LOOP;

The FOR-LOOP statement lets you specify a range of integers, then execute a sequence of statements once for each integer in the range. In Example 1-9 the loop inserts 100 numbers, square roots, squares, and the sum of squares into a database table:

Example 1-9 Using the FOR-LOOP

CREATE TABLE sqr_root_sum (num NUMBER, sq_root NUMBER(6,2),
                           sqr NUMBER, sum_sqrs NUMBER);
DECLARE
   s PLS_INTEGER;
BEGIN
  FOR i in 1..100 LOOP
    s := (i * (i + 1) * (2*i +1)) / 6; -- sum of squares
    INSERT INTO sqr_root_sum VALUES (i, SQRT(i), i*i, s );
  END LOOP;
END;
/

The WHILE-LOOP statement associates a condition with a sequence of statements. Before each iteration of the loop, the condition is evaluated. If the condition is true, the sequence of statements is executed, then control resumes at the top of the loop. If the condition is false or null, the loop is bypassed and control passes to the next statement.

In Example 1-10, you find the first employee who has a salary over $15000 and is higher in the chain of command than employee 120:

Example 1-10 Using WHILE-LOOP for Control

CREATE TABLE temp (tempid NUMBER(6),
                   tempsal NUMBER(8,2),
                   tempname VARCHAR2(25));
DECLARE
   sal            employees.salary%TYPE := 0;
   mgr_id         employees.manager_id%TYPE;
   lname          employees.last_name%TYPE;
   starting_empid employees.employee_id%TYPE := 120;
BEGIN
   SELECT manager_id INTO mgr_id
     FROM employees
     WHERE employee_id = starting_empid;
   WHILE sal <= 15000 LOOP -- loop until sal > 15000
      SELECT salary, manager_id, last_name INTO sal, mgr_id, lname
         FROM employees WHERE employee_id = mgr_id;
   END LOOP;
   INSERT INTO temp VALUES (NULL, sal, lname);
     -- insert NULL for tempid
   COMMIT;
EXCEPTION
   WHEN NO_DATA_FOUND THEN
      INSERT INTO temp VALUES (NULL, NULL, 'Not found');
        -- insert NULLs
      COMMIT;
END;
/

The EXIT-WHEN statement lets you complete a loop if further processing is impossible or undesirable. When the EXIT statement is encountered, the condition in the WHEN clause is evaluated. If the condition is true, the loop completes and control passes to the next statement. In Example 1-11, the loop completes when the value of total exceeds 25,000:

Similarly, the CONTINUE-WHEN statement immediately transfers control to the next iteration of the loop when there is no need to continue working on this iteration.

Example 1-11 Using the EXIT-WHEN Statement

DECLARE
  total   NUMBER(9) := 0;
  counter NUMBER(6) := 0;
BEGIN
  LOOP
    counter := counter + 1;
    total := total + counter * counter;
    -- exit loop when condition is true
    EXIT WHEN total > 25000;
  END LOOP;
  DBMS_OUTPUT.PUT_LINE
    ('Counter: ' || TO_CHAR(counter) || ' Total: ' || TO_CHAR(total));
END;
/

Sequential Control

The GOTO statement lets you branch to a label unconditionally. The label, an undeclared identifier enclosed by double angle brackets, must precede an executable statement or a PL/SQL block. When executed, the GOTO statement transfers control to the labeled statement or block, as shown in Example 1-12.

Example 1-12 Using the GOTO Statement

DECLARE
  total   NUMBER(9) := 0;
  counter NUMBER(6) := 0;
BEGIN
  <<calc_total>>
    counter := counter + 1;
    total := total + counter * counter;
    -- branch to print_total label when condition is true
    IF total > 25000 THEN GOTO print_total;
      ELSE GOTO calc_total;
    END IF;
  <<print_total>>
  DBMS_OUTPUT.PUT_LINE
    ('Counter: ' || TO_CHAR(counter) || ' Total: ' || TO_CHAR(total));
END;
/

Understanding Conditional Compilation

Using conditional compilation, you can customize the functionality in a compiled PL/SQL application by conditionalizing functionality rather than removing any source code. For example, conditional compilation enables you to determine which PL/SQL features in a PL/SQL application are used for specific database releases. The latest PL/SQL features in an application can be run on a new database release while at the same time those features can be conditionalizing so that the same application is compatible with a previous database release. Conditional compilation is also useful when you want to execute debugging subprograms in a development environment, but want to turn off the debugging routines in a production environment. See "Conditional Compilation".

Writing Reusable PL/SQL Code

PL/SQL lets you break an application down into manageable, well-defined modules. PL/SQL meets this need with program units, which include blocks, subprograms, and packages. You can reuse program units by loading them into the database as triggers and stored subprograms. For additional information, see Chapter 8, "Using PL/SQL Subprograms", Chapter 9, "Using Triggers", and Chapter 10, "Using PL/SQL Packages".

Topics:

Subprograms (Procedures and Functions)

There are two types of subprograms, procedures and functions, which can accept parameters and be invoked. See "What Are PL/SQL Subprograms?".

The SQL CREATE PROCEDURE statement lets you create standalone procedures that are stored in the database. For information, see CREATE PROCEDURE in Oracle Database SQL Language Reference. The SQL CREATE FUNCTION statement lets you create standalone functions that are stored in an Oracle database. For information, see CREATE FUNCTION in Oracle Database SQL Language Reference. These stored (schema level) subprograms can be accessed from SQL.

As shown in Example 1-13, a subprogram is like a miniature program, beginning with a header followed by an optional declarative part, an executable part, and an optional exception-handling part.

Example 1-13 Creating a Stored Subprogram

-- including OR REPLACE is more convenient
-- when updating a subprogram
CREATE OR REPLACE PROCEDURE award_bonus
  (emp_id NUMBER, bonus NUMBER) AS
   commission        REAL;
   comm_missing EXCEPTION;
BEGIN  -- executable part starts here
   SELECT commission_pct / 100 INTO commission FROM employees
    WHERE employee_id = emp_id;
   IF commission IS NULL THEN
      RAISE comm_missing;
   ELSE
      UPDATE employees SET salary = salary + bonus*commission
      WHERE employee_id = emp_id;
   END IF;
EXCEPTION  -- exception-handling part starts here
   WHEN comm_missing THEN
      DBMS_OUTPUT.PUT_LINE
        ('This employee does not receive a commission.');
      commission := 0;
   WHEN OTHERS THEN
      NULL; -- for other exceptions do nothing
END award_bonus;
/
CALL award_bonus(150, 400);

When invoked, this procedure accepts an employee Id and a bonus amount. It uses the Id to select the employee's commission percentage from a database table and, at the same time, convert the commission percentage to a decimal amount. Then, it checks the commission amount. If the commission is null, an exception is raised; otherwise, the employee's salary is updated.

Packages (APIs Written in PL/SQL)

PL/SQL lets you bundle logically related types, variables, cursors, and subprograms into a database object called a package. The package defines a simple, clear, interface to a set of related subprograms and types that can be accessed by SQL statements.

Packages usually have two parts: a specification and a body. The specification defines the application programming interface; it declares the types, constants, variables, exceptions, cursors, and subprograms. The body fills in the SQL queries for cursors and the code for subprograms.

To create package specs, use the SQL statement CREATE PACKAGE. A CREATE PACKAGE BODY statement defines the package body. For information on the CREATE PACKAGE SQL statement, see Oracle Database SQL Language Reference. For information on the CREATE PACKAGE BODY SQL statement, see Oracle Database SQL Language Reference.

In Example 1-14, the emp_actions package contains two procedures that update the employees table and one function that provides information.

Example 1-14 Creating a Package and Package Body

-- Package specification:
CREATE OR REPLACE PACKAGE emp_actions AS
   PROCEDURE hire_employee (employee_id     NUMBER,
                            last_name       VARCHAR2,
                            first_name      VARCHAR2,
                            email           VARCHAR2,
                            phone_number    VARCHAR2,
                            hire_date       DATE,
                            job_id          VARCHAR2,
                            salary          NUMBER,
                            commission_pct  NUMBER,
                            manager_id      NUMBER,
                            department_id   NUMBER);
   PROCEDURE fire_employee (emp_id NUMBER);
   FUNCTION num_above_salary (emp_id NUMBER) RETURN NUMBER;
END emp_actions;
/
-- Package body:
CREATE OR REPLACE PACKAGE BODY emp_actions AS
  -- Code for procedure hire_employee:
   PROCEDURE hire_employee (employee_id     NUMBER,
                            last_name       VARCHAR2,
                            first_name      VARCHAR2,
                            email           VARCHAR2,
                            phone_number    VARCHAR2,
                            hire_date       DATE,
                            job_id          VARCHAR2,
                            salary          NUMBER,
                            commission_pct  NUMBER,
                            manager_id      NUMBER,
                            department_id   NUMBER) IS
  BEGIN
    INSERT INTO employees VALUES (employee_id,
                                  last_name,
                                  first_name,
                                  email,
                                  phone_number,
                                  hire_date,
                                  job_id,
                                  salary,
                                  commission_pct,
                                  manager_id,
                                  department_id);
   END hire_employee;

  -- Code for procedure fire_employee:
  PROCEDURE fire_employee (emp_id NUMBER) IS
  BEGIN
    DELETE FROM employees WHERE employee_id = emp_id;
  END fire_employee;

  -- Code for function num_above_salary:
  FUNCTION num_above_salary (emp_id NUMBER) RETURN NUMBER IS
    emp_sal NUMBER(8,2);
    num_count NUMBER;
  BEGIN
    SELECT salary INTO emp_sal FROM employees
      WHERE employee_id = emp_id;
    SELECT COUNT(*) INTO num_count FROM employees
      WHERE salary > emp_sal;
    RETURN num_count;
  END num_above_salary;
END emp_actions;
/

Applications that invoke these procedures only need to know the names and parameters from the package specification. You can change the implementation details inside the package body without affecting the invoking applications.

To invoke the procedures of the emp_actions package created in Example 1-14, you can execute the statements in Example 1-15. The procedures can be executed in a BEGIN-END block or with the SQL CALL statement. Note the use of the package name as a prefix to the procedure name.

Example 1-15 Invoking a Procedure in a Package

CALL emp_actions.hire_employee(300,
                                 'Belden',
                                 'Enrique',
                                 'EBELDEN',
                                 '555.111.2222',
                                 '31-AUG-04',
                                 'AC_MGR',
                                 9000,
                                 .1,
                                 101,
                                  110);
BEGIN
  DBMS_OUTPUT.PUT_LINE
    ('Number of employees with higher salary: ' ||
      TO_CHAR(emp_actions.num_above_salary(120)));
  emp_actions.fire_employee(300);
END;
/

Packages are stored in the database, where they can be shared by many applications. Invoking a packaged subprogram for the first time loads the whole package and caches it in memory, saving on disk I/O for subsequent invocations. Thus, packages enhance reuse and improve performance in a multiuser, multi-application environment. For information on packages, see Chapter 10, "Using PL/SQL Packages".

If a subprogram does not take any parameters, you can include an empty set of parentheses or omit the parentheses, both in PL/SQL and in functions invoked from SQL queries. For calls to a method that takes no parameters, an empty set of parentheses is optional within PL/SQL scopes but required within SQL scopes.

Inputting and Outputting Data with PL/SQL

Most PL/SQL input and output is through SQL statements, to store data in database tables or query those tables. All other PL/SQL I/O is done through APIs that interact with other programs. For example, the DBMS_OUTPUT package has procedures such as PUT_LINE. To see the result outside of PL/SQL requires another program, such as SQL*Plus, to read and display the data passed to DBMS_OUTPUT.

SQL*Plus does not display DBMS_OUTPUT data unless you first issue the SQL*Plus command SET SERVEROUTPUT ON as follows:

SET SERVEROUTPUT ON

For information on the SERVEROUTPUT setting, see SQL*Plus User's Guide and Reference.

Other PL/SQL APIs for processing I/O are:

  • HTF and HTP for displaying output on a web page

  • DBMS_PIPE for passing information back and forth between PL/SQL and operating-system commands

  • UTL_FILE for reading and writing operating-system files

  • UTL_HTTP for communicating with web servers

  • UTL_SMTP for communicating with mail servers

See "Overview of Product-Specific PL/SQL Packages". Although some of these APIs can accept input as well as output, there is no built-in language facility for accepting data directly from the keyboard. For that, you can use the PROMPT and ACCEPT statements in SQL*Plus.

Understanding PL/SQL Data Abstraction

Data abstraction lets you work with the essential properties of data without being too involved with details. After you design a data structure, you can focus on designing algorithms that manipulate the data structure.

Topics:

Cursors

A cursor is a name for a specific private SQL area in which information for processing the specific statement is kept. PL/SQL uses both implicit and explicit cursors. PL/SQL implicitly declares a cursor for all SQL data manipulation statements on a set of rows, including queries that return only one row. For queries that return more than one row, you can explicitly declare a cursor to process the rows individually. For example, Example 1-7 declares an explicit cursor.

For information on managing cursors with PL/SQL, see "Managing Cursors in PL/SQL".

Collections

PL/SQL collection types let you declare high-level datatypes similar to arrays, sets, and hash tables found in other languages. In PL/SQL, array types are known as varrays (short for variable-size arrays), set types are known as nested tables, and hash table types are known as associative arrays. Each kind of collection is an ordered group of elements, all of the same type. Each element has a unique subscript that determines its position in the collection. When declaring collections, you use a TYPE definition. See "Defining Collection Types".

To reference an element, use subscript notation with parentheses, as shown in Example 1-16.

Example 1-16 Using a PL/SQL Collection Type

DECLARE
  TYPE staff_list IS TABLE OF employees.employee_id%TYPE;
  staff staff_list;
  lname employees.last_name%TYPE;
  fname employees.first_name%TYPE;
BEGIN
   staff := staff_list(100, 114, 115, 120, 122);
   FOR i IN staff.FIRST..staff.LAST LOOP
     SELECT last_name, first_name INTO lname, fname FROM employees
       WHERE employees.employee_id = staff(i);
     DBMS_OUTPUT.PUT_LINE (TO_CHAR(staff(i)) ||
                           ': ' || lname || ', ' || fname );
   END LOOP;
END;
/

Collections can be passed as parameters, so that subprograms can process arbitrary numbers of elements.You can use collections to move data into and out of database tables using high-performance language features known as bulk SQL.

For information on collections, see Chapter 5, "Using PL/SQL Collections and Records".

Records

Records are composite data structures whose fields can have different datatypes. You can use records to hold related items and pass them to subprograms with a single parameter. When declaring records, you use a TYPE definition. See "Defining and Declaring Records".

Example 1-17 shows how are records are declared.

Example 1-17 Declaring a Record Type

DECLARE
   TYPE timerec IS RECORD (hours SMALLINT, minutes SMALLINT);
   TYPE meetin_typ IS RECORD (
      date_held DATE,
      duration  timerec,  -- nested record
      location  VARCHAR2(20),
      purpose   VARCHAR2(50));
BEGIN
-- NULL does nothing but allows unit to be compiled and tested
  NULL;
END;
/

You can use the %ROWTYPE attribute to declare a record that represents a row in a table or a row from a query result set, without specifying the names and types for the fields.

For information on records, see Chapter 5, "Using PL/SQL Collections and Records".

Object Types

PL/SQL supports object-oriented programming through object types. An object type encapsulates a data structure along with the subprograms needed to manipulate the data. The variables that form the data structure are known as attributes. The subprograms that manipulate the attributes are known as methods.

Object types reduce complexity by breaking down a large system into logical entities. This lets you create software components that are modular, maintainable, and reusable. Object-type definitions, and the code for the methods, are stored in the database. Instances of these object types can be stored in tables or used as variables inside PL/SQL code. Example 1-18 shows an object type definition for a bank account.

Example 1-18 Defining an Object Type

CREATE TYPE bank_account AS OBJECT (
  acct_number NUMBER(5),
  balance     NUMBER,
  status      VARCHAR2(10),
  MEMBER PROCEDURE open
   (SELF IN OUT NOCOPY bank_account, amount IN NUMBER),
  MEMBER PROCEDURE close (SELF IN OUT NOCOPY bank_account,
                           num IN NUMBER, amount OUT NUMBER),
  MEMBER PROCEDURE deposit (SELF IN OUT NOCOPY bank_account,
                            num IN NUMBER, amount IN NUMBER),
  MEMBER PROCEDURE withdraw (SELF IN OUT NOCOPY bank_account,
                             num IN NUMBER, amount IN NUMBER),
  MEMBER FUNCTION curr_bal  (num IN NUMBER) RETURN NUMBER);
/

For information on object types, see Oracle Database Object-Relational Developer's Guide.

Understanding PL/SQL Error Handling

PL/SQL makes it easy to detect and process error conditions known as exceptions. When an error occurs, an exception is raised: normal execution stops and control transfers to special exception-handling code, which comes at the end of any PL/SQL block. Each different exception is processed by a particular exception handler.

PL/SQL's exception handling is different from the manual checking you might be used to from C programming, where you insert a check to make sure that every operation succeeded. Instead, the checks and calls to error routines are performed automatically, similar to the exception mechanism in Java programming.

Predefined exceptions are raised automatically for certain common error conditions involving variables or database operations. For example, if you try to divide a number by zero, PL/SQL raises the predefined exception ZERO_DIVIDE automatically.

You can declare exceptions of your own, for conditions that you decide are errors, or to correspond to database errors that normally result in ORA- error messages. When you detect a user-defined error condition, you execute a RAISE statement. See the exception comm_missing in Example 1-13. In the example, if the commission is null, the exception comm_missing is raised.

Typically, you put an exception handler at the end of a subprogram to handle exceptions that are raised anywhere inside the subprogram. To continue executing from the spot where an exception happens, enclose the code that might raise an exception inside another BEGIN-END block with its own exception handler. For example, you might put separate BEGIN-END blocks around groups of SQL statements that might raise NO_DATA_FOUND, or around arithmetic operations that might raise DIVIDE_BY_ZERO. By putting a BEGIN-END block with an exception handler inside a loop, you can continue executing the loop even if some loop iterations raise exceptions. See Example 5-38.

For information on PL/SQL errors, see "Overview of PL/SQL Run-Time Error Handling". For information on PL/SQL warnings, see "Overview of PL/SQL Compile-Time Warnings".

PL/SQL Architecture

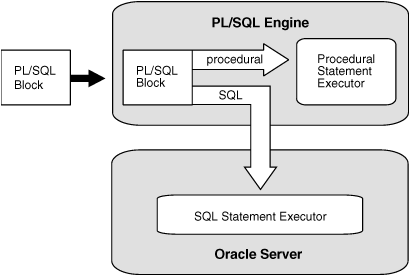

The PL/SQL compilation and run-time system is an engine that compiles and executes PL/SQL blocks and subprograms. The engine can be installed in an Oracle server or in an application development tool such as Oracle Forms.

In either environment, the PL/SQL engine accepts as input any valid PL/SQL block or subprogram. Figure 1-2 shows the PL/SQL engine processing an anonymous block. The PL/SQL engine executes procedural statements but sends SQL statements to the SQL engine in the Oracle database.

Topics:

PL/SQL Architecture in Oracle Database Server

Typically, the Oracle database server processes PL/SQL blocks and subprograms.

Topics:

Anonymous Blocks

Anonymous PL/SQL blocks can be submitted to interactive tools such as SQL*Plus and Enterprise Manager, or embedded in an Oracle Precompiler or OCI program. At run time, the program sends these blocks to the Oracle database, where they are compiled and executed.

Stored Subprograms

Subprograms can be compiled and stored in an Oracle database, ready to be executed. Once compiled, it is a schema object known as a stored subprogram, which can be referenced by any number of applications connected to that database.

The SQL CREATE PROCEDURE statement lets you create standalone procedures that are stored in the database. For information, see CREATE PROCEDURE in Oracle Database SQL Language Reference. The SQL CREATE FUNCTION statement lets you create standalone functions that are stored in an Oracle database. For information, see CREATE FUNCTION in Oracle Database SQL Language Reference.

Subprograms are stored in a compact compiled form. When invoked, they are loaded and processed immediately. Subprograms take advantage of shared memory, so that only one copy of a subprogram is loaded into memory for execution by multiple users.

Stored subprograms defined within a package are known as packaged subprograms. Those defined independently are called standalone subprograms. Subprograms nested inside other subprograms or within a PL/SQL block are known as local subprograms, which cannot be referenced by other applications and exist only inside the enclosing block.

Stored subprograms are the key to modular, reusable PL/SQL code. Wherever you might use a JAR file in Java, a module in Perl, a shared library in C++, or a DLL in Visual Basic, you can use PL/SQL stored subprograms and packages.

You can invoke stored subprograms from a database trigger, another stored subprogram, an Oracle Precompiler or OCI application, or interactively from SQL*Plus or Enterprise Manager. You can also configure a web server so that the HTML for a web page is generated by a stored subprogram, making it simple to provide a web interface for data entry and report generation.

Example 1-19 shows how you can invoke the stored subprogram in Example 1-13 from SQL*Plus using the CALL statement or using a BEGIN-END block.

Example 1-19 Techniques for Invoking a Standalone Procedure from SQL*Plus

CALL award_bonus(179, 1000);

BEGIN
  award_bonus(179, 10000);
END;
/
-- using named notation
BEGIN award_bonus(emp_id=>179, bonus=>10000); END;
/

Using the BEGIN-END block is recommended in several situations. For example, using the CALL statement can suppress an ORA-01403: no data found error that was not handled in the PL/SQL subprogram.

For additional examples of invoking PL/SQL subprograms, see Example 8-5. For information on the use of the CALL statement, see Oracle Database SQL Language Reference

Database Triggers

A database trigger is a stored subprogram associated with a database table, view, or event. The trigger can be invoked once, when some event occurs, or many times, once for each row affected by an INSERT, UPDATE, or DELETE statement. The trigger can be invoked after the event, to record it or take some followup action. Or, the trigger can be invoked before the event to prevent erroneous operations or fix new data so that it conforms to business rules. In Example 1-20 the table-level trigger fires whenever salaries in the employees table are updated, such as the processing in Example 1-8. For each update, the trigger writes a record to the emp_audit table.

Example 1-20 Creating a Database Trigger

CREATE TABLE emp_audit ( emp_audit_id NUMBER(6), up_date DATE,
                         new_sal NUMBER(8,2), old_sal NUMBER(8,2) );

CREATE OR REPLACE TRIGGER audit_sal
   AFTER UPDATE OF salary ON employees FOR EACH ROW
BEGIN
-- bind variables are used here for values
   INSERT INTO emp_audit VALUES( :old.employee_id, SYSDATE,
                                 :new.salary, :old.salary );
END;
/

The executable part of a trigger can contain procedural statements as well as SQL data manipulation statements. Besides table-level triggers, there are instead-of triggers for views and system-event triggers for schemas. For more information on triggers, see Chapter 9, "Using Triggers". For information on the CREATE TRIGGER SQL statement, see Oracle Database SQL Language Reference.

PL/SQL Architecture in Oracle Tools

An application development tool that contains the PL/SQL engine can process PL/SQL blocks and subprograms. The tool passes the blocks to its local PL/SQL engine. The engine executes all procedural statements inside the application and sends only SQL statements to the database. Most of the work is done inside the application, not on the database server. If the block contains no SQL statements, the application executes the entire block. This is useful if your application can benefit from conditional and iterative control.

Frequently, Oracle Forms applications use SQL statements to test the value of field entries or to do simple computations. By using PL/SQL instead, you can avoid calls to the database. You can also use PL/SQL functions to manipulate field entries.
