2 Features of OraOLEDB

Beta Draft

This chapter describes components of Oracle Provider for OLE DB (OraOLEDB) and how to use the components to develop OLE DB consumer applications.

This chapter contains these topics:

OraOLEDB Provider Specific Features

The following sections describe provider-specific features of OraOLEDB:

Additional provider-specific information is provided in Appendix A, "Provider-Specific Information".

Data Types

The data types that OraOLEDB supports are listed in Table A-1 with Unicode and NonUnicode mappings.

With 10g Release 2 (10.2), OraOLEDB now supports the following data types. These data types are described in the following sections.

  • Data Types introduced in Oracle Database 10g:

    • BINARY_FLOAT

    • BINARY_DOUBLE

  • Data Types introduced in Oracle9i:

    • TIMESTAMP

    • TIMESTAMP WITH TIME ZONE

    • TIMESTAMP WITH LOCAL TIME ZONE

    • INTERVAL YEAR TO MONTH

    • INTERVAL DAY TO SECOND


See Also:

For details about these and other data types, and time zones, see Oracle Database SQL Reference

Binary Data Types

BINARY_FLOAT is a single-precision floating point data type (4 bytes), which is mapped to OLE DB DBTYPE_R4.

BINARY_DOUBLE is a double-precision floating point data type (8 bytes), which is mapped to OLE DB DBTYPE_R8.

TIMESTAMP Data Types

This section discusses the Timestamp data types and then provides the following:

  • Sample data illustrating insertion and retrieval operations using each of the Timestamp data types.

  • A Visual Basic code example using the Timestamp data types.

Timestamp data types are mapped to the OLE DB DBTYPE_DBTIMESTAMP. The OLE DB DBTYPE_DBTIMESTAMP data type does not have TIME ZONE information.

The Timestamp data types include:

  • TIMESTAMP

  • TIMESTAMP WITH TIME ZONE

  • TIMESTAMP WITH LOCAL TIME ZONE

Data Insertion

For data insertion into a TIMESTAMP WITH TIME ZONE or TIMESTAMP WITH LOCAL TIME ZONE column, the time zone setting of the client is used.

OLE DB Timestamp data type cannot provide the time zone information. For insert operations, the default time zone from the client session is added to the TIMESTAMP WITH TIME ZONE column data.

Data Retrieval

For data retrieval, TIME ZONE is dropped for TIMESTAMP WITH TIME ZONE columns, but TIME ZONE is used for TIMESTAMP WITH LOCAL TIME ZONE columns.

The OLE DB Timestamp data type cannot store time zone information.

Fractional Second

Fractional second is not supported for TIMESTAMP data types binding with Command objects. Note that using ALTER SESSION to change time zone information does not change the time zone information in the new and existing Recordsets, which use the client time zone setting from the Regional options of the operating system. The maximum fractional_seconds_precision of TIMESTAMP is 9 and the default precision is 6.

ADO Consumers

For the Timestamp data types, ADO consumers must specify the value of CursorLocation as adUseServer and use Recordset for DML operations.

Examples of Timestamp Insert and Retrieval

The following scenarios assume that the default precision of 6 is used.

TIMESTAMP Column

Insert Data: 4/16/2003 11:19:19 AM (No time zone)

Data in DB: 4/16/2003 11.19.19.000000 AM

Data Retrieval: 4/16/2003 11:19:19 AM

TIMESTAMP WITH TIME ZONE Column

Insert Data: 4/16/2003 11:19:19 AM (Time zone of the Client session is used)

Data in DB: 4/16/2003 11.19.19.000000 AM -07:00

Data Retrieval: 4/16/2003 11:19:19 AM (Time zone is dropped)

TIMESTAMP WITH LOCAL TIME ZONE Column

The following scenario assumes that the time zone of the client session is -04:00, currently on US EDT (Eastern daylight time). For an insert operation, the data in the TIMESTAMP WITH LOCAL TIME ZONE column does not include time zone displacement, but its TIMESTAMP data is normalized to the database time zone -07:00, which is the same as US PDT (Pacific daylight time).

For a query, data is returned in the time zone of the client session. The time zone displacement is the difference (in hours and minutes) between the local time and the Coordinated Universal Time (UTC).

Insert Data: 4/16/2003 4:30:23 PM (Client time zone is -04:00)

Data in DB: 4/16/2003 01.30.23.000000 PM (Database time zone -07:00)

Data Retrieval: 4/16/2003 4:30:23 PM (Client time zone is -04:00)

Data Retrieval: 4/16/2003 3:30:23 PM (Client time zone is -05:00)

Data Retrieval: 4/16/2003 2:30:23 PM (Client time zone is -06:00)

Data Retrieval: 4/16/2003 1:30:23 PM (Client time zone is -07:00)

Visual Basic Example



...
Dim DT As Date
 DT = Now()
con.ConnectionString = "Provider=OraOLEDB.Oracle.1;User ID=user_name;" & _
    "Password=pwd;Data Source=Oracle;"
con.Open
'Must use adUseServer
rec.CursorLocation = adUseServer
rec.ActiveConnection = con
rec.Open "select timestamp_column from test_table", con, adOpenDynamic,_
    adLockOptimistic
rec.AddNew Array("timestamp_column"), Array(DT)

update data
rec.Update Array("timestamp_column"), Array("07/07/07 07:17:17 AM")
...

INTERVAL Data Types

The INTERVAL data types are mapped to OLE DB DBTYPE_STR data type. The INTERVAL data types include:

  • INTERVAL YEAR TO MONTH

  • INTERVAL DAY TO SECOND

For the INTERVAL YEAR TO MONTH column, the maximum year_precision is 9 and the default is 2. For INTERVAL DAY TO SECOND column, the maximum day_precision is 9 and the default is 2 and the maximum fractional_seconds_precision is 9, the default is 6.


Note:

If the sign is not specified, then the default is +.

INTERVAL YEAR TO MONTH

Usage: (sign) years-months

Examples:

  • 2-3

    2 years and 3 months

  • +2-3

    2 years and 3 months

  • -2-3

    negative 2 years and 3 months

INTERVAL DAY TO SECOND

Usage: (sign) days hours:minutes:seconds.second_fraction

Examples:

  • 7 10:20:30.123456

    7 days, 10 hours, 20 minutes, and 30.123456 seconds

  • +7 10:20:30.123456

    7 days, 10 hours, 20 minutes, and 30.123456 seconds

  • -7 10:20:30.123456

    negative 7 days, 10 hours, 20 minutes, and 30.123456 seconds

Visual Basic Example

...
con.ConnectionString = "Provider=OraOLEDB.Oracle.1;User ID=user_name;"& _
     "Password=pwd;Data Source=Oracle;"
con.Open
'no restriction on using adUseServer or adUseClient
rec.CursorLocation = adUseServer
rec.ActiveConnection = con
rec.Open "select * from test_table2", con, adOpenDynamic, adLockOptimistic
rec.AddNew Array("year_to_month_column", "day_to_second_column"), _
    Array("8-1", "3 20:30:10.12")

'update data
rec.Update Array("year_to_month_column", "day_to_second_column"), _
     Array("2-3", "7 10:20:30.123456")
...

Data Source

A data source object in OraOLEDB is responsible for establishing the first connection to the Oracle Database. To establish the initial connection, the consumer must use the CoCreateInstance function to create an instance of the data source object. This function requires important information about the provider: class ID of the provider and executable context. The class ID of OraOLEDB is CLSID_OraOLEDB.

OraOLEDB is an in-process server. When calling CoCreateInstance, use the CLSCTX_INPROC_SERVER macro. For example:

// create an instance of OraOLEDB data source object and
// obtain the IDBInitialize interface
hr = CoCreateInstance(CLSID_OraOLEDB, NULL,
                      CLSCTX_INPROC_SERVER, IID_IDBInitialize,
                     (void**)&pIDBInitialize);


Note:

OraOLEDB does not support persistent data source objects.

After the successful creation of an instance of a data source object, the consumer application can initialize the data source and create sessions.

OraOLEDB supports connections to Oracle Databases release 8i and higher. To connect to a specific database, the consumer is required to set the following properties of the DBPROPSET_DBINIT property set:

  • DBPROP_AUTH_USERNAME with the user ID, such as scott

  • DBPROP_AUTH_PASSWORD with the password, such as tiger

  • DBPROP_INIT_DATASOURCE with the net service name, such as myOraDb

The consumer could also populate DBPROP_INIT_PROMPT with DBPROMPT_PROMPT which causes the provider to display a logon box for the user to enter the connect information.

Using DBPROMPT_NOPROMPT disables display of the logon box. In this case, incomplete logon information causes the provider to return a logon error. However, if this property is set to DBPROMPT_COMPLETE or DBPROMPT_COMPLETEREQUIRED, the logon box will be displayed only if the logon information is incomplete.

Connecting to an Oracle Database

To connect to an Oracle Database using OraOLEDB, the OLE DB connection string must be as follows:

"Provider=OraOLEDB.Oracle;User ID=user;Password=pwd;Data Source=constr;"

When connecting to a remote database, Data Source must be set to the correct net service name which is the alias in the tnsnames.ora file. For more information, refer to Oracle Net Services Administrator's Guide.

OraOLEDB-specific Connection String Attributes

OraOLEDB offers provider-specific connection string attributes, which are set in the same way as the Provider and User ID are set. The provider-specific connection string attributes are:

  • CacheType - specifies the type of cache used to store the rowset data on the client. See "OraOLEDB-Specific Connection String Attributes for Rowsets".

  • ChunkSize - specifies the size of LONG or LONG RAW column data stored in the provider's cache. See "OraOLEDB-Specific Connection String Attributes for Rowsets".

  • DistribTX - enables or disables distributed transaction enlistment capability. See "Distributed Transactions".

  • FetchSize - specifies the size of the fetch array in rows. See "OraOLEDB-Specific Connection String Attributes for Rowsets".

  • OLEDB.NET - enables or disables compatibility with OLEDB.NET Data Provider. See "OLEDB.NET Data Provider Compatibility".

  • OSAuthent - specifies whether operating system authentication will be used when connecting to an Oracle Database. See "Operating System Authentication".

  • PLSQLRSet - enables or disables the return of a rowset from PL/SQL stored procedures. See "OraOLEDB Custom Properties for Commands".

  • PwdChgDlg - enables or disables displaying the password change dialog box when the password expires. See "Password Expiration".

  • UseSessionFormat - specifies whether to use the default NLS session formats or let OraOLEDB override some of these formats for the duration of the session. Valid values are 0 (FALSE) and 1 (TRUE). The default is FALSE which lets OraOLEDB override some of the default NLS session formats. If the value is TRUE, OraOLEDB uses the default NLS session formats.

    Note that this connection attribute does not appear under the \\HKEY_LOCAL_ MACHINE\SOFTWARE\ORACLE\KEY_HOMENAME\OLEDB registry key.

  • VCharNull - enables or disables the NULL termination of VARCHAR2 OUT parameters from stored procedures.

  • SPPrmDefVal - specifies whether to use the default value or a NULL value if the application has not specified a stored procedure parameter value.

  • NDataType - specifies whether any of the parameters bound to the command are of N data types, which include NCHAR, NVARCHAR, or NCLOB. See "NDatatype ".

    Note that this connection attribute does not appear under the \\HKEY_LOCAL_ MACHINE\SOFTWARE\ORACLE\KEY_HOMENAME\OLEDB registry key.

  • SPPrmsLOB - specifies whether one or more parameters bound to the stored procedures are of LOB data type, which include CLOB, BLOB, or NCLOB. See "SPPrmsLOB".

    Note that this connection attribute does not appear under the \\HKEY_LOCAL_ MACHINE\SOFTWARE\ORACLE\KEY_HOMENAME\OLEDB registry key.

  • StmtCacheSize – specifies the maximum number of statements that can be cached. See "Statement Caching".

Default Attribute Values

The default values for these attributes are located under the \\HKEY_LOCAL_ MACHINE\SOFTWARE\ORACLE\KEY_HOMENAME\OLEDB registry key.

The registry default values are read by OraOLEDB from the registry when the provider is loaded into memory. If Oracle-specific connection string attributes are not provided at connection time, then the default registry values are used. However, if the attributes are provided, then these new values override the default registry values.

These attributes can be set by setting the DBPROP_INIT_PROVIDERSTRING property, provided in the DBPROPSET_DBINIT property set. For example:

"FetchSize=100;CacheType=Memory;OSAuthent=0;PLSQLRSet=1;StmtCacheSize=10;"

Distributed Transactions

The DistribTX attribute specifies whether sessions are enabled to enlist in distributed transactions. Valid values are 0 (disabled) and 1 (enabled). The default is 1 which indicates that sessions are enabled for distributed transaction enlistments.

Applications using Microsoft Transaction Server must have DistribTX set to 1, the default.

Operating System Authentication

The OSAuthent attribute specifies whether operating system authentication will be used when connecting to an Oracle Database. Valid values are 0 (disabled) and 1 (enabled). The default is 0, which indicates that operating system authentication is not used.

Operating system authentication is the feature by which Oracle uses the security mechanisms of the operating system to authorize users. For more information on this subject and how to set it up on Windows clients, refer to the information on authenticating database users on Windows in Oracle Database Platform Guide for Windows

After the Windows client has been set up properly for operating system authentication, this feature may be enabled by OraOLEDB clients by setting any of the following:

  • DBPROP_AUTH_USERNAME to /

  • DBPROP_INIT_PROVIDERSTRING to OSAuthent=1;

  • OSAuthent in the registry to 1

Password Expiration

Oracle9i provides a Password Expiration feature which allows database administrators to force users to change their passwords regularly. The PwdChgDlg attribute enables or disables the displaying of the password change dialog box, whenever a logon fails due to an expired password. When enabled, the provider displays the dialog box to change the password. When disabled, the logon fails with an error message. The valid values are 0 (disabled) and 1 (enabled). The default is 1 (enabled). For more information on the Password Expiration feature, see Oracle Database Administrator's Guide.

Example: Connecting to an Oracle Database Using ADO

The following examples illustrate how to connect to an Oracle Database using OraOLEDB and ADO.


Note:

If Data Source, User ID, and Password are provided with the Open method, then ADO ignores those ConnectionString attributes.

Connect Using ConnectionString

Dim con As New ADODB.Connection
con.ConnectionString = "Provider=OraOLEDB.Oracle;Data Source=MyOraDb;" & _
                     "User ID=scott;Password=tiger;"
con.Open

Connect Without Using ConnectionString

Dim con As New ADODB.Connection
con.Provider = "OraOLEDB.Oracle"
con.Open "MyOraDb", "scott", "tiger"

Connect and Set Provider-specific Attributes

Dim con As New ADODB.Connection
con.Provider = "OraOLEDB.Oracle"
con.ConnectionString = "FetchSize=200;CacheType=Memory;" & _
                       "OSAuthent=0;PLSQLRSet=1;Data Source=MyOraDb;" & _
                       "User ID=scott;Password=tiger;"
con.Open

Operating System-Authenticated Connect Setting User ID to /

Dim con As New ADODB.Connection
con.Provider = "OraOLEDB.Oracle"
con.Open "MyOraDb", "/", ""

Operating System-Authenticated Connect Using OSAuthent

Dim con As New ADODB.Connection
con.Provider = "OraOLEDB.Oracle"
con.ConnectionString = "Data Source=MyOraDb;OSAuthent=1;"
con.Open

VCharNull

The VCharNull attribute enables or disables the NULL termination of VARCHAR2 OUT parameters from stored procedures. Valid values are 0 (disabled) and 1 (enabled). The default is 1, which indicates that VARCHAR2 OUT parameters are NULL terminated. A value of 0 indicates that VARCHAR2 OUT parameters are padded with spaces.

The default value for this attribute is located under the \\HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\KEY_HOMENAME\OLEDB registry key, where HOMENAME is the Oracle home. If this attribute is not provided at the connection time, then the default registry value is used.

Note that with this connection attribute enabled, applications need to pad the stored procedure IN and IN OUT CHAR parameters with spaces explicitly, if the parameter is to be used in a WHERE clause.

SPPrmDefVal

The SPPrmDefVal attribute specifies whether to use the default value or a NULL value if the application has not specified a stored procedure parameter value. Valid values are 0 (FALSE) and 1 (TRUE). The default is FALSE, which enables OraOLEDB to pass a NULL value. If the value is TRUE, then OraOLEDB uses the default value.

The default value for this attribute is located under the \\HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\KEY_HOMENAME\OLEDB registry key, where HOMENAME is the Oracle home. If this attribute is not provided at connection time, then the default registry value is used.

OraOLEDB Sessions

An OraOLEDB session object represents a single connection to an Oracle Database. The session object exposes the interfaces that allow data access and manipulation.

The first session created on the initialized data source inherits the initial connection established by IDBInitialize::Initialize(). Subsequent sessions that are created establish their own independent connections to the particular Oracle Database specified by the data source properties.

Each session object also defines a transaction space for a data source. All command and rowset objects created from a particular session object are part of the transaction of that session.

After all references to the session object are released, the session object is removed from memory and the connection is dropped.

Transactions

OraOLEDB supports local and distributed transactions, which provide explicit commit and abort transactional operations.

OraOLEDB does not support nested transactions. In addition, a local transaction cannot be started if the session is currently enlisted in a distributed transaction. This also applies to distributed transactions if the session is currently enlisted in a local transaction.

Local Transactions

OraOLEDB supports the ITransactionLocal interface for explicit transactions. By default, OraOLEDB is in an autocommit mode, meaning that each unit of work done on the database is automatically or implicitly committed. With the use of the ITransactionLocal interface, consumers may explicitly start a transaction for a particular session, allowing a unit of work to be explicitly committed or aborted by the consumer.

OraOLEDB supports the Read Committed (Cursor Stability) isolation level. In this level, the changes made by other transactions are not visible until those transactions are committed.

Distributed Transactions

OraOLEDB consumers must install Oracle Services for Microsoft Transaction Server (MTS) release 10.2 or higher to be able to participate in Microsoft Transaction Server (or COM+) transactions or to enlist in a distributed transaction coordinated by Microsoft Distributed Transaction Coordinator (MS DTC). For setup and configuration information on Oracle Services for MTS, see Oracle Services for Microsoft Transaction Server Developer's Guide.

OraOLEDB ignores IsoLevel, IsoFlags, and pOtherOptions parameters when ITransactionJoin::JoinTransaction() is called. These options must be provided when the consumer acquires a transaction object from MS DTC with the ITransactionDispenser::BeginTransaction() method call.

However, if IsoFlags is nonzero, then XACT_E_NOISORETAIN is returned.

Commands

OraOLEDB supports ANSI SQL as supported by Oracle Database and the ODBC SQL syntax.

Stored Procedures

When executing an Oracle PL/SQL stored procedure using a command, use Oracle native syntax or the ODBC procedure call escape sequence in the command text:

  • Oracle native syntax: BEGIN credit_account(123, 40); END;

  • ODBC syntax: {CALL credit_account(123, 40)}

Preparing Commands

OraOLEDB validates and fetches the metadata only for SELECT SQL statements.

Command Parameters

When using Oracle ANSI SQL, parameters in the command text are preceded by a colon. In ODBC SQL, parameters are indicated by a question mark (?).

OraOLEDB supports input, output, and input and output parameters for PL/SQL stored procedures and stored functions. OraOLEDB supports input parameters for SQL statements.


Note:

OraOLEDB supports only positional binding.

OraOLEDB Custom Properties for Commands

OraOLEDB custom properties for commands are grouped under the custom property set ORAPROPSET_COMMANDS. It provides these properties:

Table 2-1 Custom Properties for Commands

For Visual Basic Users For C++ Users
PLSQLRSet ORAPROP_PLSQLRSet
NDatatype ORAPROP_NDatatype
SPPrmsLOB ORAPROP_SPPrmsLOB
AddToStmtCache ORAPROP_AddToStmtCache

PLSQLRSet

This property is similar to the PLSQLRSet connection string attribute.

The property specifies whether OraOLEDB must return a rowset from the PL/SQL stored procedure. If the stored procedure, provided by the consumer, returns a rowset, PLSQLRSet must be set to TRUE (enabled). This property should be set to FALSE after the command has been run. By default, the property is set to FALSE (disabled).

Consumers should use the property over the attribute, as the property can be set at the command object rather than at the session. By setting it at the command object, the consumer is able to set the property only for the command object executing stored procedures which are returning rowsets. With the attribute, the consumer needed to set it even if only one of many stored procedures being executed by the ADO application returned a rowset. The use of this property should provide a performance boost to applications making use of the attribute previously.

Example: Setting the Custom Property PLSQLRSet

Dim objRes As NEW ADODB.Recordset
Dim objCon As NEW ADODB.Connection
Dim objCmd As NEW ADODB.Command
....
objCmd.ActiveConnection = objCon
objCmd.CommandType = adCmdText

' Enabling the PLSQLRSet property indicates to the provider
' that the command returns one or more rowsets
objCmd.Properties("PLSQLRSet") = TRUE

' Assume Employees.GetEmpRecords() has a REF CURSOR as
' one of the arguments
objCmd.CommandText = "{ CALL Employees.GetEmpRecords(?,?) }"

' Execute the SQL
set objRes = objCmd.Execute

' It is a good idea to disable the property after execute as the
' same command object may be used for a different SQL statement
objCmd.Properties("PLSQLRSet") = FALSE

NDatatype

This property allows the consumers to specify whether any of the parameters bound to the command are of Oracle's N data types (NCHAR, NVARCHAR or NCLOB). This information is required by OraOLEDB to detect and bind the parameters. This property should not be set for commands executing SELECT statements. However, this property must be set for all other SQL statements, such as INSERT, UPDATE, and DELETE.

The use of this property should be limited to SQL statements containing parameters of N data type as setting it incurs a processing overhead of at least one round-trip to the database. By default, this property is set to FALSE.


Note:

OraOLEDB does not support parameters of N data types in the WHERE clause of SQL statements.


Note:

Consumers are required to use the ODBC procedure call escape sequence to call stored procedures or functions having N data type parameters.

Example: Setting the Custom Property NDatatype

Dim objCon As NEW ADODB.Connection
Dim objCmd As NEW ADODB.Command
Dim prEmpno As NEW ADODB.Parameter
Dim prEname As NEW ADODB.Parameter
...
objCmd.ActiveConnection = objCon
objCmd.CommandType = adCmdText

' Create and append the parameters to the command object
Set prEmpno = objCmd.CreateParameter("prEmpno", adSmallInt, adParamInput, ,8521)
' prEname is bound to a NVARCHAR column in the EMP table
Set prEname = objCmd.CreateParameter("prEname", adBSTR, adParamInput, , "Joe")
objCmd.Parameters.Append prEmpno
objCmd.Parameters.Append prEname

' Enabling the NDatatype property indicates to the provider
' that one or more of the bound parameters is of N datatype
objCmd.Properties("NDatatype") = TRUE

' Assume column ENAME in table EMP is of NVARCHAR type
objCmd.CommandText = "INSERT INTO EMP (EMPNO, ENAME) VALUES (?, ?)"

' Execute the SQL
objCmd.Execute

' It is a good idea to disable the property after execute as the same command ' object may be used for a different SQL statement
objCmd.Properties("NDatatype") = FALSE

SPPrmsLOB

This property allows the consumer to specify whether one or more of the parameters bound to the stored procedures are of Oracle's LOB data type (CLOB, BLOB, or NCLOB). OraOLEDB requires this property to be set to TRUE, to fetch the parameter list of the stored procedure prior to execution. The use of this property limits the processing overhead to stored procedures having one or more LOB data type parameters. This property should be set to FALSE after the command has been executed. By default, the property is set to FALSE.


Note:

Consumers are required to use the ODBC procedure call escape sequence to call stored procedures or functions having LOB data type parameters.

Example: Setting the Custom Property SPPrmsLOB

Dim objCon As NEW ADODB.Connection
Dim objCmd As NEW ADODB.Command
Dim prCLOB As NEW ADODB.Parameter
...
objCmd.ActiveConnection = objCon
objCmd.CommandType = adCmdText

' Create and append the parameters to the command object
Set prCLOB = objCmd.CreateParameter("prCLOB", adLongVarchar, adParamOutput, _                                                                 10000)
objCmd.Parameters.Append prCLOB

' Enabling the SPPrmsLOB property indicates to the provider
' that one or more of the bound parameters is of LOB data type
objCmd.Properties("SPPrmsLOB") = TRUE

' Assume the Stored Procedure requires a CLOB parameter
objCmd.CommandText = "{ call storedproc(?) }"

'Execute the SQL
objCmd.Execute

' It is a good idea to disable the property after execute as the
' same command object may be used for a different SQL statement
objCmd.Properties("SPPrmsLOB") = FALSE

AddToStmtCache

This property allows the consumer to cache the executed statements when the property is set to TRUE and statement caching is enabled. If the statement caching is disabled or if this property is set to FALSE, then the executed statement is not cached.

This property is ignored if statement caching is disabled. Statement caching can be enabled by setting the StmtCacheSize connection string attribute to a value greater than zero. This property provides a way to selectively add statements to the cache when statement caching is enabled. By default, the property is set to TRUE.

Example: Setting the Custom Property AddToStmtCache

Dim objCon As NEW ADODB.Connection
Dim objCmd As NEW ADODB.Command
...

' Statement caching is enabled by setting the 'StmtCacheSize'
' connection string attribute to a value greater than zero
objCon.ConnectionString = "StmtCacheSize=10;Data Source=MyOraDb;" & _                        "User ID=scott;Password=tiger;"
objCon.Open
objCmd.ActiveConnection = objCon
objCmd.CommandType = adCmdText
objCmd.CommandText = "SELECT * FROM EMP"

' "SELECT * FROM EMP" statement would be added to the statement cache because
' StmtCacheSize connection string attribute value is greater than 0 and
' AddToStmtCache property value is TRUE by default.
objCmd.Execute

' Do not add "SELECT * FROM DEPT" to the statement cache
objCmd.CommandText = "SELECT * FROM DEPT"
objCmd.Properties("AddToStmtCache") = FALSE

' "SELECT * FROM DEPT" statement would not be added to the statement cache
objCmd.Execute

Stored Procedures and Functions Returning Rowsets

Oracle Provider for OLE DB allows consumers to execute a PL/SQL stored procedure with an argument of REF CURSOR type or a stored function returning a REF CURSOR value.

OraOLEDB returns a rowset for the REF CURSOR bind variable. Because there is no predefined data type for REF CURSOR in the OLE DB specification, the consumer must not bind this parameter.

If the PL/SQL stored procedure has one or more arguments of REF CURSOR type, OraOLEDB binds these arguments and returns a rowset for each argument of REF CURSOR type.

If the PL/SQL stored function returns a REF CURSOR or has an argument of REF CURSOR type, OraOLEDB binds these and returns a rowset for each REF CURSOR type.

To use this feature, stored procedures or functions must be called in the ODBC procedure call escape sequence.

The stored procedure or function being called could be either standalone or packaged. However, the REF CURSOR being returned must be explicitly defined in a package in the database.

Multiple Rowsets

OraOLEDB supports returning more than one rowset from a stored procedure. Consumers can use this feature to access all the REF CURSORs being returned by a stored procedure.

Example: Stored Procedure Returning Multiple Rowsets

PL/SQL Package

CREATE OR REPLACE PACKAGE Employees AS
  TYPE empcur IS REF CURSOR;

  PROCEDURE GetEmpRecords(p_cursor OUT empcur,
                          q_cursor OUT empcur,
                          indeptno IN NUMBER,
                          p_errorcode OUT NUMBER);

  FUNCTION GetDept(inempno IN NUMBER,
                   p_errorcode OUT NUMBER)
    RETURN empcur;
END Employees;

CREATE OR REPLACE PACKAGE BODY Employees AS

  PROCEDURE GetEmpRecords(p_cursor OUT empcur,
                          q_cursor OUT empcur,
                          indeptno IN NUMBER,
                          p_errorcode OUT NUMBER) IS
  BEGIN
    p_errorcode := 0;
    OPEN p_cursor FOR
      SELECT *
      FROM emp
      WHERE deptno = indeptno
      ORDER BY empno;

OPEN q_cursor FOR
      SELECT empno
      FROM emp
      WHERE deptno = indeptno
      ORDER BY empno;

  EXCEPTION
    WHEN OTHERS THEN
      p_errorcode:= SQLCODE;

  END GetEmpRecords;

  FUNCTION GetDept(inempno IN NUMBER,
                   p_errorcode OUT NUMBER)
    RETURN empcur IS
      p_cursor empcur;
  BEGIN
    p_errorcode := 0;
    OPEN p_cursor FOR
      SELECT deptno
      FROM emp
      WHERE empno = inempno;
    RETURN (p_cursor);

  EXCEPTION
    WHEN OTHERS THEN
      p_errorcode:= SQLCODE;

  END GetDept;

END Employees;

ADO Program

Dim Con   As New ADODB.Connection
Dim Rst1  As New ADODB.Recordset
Dim Rst2  As New ADODB.Recordset
Dim Rst3  As New ADODB.Recordset
Dim Cmd   As New ADODB.Command
Dim Prm1  As New ADODB.Parameter
Dim Prm2  As New ADODB.Parameter

Con.Provider = "OraOLEDB.Oracle"
Con.ConnectionString = "Data Source=MyOraDb;" & _
                       "User ID=scott;Password=tiger;"
Con.Open
Cmd.ActiveConnection = Con

' Although Employees.GetEmpRecords() takes four parameters, only
' two need to be bound because Ref cursor parameters are automatically
' bound by the provider.

Set Prm1 = Cmd.CreateParameter("Prm1", adSmallInt, adParamInput, , 30)
Cmd.Parameters.Append Prm1
Set Prm2 = Cmd.CreateParameter("Prm2", adSmallInt, adParamOutput)
Cmd.Parameters.Append Prm2

' Enable PLSQLRSet property
Cmd.Properties ("PLSQLRSet") = TRUE

' Stored Procedures returning resultsets must be called using the
' ODBC escape sequence for calling stored procedures.
Cmd.CommandText = "{CALL Employees.GetEmpRecords(?, ?)}"

' Get the first recordset
Set Rst1 = Cmd.Execute

' Disable PLSQLRSet property
Cmd.Properties("PLSQLRSet") = FALSE

' Get the second recordset
Set Rst2 = Rst1.NextRecordset

' Just as in a stored procedure, the REF CURSOR return value must
' not be bound in a stored function.
Prm1.Value = 7839
Prm2.Value = 0

' Enable PLSQLRSet property
Cmd.Properties("PLSQLRSet") = TRUE

' Stored Functions returning resultsets must be called using the
' ODBC escape sequence for calling stored functions.
Cmd.CommandText = "{CALL Employees.GetDept(?, ?)}"

' Get the rowset
Set Rst3 = Cmd.Execute

' Disable PLSQLRSet
Cmd.Properties ("PLSQLRSet") = FALSE

' Clean up
Rst1.Close
Rst2.Close
Rst3.Close

Statement Caching

Statement caching eliminates the need to parse each SQL or PL/SQL statement before execution, by caching server cursors created during the initial statement execution. Subsequent executions of the same statement can reuse the parsed information from the cursor, and then execute the statement without reparsing, for better performance.

To see performance gains from statement caching, Oracle recommends caching only those statements that will be repeatedly executed. Furthermore, SQL or PL/SQL statements should use parameters rather than literal values. This will enable you to take full advantage of statement caching. This is because parsed information from parameterized statements can be reused, even if the parameter values change in subsequent executions. However, if the literal values in the statements are different, the parsed information cannot be reused unless the subsequent statements also have the same literal values.

StmtCacheSize Connection String Attribute

This attribute enables or disables OraOLEDB statement caching. By default, this attribute is set to 0 (disabled). If it is set to a value greater than 0, OraOLEDB statement caching is enabled and the value specifies the maximum number of statements that can be cached for a connection.

After a connection has been cached to the specified maximum cache size, the cursor least recently used is freed to make room to cache the newly-created cursor. This value should not be greater than the value of the OPEN_CURSORS parameter set in the init.ora database configuration file.

AddToStmtCache Command Property

This property is relevant only when statement caching is enabled. If statement caching is enabled and this property is set to true (default), then statements are added to the cache when they are executed. If statement caching is disabled or if this property is set to false, then the executed statement is not cached.

Enabling Statement Caching through the Registry

To enable statement caching by default for all OraOLEDB applications running in a system without changing the application, set the registry key of \\HKEY_LOCAL_ MACHINE\SOFTWARE\ORACLE\KEY_HOMENAME\OLEDB\StmtCacheSize to a value greater than 0. Here, KEY_HOMENAME refers to the appropriate Oracle home. This value specifies the number of cursors that are to be cached on the server. By default, it is set to 0.

Connections and Statement Caching

Statement caching is managed separately for each connection. Therefore, for running the same statement on different connections, you need to parse once for each connection and cache a separate cursor for each connection.

Rowsets

This section discusses using Rowsets with OraOLEDB.

To Create Rowsets

OraOLEDB supports IOpenRowset::OpenRowset and ICommand::Execute for creating rowsets.

To Create Rowsets with IOpenRowset::OpenRowset

When using IOpenRowset::OpenRowset, note the following guidelines:

  • The pTableID parameter must contain a DBID structure that specifies a base table or a view.

  • The DBID structure's eKind member must be set to DBKIND_GUID_NAME, DBKIND_NAME, or DBKIND_PGUID_NAME.

  • The DBID structure's uName member must specify the base table or view name as a Unicode character string. It cannot be NULL.

  • The pIndexID parameter of OpenRowset must be NULL.

To Create Rowsets with ICommand::Execute

OraOLEDB supports SQL SELECT statements that return rowsets. OraOLEDB also supports returning rowsets from PL/SQL stored procedures and functions.

By default, ADO creates a nonupdatable rowset from a command object. An updatable rowset can be created by setting the Updatability and IRowsetChange properties on the command object. The Updatability property can be set to the following values:

Table 2-2 Possible Values for Updatability Property

Value Description
1 update
2 delete
3 update and delete
4 insert
5 insert and update
6 insert and delete
7 insert, delete, and update

The following ADO code sample sets the Updatability property on a command object to allow insert, delete, and update operations on the rowset object.

Dim Cmd As New ADODB.Command
Dim Rst As New ADODB.Recordset
Dim Con As New ADODB.Connection
...
Cmd.ActiveConnection = Con
Cmd.CommandText = "SELECT * FROM emp"
Cmd.CommandType = adCmdText
cmd.Properties("IRowsetChange") = TRUE
Cmd.Properties("Updatability") = 7
' creates an updatable rowset
Set Rst = cmd.Execute

Updatability

OraOLEDB supports both immediate and deferred update mode. However, insert and update operations cannot be deferred when the operation changes a nonscalar column, such as LONG, BLOB, or CLOB. When nonscalar column values are changed in a deferred update mode, the entire row is transmitted to the database as though the operation was in an immediate update mode. In addition, these operations cannot be undone with the Undo method (ADO) or IRowsetUpdate::Undo(). However, if they are in a transaction, they can be rolled back with RollbackTrans method (ADO) or ITransactionLocal::Abort().

Rowsets created using queries with joins are updatable by OraOLEDB only with the Client Cursor Engine enabled. C/C++ OLE DB consumers must enable this service to make these rowsets updatable. ADO consumers must specify the CursorLocation as adUseClient to make these rowsets updatable.

For example:

Dim objCon As New ADODB.Connection
Dim objRst As New ADODB.Recordset

objCon.Provider = "OraOLEDB.Oracle"
objCon.Open "MyOraDb", "scott", "tiger"
objRst.CursorLocation = adUseClient       'ADO Client Cursor
objRst.Open "select ename, dname " & _
       "from emp, dept " & _
       "where emp.deptno = dept.deptno", _
       objCon, adOpenStatic, adLockOptimistic, adCmdText


'Recordset created is updatable. Please note that CursorLocation
'needs to be explicitly set to adUseClient for this join recordset
'to be updatable.

Server Data on Insert Property

If DBPROP_SERVERDATAONINSERT (Server Data on Insert) is set to TRUE using OraOLEDB, the consumer can obtain defaults, sequences, and triggered column values from newly inserted and updated rows, if the insert and update operations are made through the rowset.

Having DBPROP_SERVERDATAONINSERT set to TRUE may degrade performance for both insert and update executions using a rowset because OraOLEDB fetches row data from the database for the newly inserted and updated row. However, if DBPROP_SERVERDATAONINSERT is set to its default value of FALSE, only the explicitly provided values for insert and update operations are returned when column values are requested for those rows.

If the base table from which the rowset was created does not contain any defaults, sequences, or triggers, then it is highly recommended that DBPROP_SERVERDATAONINSERT retain its default value of FALSE.

The DBPROP_SERVERDATAONINSERT property does not affect the performance of insert and update operations using the command object.

To Search for Rows with IRowsetFind::FindNext

OraOLEDB only supports searches performed on CHAR, DATE, FLOAT, NUMBER, RAW, and VARCHAR2 columns. Otherwise, DB_E_NOTSUPPORTED is returned.

When a search is done with a NULL value, only the DBCOMPAREOPS_EQ and DBCOMPAREOPS_NE compare operations are supported. Otherwise, DB_E_NOTSUPPORTED is returned.

OraOLEDB-Specific Connection String Attributes for Rowsets

OraOLEDB-specific connection string attributes which affect the performance of the rowset are:

  • CacheType - specifies the type of caching used by the provider to store rowset data. OraOLEDB provides two caching mechanisms:

    • Memory - The provider stores all the rowset data in-memory. This caching mechanism provides better performance at the expense of higher memory utilization. The default is Memory.

    • File - The provider stores all the rowset data on disk. This caching mechanism limits memory consumption at the expense of performance.

  • ChunkSize - This attribute specifies the size, in bytes, of the data in LONG and LONG RAW columns fetched and stored in the provider cache. Providing a high value for this attribute improves performance, but requires more memory to store the data in the rowset. Valid values are 1 to 65535. The default is 100.

  • FetchSize - specifies the number of rows the provider will fetch at a time (fetch array). It must be set on the basis of data size and the response time of the network. If the value is set too high, then this could result in more wait time during the execution of the query. If the value is set too low, then this could result in many more round trips to the database. Valid values are 1 to 429,496, and 296. The default is 100.

The default attribute values are set in the registry. For more information, see "Default Attribute Values". The following ADO code example overrides the default attribute values:

Dim con As ADODB.Connection
Set con = NEW ADODB.Connection
con.ConnectionString = "Provider=OraOLEDB.Oracle;User ID=scott;" & _
                          "Password=tiger;Data Source=MyOraDB;" & _
                          "FetchSize=200;CacheType=File;"
con.Open

Tips for ADO Programmers

Setting the ADO Rowset property LockType to adLockPessimistic is not supported by Oracle Provider for OLE DB. If LockType is set to adLockPessimistic, then OraOLEDB behaves similar to when set as adLockOptimistic. This behavior occurs because OraOLEDB does not perform explicit locks on the rows being modified. However, when new data is submitted to the database, the database only performs the update if the rowset data was not already updated by another user, which means that dirty writes are not allowed. LockType values adLockReadOnly, adLockBatchOptimistic, and adLockOptimistic are supported by OraOLEDB.

Setting ADO Rowset property CursorType to adOpenKeyset or adOpenDynamic is not supported by Oracle Provider for OLE DB. OraOLEDB does not support either of the two as Oracle supports Statement Level Read Consistency, which ensures that the data returned by a query contains only committed data as of the time the query was executed. CursorType values adOpenStatic and adOpenForwardOnly are supported by OraOLEDB.

Schema Rowsets

The schema rowsets available through Oracle Provider for OLE DB are:

  • DBSCHEMA_COLUMNS

  • DBSCHEMA_INDEXES

  • DBSCHEMA_SCHEMATA

  • DBSCHEMA_VIEWS

  • DBSCHEMA_TABLES

  • DBSCHEMA_PROVIDER_TYPES (forward scroll only)

  • DBSCHEMA_FOREIGN_KEYS

  • DBSCHEMA_PRIMARY_KEYS

  • DBSCHEMA_PROCEDURES

  • DBSCHEMA_PROCEDURE_PARAMETERS

Date Formats

The date format for the Oracle session cannot be set using the ALTER SESSION SET NLS_DATE_FORMAT command. In Visual Basic, date formats are controlled by the Regional Settings properties in Windows Control Panel. For more information on Visual Basic date formats, refer to your Visual Basic documentation.

For Oracle Provider for OLE DB, if the Connection property UseSessionFormat is FALSE, which is a default value, then NLS_DATE_FORMAT is fixed for the session to 'YYYY-MM-DD HH24:MI:SS' by the provider. If you pass the date to Oracle Database as a string, the date must be in the 'YYYY-MM-DD HH24:MI:SS' format. If UseSessionFormat is TRUE, then NLS_DATE_FORMAT is not fixed by Oracle Provider for OLE DB and the default session NLS_DATE_FORMAT is used. For example:

SELECT * FROM EMP WHERE HIREDATE > '1981-06-15 17:32:12'

To use a different format, you need to use the SQL function, TO_DATE(), to specify the format for dates passed as strings. For example:

SELECT * FROM EMP WHERE HIREDATE > TO_DATE('15-JUN-81', 'DD-MON-YY')

However, for dates passed as parameters, the date format is controlled by ADO, which is controlled by the Regional Settings in Windows Control Panel. In this case, TO_DATE() should not be used. For example:

Private Sub Command1_Click()
  Dim objCon As New ADODB.Connection
  Dim objCmd As New ADODB.Command
  Dim objRst  As New ADODB.Recordset
  Dim pDate As New ADODB.Parameter

  objCon.Provider = "OraOLEDB.Oracle"
  objCon.Open "MyOraDb", "scott", "tiger"
  Set pDate = objCmd.CreateParameter("pDate", adDate, adParamInput)
  objCmd.Parameters.Append pDate
  objCmd.CommandText = _
         "SELECT * FROM EMP WHERE HIREDATE > ?"
  objCmd.ActiveConnection = objCon
  objCmd.CommandType = adCmdText
  pDate.Value = "06/15/1981"
  Set objRst = objCmd.Execute

    ...
End Sub

Case of Object Names

The names of all objects (tables, columns, views, and so forth) in Oracle Database are case-sensitive. This allows the two objects EMP and emp to exist in the same namespace in the database.

The query, SELECT ename FROM emp, executes correctly even though the table name is EMP (all uppercase) in the database. However, if you want to specify object names in mixed case, you can do so by enclosing the name in double quotes. For example:

SELECT ename FROM "Emp"

will execute successfully if the table name in the database is Emp. Double quotes preserve the case of the object names in Oracle Database.

LOB Support

The ISequentialStream interface is supported for all LONG, LONG RAW, and LOB (BLOB, CLOB, NCLOB, and BFILE) columns. The consumer can use this interface to read and write to all the LOB columns, except BFILE which is read-only. To have read and write access to these columns, the SELECT SQL statement used to create the rowset should not contain a join.


Note:

Although most of the LOB columns in an Oracle Database support up to 4 GB of data storage, ADO limits the maximum column size to 2 GB.

Columns having the BFILE data type are not updatable in the Rowset interface. However, these columns can be updated using the command interface, if the update is limited to modifying the directory and name of the external file pointed to by the BFILE column. For example:

INSERT INTO topomaps (areanum, topomap)
VALUES (158, BFILENAME('mapdir', 'topo158.tps'))

For more information on LOBs, see Oracle Database Application Developer's Guide - Large Objects.

Unicode Support

OraOLEDB supports the Unicode character set. Using this feature, consumers can use OraOLEDB to access data in multiple languages on the same client computer. It can be especially useful in creating global Internet applications supporting as many languages as the Unicode standard entails. For example, you can write a single Active Server Page (ASP) application that accesses an Oracle9i Database to dynamically generate contents in Japanese, Arabic, English, Thai, and so on.

Types of Unicode Encoding

The Oracle Databases store the Unicode data in the UTF8 encoding scheme, which is an ASCII compatible multibyte encoding of Unicode. Microsoft Windows 2000 use the UCS2 encoding, which is a 2-byte fixed-width encoding scheme. OraOLEDB transparently converts the data between the two encoding schemes allowing the consumers to deal with only UCS2.


Note:

The Unicode support is transparent to ADO consumers. OLE DB consumers using C or C++ need to explicitly specify DBTYPE_WSTR in their data type bindings when Unicode data in involved.

How Oracle Unicode Support Works

OraOLEDB works in two modes, Unicode mode and nonUnicode mode. When the client character set is not a superset of the server character set or the database character set is a multibyte character set, OraOLEDB automatically enables the Unicode mode. In this mode, OraOLEDB stores the data in its cache in the UCS2 encoding scheme. The user should ensure that the database's character set is UTF8 to prevent any data loss.

If the client character set is a superset of the server's, then the provider operates in the nonUnicode mode. This mode provides slightly better performance as it does not have to deal with larger character buffers required by the UCS2 encoding.

The detection of the client's and the server's character set is performed during logon.


Note:

OraOLEDB no longer requires the client character set to be set to UTF8 to enable the Unicode mode. The provider still supports such setups but no longer requires it.

See "Data Type Mappings in Rowsets and Parameters" for further information.

Unicode Support Setup

To prevent any data loss, the database character set should be UTF8. Other than this, there is no other setup required for Unicode support.

Database Setup

You must ensure that the Oracle Database is configured to store the data in the UTF8 character set. The character set configuration is typically specified during database creation. To check the character set setting of your database, execute the following query in SQL*Plus:

SQL> SELECT parameter, value FROM nls_database_parameters
     WHERE parameter = 'NLS_CHARACTERSET';

If the character set of your database is not UTF8, you need to create a new database with the UTF8 character set and import your data into it. See Oracle Database Administrator's Guide for more information.


See Also:

Oracle Database Globalization Support Guide for general information

Errors

OLE and COM objects report errors through the HRESULT return code of the object member functions. An OLE/COM HRESULT return code is a bit-packed structure. OLE provides macros that dereference structure members. OraOLEDB exposes IErrorLookup to retrieve information about an error.

All objects support extended error information. For this, the consumer must instantiate the OLE DB Extended Error object followed by calling the method GetErrorDescription() to get the error text.

// Instantiate OraOLEDBErrorLookup and obtain a pointer to its
//   IErrorLookup interface
CoCreateInstance(CLSID_OraOLEDBErrorLookup, NULL, CLSCTX_INPROC_SERVER,
                 IID_IErrorLookup, (void **)&pIErrorLookup)
//Call the method GetErrorDescription() to get the full error text
pIErrorLookup->GetErrorDescription()

The OraOLEDB provider returns the entire error stack in one text block.

For ADO users, the following example applies:

Dim oerr As ADODB.Error
For Each oerr in con.Errors
    MsgBox "Error: " & oerr.Description & vbCrLf _
        & "Source: " & oerr.Source
Next

OLEDB.NET Data Provider Compatibility

The OLE DB .NET Data Provider can utilize OraOLEDB as the OLE DB Provider for accessing Oracle Database.

To make OraOLEDB compatible with OLE DB .NET Data Provider, set the connection string attribute OLEDB.NET to True.

Setting the OLEDB.NET attribute to False disables .NET compatibility.


Note:

The OLEDB.NET connection string attribute must not be used in ADO applications.

Using the OLEDB.NET Attribute in a Connection String

When using OraOLEDB with the OLE DB .NET Data Provider, the OLEDB.NET connection attribute must be set to True as shown in the following examples:

// in VB.NET
Dim con As New OleDbConnection()
con.ConnectionString = "Provider=OraOLEDB.Oracle;User Id=scott;" & _
     "Password=tiger;Data Source=Oracle;OLEDB.NET=True;"
con.Open

// in C#
...
OleDbConnection con = new OleDbConnection();
con.ConnectionString = "Provider=OraOLEDB.Oracle;User Id=scott;" +
     "Password=tiger;Data Source=Oracle;OLEDB.NET=true;"
con.Open();
...

Using OraOLEDB Custom Properties

ADO allows OraOLEDB provider-specific properties to be set at the object level. The OraOLEDB-specific properties SPPrmsLOB and NDatatype can be set as connection string attributes as well as at the command-object level. The StmtCacheSize property can be set as a connection string attribute and the AddToStmtCache property can be set at the command object level. The following example shows the setting of properties at the command level:

// in VB
Dim cmd as new ADODB.Command
...
cmd.Properties("SPPrmsLOB") = True
cmd.Properties("NDatatype") = True
cmd.Properties("AddToStmtCache") = True
...

However, the OLEDB.NET Data Provider cannot expose OLE DB provider-specific properties at the object level. Therefore, the SPPrmsLOB and NDatatype properties can only be set as connection string attributes and AddToStmtCache property is not supported when OraOLEDB is used by OLE DB .NET Data Provider:

// in VB.NET
Dim con As New OleDbConnection()
con.ConnectionString = "Provider=OraOLEDB.Oracle;User Id=scott;" & _
     "Password=tiger;Data Source=Oracle;OLEDB.NET=True;" & _
     "SPPrmsLOB=False;NDatatype=False;"
con.Open()

Both SPPrmsLOB and NDatatype connection string attributes are set to False by default if they are not specified.

Setting either of these connection string attributes to True incurs additional processing overhead when executing commands with parameters. For this reason, before setting either attribute to True, see "OraOLEDB Custom Properties for Commands".

Updating Oracle with DataTable Changes

In order for the OleDbDataAdapter.Update() method to properly update Oracle Database with changes made in DataTable, which must contain a primary key of a database table. If the database table does not contain a primary key, the ROWID must be selected explicitly when populating DataTable, so that the ROWID can be used to uniquely identify a row when updating a row in the database.

Do not select the ROWID from database tables that contains a primary key. If ROWID is selected along with a primary key, ROWID will be the only column marked as the primary key.


See Also:

For further information on using the OLE DB .NET Data Provider
  • Microsoft .NET Documentation

  • Microsoft .NET Framework Class Library


Using OraOLEDB with Visual Basic

The following simple example illustrates how to use Oracle Provider for OLE DB with ADO in Visual Basic 6.0 to connect to an Oracle Database and execute PL/SQL stored procedures and functions.

Setting Up the Oracle Database

This example assumes that the Oracle Database has the demonstration table EMP under the user account scott. The scott account is included in the Oracle starter database. If the account does not exist on your database, create the account before running the sample program. If your database does not contain the emp table, then you can use the demobld.sql script to create the demonstration tables.

This example also uses exampledb as the database network alias when connecting to the Oracle Database. You must change this network alias to match your system.


Step 1 Build the Sample Tables:

  1. Start SQL*Plus.

  2. Connect as username scott with the password tiger.

  3. Run the demobld.sql script:

    SQL> @ORACLE_BASE\ORACLE_HOME\sqlplus\demo\demobld.sql;



After the emp table has been created in the scott account, you need to create the PL/SQL package that contains the stored procedure and function that are run in the Visual Basic example.

Step 2 Create the PL/SQL package:

  1. Connect as username scott with the password tiger.

  2. Create the PL/SQL packages shown in "PL/SQL Package".


    Note:

    When creating PL/SQL packages the / character is used as a terminator and must be added on a separate line following each CREATE PACKAGE...END block.

Setting Up the Visual Basic Project

After the Oracle Database setup is completed, you can create the Visual Basic 6.0 project.

  1. Start Visual Basic 6.0 and create a new project.

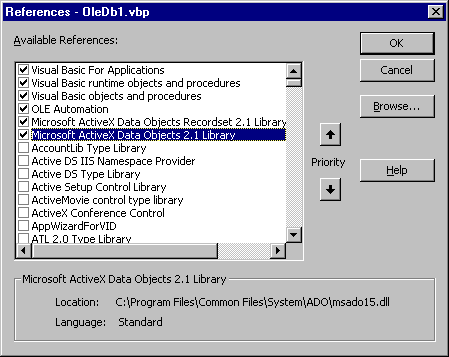

  2. Make sure that the Microsoft ActiveX Data Objects 2.1 Library and Microsoft ActiveX Data Objects Recordset 2.1 Library are included as Project References.

    Description of vbprjref.gif follows
    Description of the illustration vbprjref.gif

  3. Add two command buttons to the form. One of the buttons will run the code to execute the PL/SQL procedure GetEmpRecords. The other will run the code to execute the PL/SQL function GetDept.

    Description of oledbvb1.gif follows
    Description of the illustration oledbvb1.gif

  4. Add the following code to the Click subroutine of the button that will run the code to execute the PL/SQL procedure GetEmpRecords.

    Dim Oracon As ADODB.Connection
    Dim recset As New ADODB.Recordset
    Dim cmd As New ADODB.Command
    Dim param1 As New ADODB.Parameter
    Dim param2 As New ADODB.Parameter
    Dim objErr As ADODB.Error
    Dim Message, Title, Default, EmpNoValue

    Message = "Enter an employee number (5000 - 9000)"
    Title = "Choose an Employee"
    Default = "7654"

    On Error GoTo err_test

    EmpNoValue = InputBox(Message, Title, Default)
    If EmpNoValue = "" Then Exit Sub
    If EmpNoValue < 5000 Or EmpNoValue > 9000 Then EmpNoValue = 7654

    Set Oracon = CreateObject("ADODB.Connection")
    Oracon.ConnectionString = "Provider=OraOLEDB.Oracle;" & _
                              "Data Source=exampledb;" & _
                              "User ID=scott;" & _
                              "Password=tiger;"

    Oracon.Open
    Set cmd.ActiveConnection = Oracon
    Set param1 = cmd.CreateParameter("param1", adSmallInt, adParamInput, ,
                                     EmpNoValue)
    cmd.Parameters.Append param1
    Set param2 = cmd.CreateParameter("param2", adSmallInt, adParamOutput)
    cmd.Parameters.Append param2

    ' Enable PLSQLRSet property
    Cmd.Properties ("PLSQLRSet") = TRUE

    cmd.CommandText = "{CALL Employees.GetDept(?, ?)}"
    Set recset = cmd.Execute

    ' Disable PLSQLRSet property
    Cmd.Properties ("PLSQLRSet") = FALSE

    MsgBox "Number: " & EmpNoValue & "  Dept: " & recset.Fields("deptno").Value

    Exit Sub

    err_test:
        MsgBox Error$
        For Each objErr In Oracon.Errors
            MsgBox objErr.Description
        Next
        Oracon.Errors.Clear
        Resume Next


  5. Add the following code to the Click subroutine of the button that will run the code to execute the PL/SQL function GetDept.

    Dim Oracon As ADODB.Connection
    Dim recset As New ADODB.Recordset
    Dim cmd As New ADODB.Command
    Dim param1 As New ADODB.Parameter
    Dim param2 As New ADODB.Parameter
    Dim objErr As ADODB.Error

    Dim Message, Title, Default, DeptValue
    Message = "Enter a department number (10, 20, or 30)"
    Title = "Choose a Department"
    Default = "30"

    On Error GoTo err_test
    DeptValue = InputBox(Message, Title, Default)
    If DeptValue = "" Then Exit Sub
    If DeptValue < 10 Or DeptValue > 30 Then DeptValue = 30

    Set Oracon = CreateObject("ADODB.Connection")
    Oracon.ConnectionString = "Provider=OraOLEDB.Oracle;" & _
                              "Data Source=exampledb;" & _
                              "User ID=scott;" & _
                              "Password=tiger;"
    Oracon.Open
    Set cmd = New ADODB.Command
    Set cmd.ActiveConnection = Oracon
    Set param1 = cmd.CreateParameter("param1", adSmallInt, adParamInput, ,
                                    DeptValue)
    cmd.Parameters.Append param1
    Set param2 = cmd.CreateParameter("param2", adSmallInt, adParamOutput)
    cmd.Parameters.Append param2

    ' Enable PLSQLRSet property
    Cmd.Properties ("PLSQLRSet") = TRUE

    cmd.CommandText = "{CALL Employees.GetEmpRecords(?, ?)}"
    Set recset = cmd.Execute

    ' Disable PLSQLRSet property
    Cmd.Properties ("PLSQLRSet") = FALSE

    Do While Not recset.EOF
       MsgBox "Number: " & recset.Fields("empno").Value & "  Name: " &
       recset.Fields("ename").Value & "  Dept: " & recset.Fields("deptno").Value
       recset.MoveNext
    Loop

    Exit Sub

    err_test:
        MsgBox Error$
        For Each objErr In Oracon.Errors
            MsgBox objErr.Description
        Next
        Oracon.Errors.Clear
        Resume Next

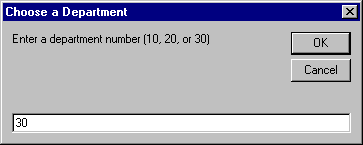

  6. Run the project and check the results. For example, if you choose the Get Employee Records by Dept button, then you would see a dialog box requesting that you enter a department number.

    Description of oledbvb2.gif follows
    Description of the illustration oledbvb2.gif

    After you have entered a department number and clicked OK, another dialog box displays employee names and numbers from that department.

    Description of oledbvb3.gif follows
    Description of the illustration oledbvb3.gif
