A SQL*Loader Syntax Diagrams

The SQL*Loader syntax diagrams (sometimes called railroad diagrams or DDL diagrams) use standard SQL syntax notation. For more information about the syntax notation used in this appendix, see the Oracle Database SQL Reference.

The following diagrams of DDL syntax are shown with certain clauses collapsed (such as pos_spec). These diagrams are expanded and explained further along in the appendix.

Options Clause

Description of the illustration options.gif

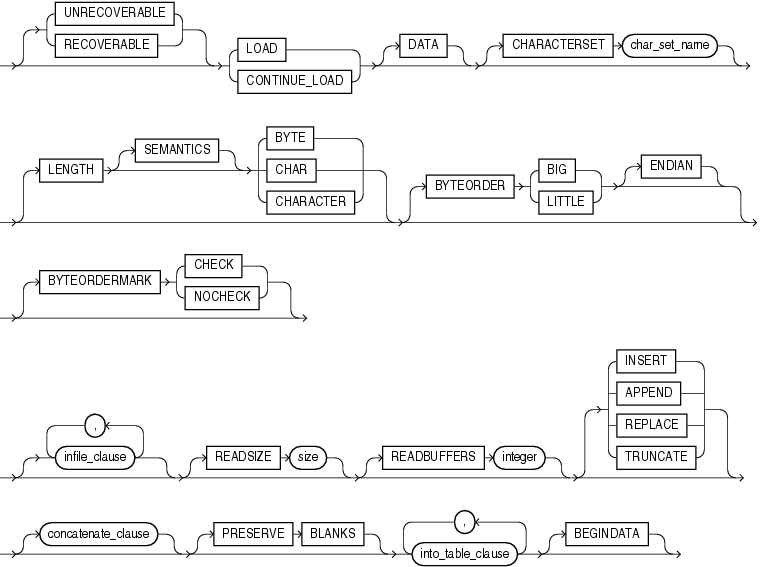

Load Statement

Description of the illustration load_statement.gif

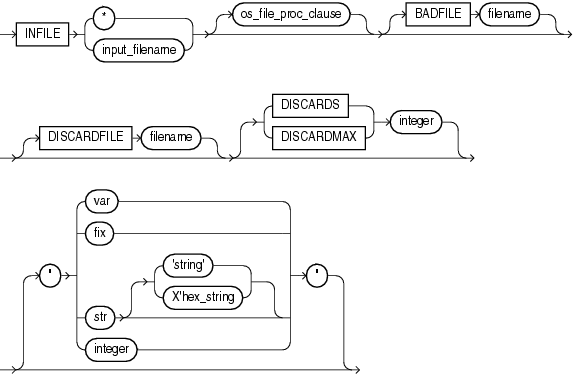

infile_clause

Description of the illustration infile_clause.gif

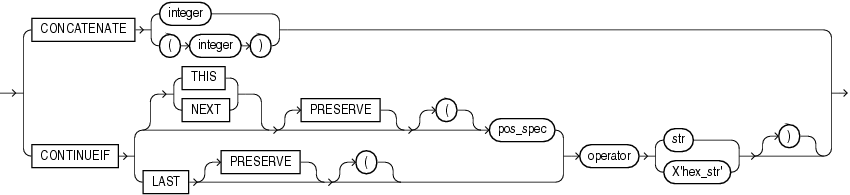

concatenate_clause

Description of the illustration concatenate.gif

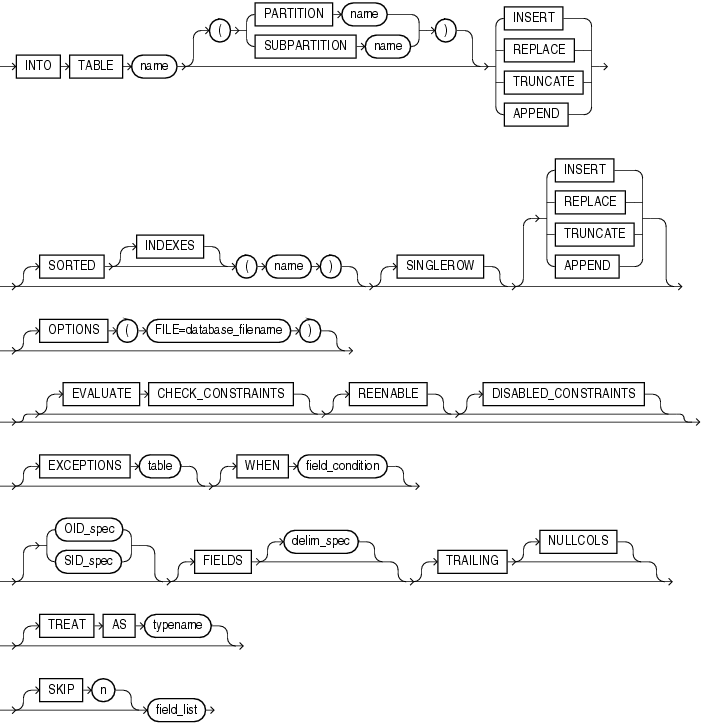

into_table_clause

Description of the illustration intotab_clause.gif

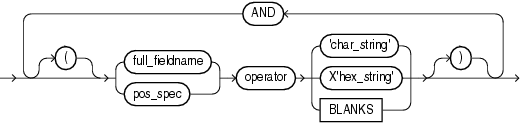

field_condition

Description of the illustration fld_cond.gif

delim_spec

Description of the illustration delim_spec.gif

full_fieldname

Description of the illustration fieldname.gif

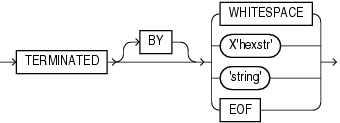

termination_spec

Description of the illustration terminat.gif

enclosure_spec

Description of the illustration enclose.gif

oid_spec

Description of the illustration oid_spec.gif

sid_spec

Description of the illustration sid_spec.gif

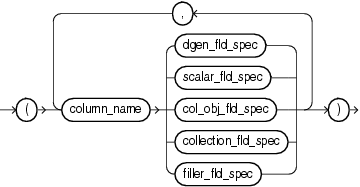

field_list

Description of the illustration field_list.gif

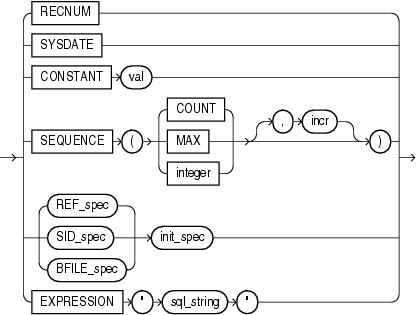

dgen_fld_spec

Description of the illustration dgen_fld.gif

ref_spec

Description of the illustration ref.gif

init_spec

Description of the illustration init.gif

bfile_spec

Description of the illustration bfile.gif

filler_fld_spec

Description of the illustration filler_fld.gif

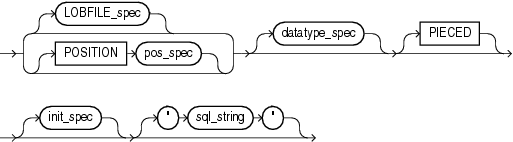

scalar_fld_spec

Description of the illustration scalar.gif

lobfile_spec

Description of the illustration lobfile_spec.gif

pos_spec

Description of the illustration pos_spec.gif

datatype_spec

Description of the illustration datatype_spec.gif

datatype_spec_cont

Description of the illustration datatype_spec_cont.gif

col_obj_fld_spec

Description of the illustration col_obj_fld_spec.gif

collection_fld_spec

Description of the illustration coll_fld.gif

nested_table_spec

Description of the illustration nested_table.gif

varray_spec

Description of the illustration varray.gif

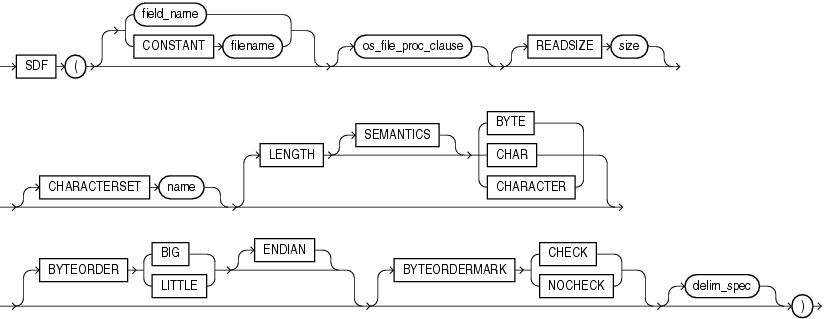

sdf_spec

Description of the illustration sdf.gif

count_spec

Description of the illustration count.gif
