Purpose
Use the CALL
statement to execute a routine (a standalone procedure or function, or a procedure or function defined within a type or package) from within SQL.
Note: The restrictions on user-defined function expressions specified in "Function Expressions" apply to theCALL statement as well. |
See Also: Oracle Database PL/SQL User's Guide and Reference for information on creating such routine |
Prerequisites
You must have EXECUTE
privilege on the standalone routine or on the type or package in which the routine is defined.
Syntax

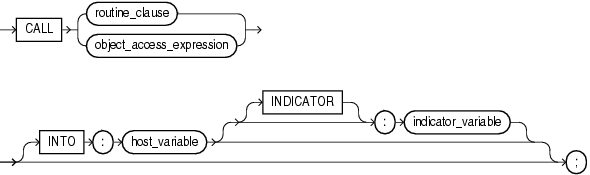

call::=

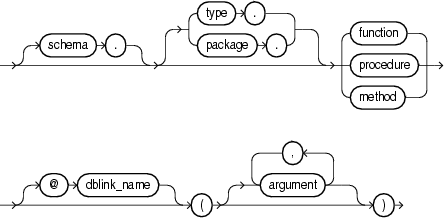

routine_clause::=
object_access_expression::=
Semantics
You can execute a routine in two ways. You can issue a call to the routine itself by name, by using the routine_clause
, or you can invoke a routine inside the type of an expression, by using an object_access_expression
.
schema
Specify the schema in which the standalone routine, or the package or type containing the routine, resides. If you do not specify schema
, then Oracle Database assumes the routine is in your own schema.
type or package
Specify the type or package in which the routine is defined.
routine_clause
Specify the name of the function or procedure being called, or a synonym that resolves to a function or procedure.
When you call a member function or procedure of a type, if the first argument (SELF
) is a null IN
OUT
argument, then Oracle Database returns an error. If SELF
is a null IN
argument, then the database returns null. In both cases, the function or procedure is not invoked.
Restriction on Functions If the routine is a function, then the INTO
clause is required.
@dblink
In a distributed database system, specify the name of the database containing the standalone routine, or the package or function containing the routine. If you omit dblink
, then Oracle Database looks in your local database.
object_access_expression
If you have an expression of an object type, such as a type constructor or a bind variable, you can use this form of expression to call a routine defined within the type. In this context, the object_access_expression
is limited to method invocations.
See Also: "Object Access Expressions" for syntax and semantics of this form of expression, and "Calling a Procedure Using an Expression of an Object Type: Example" for an example of calling a routine using an expression of an object type |
argument
Specify one or more arguments to the routine, if the routine takes arguments.
Restrictions on Applying Arguments to Routines The argument
is subject to the following restrictions:
You cannot use named notation for argument
. You must use the SQL notation, which is to specify the parameter value but not the parameter name. For example,
CALL my_procedure(arg1 => 3, arg2 => 4) ...
results in an error. The correct notation is:
CALL my_procedure(3, 4) ...
The datatypes of the parameters passed by the CALL
statement must be SQL datatypes. They cannot be PL/SQL-only datatypes such as BOOLEAN
.
An argument
cannot be a pseudocolumn or either of the object reference functions VALUE
or REF
.
Any argument
that is an IN
OUT
or OUT
argument of the routine must correspond to a host variable expression.
The number of arguments, including any return argument, is limited to 1000.
You cannot bind arguments of character and raw datatypes (CHAR
, VARCHAR2
, NCHAR
, NVARCHAR2
, RAW
, LONG
RAW
) that are larger than 4K.
The INTO
clause applies only to calls to functions. Specify which host variable will store the return value of the function.
:indicator_variable
Specify the value or condition of the host variable.
See Also: Pro*C/C++ Programmer's Guide for more information on host variables and indicator variables |
Example
Calling a Procedure: Example The following statement uses the remove_dept
procedure (created in "Creating a Package Body: Example") to remove the Entertainment department (created in "Inserting Sequence Values: Example"):
CALL remove_dept(162);
Calling a Procedure Using an Expression of an Object Type: Example The following examples show how call a procedure by using an expression of an object type in the CALL
statement. The example uses the warehouse_typ
object type in the order entry sample schema OE
:
ALTER TYPE warehouse_typ ADD MEMBER FUNCTION ret_name RETURN VARCHAR2 CASCADE; CREATE OR REPLACE TYPE BODY warehouse_typ AS MEMBER FUNCTION ret_name RETURN VARCHAR2 IS BEGIN RETURN self.warehouse_name; END; END; / VARIABLE x VARCHAR2(25); CALL warehouse_typ(456, 'Warehouse 456', 2236).ret_name() INTO :x; PRINT x; X -------------------------------- Warehouse 456
The next example shows how to use an external function to achieve the same thing:
CREATE OR REPLACE FUNCTION ret_warehouse_typ(x warehouse_typ) RETURN warehouse_typ IS BEGIN RETURN x; END; / CALL ret_warehouse_typ(warehouse_typ(234, 'Warehouse 234', 2235)).ret_name() INTO :x; PRINT x; X -------------------------------- Warehouse 234
