INSERTCHILDXML

Syntax

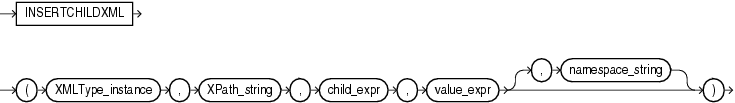

Description of the illustration insertChildXML.gif

Purpose

INSERTCHILDXML inserts a user-supplied value into the target XML at the node indicated by the XPath expression. Compare this function with INSERTXMLBEFORE.

• XMLType_instance is an instance of XMLType.

• The XPath_string is an Xpath expression indicating one or more nodes into which the one or more child nodes are to be inserted. You can specify an absolute XPath_string with an initial slash or a relative XPath_string by omitting the initial slash. If you omit the initial slash, the context of the relative path defaults to the root node.

• The child_expr specifies the one or more element or attribute nodes to be inserted.

• The value_expr is an fragment of XMLType that specifies one or more notes being inserted. It must resolve to a string.

• The optional namespace_string provides namespace information for the XPath_string. This parameter must be of type VARCHAR2.

Examples

The following example adds a second /Owner node to the warehouse_spec of one of the warehouses updated in the example for APPENDCHILDXML:

UPDATE warehouses SET warehouse_spec =
   INSERTCHILDXML(warehouse_spec,
   '/Warehouse/Building', 'Owner',
   XMLType('<Owner>LesserCo</Owner>'))
   WHERE warehouse_id = 3;

SELECT warehouse_spec FROM warehouses   WHERE warehouse_id = 3;

WAREHOUSE_SPEC
----------------------------------------------------------------------------
<?xml version="1.0"?>
<Warehouse>
  <Building>Rented
    <Owner>Grandco</Owner>
    <Owner>LesserCo</Owner>
  </Building>
  <Area>85700</Area>
  <DockType/>
  <WaterAccess>N</WaterAccess>
  <RailAccess>N</RailAccess>
  <Parking>Street</Parking>
  <VClearance>11.5 ft</VClearance>
</Warehouse>
