5 Group Management

Group Home Page

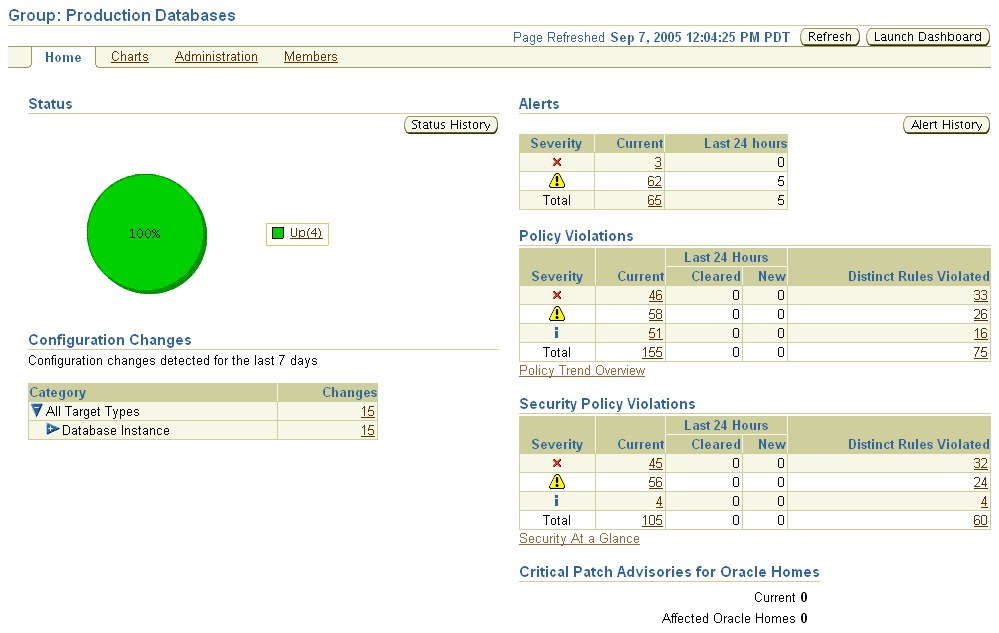

The Group Home page, shown in Figure 5–1, is the central location for monitoring information. The Group Home page provides the following features:

• Availability pie chart that provides at-a-glance information on the current status across all members so you can easily assess the percentage of members that are up, and the percentage of members that are unavailable. You can quickly drill down for information if any member target is down.

• Roll-up of open alerts and policy violations, categorized by severity, so you can quickly focus on the most critical problems first. Alerts and violations that have occurred within the last 24 hours highlight problems that recently occurred.

• Access to the Policy Trend Overview page, which provides a comprehensive view of the group for compliance with policy rules over a period of time. Using policy charts, you can assess trends such as increased or decreased number of policy violations, changes in the overall group compliance score, and the percentage of members in compliance with your enterprise's policy rules.

• Access to the Security at a Glance page, which provides an overview of the security health of the group. This shows statistics about security policy violations and critical security patches that have not been applied.

• Summary of recent configuration changes across all members in the group, so you can easily determine if a new problem is related to any recent changes.

• Summary of Critical Patch Advisories for Oracle homes within the group.

Figure 5-1 Group Home Page

Description of "Figure 5-1 Group Home Page"

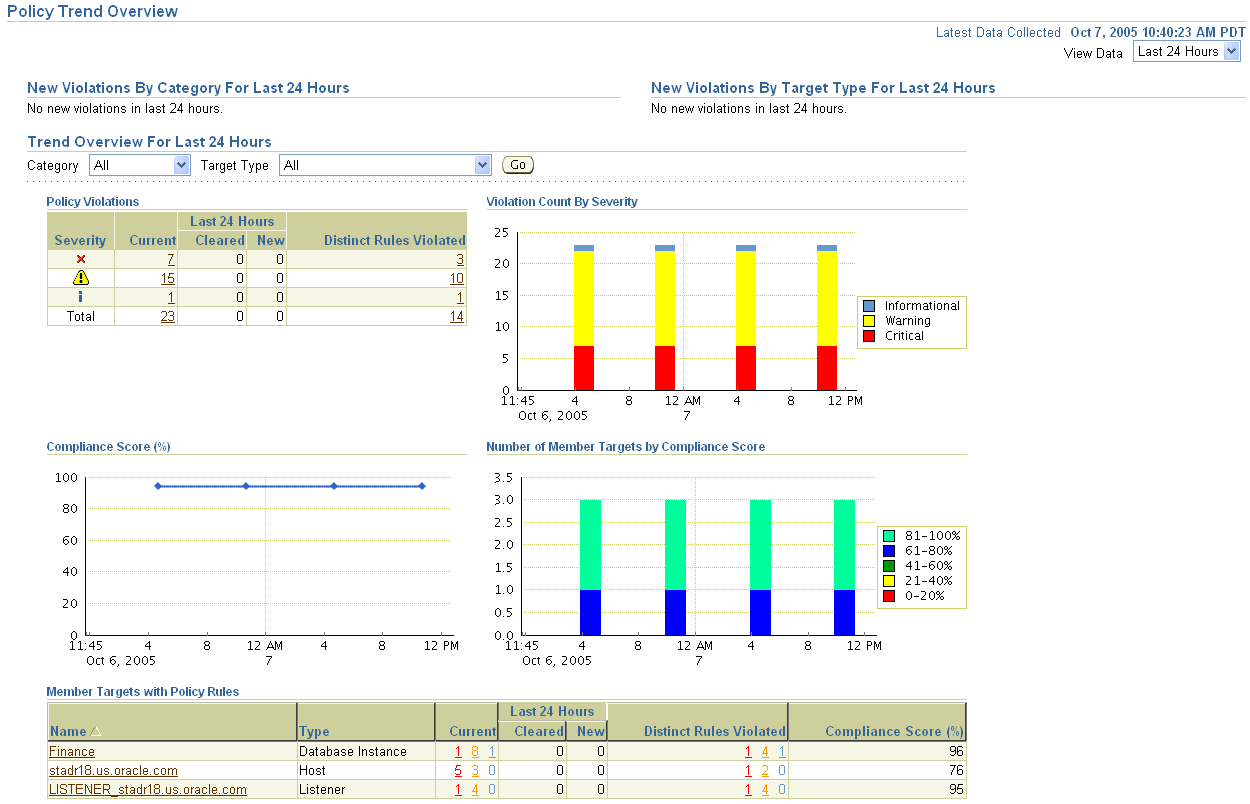

Figure 5–2 shows the Policy Trend Overview page that you can access from the Group Home page.

Figure 5-2 Policy Trend Overview Page

Group Charts Page

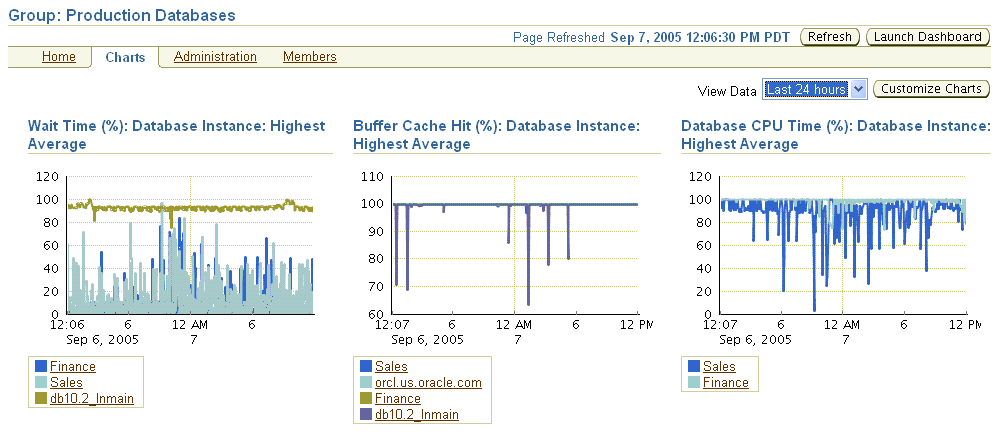

The Group Charts page, shown in Figure 5–3, enables you to monitor the collective performance of the group. Out-of-box performance charts are provided based on the type of members in the group. For example, when databases are part of the group, a Wait Time (%) chart is provided that shows the top databases with the highest wait time percentage values. You can view this performance information over the last 24 hours, last 7 days, or last 31 days. You can also add your own custom charts to the page.

Figure 5-3 Group Charts Page

Description of "Figure 5-3 Group Charts Page"

Group Administration Page

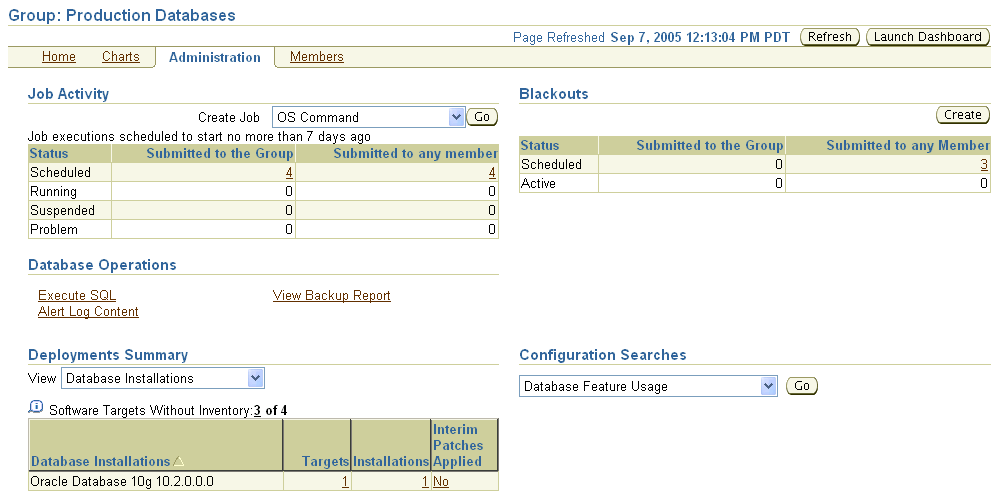

The Group Administration page, shown in Figure 5–4, provides a central point for performing common administrative tasks for the group. For example, you can:

• Run jobs or find out the status of currently running jobs against the group.

• Define planned outage windows, called blackouts, on the members of the group to perform maintenance tasks.

• Run SQL commands collectively against the database member targets of the group.

• View the most recent backup for each database in the group.

• View the last 100,000 bytes of the alert log for all databases in the group.

• Use a deployment summary to easily obtain hardware and software inventory information across all member targets.

Figure 5-4 Group Administration Page

Description of "Figure 5-4 Group Administration Page"

Group Members Page

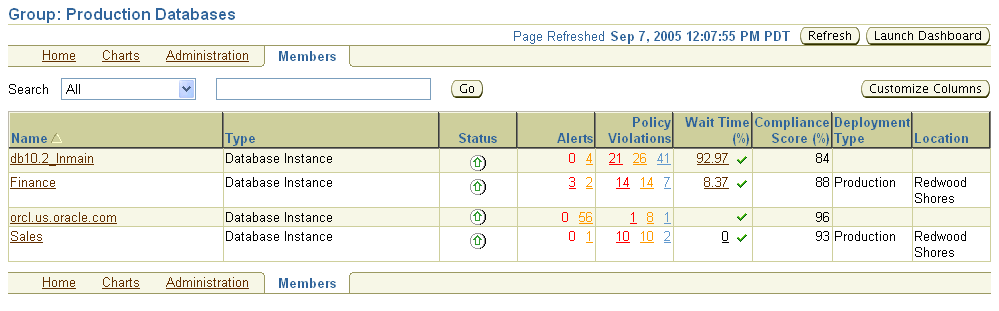

The Group Members page, shown in Figure 5–5, summarizes information about the member targets in the group. It includes information on their current availability status, roll-up of open alerts and policy violations, and key performance metrics based on the type of targets in the group.

You can visually assess availability and relative performance across all member targets. You can sort on any of the columns to rank members by a certain criterion (for example, database targets in order of decreasing wait time percentage). Default key performance metrics are displayed based on the targets you select, but you can customize these to include additional metrics that are important for managing your group.

Figure 5-5 Group Members Page

Description of "Figure 5-5 Group Members Page"

System Dashboard

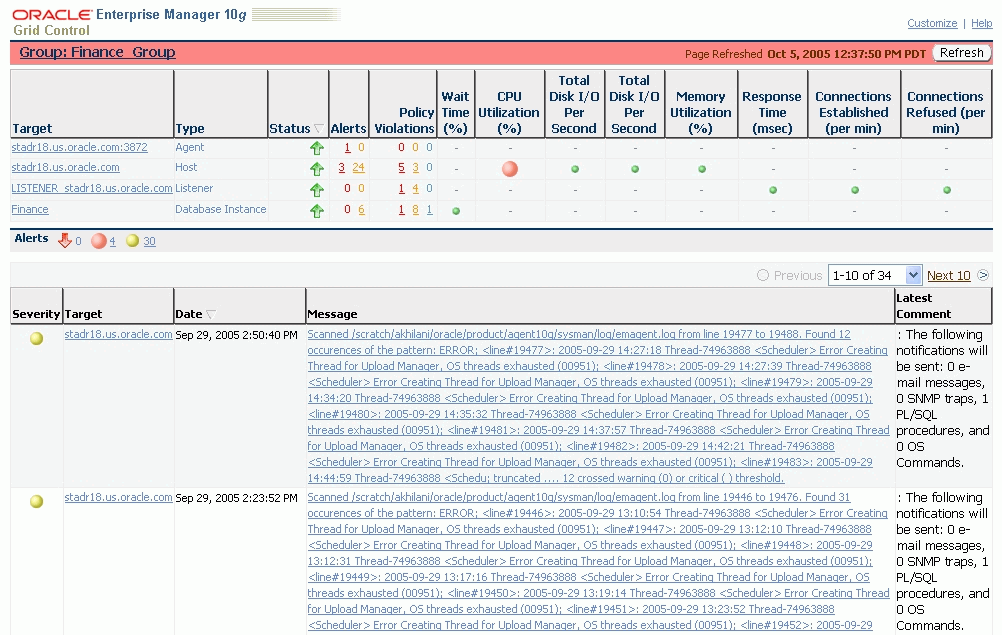

The System Dashboard, shown in Figure 5–6, enables you to proactively monitor the status and alerts in the group as they occur. The color-coded interface is designed to highlight problem areas using the universal colors of alarm—targets that are down are highlighted in red, metrics in critical severity are shown as red dots, metrics in warning severity are shown as yellow dots, and metrics operating within normal boundary conditions are shown as green dots.

Using these colors, you can easily spot the problem areas for any target and drill down for details as needed. An alert table is also included to provide a summary for all open alerts in the group. The alerts in the table are presented in reverse chronological order to show the most recent alerts first, but you can also click on any column in the table to change the sort order.You can customize the dashboard according to your needs. You can specify which key metrics should be included in the dashboard and the display names to be used for these metrics. You can also customize the refresh interval to ensure that you always receive timely information about alerts as they are detected.You can launch the System Dashboard in context from any Group Home page. However, using reporting framework features, you can also make the System Dashboard publicly available for any user that has access to a web browser and the Enterprise Manager Reports Web site.

Figure 5-6 System Dashboard
