1 Introduction to OCCI

This chapter provides an overview of Oracle C++ Call Interface (OCCI) and introduces terminology used in discussing OCCI. You are provided with the background information needed to develop C++ applications that run in an Oracle environment.

This chapter contains these topics:

Overview of OCCI
Processing of SQL Statements
Overview of PL/SQL
Special OCCI/SQL Terms
Object Support

Overview of OCCI

Oracle C++ Call Interface (OCCI) is an Application Programming Interface (API) that provides C++ applications access to data in an Oracle database. OCCI enables C++ programmers to utilize the full range of Oracle database operations, including SQL statement processing and object manipulation.

OCCI provides for:

High performance applications through the efficient use of system memory and network connectivity
Scalable applications that can service an increasing number of users and requests
Comprehensive support for application development by using Oracle database objects, including client-side access to Oracle database objects
Simplified user authentication and password management
n-tiered authentication
Consistent interfaces for dynamic connection management and transaction management in two-tier client/server environments or multitiered environments
Encapsulated and opaque interfaces

OCCI provides a library of standard database access and retrieval functions in the form of a dynamic runtime library (OCCI classes) that can be linked in a C++ application at runtime. This eliminates the need to embed SQL or PL/SQL within third-generation language (3GL) programs.

Benefits of OCCI

OCCI provides these significant advantages over other methods of accessing an Oracle database:

Leverages C++ and the Object Oriented Programming paradigm
Is easy to use
Is easy to learn for those familiar with JDBC
Has a navigational interface to manipulate database objects of user-defined types as C++ class instances

Building an OCCI Application

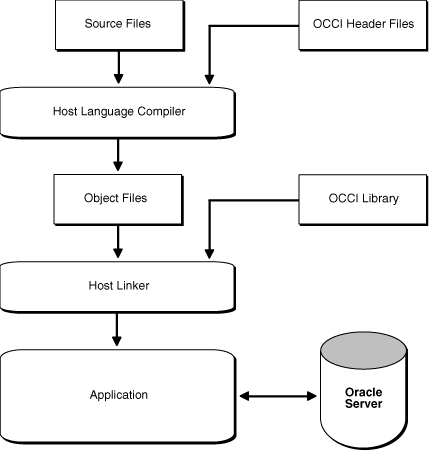

As Figure 1-1 shows, you compile and link an OCCI program in the same way that you compile and link a nondatabase application.

Figure 1-1 The OCCI Development Process

Description of OCCIDevelopmentProcess.gif follows

Description of the illustration OCCIDevelopmentProcess.gif

Oracle supports most popular third-party compilers. The details of linking an OCCI program vary from system to system. On some platforms, it may be necessary to include other libraries, in addition to the OCCI library, to properly link your OCCI programs.

Functionality of OCCI

OCCI provides the following functionality:

APIs to design a scalable, multithreaded applications that can support large numbers of users securely
SQL access functions, for managing database access, processing SQL statements, and manipulating objects retrieved from an Oracle database server
Datatype mapping and manipulation functions, for manipulating data attributes of Oracle types
Advanced Queuing for message management
XA compliance for distributed transaction support
Statement caching of SQL and PL/SQL queries
Connection pooling for managing multiple connections
Globalization and Unicode support to customize applications for international and regional language requirement
Object Type Translator Utility
Transparent Application Failover support

Procedural and Nonprocedural Elements

Oracle C++ Call Interface (OCCI) enables you to develop scalable, multithreaded applications on multitiered architectures that combine nonprocedural data access power of structured query language (SQL) with the procedural capabilities of C++.

In a nonprocedural language program, the set of data to be operated on is specified, but what operations will be performed, or how the operations are to be carried out, is not specified. The nonprocedural nature of SQL makes it an easy language to learn and use to perform database transactions. It is also the standard language used to access and manipulate data in modern relational and object-relational database systems.

In a procedural language program, the execution of most statements depends on previous or subsequent statements and on control structures, such as loops or conditional branches, which are not available in SQL. The procedural nature of these languages makes them more complex than SQL, but it also makes them very flexible and powerful.

The combination of both nonprocedural and procedural language elements in an OCCI program provides easy access to an Oracle database in a structured programming environment.

OCCI supports all SQL data definition, data manipulation, query, and transaction control facilities that are available through an Oracle database server. For example, an OCCI program can run a query against an Oracle database. The queries can require the program to supply data to the database by using input (bind) variables, as follows:

SELECT name FROM employees WHERE empno = :empnumber

In this SQL statement, empnumber is a placeholder for a value that will be supplied by the application.

In an OCCI application, you can also take advantage of PL/SQL, Oracle's procedural extension to SQL. The applications you develop can be more powerful and flexible than applications written in SQL alone. OCCI also provides facilities for accessing and manipulating objects in an Oracle database server.

Processing of SQL Statements

One of the main tasks of an OCCI application is to process SQL statements. Different types of SQL statements require different processing steps in your program. It is important to take this into account when coding your OCCI application. Oracle recognizes several types of SQL statements:

Data definition language (DDL) statements
Control statements
- Transaction control statements
- Connection control statements
- System control statements
Data manipulation language (DML) statements
Queries

DDL Statements

DDL statements manage schema objects in the database. These statements create new tables, drop old tables, and establish other schema objects. They also control access to schema objects. Example 1-1 illustrates how to create a table, and grant and revoke privileges.

Example 1-1 Creating and Specifying Access to a Table

CREATE TABLE employees (
   name VARCHAR2(20),
   ssn VARCHAR2(12),
   empno NUMBER(6),
   mgr NUMBER(6),
   salary NUMBER(6))

GRANT UPDATE, INSERT, DELETE ON employees TO donna
REVOKE UPDATE ON employees FROM jamie

DDL statements also allow you to work with objects in the Oracle database, as in Example 1-2, which illustrates how to create an object table.

Example 1-2 Creating an Object Table

CREATE TYPE person_t AS OBJECT (
   name VARCHAR2(30),
   ssn VARCHAR2(12),
   address VARCHAR2(50))

CREATE TABLE person_tab OF person_t

Control Statements

OCCI applications treat transaction control, connection control, and system control statements like DML statements.

DML SQL Statements

DML statements can change data in database tables. For example, DML statements are used to perform the following actions:

Insert new rows into a table
Update column values in existing rows
Delete rows from a table
Lock a table in the database
Explain the execution plan for a SQL statement

DML statements can require an application to supply data to the database by using input (bind) variables, as in example Example 1-3.

Example 1-3 Inserting Data through Input Bind Variables

INSERT INTO dept_tab VALUES(:1,:2,:3)

Either this statement can be executed several times with different bind values, or an array insert can be performed to insert several rows in one round-trip to the server.

DML statements also enable you to work with objects in the Oracle Database, as in Example 1-4, which shows the insertion of an instance of a type into the object table:

Example 1-4 Inserting Objects into the Oracle Database

INSERT INTO person_tab
VALUES (person_t('Steve May','123-45-6789','146 Winfield Street'))

Queries

Queries are statements that retrieve data from tables in a database. A query can return zero, one, or many rows of data. All queries begin with the SQL keyword SELECT, as in Example 1-5:

Example 1-5 Using the Simple SELECT Statement

SELECT dname FROM dept
   WHERE deptno = 42

Queries can require the program to supply data to the database server by using input (bind) variables, as in Example 1-6:

Example 1-6 Using the SELECT Statement with Input Variables

SELECT name
   FROM employees
   WHERE empno = :empnumber

In this SQL statement, empnumber is a placeholder for a value that will be supplied by the application.

Overview of PL/SQL

PL/SQL is Oracle's procedural extension to the SQL language. PL/SQL processes tasks that are more complicated than simple queries and SQL data manipulation language statements. PL/SQL allows a number of constructs to be grouped into a single block and executed as a unit. Among these are the following constructs:

One or more SQL statements
Variable declarations
Assignment statements
Procedural control statements (IF ... THEN ... ELSE statements and loops)
Exception handling

In addition to calling PL/SQL stored procedures from an OCCI program, you can use PL/SQL blocks in your OCCI program to perform the following tasks:

Call other PL/SQL stored procedures and stored functions.
Combine procedural control statements with several SQL statements, to be executed as a single unit.
Access special PL/SQL features such as records, tables, cursor FOR loops, and exception handling .
Use cursor variables
Access and manipulate objects in an Oracle database

A PL/SQL procedure or function can also return an output variable. This is called an out bind variable, as in Example 1-7:

Example 1-7 Using PL/SQL to Obtain an Output Variable

BEGIN
   GET_EMPLOYEE_NAME(:1, :2);
END;

Here, the first parameter is an input variable that provides the ID number of an employee. The second parameter, or the out bind variable, contains the return value of employee name.

PL/SQL can also be used to issue a SQL statement to retrieve values from a table of employees, given a particular employee number. Example 1-8 also demonstrates the use of placeholders in PL/SQL statements.

Example 1-8 Using PL/SQL to Partial Records into Placeholders

SELECT ename, sal, comm INTO :emp_name, :salary, :commission
   FROM emp
   WHERE ename = :emp_number;

Note that the placeholders in this statement are not PL/SQL variables. They represent input and output parameters passed to and from the database server when the statement is processed. These placeholders need to be specified in your program.

Special OCCI/SQL Terms

This guide uses special terms to refer to the different parts of a SQL statement. Consider Example 1-9:

Example 1-9 Using SQL to Extract Partial Records

SELECT customer, address
   FROM customers
   WHERE bus_type = 'SOFTWARE'
   AND sales_volume = :sales;

This example contains these parts:

A SQL command: SELECT
Two select-list items: customer and address
A table name in the FROM clause: customers
Two column names in the WHERE clause: bus_type and sales_volume
A literal input value in the WHERE clause: 'SOFTWARE'
A placeholder for an input (bind) variable in the WHERE clause: :sales

When you develop your OCCI application, you call routines that specify to the database server the value of, or reference to, input and output variables in your program. In this guide, specifying the placeholder variable for data is called a bind operation. For input variables, this is called an in bind operation. For output variables, this is called an out bind operation.

Object Support

OCCI has facilities for working with object types and objects. An object type is a user-defined data structure representing an abstraction of a real-world entity. For example, the database might contain a definition of a person object. That object type might have attributes, such as first_name, last_name, and age, which represent a person's identifying characteristics.

The object type definition serves as the basis for creating objects, which represent instances of the object type. By using the object type as a structural definition, a person object could be created with the attributes John, Bonivento, and 30. Object types may also contain met hods, or programmatic functions that represent the behavior of that object type.

OCCI provides a comprehensive API for programmers seeking to use the Oracle database server's object capabilities. These features can be divided into several major categories:

Client-side object cache
Runtime environment for objects
Associative and navigational interfaces to access and manipulate objects
Metadata class to describe object type metadata
Object Type Translator (OTT) utility, which maps internal Oracle schema information to client-side language bind variables
See Also:

Oracle Database Concepts and

Oracle Database Application Developer's Guide - Object-Relational Features for a more detailed explanation of object types and objects

Client-Side Object Cache

The object cache is a client-side memory buffer that provides lookup and memory management support for objects. It stores and tracks objects which have been fetched by an OCCI application from the server to the client side. The client-side object cache is created when the OCCI environment is initialized in object mode. Multiple applications running against the same server will each have their own object cache. The client-side object cache tracks the objects that are currently in memory, maintains references to objects, manages automatic object swapping and tracks the meta-attributes or type information about objects. The client-side object cache provides the following benefits:

Improved application performance by reducing the number of client/server round-trips required to fetch and operate on objects
Enhanced scalability by supporting object swapping from the client-side cache
Improved concurrency by supporting object-level locking
Automatic garbage collection when cache thresholds are exceeded

Runtime Environment for Objects

OCCI provides a runtime environment for objects that offers a set of methods for managing how Oracle objects are used on the client side. These methods provide the necessary functionality for performing these tasks:

Connecting to an Oracle database server in order to access its object functionality
Allocating the client-side object cache and tuning its parameters
Retrieving error and warning messages
Controlling transactions that access objects in the database
Associatively accessing objects through SQL
Describing a PL/SQL procedure or function whose parameters or result are of Oracle object type

Associative and Navigational Interfaces

Applications that use OCCI can access objects in the database through several types of interfaces:

SQL SELECT, INSERT, and UPDATE statements
C++ pointers and references to access objects in the client-side object cache by traversing the corresponding references

OCCI provides a set of methods to support object manipulation by using SQL SELECT, INSERT, and UPDATE statements. To access Oracle objects, these SQL statements use a consistent set of steps as if they were accessing relational tables. OCCI provides methods to access objects by using SQL statements for:

Binding object type instances and references as input and output variables of SQL statements and PL/SQL stored procedures
Executing SQL statements that contain object type instances and references
Fetching object type instances and references
Retrieving column values from a result set as objects
Describing a select-list item of an Oracle object type

OCCI provides a seamless interface for navigating objects, enabling you to manipulate database objects in the same way that you would operate on transient C++ objects. You can dereference the overloaded arrow (->) operator on an object reference to transparently materialize the object from the database into the application space.

Metadata Class

Each Oracle datatype is represented in OCCI by a C++ class. The class exposes the behavior and characteristics of the datatype by overloaded operators and methods. For example, the Oracle datatype NUMBER is represented by the Number class.

OCCI provides a metadata class that enables you to retrieve metadata describing database objects, including object types.

Object Type Translator Utility

The Object Type Translator (OTT) utility translates schema information about Oracle object types into client-side language bindings. That is, OTT translates object type information into declarations of host language variables, such as structures and classes. OTT takes an intype file which contains information about Oracle database schema objects as input. OTT generates an outtype file and the necessary header and implementation files that must be included in a C++ application that runs against the object schema. OTT has many benefits, including:

Improving application developer productivity OTT eliminates the need for application developers to write by hand the host language variables that correspond to schema objects.
Maintaining SQL as the data definition language of choice By providing the ability to automatically map Oracle database schema objects that are created by using SQL to host language variables, OTT facilitates the use of SQL as the data definition language of choice. This in turn allows Oracle to support a consistent, enterprise-wide model of the user's data.
Facilitating schema evolution of object types OTT provides the ability to regenerate included header files when the schema is changed, allowing Oracle applications to support schema evolution.

OTT is typically invoked from the command line by specifying the intype file, the outtype file, and the specific database connection.

In summary, OCCI supports object handling in an Oracle database by:

Execution of SQL statements that manipulate object data and schema information
Passing object references and instances as input variables in SQL statements
Declaring object references and instances as variables to receive the output of SQL statements
Fetching object references and instances from a database
Describing properties of SQL statements that return object instances and references
Describing PL/SQL procedures or functions with object parameters or results
Extending commit and rollback calls to synchronize object and relational functionality
Advanced queuing of objects
