11 PL/SQL API for XMLType

API Features

The PL/SQL APIs for XMLType allow you to perform the following tasks:

• Create XMLType tables, columns, and views

• Construct XMLType instances from data encoded in different character sets.

• Access XMLType data

• Manipulate XMLType data




  See Also: "Oracle XML DB Features", for an overview of the Oracle XML DB architecture and new features. Chapter 4, "XMLType Operations" Oracle Database PL/SQL Packages and Types Reference




Overview of the W3C Document Object Model (DOM) Recommendation

Skip this section if you are familiar with the generic DOM specifications recommended by the World Wide Web Consortium (W3C).

The Document Object Model (DOM) recommended by the W3C is a universal API for accessing the structure of XML documents. It was originally developed to formalize Dynamic HTML, which allows animation, interaction, and dynamic updating of Web pages. DOM provides a language-neutral and platform-neutral object model for Web pages and XML document structures. DOM describes language-independent and platform-independent interfaces to access and operate on XML components and elements. It expresses the structure of an XML document in a universal, content-neutral way. Applications can be written to dynamically delete, add, and edit the content, attributes, and style of XML documents. DOM makes it possible to create applications that work properly on all browsers, servers, and platforms.

<img src="employee_jdoe.gif" ID="0123jdoe">

PL/SQL DOM API for XMLType (DBMS_XMLDOM): Features

Oracle XML DB extends the Oracle Database XML development platform beyond SQL support for storage and retrieval of XML data. It lets you operate on XMLType instances using DOM in PL/SQL, Java, and C.

The default action for the PL/SQL DOM API for XMLType (DBMS_XMLDOM) is to do the following:

• Produce a parse tree that can be accessed by DOM APIs.

• Validate, if a DTD is found; otherwise, do not validate.

• Raise an application error if parsing fails.

DTD validation occurs when the object document is manifested. If lazy manifestation is employed, then the document is validated when it is used.

The PL/SQL DOM API exploits a C-based representation of XML in the server and operates on XML schema-based XML instances. The PL/SQL, Java, and C DOM APIs for XMLType comply with the W3C DOM Recommendations to define and implement structured storage of XML in relational or object-relational columns and as in-memory instances of XMLType. See "Using PL/SQL DOM API for XMLType: Preparing XML Data", for a description of W3C DOM Recommendations.

XML Schema Support

The PL/SQL DOM API for XMLType supports XML schema. Oracle XML DB uses annotations within an XML schema as metadata to determine the structure of an XML document structure and the mapping of the document to a database schema.

After an XML schema is registered with Oracle XML DB, the PL/SQL DOM API for XMLType builds an in-memory tree representation of an associated XML document as a hierarchy of node objects, each with its own specialized interfaces. Most node object types can have child node types, which in turn implement additional, more specialized interfaces. Nodes of some node types can have child nodes of various types, while nodes of other node types must be leaf nodes, which do not have child nodes.

Designing End-to-End Applications Using Oracle XDK and Oracle XML DB

When you build applications based on Oracle XML DB, you do not need the additional components in Oracle XDK. However, you can use Oracle XDK components with Oracle XML DB to deploy a full suite of XML-enabled applications that run end-to-end. You can use features in Oracle XDK for:

• Simple API for XML (SAX) interface processing. SAX is an XML standard interface provided by XML parsers and used by procedural and event-based applications.

• DOM interface processing, for structural and recursive object-based processing.

Oracle XDK contain the basic building blocks for creating applications that run on a client, in a browser or a plug-in. Such applications typically read, manipulate, transform and view XML documents. To provide a broad variety of deployment options, Oracle XDK is available for Java, C, and C++. Oracle XDK is fully supported and comes with a commercial redistribution license.

Oracle XDK for Java consists of these components:

• XML Parsers – Creates and parses XML using industry standard DOM and SAX interfaces. Supports Java, C, C++, and JAXP.

• XSL Processor – Transforms or renders XML into other text-based formats such as HTML. Supports Java, C, and C++.

• XML Schema Processor – Allows use of XML simple and complex datatypes. Supports Java, C, and C++.

• XML Class Generator, Oracle JAXB Class Generator – Automatically generate C++ and Java classes, respectively, from DTDs and XML schemas, to send XML data from Web forms or applications. Class generators accept an input file and create a set of output classes that have corresponding functionality. In the case of the XML Class Generator, the input file is a DTD, and the output is a series of classes that can be used to create XML documents conforming with the DTD.

• XML SQL Utility – Generates XML documents, DTDs, and XML schemas from SQL queries. Supports Java.

• TransX Utility – Loads data encapsulated in XML into the database. Has additional functionality useful for installations.

• XSQL Servlet – Combines XML, SQL, and XSLT in the server to deliver dynamic web content.

• XML Pipeline Processor – Invokes Java processes through XML control files.

• XSLT VM and Compiler – Provides a high-performance C-based XSLT transformation engine that uses compiled style sheets.

• XML Java Beans – Parses, transforms, compares, retrieves, and compresses XML documents using Java components.

Using PL/SQL DOM API for XMLType: Preparing XML Data

To prepare data for using PL/SQL DOM APIs in Oracle XML DB:

1. Create a standard XML schema.

2. Annotate the XML schema with definitions for the SQL objects you use.

3. Register the XML schema, to generate the necessary database mappings.

You can then do any of the following:

• Use XMLType views to wrap existing relational or object-relational data in XML formats, making it available to your applications in XML form. See "Wrapping Existing Data into XML with XMLType Views".

• Insert XML data into XMLType columns.

• Use Oracle XML DB DOM PL/SQL and Java APIs to manipulate XML data stored in XMLType columns and tables.

Defining an XML Schema Mapping to SQL Object Types

An XML schema must be registered before it can be referenced by an XML document. When you register an XML schema, elements and attributes it declares are mapped to attributes of corresponding SQL object types within the database.

After XML schema registration, XML documents that conform to the XML schema and reference it can be managed by Oracle XML DB. Tables and columns for storing the conforming documents can be created for root elements defined by the XML schema.

An XML schema is registered by using PL/SQL package DBMS_XMLSCHEMA and by specifying the schema document and its schema-location URL. This URL is a name that uniquely identifies the registered schema within the database; it need not correspond to any real location — in particular, it need not indicate where the schema document is located.

The target namespace of the schema is another URL used in the XML schema. It specifies a namespace for the XML-schema elements and types. An XML document should specify both the namespace of the root element and the schema-location URL identifying the schema that defines this element.

When documents are inserted into Oracle XML DB using path-based protocols such as HTTP(S) and FTP, the XML schema to which the document conforms is registered implicitly, provided its name and location are specified and it has not yet been registered.

Wrapping Existing Data into XML with XMLType Views

To make existing relational and object-relational data available to your XML applications, you can create XMLType views, wrapping the data in an XML format. You can then accesse this XML data using the PL/SQL DOM API.

After you register an XML schema containing annotations that represent the mapping between XML types and SQL object types, you can create an XMLType view that conforms to the XML schema.

DBMS_XMLDOM Methods Supported

All DBMS_XMLDOM methods are supported by Oracle XML DB, with the exception of the following:

• writeExternalDTDToFile()

• writeExternalDTDToBuffer()

• writeExternalDTDToClob()

PL/SQL DOM API for XMLType: Node Types

In the DOM specification, the term "document" is used to describe a container for many different kinds of information or data, which the DOM objectifies. The DOM specifies the way elements within an XML document container are used to create an object-based tree structure and to define and expose interfaces to manage and use the objects stored in XML documents. Additionally, the DOM supports storage of documents in diverse systems.

When a request such as getNodeType(myNode) is given, it returns myNodeType, which is the node type supported by the parent node. These constants represent the different types that a node can adopt:

• ELEMENT_NODE

• ATTRIBUTE_NODE

• TEXT_NODE

• CDATA_SECTION_NODE

• ENTITY_REFERENCE_NODE

• ENTITY_NODE

• PROCESSING_INSTRUCTION_NODE

• COMMENT_NODE

• DOCUMENT_NODE

• DOCUMENT_TYPE_NODE

• DOCUMENT_FRAGMENT_NODE

• NOTATION_NODE

Table 11-1 shows the node types for XML and HTML and the allowed corresponding children node types.

Document

DocumentFragment

DocumentType

EntityReference

Element

Attr

ProcessingInstruction

Comment

Text

CDATASection

Entity

Notation

Oracle XML DB DOM API for XMLType also specifies these interfaces:

• A NodeList interface to handle ordered lists of Nodes, for example:

  • The children of a Node

  • Elements returned by the getElementsByTagName method of the element interface

• A NamedNodeMap interface to handle unordered sets of nodes, referenced by their name attribute, such as the attributes of an element.

Working with Schema-Based XML Instances

Oracle Database has several extensions for character-set conversion and input and output to and from a file system. PL/SQL API for XMLType is optimized to operate on XML schema-based XML instances. Function newDOMDocument() constructs a DOM document handle, given an XMLType value.

A typical usage scenario would be for a PL/SQL application to:

1. Fetch or construct an XMLType instance

2. Construct a DOMDocument node over the XMLType instance

3. Use the DOM API to access and manipulate the XML data




   Note: For DOMDocument, node types represent handles to XML fragments but do not represent the data itself. For example, if you copy a node value, DOMDocument clones the handle to the same underlying data. Any data modified by one of the handles is visible when accessed by the other handle. The XMLType value from which the DOMDocument handle is constructed is the actual data, and reflects the results of all DOM operations on it.




DOM NodeList and NamesNodeMap Objects

NodeList and NamedNodeMap objects in the DOM are active; that is, changes to the underlying document structure are reflected in all relevant NodeList and NamedNodeMap objects.

For example, if a DOM user gets a NodeList object containing the children of an element, and then subsequently adds more children to that element (or removes children, or modifies them), then those changes are automatically propagated in the NodeList, without additional action from the user. Likewise, changes to a node in the tree are propagated throughout all references to that node in NodeList and NamedNodeMap objects.

The interfaces: Text, Comment, and CDATASection, all inherit from the CharacterData interface.

Using PL/SQL DOM API for XMLType (DBMS_XMLDOM)

Figure 11-1 illustrates how you use PL/SQL DOM API for XMLType (DBMS_XMLDOM).

You can create a DOM document (DOMDocument) from an existing XMLType or as an empty document.

1. The newDOMDocument procedure processes the XMLType instance or empty document. This creates a DOMDocument instance.

2. You can use DOM API methods such as createElement, createText, createAttribute, and createComment to traverse and extend the DOM tree.

3. The results of methods such as DOMElement and DOMText can also be passed to makeNode to obtain the DOMNode interface.

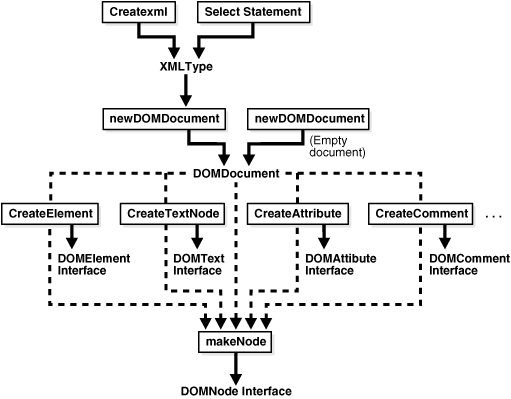

Figure 11-1 Using PL/SQL DOM API for XMLType

Description of "Figure 11-1 Using PL/SQL DOM API for XMLType"

PL/SQL DOM API for XMLType – Examples

This section presents examples of using the PL/SQL DOM API for XMLType.

Remember to call procedure freeDocument for each DOMDocument instance, when you are through with the instance. You can still access XMLType instances on which DOMDocument instances were built, even after the DOMDocuments have been freed.

CREATE TABLE person OF XMLType;

DECLARE
  var       XMLType;
  doc       DBMS_XMLDOM.DOMDocument;
  ndoc      DBMS_XMLDOM.DOMNode;
  docelem   DBMS_XMLDOM.DOMElement;
  node      DBMS_XMLDOM.DOMNode;
  childnode DBMS_XMLDOM.DOMNode;
  nodelist  DBMS_XMLDOM.DOMNodelist;
  buf       VARCHAR2(2000);
BEGIN
  var := XMLType('<PERSON><NAME>ramesh</NAME></PERSON>');

  -- Create DOMDocument handle
  doc     := DBMS_XMLDOM.newDOMDocument(var);
  ndoc    := DBMS_XMLDOM.makeNode(doc);

  DBMS_XMLDOM.writeToBuffer(ndoc, buf);
  DBMS_OUTPUT.put_line('Before:'||buf);

  docelem := DBMS_XMLDOM.getDocumentElement(doc);

  -- Access element
  nodelist := DBMS_XMLDOM.getElementsByTagName(docelem, 'NAME');
  node := DBMS_XMLDOM.item(nodelist, 0);
  childnode := DBMS_XMLDOM.getFirstChild(node);

  -- Manipulate element
  DBMS_XMLDOM.setNodeValue(childnode, 'raj');
  DBMS_XMLDOM.writeToBuffer(ndoc, buf);
  DBMS_OUTPUT.put_line('After:'||buf);
  DBMS_XMLDOM.freeDocument(doc);
  INSERT INTO person VALUES (var);
END;
/

Before:<PERSON>
  <NAME>ramesh</NAME>
</PERSON>

After:<PERSON>
  <NAME>raj</NAME>
</PERSON>

SELECT * FROM person;
SYS_NC_ROWINFO$
---------------
<PERSON>
  <NAME>raj</NAME>
</PERSON>

1 row selected.

DECLARE
  doc   DBMS_XMLDOM.DOMDocument;
  elem  DBMS_XMLDOM.DOMElement;
  nelem DBMS_XMLDOM.DOMNode;
BEGIN
  doc := DBMS_XMLDOM.newDOMDocument;
  elem := DBMS_XMLDOM.createElement(doc, 'ELEM');
  nelem := DBMS_XMLDOM.makeNode(elem);
  DBMS_OUTPUT.put_line('Node name = ' || DBMS_XMLDOM.getNodeName(nelem));
  DBMS_OUTPUT.put_line('Node value = '|| DBMS_XMLDOM.getNodeValue(nelem));
  DBMS_OUTPUT.put_line('Node type = ' || DBMS_XMLDOM.getNodeType(nelem));
  DBMS_XMLDOM.freeDocument(doc);
END;
/

Node name = ELEM
Node value =
Node type = 1

PL/SQL Parser API for XMLType: Features

The PL/SQL Parser API for XMLType (DBMS_XMLPARSER) builds a result tree that can be accessed by PL/SQL APIs. If parsing fails, it raises an error.

See Oracle Database PL/SQL Packages and Types Reference for descriptions of the individual methods of the PL/SQL Parser API for XMLType (DBMS_XMLPARSER).

The following DBMS_XMLPARSER methods are not supported:

• parseDTD()

• parseDTDBuffer()

• parseDTDClob()

• setDocType()

• setErrorLog()

Using PL/SQL Parser API for XMLType (DBMS_XMLPARSER)

Figure 11-2 illustrates how to use the PL/SQL Parser for XMLType (DBMS_XMLPARSER). These are the steps:

1. Construct a parser instance using method.

2. Parse XML documents using methods such as parseBuffer, parseClob, and parse(URI). An error is raised if the input is not a valid XML document.

3. Call getDocument on the parser to obtain a DOMDocument interface.

Figure 11-2 Using PL/SQL Parser API for XMLType

Description of "Figure 11-2 Using PL/SQL Parser API for XMLType"

DECLARE
  indoc    VARCHAR2(2000);
  indomdoc DBMS_XMLDOM.DOMDocument;
  innode   DBMS_XMLDOM.DOMNode;
  myparser DBMS_XMLPARSER.parser;
  buf      VARCHAR2(2000);
BEGIN
  indoc := '<emp><name>De Selby</name></emp>';
  myParser := DBMS_XMLPARSER.newParser;
  DBMS_XMLPARSER.parseBuffer(myParser, indoc);
  indomdoc := DBMS_XMLPARSER.getDocument(myParser);
  innode := DBMS_XMLDOM.makeNode(indomdoc);
  DBMS_XMLDOM.writeToBuffer(innode, buf);
  DBMS_OUTPUT.put_line(buf);
  DBMS_XMLDOM.freeDocument(indomdoc);
  DBMS_XMLPARSER.freeParser(myParser);
END;
/

<emp><name>De Selby</name></emp>

Enabling Transformations and Conversions with XSLT

The Oracle XML DB PL/SQL DOM API for XMLType also supports Extensible Stylesheet Language Transformation (XSLT). This enables transformation from one XML document to another, or conversion into HTML, PDF, or other formats. XSLT is also widely used to convert XML to HTML for browser display.

The embedded XSLT processor follows Extensible Stylesheet Language (XSL) statements and traverses the DOM tree structure for XML data residing in XMLType. Oracle XML DB applications do not require a separate parser as did the prior release XML Parser for PL/SQL. However, applications requiring external processing can still use the XML Parser for PL/SQL first to expose the document structure.

PL/SQL package DBMS_XSLPROCESSOR provides a convenient and efficient way of applying a single style sheet to multiple documents. The performance of this package is better than that of transform() because the style sheet is parsed only once.

PL/SQL XSLT Processor for XMLType: Features

PL/SQL XSLT Processor for XMLType (DBMS_XSLPROCESSOR) is the Oracle XML DB implementation of the XSL processor. This follows the W3C XSLT final recommendation (REC-xslt-19991116). It includes the required action of an XSL processor in terms of how it must read XSLT style sheets and the transformations it must achieve.

The types and methods of the PL/SQL XSLT Processor API are made available by the PL/SQL package, DBMS_XSLPROCESSOR. The methods in this package use two PL/SQL datatypes specific to the XSL Processor implementation: PROCESSOR and STYLESHEET .

All DBMS_XSLPROCESSOR methods are supported by Oracle XML DB, with the exception of method setErrorLog().

Using PL/SQL Parser API for XMLType (DBMS_XSLPROCESSOR)

Figure 11-3 illustrates how to use XSLT Processor for XMLType (DBMS_XSLPROCESSOR). These are the steps:

1. Construct an XSLT processor using newProcessor.

2. Use newStylesheet to build a STYLESHEET object from a DOM document.

3. Optionally, you can set parameters for the STYLESHEET object using setParams.

4. Use processXSL to transform a DOM document using the processor and STYLESHEET object.

5. Use the PL/SQL DOM API for XMLType to manipulate the result of XSLT processing.

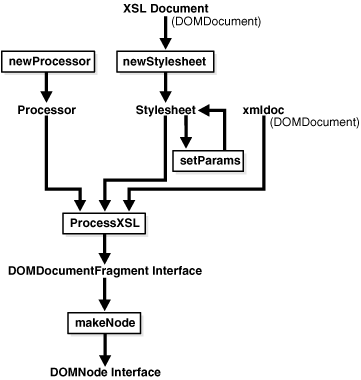

Figure 11-3 Using PL/SQL XSLT Processor for XMLType

Description of "Figure 11-3 Using PL/SQL XSLT Processor for XMLType"

DECLARE
  indoc      VARCHAR2(2000);
  xsldoc     VARCHAR2(2000);
  myParser   DBMS_XMLPARSER.parser;
  indomdoc   DBMS_XMLDOM.DOMDocument;
  xsltdomdoc DBMS_XMLDOM.DOMDocument;
  xsl        DBMS_XSLPROCESSOR.stylesheet;
  outdomdocf DBMS_XMLDOM.DOMDocumentFragment;
  outnode    DBMS_XMLDOM.DOMNode;
  proc       DBMS_XSLPROCESSOR.processor;
  buf        VARCHAR2(2000);
BEGIN
  indoc := '<emp><empno>1</empno>
              <fname>robert</fname>
              <lname>smith</lname>
              <sal>1000</sal>
              <job>engineer</job>
            </emp>';
  xsldoc := '<?xml version="1.0"?>
             <xsl:stylesheet version="1.0"
                             xmlns:xsl="http://www.w3.org/1999/XSL/Transform">
               <xsl:output encoding="utf-8"/>
               <!-- alphabetizes an xml tree -->
               <xsl:template match="*">
                 <xsl:copy>
                   <xsl:apply-templates select="*|text()">
                     <xsl:sort select="name(.)" data-type="text"
                               order="ascending"/>
                   </xsl:apply-templates>
                 </xsl:copy>
               </xsl:template>
               <xsl:template match="text()">
                 <xsl:value-of select="normalize-space(.)"/>
               </xsl:template>
             </xsl:stylesheet>';
  myParser := DBMS_XMLPARSER.newParser;
  DBMS_XMLPARSER.parseBuffer(myParser, indoc);
  indomdoc   := DBMS_XMLPARSER.getDocument(myParser);
  DBMS_XMLPARSER.parseBuffer(myParser, xsldoc);
  xsltdomdoc := DBMS_XMLPARSER.getDocument(myParser);
  xsl        := DBMS_XSLPROCESSOR.newStyleSheet(xsltdomdoc, '');
  proc       := DBMS_XSLPROCESSOR.newProcessor;
  --apply stylesheet to DOM document
  outdomdocf := DBMS_XSLPROCESSOR.processXSL(proc, xsl, indomdoc);
  outnode    := DBMS_XMLDOM.makeNode(outdomdocf);
  -- PL/SQL DOM API for XMLType can be used here
  DBMS_XMLDOM.writeToBuffer(outnode, buf);
  DBMS_OUTPUT.put_line(buf);
  DBMS_XMLDOM.freeDocument(indomdoc);
  DBMS_XMLDOM.freeDocument(xsltdomdoc);
  DBMS_XMLDOM.freeDocFrag(outdomdocf);
  DBMS_XMLPARSER.freeParser(myParser);
  DBMS_XSLPROCESSOR.freeProcessor(proc);
END;
/

<emp>
<empno>1</empno>
<fname>robert</fname>
<job>engineer</job>
<lname>smith</l
name>
<sal>1000</sal>
</emp>
