1 Oracle Text Application Development

1.1 What is Oracle Text?

Oracle Text is a technology that enables you to build text query applications and document classification applications. Oracle Text provides indexing, word and theme searching, and viewing capabilities for text.

1.2 Designing Your Application

To design your Oracle Text application, you must determine the type of queries you expect to execute. Doing so enables you to choose the most suitable index for the task. We can divide application queries into three different categories:

• Text Queries on Document Collections

• Queries on Catalog Information

• Document Classification

1.3 Text Queries on Document Collections

A text query application enables users to search document collections such as Web sites, digital libraries, or document warehouses. Searching is enabled by first indexing the document collection. The collection is typically static with no significant change in content after the initial indexing run. Documents can be of any size and of different formats such as HTML, PDF, or Microsoft Word. These documents are stored in a document table.

Queries usually consist of words or phrases. Application users can specify logical combinations of words and phrases using operators such as OR and AND. Other query operations such as stemming, proximity searching, and wildcarding can be used to improve the search results.

An important factor for this type of application is retrieving documents that are relevant to a user query while retrieving as few non-relevant documents as possible. The most relevant documents must be ranked high in the result list.

The queries for this type of application are best served with a CONTEXT index on your document table. To query this index, your application uses the SQL CONTAINS operator in the WHERE clause of a SELECT statement

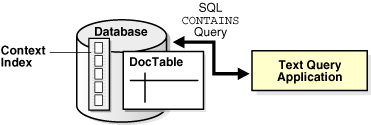

Figure 1-1 Overview of Text Query Application

Description of the illustration ccapp014.gif

1.3.1 Flowchart of Text Query Application

A typical text query application on a document collection enables the user to enter a query. The application issues a CONTAINS query and returns a list, called a hitlist, of documents that satisfy the query. The results are usually ranked by relevance. The application enables the user to view one or more documents in the hitlist.

For example, an application might index URLs (HTML files) on the World Wide Web and provide query capabilities across the set of indexed URLs. Hitlists returned by the query application are composed of URLs that the user can visit.

Figure 1-2 illustrates the flowchart of how a user interacts with a simple query application. The figure shows the steps required to enter the query through to viewing the results. A query application can be modeled according to the following steps:

1. The user enters a query.

2. The application executes a CONTAINS query.

3. The application presents a hitlist.

4. The user selects document from hitlist.

5. The application presents a document to the user for viewing.

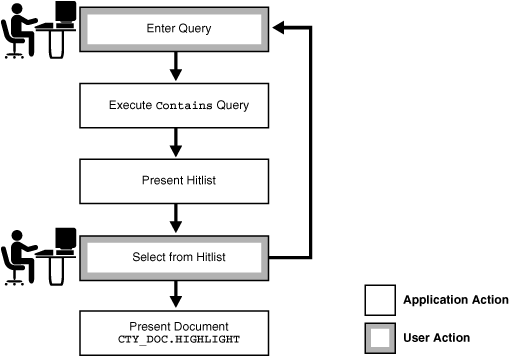

Figure 1-2 Flowchart of a query application

Description of the illustration ccapp015.gif

1.4 Queries on Catalog Information

Catalog information consists of inventory type information such as that of an online book store or auction site. The stored information consists of text information such as book titles and related structured information such as price. The information is usually updated regularly to keep the online catalog up to date with the inventory.

Queries are usually a combination of a text component and a structured component, such as price or author. Results are almost always sorted by a structured component such as date or price.

Good response time is always an important factor with this type of query application.

Catalog applications are best served by a CTXCAT index. You query this index with the CATSEARCH operator in the WHERE clause of a SELECT statement.

Figure 1-3 illustrates the relation of the catalog table, its CTXCAT index, and the catalog application which uses the CATSEARCH operator to query the index.

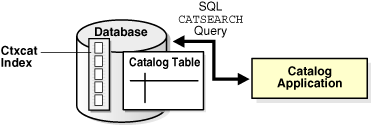

Figure 1-3 A Catalog Query Application

Description of the illustration ccapp017.gif

1.4.1 Flowchart for Catalog Query Application

A catalog application enables users to search for specific items in catalogs. For example, an online store application enables users to search for and purchase items in inventory. Typically, the user query consists of a text component that searches across the textual descriptions plus some other ordering criteria, such as price or date.

Figure 1-4 illustrates the flowchart of a catalog query application for an online electronics store.

1. The user enters the query, consisting of a text component (for example cd player) and a structured component (for example order by price).

2. The application executes the CATSEARCH query.

3. The application shows the results ordered accordingly.

4. The user browses the results.

5. The user then either issues another query or performs an action, such as purchasing the item.

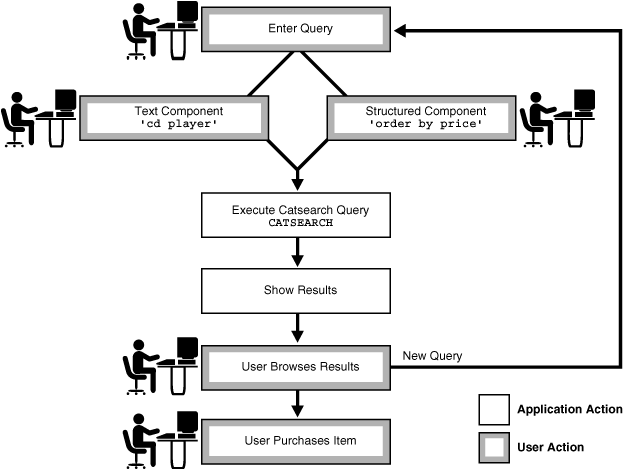

Figure 1-4 Flowchart of a catalog query application

Description of the illustration ccapp016.gif

1.5 Document Classification

In a document classification application, an incoming stream or a set of documents is compared to a pre-defined set of rules. When a document matches one or more rules, the application performs some action.

For example, assume we have an incoming stream of news articles. We can define a rule to represent the category of Finance. The rule is essentially one or more queries that select document about the subject of Finance. The rule might have the form 'stocks or bonds or earnings'.

When a document arrives about a Wall Street earnings forecast and satisfies the rules for this category, the application takes an action such as tagging the document as Finance or emailing one or more users.

To create a document classification application, you create a table of rules and then create a CTXRULE index. To classify an incoming stream of text, use the MATCHES operator in the WHERE clause of a SELECT statement. Refer to Figure 1-5 for the general flow of a classification application.

Figure 1-5 Overview of a Document Classification Application

Description of the illustration ccapp018.gif

1.6 XML Searching

An XML search application performs searches over XML documents. In a regular document search, you usually search across a set of documents to return documents that satisfy a text predicate; in an XML search, you often use the structure of the XML document to restrict the search. Typically, only that part of the document that satisfies the search is returned. For example, instead of finding all purchase orders that contain the word electric, the user might need only purchase orders in which the comment field contains electric.

Oracle Text enables you to perform XML searching using the following approaches:

• Using Oracle Text

• Using the Oracle XML DB Framework

• Combining Oracle Text features with Oracle XML DB

<?xml version="1.0"?>
<PURCHASEORDER pono="1">
   <PNAME>Po_1</PNAME>
   <CUSTNAME>John</CUSTNAME>
   <SHIPADDR>
      <STREET>1033 Main Street</STREET>
      <CITY>Sunnyvalue</CITY>
      <STATE>CA</STATE>
   </SHIPADDR>
   <ITEMS>
     <ITEM>
       <ITEM_NAME> Dell Computer </ITEM_NAME>
       <DESC> Pentium 2.0 Ghz 500MB RAM  </DESC>
     </ITEM>
     <ITEM>
       <ITEM_NAME> Norelco R100 </ITEM_NAME>
       <DESC>Electric Razor </DESC>
     </ITEM>
   </ITEMS>
</PURCHASEORDER>

SELECT id from po_tab where CONTAINS( doc, 'Pentium WITHIN desc') > 0;

SELECT id from po_tab where  CONTAINS(doc, 'Pentium INPATH (/purchaseOrder/items/item/desc') > 0;
