CALL

Purpose

Use the CALL statement to execute a routine (a standalone procedure or function, or a procedure or function defined within a type or package) from within SQL.

Prerequisites

You must have EXECUTE privilege on the standalone routine or on the type or package in which the routine is defined.

Syntax

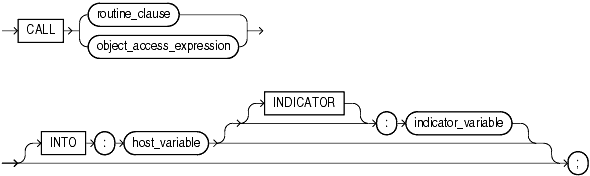

call::=

Description of the illustration call.gif

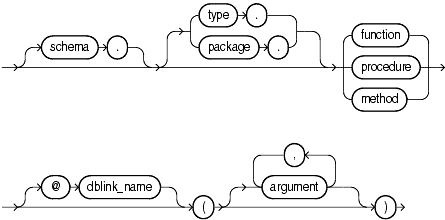

routine_clause::=

Description of the illustration routine_clause.gif

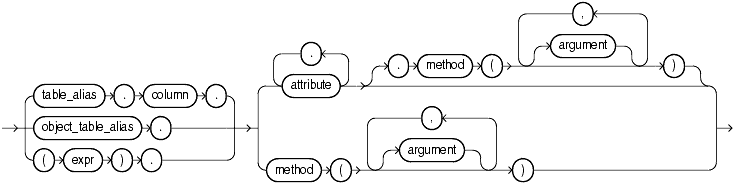

object_access_expression::=

Description of the illustration object_access_expression.gif

Semantics

You can execute a routine in two ways. You can issue a call to the routine itself by name, by using the routine_clause, or you can invoke a routine inside the type of an expression, by using an object_access_expression.

schema

Specify the schema in which the standalone routine, or the package or type containing the routine, resides. If you do not specify schema, then Oracle Database assumes the routine is in your own schema.

type or package

Specify the type or package in which the routine is defined.

routine_clause

Specify the name of the function or procedure being called, or a synonym that resolves to a function or procedure.

When you call a member function or procedure of a type, if the first argument (SELF) is a null IN OUT argument, then Oracle Database returns an error. If SELF is a null IN argument, then the database returns null. In both cases, the function or procedure is not invoked.

Restriction on Functions

If the routine is a function, then the INTO clause is required.

@dblink

In a distributed database system, specify the name of the database containing the standalone routine, or the package or function containing the routine. If you omit dblink, then Oracle Database looks in your local database.

object_access_expression

If you have an expression of an object type, such as a type constructor or a bind variable, you can use this form of expression to call a routine defined within the type. In this context, the object_access_expression is limited to method invocations.

argument

Specify one or more arguments to the routine, if the routine takes arguments.

Restrictions on Applying Arguments to Routines

• An argument cannot be a pseudocolumn or either of the object reference functions VALUE or REF.

• Any argument that is an IN OUT or OUT argument of the routine must correspond to a host variable expression.

• The number of arguments, including any return argument, is limited to 1000.

• You cannot bind arguments of character and raw datatypes (CHAR, VARCHAR2, NCHAR, NVARCHAR2, RAW, LONG RAW) that are larger than 4K.

INTO :host_variable

The INTO clause applies only to calls to functions. Specify which host variable will store the return value of the function.

:indicator_variable

Specify the value or condition of the host variable.

Example

Calling a Procedure: Example

The following statement uses the remove_dept procedure (created in "Creating a Package Body: Example") to remove the Entertainment department (created in "Inserting Sequence Values: Example"):

CALL remove_dept(162);

Calling a Procedure Using an Expression of an Object Type: Example

The following examples show how call a procedure by using an expression of an object type in the CALL statement. The example uses the warehouse_typ object type in the order entry sample schema OE:

ALTER TYPE warehouse_typ
      ADD MEMBER FUNCTION ret_name
      RETURN VARCHAR2
      CASCADE;

CREATE OR REPLACE TYPE BODY warehouse_typ
      AS MEMBER FUNCTION ret_name
      RETURN VARCHAR2
      IS
         BEGIN
            RETURN self.warehouse_name;
         END;
      END;
/
VARIABLE x VARCHAR2(25);

CALL warehouse_typ(456, 'Warehouse 456', 2236).ret_name()
   INTO :x;

PRINT x;
X
--------------------------------
Warehouse 456

The next example shows how to use an external function to achieve the same thing:

CREATE OR REPLACE FUNCTION ret_warehouse_typ(x warehouse_typ)
  RETURN warehouse_typ
  IS
    BEGIN
      RETURN x;
    END;
/
CALL ret_warehouse_typ(warehouse_typ(234, 'Warehouse 234',
   2235)).ret_name()
   INTO :x;

PRINT x;

X
--------------------------------
Warehouse 234
