8 Using PL/SQL Subprograms

Civilization advances by extending the number of important operations that we can perform without thinking about them. —Alfred North Whitehead

This chapter shows you how to turn sets of statements into reusable subprograms. Subprograms are like building blocks for modular, maintainable applications.

This chapter contains these topics:

What Are Subprograms?

Subprograms are named PL/SQL blocks that can be called with a set of parameters. PL/SQL has two types of subprograms, procedures and functions. Generally, you use a procedure to perform an action and a function to compute a value.

Like anonymous blocks, subprograms have:

Example 8-1 Simple PL/SQL Procedure

The following example shows a string-manipulation procedure that accepts both input and output parameters, and handles potential errors:

CREATE OR REPLACE PROCEDURE double
(
   original IN VARCHAR2, new_string OUT VARCHAR2
)
AS
BEGIN
   new_string := original || original;
   EXCEPTION
   WHEN VALUE_ERROR THEN
      dbms_output.put_line('Output buffer not long enough.');
END;
/

Example 8-2 Simple PL/SQL Function

The following example shows a numeric function that declares a local variable to hold temporary results, and returns a value when finished:

CREATE OR REPLACE FUNCTION square(original NUMBER)
RETURN NUMBER
AS
   original_squared NUMBER;
BEGIN
   original_squared := original * original;
   RETURN original_squared;
END;
/

Advantages of PL/SQL Subprograms

Subprograms let you extend the PL/SQL language. Procedures act like new statements. Functions act like new expressions and operators.

Subprograms let you break a program down into manageable, well-defined modules. You can use top-down design and the stepwise refinement approach to problem solving.

Subprograms promote reusability. Once tested, a subprogram can be reused in any number of applications. You can call PL/SQL subprograms from many different environments, so that you do not have to reinvent the wheel each time you use a new language or API to access the database.

Subprograms promote maintainability. You can change the internals of a subprogram without changing other subprograms that call it. Subprograms play a big part in other maintainability features, such as packages and object types.

Dummy subprograms (stubs) let you defer the definition of procedures and functions until after testing the main program. You can design applications from the top down, thinking abstractly, without worrying about implementation details.

When you use PL/SQL subprograms to define an API, you can make your code even more reusable and maintainable by grouping the subprograms into a PL/SQL package. For more information about packages, see Chapter 9, " Using PL/SQL Packages".

Understanding PL/SQL Procedures

A procedure is a subprogram that performs a specific action. You write procedures using the SQL CREATE PROCEDURE statement. You specify the name of the procedure, its parameters, its local variables, and the BEGIN-END block that contains its code and handles any exceptions.

For each parameter, you specify:

You can specify whether the procedure executes using the schema and permissions of the user who defined it, or the user who calls it. For more information, see "Using Invoker's Rights Versus Definer's Rights (AUTHID Clause)".

You can specify whether it should be part of the current transaction, or execute in its own transaction where it can COMMIT or ROLLBACK without ending the transaction of the caller. For more information, see "Doing Independent Units of Work with Autonomous Transactions".

Procedures created this way are stored in the database. You can execute the CREATE PROCEDURE statement interactively from SQL*Plus, or from a program using native dynamic SQL (see Chapter 7, " Performing SQL Operations with Native Dynamic SQL").

A procedure has two parts: the specification (spec for short) and the body. The procedure spec begins with the keyword PROCEDURE and ends with the procedure name or a parameter list. Parameter declarations are optional. Procedures that take no parameters are written without parentheses.

The procedure body begins with the keyword IS (or AS) and ends with the keyword END followed by an optional procedure name. The procedure body has three parts: a declarative part, an executable part, and an optional exception-handling part.

The declarative part contains local declarations. The keyword DECLARE is used for anonymous PL/SQL blocks, but not procedures. The executable part contains statements, which are placed between the keywords BEGIN and EXCEPTION (or END). At least one statement must appear in the executable part of a procedure. You can use the NULL statement to define a placeholder procedure or specify that the procedure does nothing. The exception-handling part contains exception handlers, which are placed between the keywords EXCEPTION and END.

A procedure is called as a PL/SQL statement. For example, you might call the procedure raise_salary as follows:

raise_salary(emp_id, amount);

Understanding PL/SQL Functions

A function is a subprogram that computes a value. Functions and procedures are structured alike, except that functions have a RETURN clause.

Functions have a number of optional keywords, used to declare a special class of functions known as table functions. They are typically used for transforming large amounts of data in data warehousing applications.

The CREATE clause lets you create standalone functions, which are stored in an Oracle database. You can execute the CREATE FUNCTION statement interactively from SQL*Plus or from a program using native dynamic SQL.

The AUTHID clause determines whether a stored function executes with the privileges of its owner (the default) or current user and whether its unqualified references to schema objects are resolved in the schema of the owner or current user. You can override the default behavior by specifying CURRENT_USER.

The PARALLEL_ENABLE option declares that a stored function can be used safely in the slave sessions of parallel DML evaluations. The state of a main (logon) session is never shared with slave sessions. Each slave session has its own state, which is initialized when the session begins. The function result should not depend on the state of session (static) variables. Otherwise, results might vary across sessions.

The hint DETERMINISTIC helps the optimizer avoid redundant function calls. If a stored function was called previously with the same arguments, the optimizer can elect to use the previous result. The function result should not depend on the state of session variables or schema objects. Otherwise, results might vary across calls. Only DETERMINISTIC functions can be called from a function-based index or a materialized view that has query-rewrite enabled. For more information, see Oracle Database SQL Reference.

The pragma AUTONOMOUS_TRANSACTION instructs the PL/SQL compiler to mark a function as autonomous (independent). Autonomous transactions let you suspend the main transaction, do SQL operations, commit or roll back those operations, then resume the main transaction.

You cannot constrain (with NOT NULL for example) the datatype of a parameter or a function return value. However, you can use a workaround to size-constrain them indirectly. See "Understanding PL/SQL Procedures".

Like a procedure, a function has two parts: the spec and the body. The function spec begins with the keyword FUNCTION and ends with the RETURN clause, which specifies the datatype of the return value. Parameter declarations are optional. Functions that take no parameters are written without parentheses.

The function body begins with the keyword IS (or AS) and ends with the keyword END followed by an optional function name. The function body has three parts: a declarative part, an executable part, and an optional exception-handling part.

The declarative part contains local declarations, which are placed between the keywords IS and BEGIN. The keyword DECLARE is not used. The executable part contains statements, which are placed between the keywords BEGIN and EXCEPTION (or END). One or more RETURN statements must appear in the executable part of a function. The exception-handling part contains exception handlers, which are placed between the keywords EXCEPTION and END.

A function is called as part of an expression:

IF sal_ok(new_sal, new_title) THEN ...

Using the RETURN Statement

The RETURN statement immediately ends the execution of a subprogram and returns control to the caller. Execution continues with the statement following the subprogram call. (Do not confuse the RETURN statement with the RETURN clause in a function spec, which specifies the datatype of the return value.)

A subprogram can contain several RETURN statements. The subprogram does not have to conclude with a RETURN statement. Executing any RETURN statement completes the subprogram immediately.

In procedures, a RETURN statement does not return a value and so cannot contain an expression. The statement returns control to the caller before the end of the procedure.

In functions, a RETURN statement must contain an expression, which is evaluated when the RETURN statement is executed. The resulting value is assigned to the function identifier, which acts like a variable of the type specified in the RETURN clause. Observe how the function balance returns the balance of a specified bank account:

FUNCTION balance (acct_id INTEGER) RETURN REAL IS
   acct_bal REAL;
BEGIN
   SELECT bal INTO acct_bal FROM accts
      WHERE acct_no = acct_id;
   RETURN acct_bal;
END balance;
/

The following example shows that the expression in a function RETURN statement can be arbitrarily complex:

FUNCTION compound (
   years  NUMBER,
   amount NUMBER,
   rate   NUMBER) RETURN NUMBER IS
BEGIN
   RETURN amount * POWER((rate / 100) + 1, years);
END compound;
/

In a function, there must be at least one execution path that leads to a RETURN statement. Otherwise, you get a function returned without value error at run time.

Declaring Nested PL/SQL Subprograms

You can declare subprograms in any PL/SQL block, subprogram, or package. The subprograms must go at the end of the declarative section, after all other items.

You must declare a subprogram before calling it. This requirement can make it difficult to declare several nested subprograms that call each other.

You can declare interrelated nested subprograms using a forward declaration: a subprogram spec terminated by a semicolon, with no body.

Although the formal parameter list appears in the forward declaration, it must also appear in the subprogram body. You can place the subprogram body anywhere after the forward declaration, but they must appear in the same program unit.

Example 8-3 Forward Declaration for a Nested Subprogram

DECLARE
   PROCEDURE proc1(arg_list);  -- forward declaration
   PROCEDURE proc2(arg_list);  -- calls proc1
   PROCEDURE proc1(arg_list) IS BEGIN proc2; END; -- calls proc2
BEGIN
   NULL;
END;
/

Passing Parameters to PL/SQL Subprograms

This section explains how to pass information in and out of PL/SQL subprograms using parameters:

Actual Versus Formal Subprogram Parameters

Subprograms pass information using parameters:

  • The variables declared in a subprogram spec and referenced in the subprogram body are formal parameters.

  • The variables or expressions passed from the calling subprogram are actual parameters.

A good programming practice is to use different names for actual and formal parameters.

When you call a procedure, the actual parameters are evaluated and the results are assigned to the corresponding formal parameters. If necessary, before assigning the value of an actual parameter to a formal parameter, PL/SQL converts the datatype of the value. For example, if you pass a number when the procedure expects a string, PL/SQL converts the parameter so that the procedure receives a string.

The actual parameter and its corresponding formal parameter must have compatible datatypes. For instance, PL/SQL cannot convert between the DATE and REAL datatypes, or convert a string to a number if the string contains extra characters such as dollar signs.

Example 8-4 Formal Parameters and Actual Parameters

The following procedure declares two formal parameters named emp_id and amount:

PROCEDURE raise_salary (emp_id INTEGER, amount REAL) IS
BEGIN
   UPDATE emp SET sal = sal + amount WHERE empno = emp_id;
END raise_salary;
/

This procedure call specifies the actual parameters emp_num and amount:

raise_salary(emp_num, amount);

Expressions can be used as actual parameters:

raise_salary(emp_num, merit + cola);

Using Positional, Named, or Mixed Notation for Subprogram Parameters

When calling a subprogram, you can write the actual parameters using either:

  • Positional notation. You specify the same parameters in the same order as they are declared in the procedure.

    This notation is compact, but if you specify the parameters (especially literals) in the wrong order, the bug can be hard to detect. You must change your code if the procedure's parameter list changes.

  • Named notation. You specify the name of each parameter along with its value. An arrow (=>) serves as the association operator. The order of the parameters is not significant.

    This notation is more verbose, but makes your code easier to read and maintain. You can sometimes avoid changing your code if the procedure's parameter list changes, for example if the parameters are reordered or a new optional parameter is added. Named notation is a good practice to use for any code that calls someone else's API, or defines an API for someone else to use.

  • Mixed notation. You specify the first parameters with positional notation, then switch to named notation for the last parameters.

    You can use this notation to call procedures that have some required parameters, followed by some optional parameters.

Example 8-5 Subprogram Calls Using Positional, Named, and Mixed Notation

DECLARE
   acct INTEGER := 12345;
   amt  REAL := 500.00;
   PROCEDURE credit_acct (acct_no INTEGER, amount REAL) IS
      BEGIN NULL; END;
BEGIN
-- The following calls are all equivalent.
   credit_acct(acct, amt);                       -- positional
   credit_acct(amount => amt, acct_no => acct);  -- named
   credit_acct(acct_no => acct, amount => amt);  -- named
   credit_acct(acct, amount => amt);             -- mixed
END;
/

Specifying Subprogram Parameter Modes

You use parameter modes to define the behavior of formal parameters. The three parameter modes are IN (the default), OUT, and IN OUT.

Any parameter mode can be used with any subprogram. Avoid using the OUT and IN OUT modes with functions. To have a function return multiple values is a poor programming practice. Also, functions should be free from side effects, which change the values of variables not local to the subprogram.

Using the IN Mode

An IN parameter lets you pass values to the subprogram being called. Inside the subprogram, an IN parameter acts like a constant. It cannot be assigned a value.

You can pass a constant, literal, initialized variable, or expression as an IN parameter.

IN parameters can be initialized to default values, which are used if those parameters are omitted from the subprogram call. For more information, see "Using Default Values for Subprogram Parameters".

Using the OUT Mode

An OUT parameter returns a value to the caller of a subprogram. Inside the subprogram, an OUT parameter acts like a variable. You can change its value, and reference the value after assigning it:

PROCEDURE split_name
(
   phrase IN VARCHAR2, first OUT VARCHAR2, last OUT VARCHAR2
)
IS
   first := SUBSTR(phrase, 1, INSTR(phrase, ' ')-1);
   last := SUBSTR(phrase, INSTR(phrase, ' ')+1);
   IF first = 'John' THEN
      DBMS_OUTPUT.PUT_LINE('That is a common first name.');
   END IF;
END;
/

You must pass a variable, not a constant or an expression, to an OUT parameter. Its previous value is lost unless you specify the NOCOPY keyword (see "Using Default Values for Subprogram Parameters") or the subprogram exits with an unhandled exception.

Like variables, OUT formal parameters are initialized to NULL. The datatype of an OUT formal parameter cannot be a subtype defined as NOT NULL, such as the built-in subtypes NATURALN and POSITIVEN. Otherwise, when you call the subprogram, PL/SQL raises VALUE_ERROR.

Before exiting a subprogram, assign values to all OUT formal parameters. Otherwise, the corresponding actual parameters will be null. If you exit successfully, PL/SQL assigns values to the actual parameters. If you exit with an unhandled exception, PL/SQL does not assign values to the actual parameters.

Using the IN OUT Mode

An IN OUT parameter passes initial values to a subprogram and returns updated values to the caller. It can be assigned a value and its value can be read. Typically, an IN OUT parameter is a string buffer or numeric accumulator, that is read inside the subprogram and then updated.

The actual parameter that corresponds to an IN OUT formal parameter must be a variable; it cannot be a constant or an expression.

If you exit a subprogram successfully, PL/SQL assigns values to the actual parameters. If you exit with an unhandled exception, PL/SQL does not assign values to the actual parameters.

Summary of Subprogram Parameter Modes

Table 8-1 summarizes all you need to know about the parameter modes.

Table 8-1 Parameter Modes

IN OUT IN OUT
The default Must be specified Must be specified
Passes values to a subprogram Returns values to the caller Passes initial values to a subprogram and returns updated values to the caller
Formal parameter acts like a constant Formal parameter acts like an uninitialized variable Formal parameter acts like an initialized variable
Formal parameter cannot be assigned a value Formal parameter must be assigned a value Formal parameter should be assigned a value
Actual parameter can be a constant, initialized variable, literal, or expression Actual parameter must be a variable Actual parameter must be a variable
Actual parameter is passed by reference (a pointer to the value is passed in) Actual parameter is passed by value (a copy of the value is passed out) unless NOCOPY is specified Actual parameter is passed by value (a copy of the value is passed in and out) unless NOCOPY is specified

Using Default Values for Subprogram Parameters

By initializing IN parameters to default values, you can pass different numbers of actual parameters to a subprogram, accepting the default values for any parameters you omit. You can also add new formal parameters without having to change every call to the subprogram.

Example 8-6 Procedure with Default Parameter Values

PROCEDURE create_dept (
    new_dname VARCHAR2 DEFAULT 'TEMP',
    new_loc   VARCHAR2 DEFAULT 'TEMP') IS
BEGIN
   NULL;
END;
/

If a parameter is omitted, the default value of its corresponding formal parameter is used. Consider the following calls to create_dept:

create_dept;             -- Same as create_dept('TEMP','TEMP');
create_dept('SALES');    -- Same as create_dept('SALES','TEMP');
create_dept('SALES', 'NY');

You cannot skip a formal parameter by leaving out its actual parameter. To omit the first parameter and specify the second, use named notation:

create_dept(new_loc => 'NEW YORK');

You cannot assign a null to an uninitialized formal parameter by leaving out its actual parameter. You must pass the null explicitly, or you can specify a default value of NULL in the declaration.

Overloading Subprogram Names

PL/SQL lets you overload subprogram names and type methods. You can use the same name for several different subprograms as long as their formal parameters differ in number, order, or datatype family.

Suppose you want to initialize the first n rows in two index-by tables that were declared as follows:

DECLARE
   TYPE DateTabTyp IS TABLE OF DATE INDEX BY BINARY_INTEGER;
   TYPE RealTabTyp IS TABLE OF REAL INDEX BY BINARY_INTEGER;
   hiredate_tab DateTabTyp;
   sal_tab RealTabTyp;
BEGIN
   NULL;
END;
/

You might write a procedure to initialize one kind of collection:

PROCEDURE initialize (tab OUT DateTabTyp, n INTEGER) IS
BEGIN
   FOR i IN 1..n LOOP
      tab(i) := SYSDATE;
   END LOOP;
END initialize;
/

You might also write a procedure to initialize another kind of collection:

PROCEDURE initialize (tab OUT RealTabTyp, n INTEGER) IS
BEGIN
   FOR i IN 1..n LOOP
      tab(i) := 0.0;
   END LOOP;
END initialize;
/

Because the processing in these two procedures is the same, it is logical to give them the same name.

You can place the two overloaded initialize procedures in the same block, subprogram, package, or object type. PL/SQL determines which procedure to call by checking their formal parameters. In the following example, the version of initialize that PL/SQL uses depends on whether you call the procedure with a DateTabTyp or RealTabTyp parameter:

DECLARE
   TYPE DateTabTyp IS TABLE OF DATE INDEX BY BINARY_INTEGER;
   TYPE RealTabTyp IS TABLE OF REAL INDEX BY BINARY_INTEGER;
   hiredate_tab DateTabTyp;
   comm_tab RealTabTyp;
   indx BINARY_INTEGER;
   PROCEDURE initialize (tab OUT DateTabTyp, n INTEGER) IS
   BEGIN
      NULL;
   END;
   PROCEDURE initialize (tab OUT RealTabTyp, n INTEGER) IS
   BEGIN
      NULL;
   END;
BEGIN
   indx := 50;
   initialize(hiredate_tab, indx);  -- calls first version
   initialize(comm_tab, indx);      -- calls second version
END;
/

Guidelines for Overloading with Numeric Types

You can overload two subprograms if their formal parameters differ only in numeric datatype. This technique might be useful in writing mathematical APIs, where several versions of a function could use the same name, each accepting a different numeric type. For example, a function accepting BINARY_FLOAT might be faster, while a function accepting BINARY_DOUBLE might provide more precision.

To avoid problems or unexpected results passing parameters to such overloaded subprograms:

  • Make sure to test that the expected version of a subprogram is called for each set of expected parameters. For example, if you have overloaded functions that accept BINARY_FLOAT and BINARY_DOUBLE, which is called if you pass a VARCHAR2 literal such as '5.0'?

  • Qualify numeric literals and use conversion functions to make clear what the intended parameter types are. For example, use literals such as 5.0f (for BINARY_FLOAT), 5.0d (for BINARY_DOUBLE), or conversion functions such as TO_BINARY_FLOAT(), TO_BINARY_DOUBLE(), and TO_NUMBER().

PL/SQL looks for matching numeric parameters starting with PLS_INTEGER or BINARY_INTEGER, then NUMBER, then BINARY_FLOAT, then BINARY_DOUBLE. The first overloaded subprogram that matches the supplied parameters is used. A VARCHAR2 value can match a NUMBER, BINARY_FLOAT, or BINARY_DOUBLE parameter.

For example, consider the SQRT function, which takes a single parameter. There are overloaded versions that accept a NUMBER, a BINARY_FLOAT, or a BINARY_DOUBLE parameter. If you pass a PLS_INTEGER parameter, the first matching overload (using the order given in the preceding paragraph) is the one with a NUMBER parameter, which is likely to be the slowest. To use one of the faster versions, use the TO_BINARY_FLOAT or TO_BINARY_DOUBLE functions to convert the parameter to the right datatype.

For another example, consider the ATAN2 function, which takes two parameters of the same type. If you pass two parameters of the same type, you can predict which overloaded version is used through the same rules as before. If you pass parameters of different types, for example one PLS_INTEGER and one BINARY_FLOAT, PL/SQL tries to find a match where both parameters use the "higher" type. In this case, that is the version of ATAN2 that takes two BINARY_FLOAT parameters; the PLS_INTEGER parameter is converted "upwards".

The preference for converting "upwards" holds in more complicated situations. For example, you might have a complex function that takes two parameters of different types. One overloaded version might take a PLS_INTEGER and a BINARY_FLOAT parameter. Another overloaded version might take a NUMBER and a BINARY_DOUBLE parameter. What happens if you call this procedure name and pass two NUMBER parameters? PL/SQL looks "upward" first to find the overloaded version where the second parameter is BINARY_FLOAT. Because this parameter is a closer match than the BINARY_DOUBLE parameter in the other overload, PL/SQL then looks "downward" and converts the first NUMBER parameter to PLS_INTEGER.

Restrictions on Overloading

Only local or packaged subprograms, or type methods, can be overloaded. You cannot overload standalone subprograms.

You cannot overload two subprograms if their formal parameters differ only in name or parameter mode. For example, you cannot overload the following two procedures:

DECLARE
   PROCEDURE reconcile (acct_no IN INTEGER) IS
   BEGIN NULL; END;
   PROCEDURE reconcile (acct_no OUT INTEGER) IS
   BEGIN NULL; END;
/

You cannot overload subprograms whose parameters differ only in subtype. For example, you cannot overload procedures where one accepts an INTEGER parameter and the other accepts a REAL parameter, even though INTEGER and REAL are both subtypes of NUMBER and so are in the same family.

You cannot overload two functions that differ only in the datatype of the return value, even if the types are in different families. For example, you cannot overload two functions where one returns BOOLEAN and the other returns INTEGER.

How Subprogram Calls Are Resolved

Figure 8-1 shows how the PL/SQL compiler resolves subprogram calls. When the compiler encounters a procedure or function call, it tries to find a declaration that matches the call. The compiler searches first in the current scope and then, if necessary, in successive enclosing scopes. The compiler looks more closely when it finds one or more subprogram declarations in which the subprogram name matches the name of the called subprogram.

To resolve a call among possibly like-named subprograms at the same level of scope, the compiler must find an exact match between the actual and formal parameters. They must match in number, order, and datatype (unless some formal parameters were assigned default values). If no match is found or if multiple matches are found, the compiler generates a semantic error.

The following example calls the enclosing procedure swap from the function reconcile, generating an error because neither declaration of swap within the current scope matches the procedure call:

PROCEDURE swap (n1 NUMBER, n2 NUMBER) IS
   num1 NUMBER;
   num2 NUMBER;
   FUNCTION balance (...) RETURN REAL IS
    PROCEDURE swap (d1 DATE, d2 DATE) IS BEGIN NULL; END;
    PROCEDURE swap (b1 BOOLEAN, b2 BOOLEAN) IS BEGIN NULL; END;
   BEGIN
      swap(num1, num2);
      RETURN ...
   END balance;
BEGIN NULL; END;
/

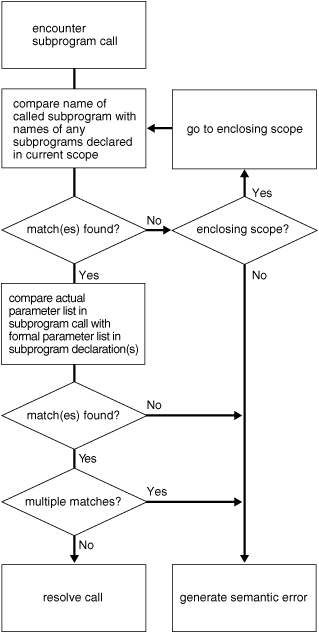

Figure 8-1 How the PL/SQL Compiler Resolves Calls

Description of lnpls012.gif follows
Description of the illustration lnpls012.gif

How Overloading Works with Inheritance

The overloading algorithm allows substituting a subtype value for a formal parameter that is a supertype. This capability is known as substitutability. If more than one instance of an overloaded procedure matches the procedure call, the following rules apply to determine which procedure is called:

If the only difference in the signatures of the overloaded procedures is that some parameters are object types from the same supertype-subtype hierarchy, the closest match is used. The closest match is one where all the parameters are at least as close as any other overloaded instance, as determined by the depth of inheritance between the subtype and supertype, and at least one parameter is closer.

A semantic error occurs when two overloaded instances match, and some argument types are closer in one overloaded procedure to the actual arguments than in any other instance.

A semantic error also occurs if some parameters are different in their position within the object type hierarchy, and other parameters are of different datatypes so that an implicit conversion would be necessary.

For example, here we create a type hierarchy with 3 levels:

CREATE TYPE super_t AS object
  (n NUMBER) NOT final;
CREATE OR replace TYPE sub_t under super_t
  (n2 NUMBER) NOT final;
CREATE OR replace TYPE final_t under sub_t
  (n3 NUMBER);

We declare two overloaded instances of a function, where the only difference in argument types is their position in this type hierarchy:

CREATE PACKAGE p IS
   FUNCTION foo (arg super_t) RETURN NUMBER;
   FUNCTION foo (arg sub_t) RETURN NUMBER;
END;
/
CREATE PACKAGE BODY p IS
   FUNCTION foo (arg super_t) RETURN NUMBER IS BEGIN RETURN 1; END;
   FUNCTION foo (arg sub_t) RETURN NUMBER  IS BEGIN RETURN 2; END;
END;
/

We declare a variable of type final_t, then call the overloaded function. The instance of the function that is executed is the one that accepts a sub_t parameter, because that type is closer to final_t in the hierarchy than super_t is.

set serveroutput on
declare
v final_t := final_t(1,2,3);
begin
  dbms_output.put_line(p.foo(v));
end;
/

In the previous example, the choice of which instance to call is made at compile time. In the following example, this choice is made dynamically.

CREATE TYPE super_t2 AS object
  (n NUMBER, MEMBER FUNCTION foo RETURN NUMBER) NOT final;
/
CREATE TYPE BODY super_t2 AS
 MEMBER FUNCTION foo RETURN NUMBER IS BEGIN RETURN 1; END; END;
/
CREATE OR replace TYPE sub_t2 under super_t2
  (n2 NUMBER,
   OVERRIDING MEMBER FUNCTION foo RETURN NUMBER) NOT final;
/
CREATE TYPE BODY sub_t2 AS
 OVERRIDING MEMBER FUNCTION foo RETURN NUMBER IS BEGIN RETURN 2;
END;
END;
/
CREATE OR replace TYPE final_t2 under sub_t2
  (n3 NUMBER);
/

We declare v as an instance of super_t2, but because we assign a value of sub_t2 to it, the appropriate instance of the function is called. This feature is known as dynamic dispatch.

set serveroutput on
declare
  v super_t2 := final_t2(1,2,3);
begin
  dbms_output.put_line(v.foo);
end;
/

Using Invoker's Rights Versus Definer's Rights (AUTHID Clause)

By default, stored procedures and SQL methods execute with the privileges of their owner, not their current user. Such definer's rights subprograms are bound to the schema in which they reside, allowing you to refer to objects in the same schema without qualifying their names. For example, if schemas SCOTT and BLAKE both have a table called dept, a procedure owned by SCOTT can refer to dept rather than SCOTT.DEPT. If user BLAKE calls SCOTT's procedure, the procedure still accesses the dept table owned by SCOTT.

If you compile the same procedure in both schemas, you can define the schema name as a variable in SQL*Plus and refer to the table like &schema..dept. The code is portable, but if you change it, you must recompile it in each schema.

A more maintainable way is to use the AUTHID clause, which makes stored procedures and SQL methods execute with the privileges and schema context of the calling user. You can create one instance of the procedure, and many users can call it to access their own data.

Such invoker's rights subprograms are not bound to a particular schema. The following version of procedure create_dept executes with the privileges of the calling user and inserts rows into that user's dept table:

CREATE PROCEDURE create_dept (
   my_deptno NUMBER,
   my_dname  VARCHAR2,
   my_loc    VARCHAR2) AUTHID CURRENT_USER AS
BEGIN
   INSERT INTO dept VALUES (my_deptno, my_dname, my_loc);
END;
/

Advantages of Invoker's Rights

Invoker's rights subprograms let you reuse code and centralize application logic. They are especially useful in applications that store data using identical tables in different schemas. All the schemas in one instance can call procedures owned by a central schema. You can even have schemas in different instances call centralized procedures using a database link.

Consider a company that uses a stored procedure to analyze sales. If the company has several schemas, each with a similar SALES table, normally it would also need several copies of the stored procedure, one in each schema.

To solve the problem, the company installs an invoker's rights version of the stored procedure in a central schema. Now, all the other schemas can call the same procedure, which queries the appropriate to SALES table in each case.

You can restrict access to sensitive data by calling from an invoker's rights subprogram to a definer's rights subprogram that queries or updates the table containing the sensitive data. Although multiple users can call the invoker's rights subprogram, they do not have direct access to the sensitive data.

Specifying the Privileges for a Subprogram with the AUTHID Clause

To implement invoker's rights, use the AUTHID clause, which specifies whether a subprogram executes with the privileges of its owner or its current user. It also specifies whether external references (that is, references to objects outside the subprogram) are resolved in the schema of the owner or the current user.

The AUTHID clause is allowed only in the header of a standalone subprogram, a package spec, or an object type spec. In the CREATE FUNCTION, CREATE PROCEDURE, CREATE PACKAGE, or CREATE TYPE statement, you can include either AUTHID CURRENT_USER or AUTHID DEFINER immediately before the IS or AS keyword that begins the declaration section.

DEFINER is the default option. In a package or object type, the AUTHID clause applies to all subprograms.

Note: Most supplied PL/SQL packages (such as DBMS_LOB, DBMS_PIPE, DBMS_ROWID, DBMS_SQL, and UTL_REF) are invoker's rights packages.

Who Is the Current User During Subprogram Execution?

In a sequence of calls, whenever control is inside an invoker's rights subprogram, the current user is the session user. When a definer's rights subprogram is called, the owner of that subprogram becomes the current user. The current user might change as new subprograms are called or as subprograms exit.

To verify who the current user is at any time, you can check the USER_USERS data dictionary view. Inside an invoker's rights subprogram, the value from this view might be different from the value of the USER built-in function, which always returns the name of the session user.

How External References Are Resolved in Invoker's Rights Subprograms

If you specify AUTHID CURRENT_USER, the privileges of the current user are checked at run time, and external references are resolved in the schema of the current user. However, this applies only to external references in:

  • SELECT, INSERT, UPDATE, and DELETE data manipulation statements

  • The LOCK TABLE transaction control statement

  • OPEN and OPEN-FOR cursor control statements

  • EXECUTE IMMEDIATE and OPEN-FOR-USING dynamic SQL statements

  • SQL statements parsed using DBMS_SQL.PARSE()

For all other statements, the privileges of the owner are checked at compile time, and external references are resolved in the schema of the owner. For example, the assignment statement below refers to the packaged function balance. This external reference is resolved in the schema of the owner of procedure reconcile.

CREATE PROCEDURE reconcile (acc_id IN INTEGER)
   AUTHID CURRENT_USER AS
   bal NUMBER;
BEGIN
   bal := bank_ops.balance(acct_id);
   ...
END;
/

The Need for Template Objects in Invoker's Rights Subprograms

The PL/SQL compiler must resolve all references to tables and other objects at compile time. The owner of an invoker's rights subprogram must have objects in the same schema with the right names and columns, even if they do not contain any data. At run time, the corresponding objects in the caller's schema must have matching definitions. Otherwise, you get an error or unexpected results, such as ignoring table columns that exist in the caller's schema but not in the schema that contains the subprogram.

Overriding Default Name Resolution in Invoker's Rights Subprograms

Occasionally, you might want an unqualified name to refer to some particular schema, not the schema of the caller. In the same schema as the invoker's rights subprogram, create a public synonym for the table, procedure, function, or other object using the CREATE SYNONYM statement:

CREATE PUBLIC SYNONYM emp FOR hr.employees;

When the invoker's rights subprogram refers to this name, it will match the synonym in its own schema, which resolves to the object in the specified schema. This technique does not work if the calling schema already has a schema object or private synonym with the same name. In that case, the invoker's rights subprogram must fully qualify the reference.

Granting Privileges on Invoker's Rights Subprograms

To call a subprogram directly, users must have the EXECUTE privilege on that subprogram. By granting the privilege, you allow a user to:

  • Call the subprogram directly

  • Compile functions and procedures that call the subprogram

For external references resolved in the current user's schema (such as those in DML statements), the current user must have the privileges needed to access schema objects referenced by the subprogram. For all other external references (such as function calls), the owner's privileges are checked at compile time, and no run-time check is done.

A definer's rights subprogram operates under the security domain of its owner, no matter who is executing it. The owner must have the privileges needed to access schema objects referenced by the subprogram.

You can write a program consisting of multiple subprograms, some with definer's rights and others with invoker's rights. Then, you can use the EXECUTE privilege to restrict program entry points. That way, users of an entry-point subprogram can execute the other subprograms indirectly but not directly.

Granting Privileges on an Invoker's Rights Subprogram: Example

Suppose user UTIL grants the EXECUTE privilege on subprogram FFT to user APP:

GRANT EXECUTE ON util.fft TO app;

Now, user APP can compile functions and procedures that call subprogram FFT. At run time, no privilege checks on the calls are done. As Figure 8-2 shows, user UTIL need not grant the EXECUTE privilege to every user who might call FFT indirectly.

Since subprogram util.fft is called directly only from invoker's rights subprogram app.entry, user util must grant the EXECUTE privilege only to user APP. When UTIL.FFT is executed, its current user could be APP, SCOTT, or BLAKE even though SCOTT and BLAKE were not granted the EXECUTE privilege.

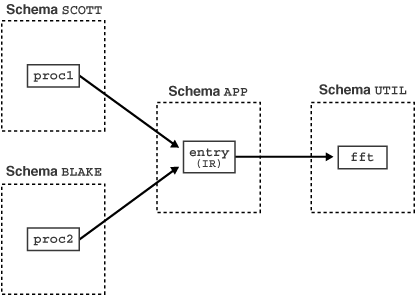

Figure 8-2 Indirect Calls to an Invoker's Rights Subprogram

Description of lnpls026.gif follows
Description of the illustration lnpls026.gif

Using Roles with Invoker's Rights Subprograms

The use of roles in a subprogram depends on whether it executes with definer's rights or invoker's rights. Within a definer's rights subprogram, all roles are disabled. Roles are not used for privilege checking, and you cannot set roles.

Within an invoker's rights subprogram, roles are enabled (unless the subprogram was called directly or indirectly by a definer's rights subprogram). Roles are used for privilege checking, and you can use native dynamic SQL to set roles for the session. However, you cannot use roles to grant privileges on template objects because roles apply at run time, not at compile time.

Using Views and Database Triggers with Invoker's Rights Subprograms

For invoker's rights subprograms executed within a view expression, the schema that created the view, not the schema that is querying the view, is considered to be the current user.

This rule also applies to database triggers.

Using Database Links with Invoker's Rights Subprograms

You can create a database link to use invoker's rights:

CREATE DATABASE LINK link_name CONNECT TO CURRENT_USER
   USING connect_string;

A current-user link lets you connect to a remote database as another user, with that user's privileges. To connect, Oracle uses the username of the current user (who must be a global user). Suppose an invoker's rights subprogram owned by user BLAKE references the database link below. If global user SCOTT calls the subprogram, it connects to the Dallas database as user SCOTT, who is the current user.

CREATE DATABASE LINK dallas CONNECT TO CURRENT_USER USING ...

If it were a definer's rights subprogram, the current user would be BLAKE, and the subprogram would connect to the Dallas database as global user BLAKE.

Using Object Types with Invoker's Rights Subprograms

To define object types for use in any schema, specify the AUTHID CURRENT_USER clause. (For more information about object types, see Chapter 12, " Using PL/SQL Object Types".) Suppose user BLAKE creates the following object type:

CREATE TYPE Num AUTHID CURRENT_USER AS OBJECT (
   x NUMBER,
   STATIC PROCEDURE new_num (
      n NUMBER, schema_name VARCHAR2, table_name VARCHAR2)
);
/

CREATE TYPE BODY Num AS
   STATIC PROCEDURE new_num (
      n NUMBER, schema_name VARCHAR2, table_name VARCHAR2) IS
      sql_stmt VARCHAR2(200);
   BEGIN
      sql_stmt := 'INSERT INTO ' || schema_name || '.'
         || table_name || ' VALUES (blake.Num(:1))';
      EXECUTE IMMEDIATE sql_stmt USING n;
   END;
END;
/

Then, user BLAKE grants the EXECUTE privilege on object type Num to user SCOTT:

GRANT EXECUTE ON Num TO scott;

Finally, user SCOTT creates an object table to store objects of type Num, then calls procedure new_num to populate the table:

CONNECT scott/tiger;
CREATE TABLE num_tab OF blake.Num;
/
BEGIN
   blake.Num.new_num(1001, 'scott', 'num_tab');
   blake.Num.new_num(1002, 'scott', 'num_tab');
   blake.Num.new_num(1003, 'scott', 'num_tab');
END;
/

The calls succeed because the procedure executes with the privileges of its current user (SCOTT), not its owner (BLAKE).

For subtypes in an object type hierarchy, the following rules apply:

  • If a subtype does not explicitly specify an AUTHID clause, it inherits the AUTHID of its supertype.

  • If a subtype does specify an AUTHID clause, its AUTHID must match the AUTHID of its supertype. Also, if the AUTHID is DEFINER, both the supertype and subtype must have been created in the same schema.

Calling Invoker's Rights Instance Methods

An invoker's rights instance method executes with the privileges of the invoker, not the creator of the instance. Suppose that Person is an invoker's rights object type, and that user SCOTT creates p1, an object of type Person. If user BLAKE calls instance method change_job to operate on object p1, the current user of the method is BLAKE, not SCOTT. Consider the following example:

-- user blake creates a definer-rights procedure
CREATE PROCEDURE reassign (p Person, new_job VARCHAR2) AS
BEGIN
   -- user blake calls method change_job, so the
   -- method executes with the privileges of blake
   p.change_job(new_job);
   ...
END;
/

-- user scott passes a Person object to the procedure
DECLARE
   p1 Person;
BEGIN
   p1 := Person(...);
   blake.reassign(p1, 'CLERK');
   ...
END;
/

Using Recursion with PL/SQL

Recursion is a powerful technique for simplifying the design of algorithms. Basically, recursion means self-reference. In a recursive mathematical sequence, each term is derived by applying a formula to preceding terms. The Fibonacci sequence (0, 1, 1, 2, 3, 5, 8, 13, 21, ...), is an example. Each term in the sequence (after the second) is the sum of the two terms that immediately precede it.

In a recursive definition, something is defined as simpler versions of itself. Consider the definition of n factorial (n!), the product of all integers from 1 to n:

n! = n * (n - 1)!

What Is a Recursive Subprogram?

A recursive subprogram is one that calls itself. Each recursive call creates a new instance of any items declared in the subprogram, including parameters, variables, cursors, and exceptions. Likewise, new instances of SQL statements are created at each level in the recursive descent.

Be careful where you place a recursive call. If you place it inside a cursor FOR loop or between OPEN and CLOSE statements, another cursor is opened at each call, which might exceed the limit set by the Oracle initialization parameter OPEN_CURSORS.

There must be at least two paths through a recursive subprogram: one that leads to the recursive call and one that does not. At least one path must lead to a terminating condition. Otherwise, the recursion would go on until PL/SQL runs out of memory and raises the predefined exception STORAGE_ERROR.

Calling External Subprograms

Although PL/SQL is a powerful, flexible language, some tasks are more easily done in another language. Low-level languages such as C are very fast. Widely used languages such as Java have reusable libraries for common design patterns.

You can use PL/SQL call specs to invoke external subprograms written in other languages, making their capabilities and libraries available from PL/SQL.

For example, you can call Java stored procedures from any PL/SQL block, subprogram, or package. Suppose you store the following Java class in the database:

import java.sql.*;
import oracle.jdbc.driver.*;
public class Adjuster {
  public static void raiseSalary (int empNo, float percent)
  throws SQLException {
    Connection conn = new OracleDriver().defaultConnection();
    String sql = "UPDATE emp SET sal = sal * ? WHERE empno = ?";
    try {
      PreparedStatement pstmt = conn.prepareStatement(sql);
      pstmt.setFloat(1, (1 + percent / 100));
      pstmt.setInt(2, empNo);
      pstmt.executeUpdate();
      pstmt.close();
    } catch (SQLException e) {System.err.println(e.getMessage());}
  }
}

The class Adjuster has one method, which raises the salary of an employee by a given percentage. Because raiseSalary is a void method, you publish it as a procedure using this call spec:

CREATE PROCEDURE raise_salary (empno NUMBER, pct NUMBER)
AS LANGUAGE JAVA
NAME 'Adjuster.raiseSalary(int, float)';

You might call procedure raise_salary from an anonymous PL/SQL block:

DECLARE
   emp_id  NUMBER;
   percent NUMBER;
BEGIN
   -- get values for emp_id and percent
   raise_salary(emp_id, percent);  -- call external subprogram
END;
/

External C subprograms are used to interface with embedded systems, solve engineering problems, analyze data, or control real-time devices and processes. External C subprograms extend the functionality of the database server, and move computation-bound programs from client to server, where they execute faster.

For more information about Java stored procedures, see Oracle Database Java Developer's Guide. For more information about external C subprograms, see Oracle Database Application Developer's Guide - Fundamentals.

Creating Dynamic Web Pages with PL/SQL Server Pages

PL/SQL Server Pages (PSPs) enable you to develop Web pages with dynamic content. They are an alternative to coding a stored procedure that writes out the HTML code for a web page, one line at a time.

Using special tags, you can embed PL/SQL scripts into HTML source code. The scripts are executed when the pages are requested by Web clients such as browsers. A script can accept parameters, query or update the database, then display a customized page showing the results.

During development, PSPs can act like templates with a static part for page layout and a dynamic part for content. You can design the layouts using your favorite HTML authoring tools, leaving placeholders for the dynamic content. Then, you can write the PL/SQL scripts that generate the content. When finished, you simply load the resulting PSP files into the database as stored procedures.

For more information about creating and using PSPs, see Oracle Database Application Developer's Guide - Fundamentals.

Controlling Side Effects of PL/SQL Subprograms

To be callable from SQL statements, a stored function (and any subprograms called by that function) must obey certain "purity" rules, which are meant to control side effects:

If any SQL statement inside the function body violates a rule, you get an error at run time (when the statement is parsed).

To check for violations of the rules, you can use the pragma (compiler directive) RESTRICT_REFERENCES. The pragma asserts that a function does not read or write database tables or package variables. For example, the following pragma asserts that packaged function credit_ok writes no database state (WNDS) and reads no package state (RNPS):

CREATE PACKAGE loans AS
   FUNCTION credit_ok RETURN BOOLEAN;
   PRAGMA RESTRICT_REFERENCES (credit_ok, WNDS, RNPS);
END loans;
/

Note: A static INSERT, UPDATE, or DELETE statement always violates WNDS. It also violates RNDS (reads no database state) if it reads any columns. A dynamic INSERT, UPDATE, or DELETE statement always violates WNDS and RNDS.

For full syntax details, see "RESTRICT_REFERENCES Pragma". For more information about the purity rules, see Oracle Database Application Developer's Guide - Fundamentals.

Understanding Subprogram Parameter Aliasing

To optimize a subprogram call, the PL/SQL compiler can choose between two methods of parameter passing. With the by-value method, the value of an actual parameter is passed to the subprogram. With the by-reference method, only a pointer to the value is passed; the actual and formal parameters reference the same item.

The NOCOPY compiler hint increases the possibility of aliasing (that is, having two different names refer to the same memory location). This can occur when a global variable appears as an actual parameter in a subprogram call and then is referenced within the subprogram. The result is indeterminate because it depends on the method of parameter passing chosen by the compiler.

Example 8-7 Aliasing from Passing Global Variable with NOCOPY Hint

In the example below, procedure ADD_ENTRY refers to varray LEXICON both as a parameter and as a global variable. When ADD_ENTRY is called, the identifiers WORD_LIST and LEXICON point to the same varray.

DECLARE
   TYPE Definition IS RECORD (
      word    VARCHAR2(20),
      meaning VARCHAR2(200));
   TYPE Dictionary IS VARRAY(2000) OF Definition;
   lexicon Dictionary := Dictionary();
   PROCEDURE add_entry (word_list IN OUT NOCOPY Dictionary) IS
   BEGIN
     word_list(1).word := 'aardvark';
     lexicon(1).word := 'aardwolf';
   END;
BEGIN
   lexicon.EXTEND;
   add_entry(lexicon);
   dbms_output.put_line(lexicon(1).word);
END;
/

The program prints aardwolf if the compiler obeys the NOCOPY hint. The assignment to WORD_LIST is done immediately through a pointer, then is overwritten by the assignment to LEXICON.

The program prints aardvark if the NOCOPY hint is omitted, or if the compiler does not obey the hint. The assignment to WORD_LIST uses an internal copy of the varray, which is copied back to the actual parameter (overwriting the contents of LEXICON) when the procedure ends.

Example 8-8 Aliasing Passing Same Parameter Multiple Times

Aliasing can also occur when the same actual parameter appears more than once in a subprogram call. In the example below, n2 is an IN OUT parameter, so the value of the actual parameter is not updated until the procedure exits. That is why the first put_line prints 10 (the initial value of n) and the third put_line prints 20. However, n3 is a NOCOPY parameter, so the value of the actual parameter is updated immediately. That is why the second put_line prints 30.

DECLARE
   n NUMBER := 10;
   PROCEDURE do_something (
      n1 IN NUMBER,
      n2 IN OUT NUMBER,
      n3 IN OUT NOCOPY NUMBER) IS
   BEGIN
      n2 := 20;
      dbms_output.put_line(n1);  -- prints 10
      n3 := 30;
      dbms_output.put_line(n1);  -- prints 30
   END;
BEGIN
   do_something(n, n, n);
   dbms_output.put_line(n);  -- prints 20
END;
/

Example 8-9 Aliasing from Assigning Cursor Variables to Same Work Area

Because they are pointers, cursor variables also increase the possibility of aliasing. In the following example, after the assignment, emp_cv2 is an alias of emp_cv1; both point to the same query work area. The first fetch from emp_cv2 fetches the third row, not the first, because the first two rows were already fetched from emp_cv1. The second fetch from emp_cv2 fails because emp_cv1 is closed.

PROCEDURE get_emp_data (
   emp_cv1 IN OUT EmpCurTyp,
   emp_cv2 IN OUT EmpCurTyp) IS
   emp_rec employees%ROWTYPE;
BEGIN
   OPEN emp_cv1 FOR SELECT * FROM employees;
   emp_cv2 := emp_cv1;
   FETCH emp_cv1 INTO emp_rec;  -- fetches first row
   FETCH emp_cv1 INTO emp_rec;  -- fetches second row
   FETCH emp_cv2 INTO emp_rec;  -- fetches third row
   CLOSE emp_cv1;
   FETCH emp_cv2 INTO emp_rec;  -- raises INVALID_CURSOR
END;
/
