Cray: Faster Than A Bottleneck Bullet (BYTE Article)
Cray Research started its Business Systems Division about four years
ago to build supercomputer systems that would serve business needs.
The company's Cray CS6400 Enterprise Server uses an SMP architecture
to support up to 64 SuperSparcs, each clocked at 60 or 85 MHz.
Since bus traffic normally degrades an SMP design that's built
around eight processors, the CS6400 seems to defy logic. The system
dodges this limit by using four buses instead of one to reduce
memory contention. Each bus has its own private bank of RAM, while

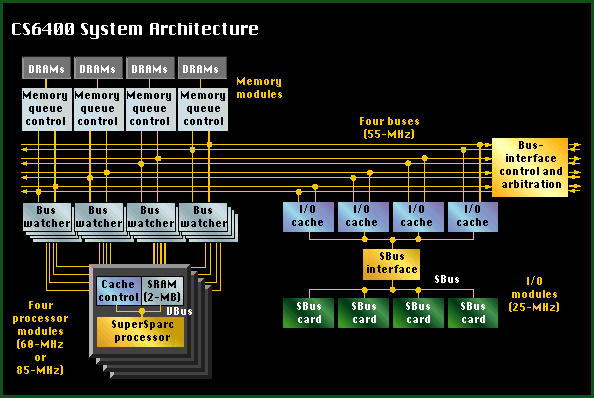

the processors connect to every bus, as shown in the figure .
Physical memory is interleaved among all four memory banks to create
a shared memory space. You can add up to 64 memory modules to the
system, for a maximum of 16 GB of RAM. To reduce bus traffic
further, every processor module (which consists of four processors)
has a 2-MB static RAM (SRAM) cache. Bus-watcher logic snoops all
memory accesses and updates the caches to maintain memory coherency.
To ensure optimum I/O throughput, up to 16 buses support up to 64
I/O controllers. The I/O subsystem can manage up to 5 TB of on-line
storage. Larger storage capacity is possible via the use of either
disk arrays or an off-line archival medium, such as tape. The CS6400
supports communications via Ethernet, 100-Mbps Ethernet, FDDI/CDDI,
Token Ring, and ATM.
To host mission-critical applications, a System Service Processor (SSP)
-- which is actually a built-in Sun workstation -- monitors the
system's health. In the event of a major failure, the SSP restarts
the system and logically removes the problematic har dware. The
system design allows you to hot-swap faulty hardware without
interrupting service.
The computer runs Solaris 2.4, which is a Unix S5R4 derivative from
Sun Microsystems. It can host Sun workstation applications and
provide access to database applications, such as Oracle's Oracle7
and Informix Software's Informix Online Dynamic Server. The alliance
with Sun also fits into a strategy of offering workstation solutions
(via Sun), with connectivity to the CS6400 to tackle the huge jobs.
A basic Cray CS6400 has one processor module and 512 MB of RAM (but
no disk) and costs $400,000. The basic system is rated at 3.8 GFLOPS,
although floating-point calculations don't normally figure into the
type of work this system does. The big box, with up to 64 processors
and 16 GB of RAM, costs about $4 million.
The CS6400 is rather like the
SPARCcenter-2000 in principle, but there are some significant
differences:
- a quad-XDBus design:

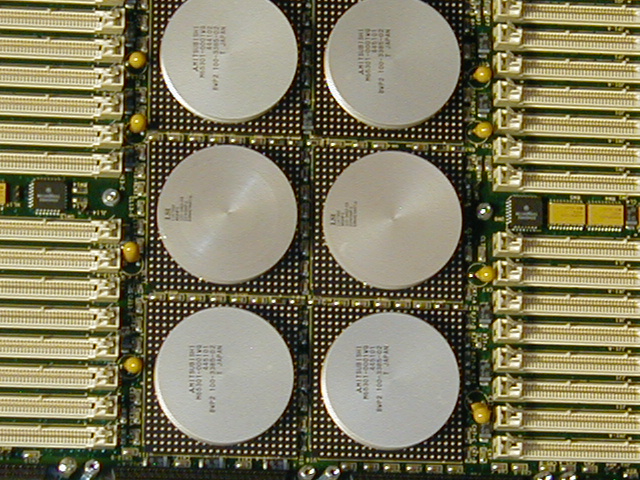

Judging from the
pictures (especially the large number of bus-watcher chips
per board), each system board connects to all four XDBuses.
- XBus/XDBus runs at 55MHz (possibly 50MHz in early models).

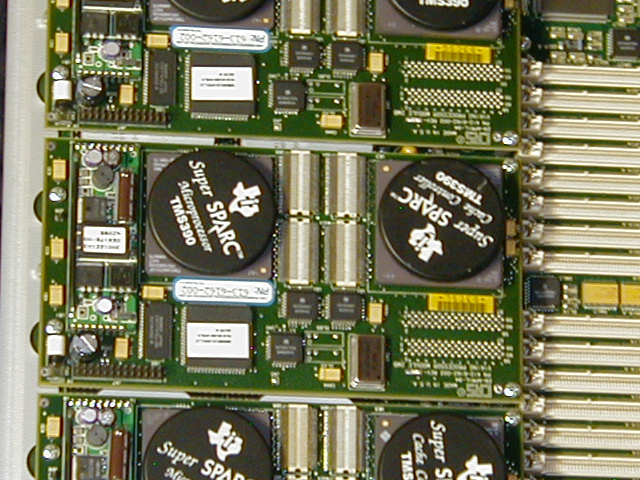

- 'Custom format' XBus CPU modules - with multiple pin-grid
connectors per module rather than the otherwise typical MBus
connector.

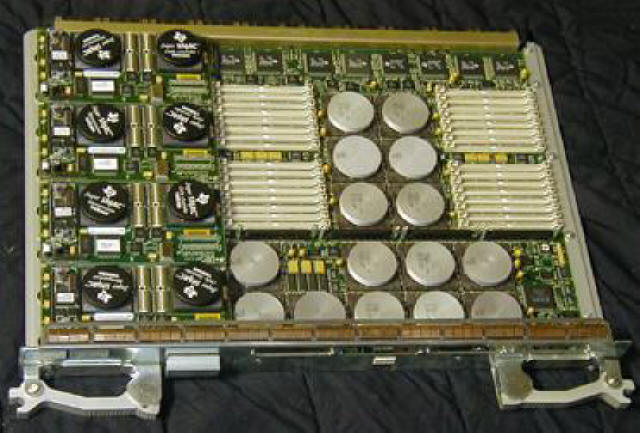

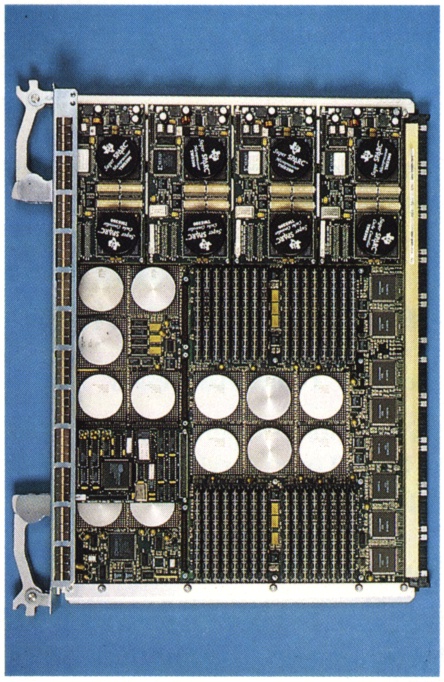

- Maximum of 64 SuperSPARC CPUs: upto 16 system-boards each
with upto 4 CPU modules.
- Mainframe-like "system-domains" capability, similar to the
UltraSPARC-based Sun E10000 (StarFire).
- The chassis fans are probably under software control...!
The CS6400 cannot use standard MBus/XBus modules, but rather must
use CS6400-specific modules (the module PCB layout is completely
different). Confusingly, the CS6400-format CPU modules share the
same names as the equivalent 'normal-format' modules: standard CPU
options for the CS6400 list "SM51", "SM61", "SM51-2", "SM61-2"
modules, with "SM81-2" listed as a standard upgrade.
The latter implies that even the hottest SuperSPARC CPU modules
would not overheat any part of the CS6400.
You cannot use HyperSPARC, SM100 or CYM6001K CPU modules in the
CS6400.
The CS6400 does "dynamic PROM selection" (within each domain!) in
a similar manner to the
SPARCcenter-2000, so the issues regarding having the same PROM
versions on each system-board within a domain obviously apply.

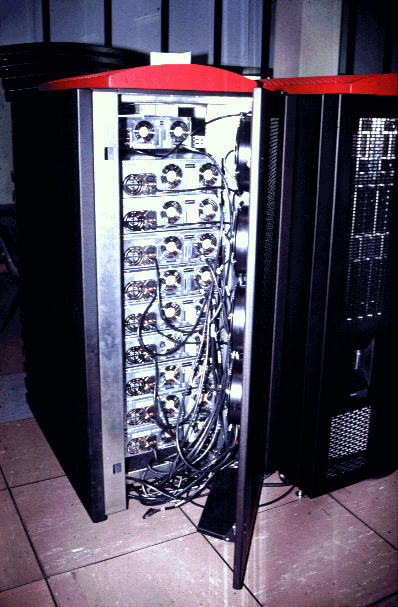

Cray Superserver 6400
CS6400
Data Center Cabinet
| PART # |
BSD PART # |
DESCRIPTION |
| 370-2732 |
420-6146-001 |
Microcom Modem |
| 370-2733 |
429-6007-001 |
Blower Assembly, 60Hz |
| 370-2734 |
429-6007-002 |
Blower Assembly, 60Hz |
| 370-2735 |
429-6008-001 |
AC Line Filter / Main Breaker, 50Hz |
| 370-2736 |
429-6009-001 |
AC Line Filter / Main Breaker, 60Hz |
| 370-2737 |
429-6009-002 |
AC Line Filter / Main Breaker, 60Hz |
| 370-2738 |
435-6000-007 |
I/O Cabinet PDU, 60Hz |
| 370-2739 |
435-6000-008 |
I/O Cabinet PDU, 50Hz |
| 370-2740 |
612-6002-001 |
Centerplane |
| 370-2741 |
613-6003-003 |
Control Board 1 |
| 370-2742 |
613-6003-004 |
Control Board 2 |
| 370-2743 |
613-6004-004 |
System Board 2 |
| 370-2744 |
655-6103-001 |
Blower Cable, Front and Rear |
| 370-2745 |
671-6128-001 |
Hot Swap Power Module |
| 370-2746 |
421-6011-001 |
8MB SIMM Module |
| 370-2747 |
421-6012-001 |
32MB SIMM Module |
| 370-2748 |
420-6049-001 |
RS232 Serial Port PC Card |
| 370-2749 |
420-6049-002 |
RS232 Serial Port PC Card |
| 370-2750 |
420-6045-001 |
HIPPI Interface CHI Systems |
| 370-2751 |
420-6081-001 |
Exabyte EXB-8505 Tape Drive |
| 370-2752 |
420-6081-002 |
Exabyte EXB-8505 Tape Drive |
| 370-2753 |
420-6144-001 |
QIC 1/4" Tape Drive |
| 370-2754 |
421-6044-001 |
Dual Attach FDDI Interface |
| 370-2755 |
655-6010-001 |
Tape Chassis SCSI Cable |
| 370-2756 |
422-6118-003 |
68-Pin Differential SCSI Cable, 6M |
| 370-2757 |
422-6150-001 |
External Remote Power Control Cable |
| 370-2758 |
KIT85 |
EMI Material, SuperSPARC II Upgrade |
| 370-2759 |
408-6007-002 |
Blower Airvane Switch Sensor |
| 370-2760 |
612-6061-010 |
60MHz SuperSPARC Module |
| 370-2761 |
612-6162-002 |
60MHz SuperSPARC Module |
| 370-2762 |
612-6175-001 |
85MHz SuperSPARC II Module |
| 370-2763 |
409-6011-001 |
Tape Chassis 200W Power Supply |
| 370-2764 |
409-6012-001 |
Disk Tray 300W Power Supply |
| 370-2765 |
420-6063-001 |
2.9GB Dual Port Disk Drive |
| 370-2766 |
420-6113-001 |
2.9GB Dual Port Disk Drive 3 |
| 370-2767 |
420-6114-002 |
Dual Port Disk Tray |
| 370-2768 |
420-6114-002 |
Enhanced Dual Port Disk Tray |
| 370-2769 |
420-6116-001 |
Tape Drive Chassis |
| 370-2770 |
420-6117-001 |
9GB Single Port Disk Drive |
| 370-2771 |
420-6117-002 |
9GB Single Port Disk Drive |
| 370-2772 |
420-6170-001 |
Single Port Disk Tray |
| 370-2773 |
420-6170-002 |
Enhanced Single Port Disk Tray |
| 370-2774 |
612-6010-001 |
ECB Assembly, Seagate Elite-9
Adapter |
| 370-2775 |
655-6011-001 |
SCSI Disk Drive Port-A Cable |
| 370-2776 |
655-6012-001 |
SCSI Disk Drive Port-B Cable |
| 370-2777 |
655-6013-001 |
Single Port SCSI Disk Drive Cable |
| 370-2778 |
420-6126-001 |
Differential SCSI Terminator |
| 370-2779 |
422-6124-001 |
System Service Processor Interface
Cable |
| 370-2780 |
429-6005-001 |
Backplane Assembly, Power Supply |
| 370-2781 |
CS3T2-020191 |
10-inch Fan |
| 370-2782 |
435-6000-010 |
Circuit Breaker, Main, 250V |
| 370-2783 |
435-6000-012 |
Circuit Breaker, Fan, 415V |
| 370-2784 |
435-6000-013 |
Circuit Breaker, Fan, 415V, 62DL |
| 370-2785 |
436-6000-003 |
Air Filter, 9.5" × 22.75" × 0.43" |
| 370-2786 |
SP-16ASYN-01 |
16 Port Asynchronous Interface |
| 370-2787 |
SP-ATM100-01 |
4615 SBus with 100MB ATM Adapter |
| 370-2788 |
SP-ATM155-01 |
4615 SBus with 155MB ATM Adapter |
| 370-2789 |
SP-DLTLM5-01 |
Tape Library |
| 370-2790 |
SP-DLT450-01 |
Table-Top Tape Library |
| 370-2791 |
SP-F3480S-01 |
1/2" Desktop Cartridge Tape Drive |
| 370-2792 |
SP-CBL005-01 |
Differential SCSI Cable, 20' |
| 370-2793 |
SP-CBL007-01 |
Differential SCSI Cable, 10' |
| 370-2794 |
SP-XTBASE-01 |
HMX NCD Xterminal Base |
| 370-2795 |
SP-XTMON-01 |
RHMX NCD Xterminal Monitor |
| 370-2796 |
SP-XTKEY-01 |
HMX NCD Xterminal Keyboard |
| 370-2797 |
SP-XTMSE-01 |
RHMX NCD Xterminal Mouse |
| 370-2798 |
SP-EX903-01 |
EX480 TMCS Card |
| 370-2799 |
SP-EX904-01 |
Exabyte EXB-480 Long Axis Belt |
| 370-2800 |
SP-EX905-01 |
Exabyte EXB-480 Front Panel
Assembly |
| 370-2801 |
SP-EX906-01 |
EXB-480 Robotic Arm w Barcode
Reader |
| 370-2802 |
SP-EX907-01 |
Exabyte EXB-480 CHM Flex Cable |
| 370-2803 |
SP-EX908-01 |
Exabyte EXB-480 Power Supply and
Fan |
| 370-2804 |
SP-EX909-01 |
Exabyte EXB-8505SL Drive with
Carrier |
| 370-2806 |
409-6010-005 |
Power Supply 1 |
| 370-2807 |
409-6010-006 |
Power Supply 2 |
- Not compatible with 85MHz SuperSPARC II.
- Compatible with 60MHz SuperSPARC and 85MHz
SuperSPARC II.
- Seagate 992004-001 (firmware level 0105) works with
CS6400, but Seagate 992004-003 (firmware level 2100)
fails. See details on
370-2766 or Bug ID 4418573.
