Sun Microsystems

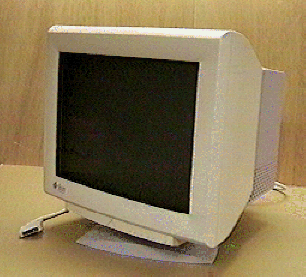

21-inch Premium Color Monitor
365-1383 / 365-1384 / 365-1385 / 365-1386



Part Numbers
Option
MFG Part #
Description
X7121A 365-1383 [F] 21" Premium Color Monitor, DB13W3 with non-removable 2.0M Video Cable
X7121A-O 365-1384 21" Premium Color Monitor, (logoless), DB13W3 with non-removable 2.0M Video Cable
X7121A-STH 365-1385 21" Premium Color Monitor, (Southern Hemisphere), DB13W3 with non-removable 2.0M Video Cable
X7121A-K 365-1386 21" Premium Color Monitor, (Korean), DB13W3 with non-removable 2.0M Video Cable
Supported Resolutions / Timings
Pixel Resolution
Horizontal Frequency
Vertical Frequency
Pixel Frequency
960 × 680
81.13 kHz
112.37 Hz
101.2 MHz
1152 × 900
61.84 kHz
66 Hz
94.5 MHz
1152 × 900
71.81 kHz
76.14 Hz
108 MHz
1280 × 1024
71.69 kHz
67.18 Hz
117 MHz
1280 × 1024
81.1 kHz
76.1 Hz
135 MHz
1600 × 1200
93.75 kHz
75 Hz
202.2 MHz
Quick Facts
Code Name Hurricane
Model GDM-5010PT (Sony)
Serial Number Location Back
FCS Date n/a
EOL April, 2001
EOSL April, 2006
Warranty n/a

Specifications

Actual Screen Size 502.92 mm (19.8 in)
Image Size 350 mm Horizontal, 270 mm Vertical, 442 mm Diagonal (13.77 in Horizontal, 10.62 in Vertical, 17.40 in Diagonal)
Dot Pitch .26 mm center, .28 mm corner (.010 in center, .011 in corner)
Sync Input Combined/Separate
Horizontal Scan 30khz - 96khz
Vertical Scan 48hz - 160hz
Power Consumption

Operating Voltage

Input Current

Input Power

BTU/hr

115 VAC
90 - 132
2.0 A (max)
140W (typical), 224W (max)
761
230 VAC
200 - 240
1.0 A (max)
135W (typical), 200W (max)
680
Energy Star Compliant Yes
Dimensions (w × h × d) 500.3 mm × 502.5 mm × 476.5 mm (19.69 in × 19.78 in × 18.75 in)
Weight 31 kg (68.34 lbs)
Environmental

Operating

Storage

Shipping

Temperature: 10º to 35º C (50º to 95º F)
Humidity: 10% to 90% non-condensing
Altitude: Sea level to 3048m(10,000ft)
Temperature: 0º to 60º C (32º to 140º F)
Humidity: 5% to 90% non-condensing
Temperature: -40º to 35º C (-40º to 95º F)
Humidity: 5% to 95% non-condensing
Altitude: Sea level to 10675m(35,000ft)
Reliability 110K hours MTBF
Notes This monitor is PC compatible.
21-Inch Premium Color Monitor Guide

Monitor Cables


Input Connector

DB13W3 Connector
Pin Signal
1
DDC clock
2
+5V from framebuffer
3
Sense 2
4
Sgnd
5
Csync
6
DDC data I/O
7
Vsync
8
Sense 1
9
Sense 0
10
Cgnd
A1
Red
A2
Green
A3
Blue
S0 and S1 are grounded. The Sense Code is 4.
HD15 Connector
Pin Signal
1
Red
2
Green
3
Blue
4
Not used
5
Sgnd
6
Red ground
7
Green ground
8
Blue ground
9
Not used
10
Sync ground
11
Not used
12
DDC data
13
Hsync
14
Vsync
15
DDC clock
Pin-13 accepts Composite Sync if Vsync is not present on Pin-14.
